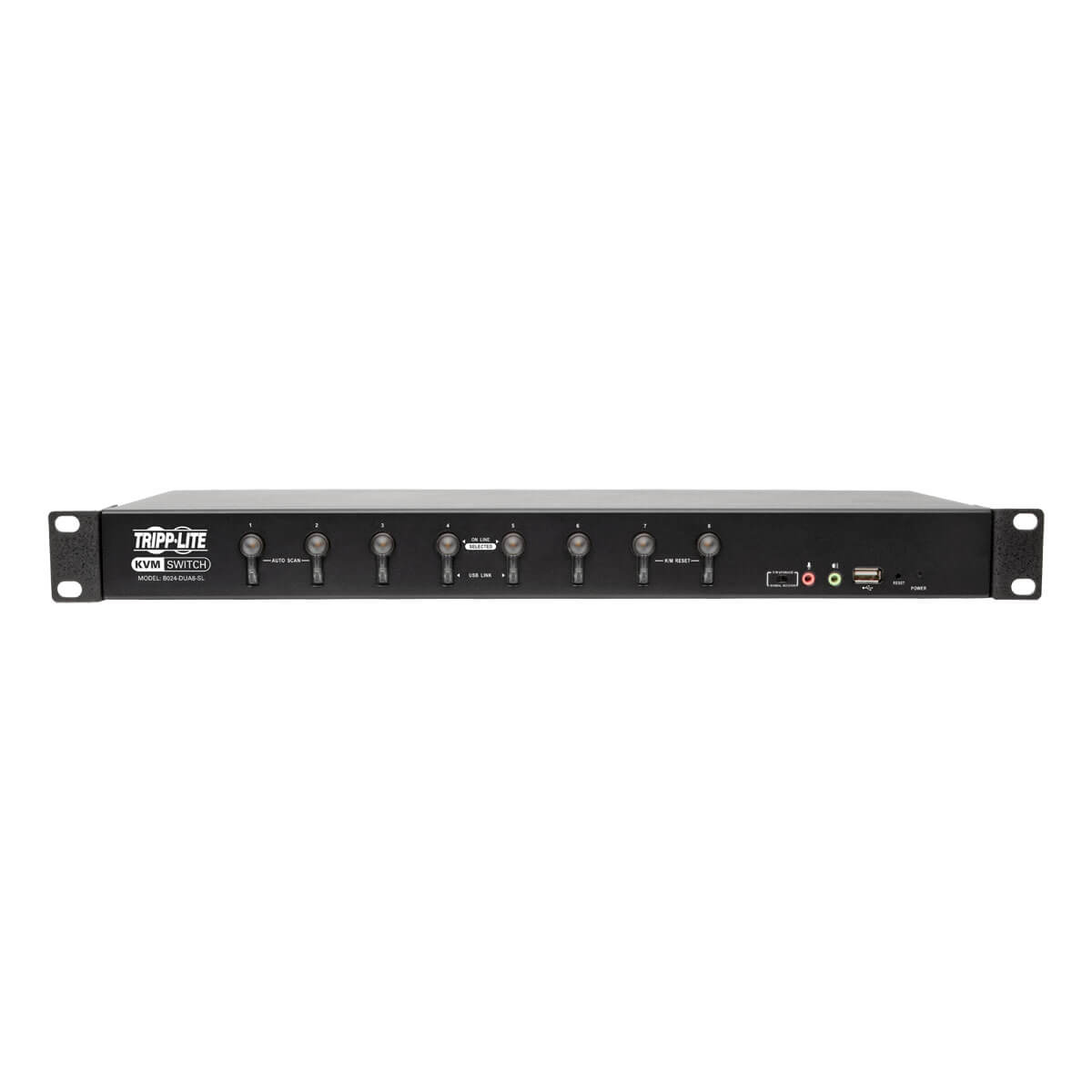

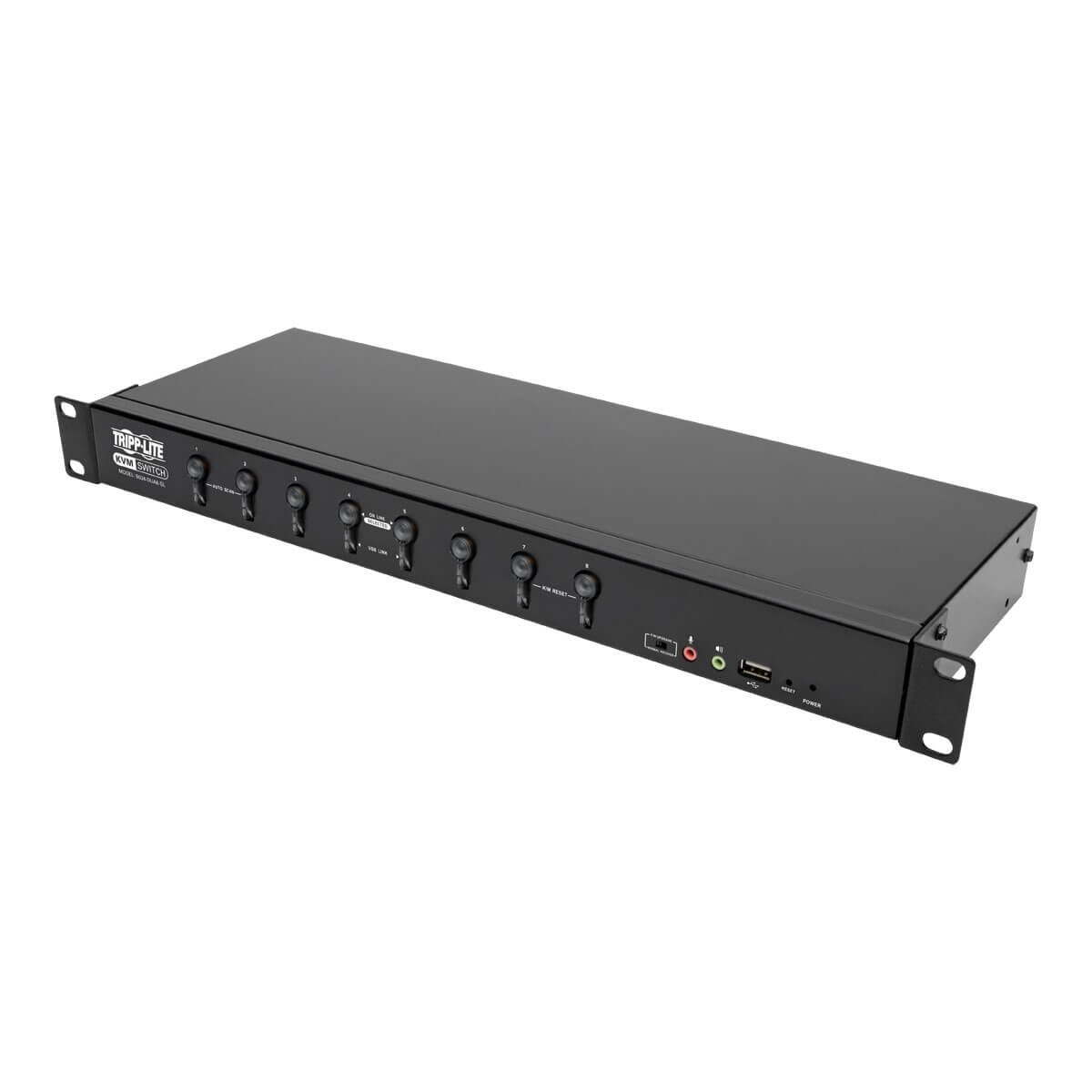

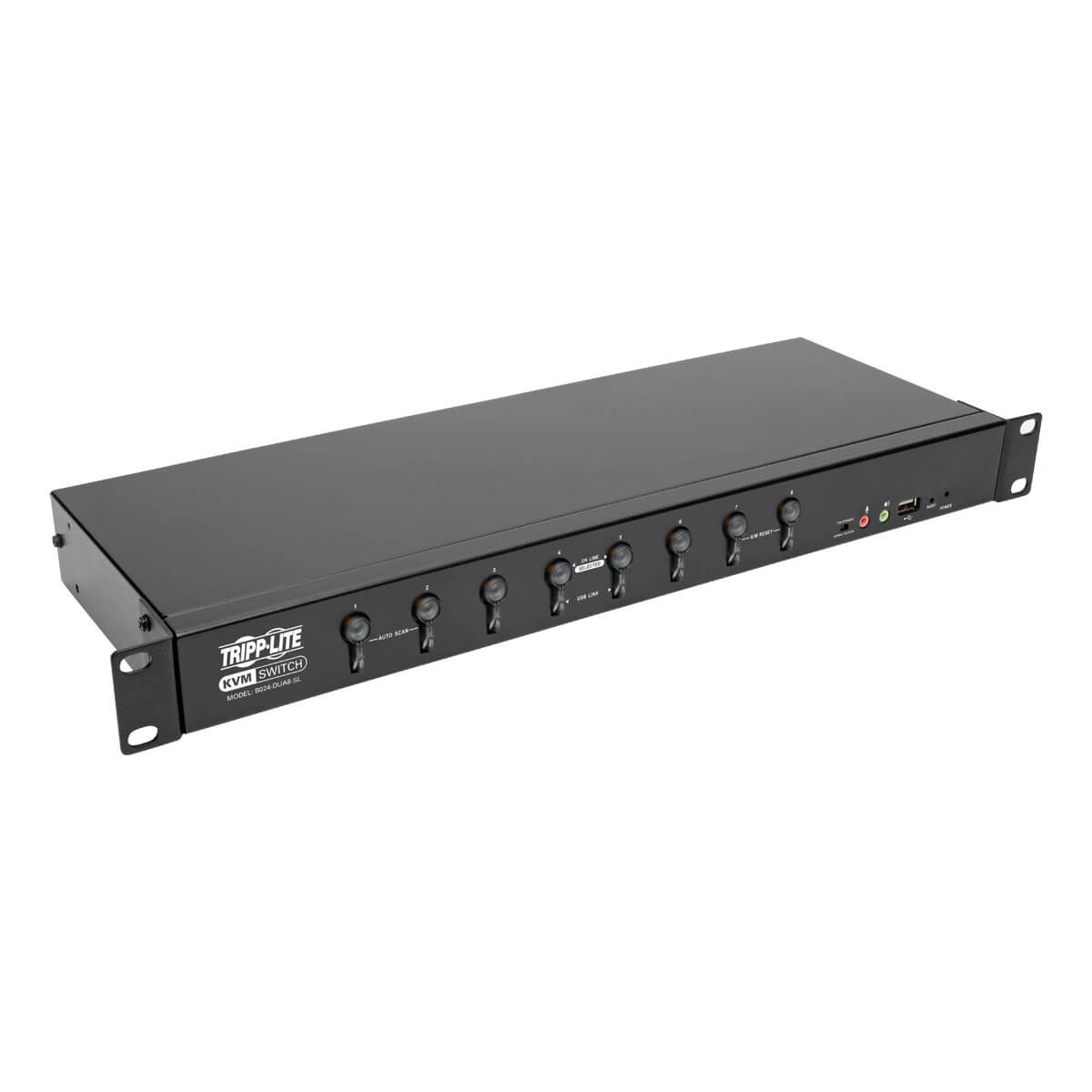

Tripp Lite B024-DUA8-SL KVM switch Rack mounting Black

Tripp Lite B024-DUA8-SL KVM switch Rack mounting Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B024-DUA8-SL
  • EAN: 0037332205117
8-Port DVI/USB KVM Switch with Audio and USB 2.0 Peripheral Sharing, 1U Rack-Mount, Single-Link, 1920 x 1200 (1080p)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 8-PORT DVI/USB KVM SWITCHWITH AUDIO AND USB 2.0PERIPHERAL SHARING 9810256 Register free see stock
Ingram Micro 8PORT 1U RACKMOUNT DVI/USB KVM 2DD349
TD Synnex 8-PORT KVM SWITCH DVI/USB 1U 1080P 5053213

Related Products

Description

The B024-DUA8-SL DVI/USB KVM Switch allows you to control eight computers with audio using a single DVI monitor, USB keyboard and USB mouse. Plus, by cascading up to three levels of KVM switches, you can control up to 512 computers at the same time.

Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite’s P556-Series).

The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.

The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.

Control 8 Computers + Audio from a Single DVI Monitor, Keyboard and Mouse

- 8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
- Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
- Supports digital video resolutions up to 1920 x 1200 (1080p) and analog video resolutions up to 2048 x 1536
- Supports 2.1-channel surround sound with full bass response
- Also supports VGA display when connected to a DVI to VGA adapter

Connect Up to 512 Computers to One Original Console

- Expand the number of controlled computers by cascading up 3 levels of KVM switches

Multi-View Installation

- Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors

Independent USB 2.0 Peripheral Sharing

- 2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers

Multilingual On-Screen Display

- OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
- Text-based interface offers direct access to every connected computer
- Backs up and restores KVM configuration and user profile info

Dual-Tier Password Protection

- Enhances security for administrator and up to 4 users

Hot-Plugging and Auto Scan

- Computers and devices can be disconnected and reconnected without KVM switch shutdown
- Automatically switches between ports every 5 seconds for convenient monitoring

Flexible Keyboard/Mouse Applications

- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting

Easy Setup and Use

- Plug-and-play operation with no software or drivers to install
- Durable metal housing mounts in 1U of space in EIA-standard 19 in. rack
- Upgradable firmware to ensure up-to-date operation
- Compatible with Windows, Mac, Sun and Linux

TAA-Compliant

- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

System Requirements

- Computer with DVI or VGA (optional) port, USB port and microphone/speaker 3.5 mm jacks (optional)
- Any major operating system
- Console with DVI or VGA (optional) monitor, USB keyboard and mouse, and microphone and speaker with 3.5 mm connectors (optional)

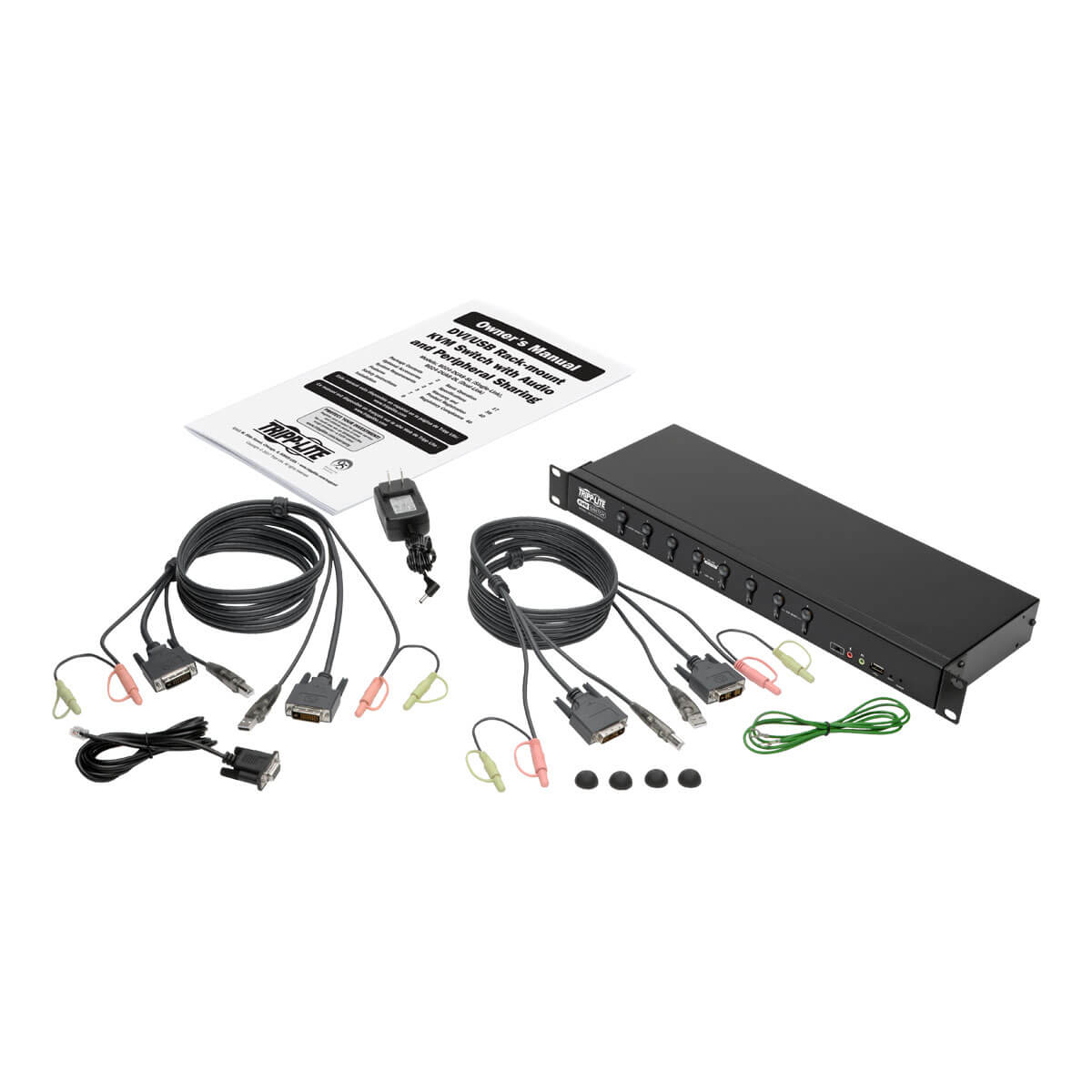

Package Includes

- B024-DUA8-SL DVI/USB 8-Port KVM Switch
- (2) DVI/USB KVM cable kits, 6 ft.
- External power supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
- RJ11 to DB9 firmware upgrade cable, 6 ft.
- Grounding wire
- Rack-mounting hardware
- Rubber feet
- Owner’s manual

Specifications

Ports & interfaces
Cable length59.1" (1.5 m)
Number of computers controlled512
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Audio connectionsYes
USB 2.0 ports quantity1
DVI-I ports quantity8
Technical details
Product colourBlack
Rack mountingYes
LED indicatorsYes
Automatic switchingYes
Design
Automatic switchingYes
Country of originTaiwan
Product colourBlack
Cable length59.1" (1.5 m)
Rack mountingYes
LED indicatorsYes
CertificationTAA, GSA
Rack capacity1U
Housing materialMetal
Video
Maximum resolution2048 x 1536 pixels
Performance
Maximum resolution2048 x 1536 pixels
Automatic switchingYes
Display
Built-in displayNo
Power
Input current2.4 A
Power sourceAC
AC input frequency50 - 60 Hz
External power adapterYes
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Features
Country of originTaiwan
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width17.2" (436.9 mm)
Depth6.3" (160 mm)
Height1.73" (43.9 mm)
Weight6.19 lbs (2.81 kg)
Package width21.3" (540 mm)
Package depth9.17" (232.9 mm)
Package height4.57" (116.1 mm)
Package weight8 lbs (3.63 kg)
Packaging data
Package width21.3" (540 mm)
Package depth9.17" (232.9 mm)
Package height4.57" (116.1 mm)
Package weight8 lbs (3.63 kg)
Packaging content
AC adapter includedYes
Certificates
CertificationTAA, GSA
Logistics data
Country of originTaiwan
Master (outer) case width22.2" (564.9 mm)
Master (outer) case length14.8" (374.9 mm)
Master (outer) case height10.2" (258.1 mm)
Master (outer) case gross weight24 lbs (10.9 kg)
Products per master (outer) case3 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332205114
Harmonized System (HS) code8471.80.1000
Other features
Automatic switchingYes
