Tripp Lite B042-004 KVM switch Rack mounting Black

Tripp Lite B042-004 KVM switch Rack mounting Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B042-004
  • EAN: 0037332143266 0151903028179 01 ...3028179 0132017884417 0191120033204 0796594666622 0373321432660 0853585446745more

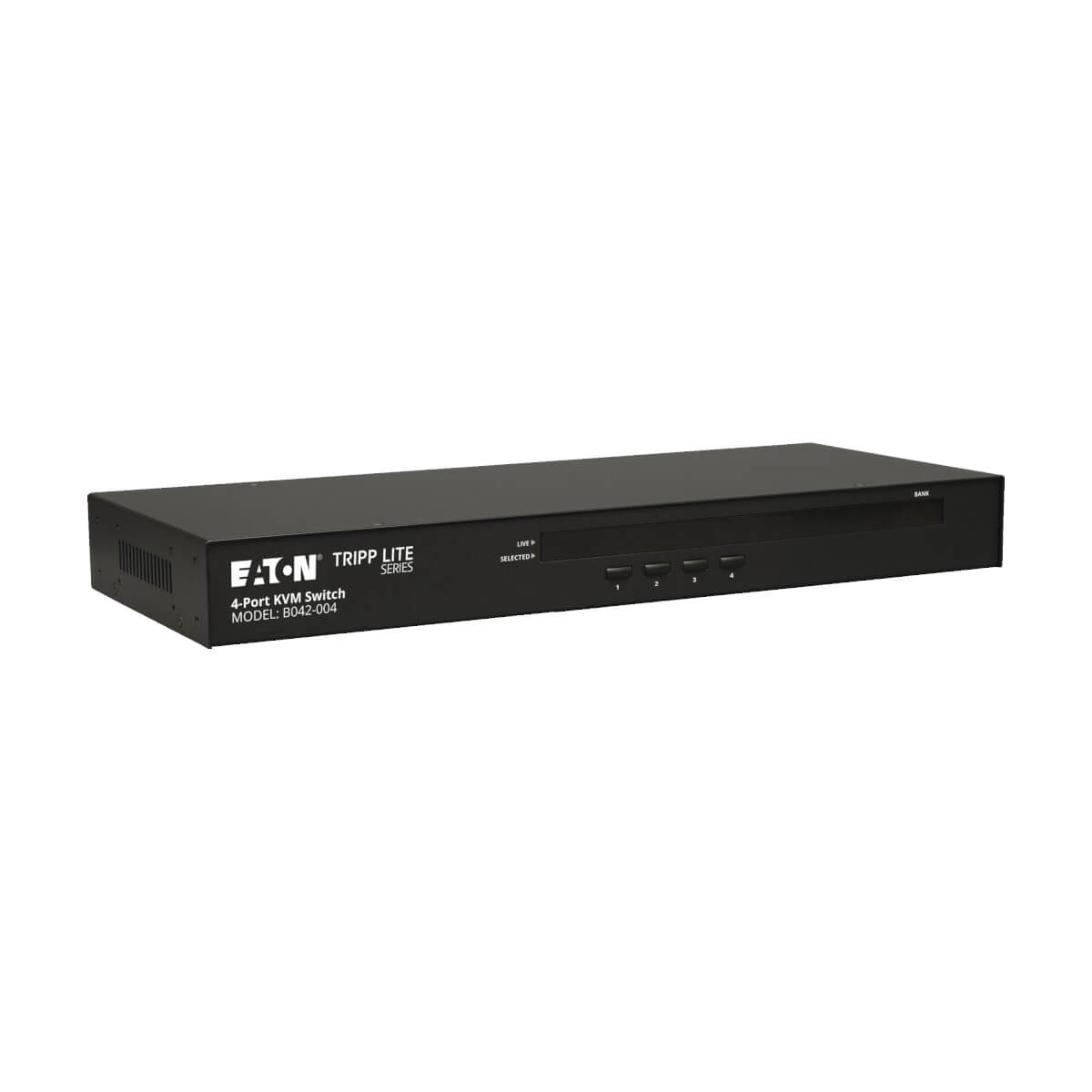

4-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries NETCONTROL KVM 1U 4-PORT USB/PS2 LED TRPB042-004 Register free see stock
D&H 4 Port USB PS2 KVM Switch B042004
Ingram Micro 4PORT RACKMOUNT KVM SWITCH Q76646
ScanSource 4-Port Rackmount USB / PS2 KVM POW-B042004
TD Synnex 4-PORT RACKMOUNT USB/ PS/2 KVM SWITCH 1U 2093571

Related Products

Description

Batteries not Required to Operate
Tripp Lite's NetController 4-Port, 1U rackmount KVM Switch is an affordable, highly-flexible enterprise class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to 4 directly connected computers, or expand the number of connected computers to up to 244 by daisychaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048 x 1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
- NetController 4-Port, 1U rackmount KVM switch
- Control 4 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
- Control up to 244 computers by daisychaining up to 15 additional B042-Series KVM switches
- P780-Series USB/PS2 combo KVM cables kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
- Compatible with all major operating systems

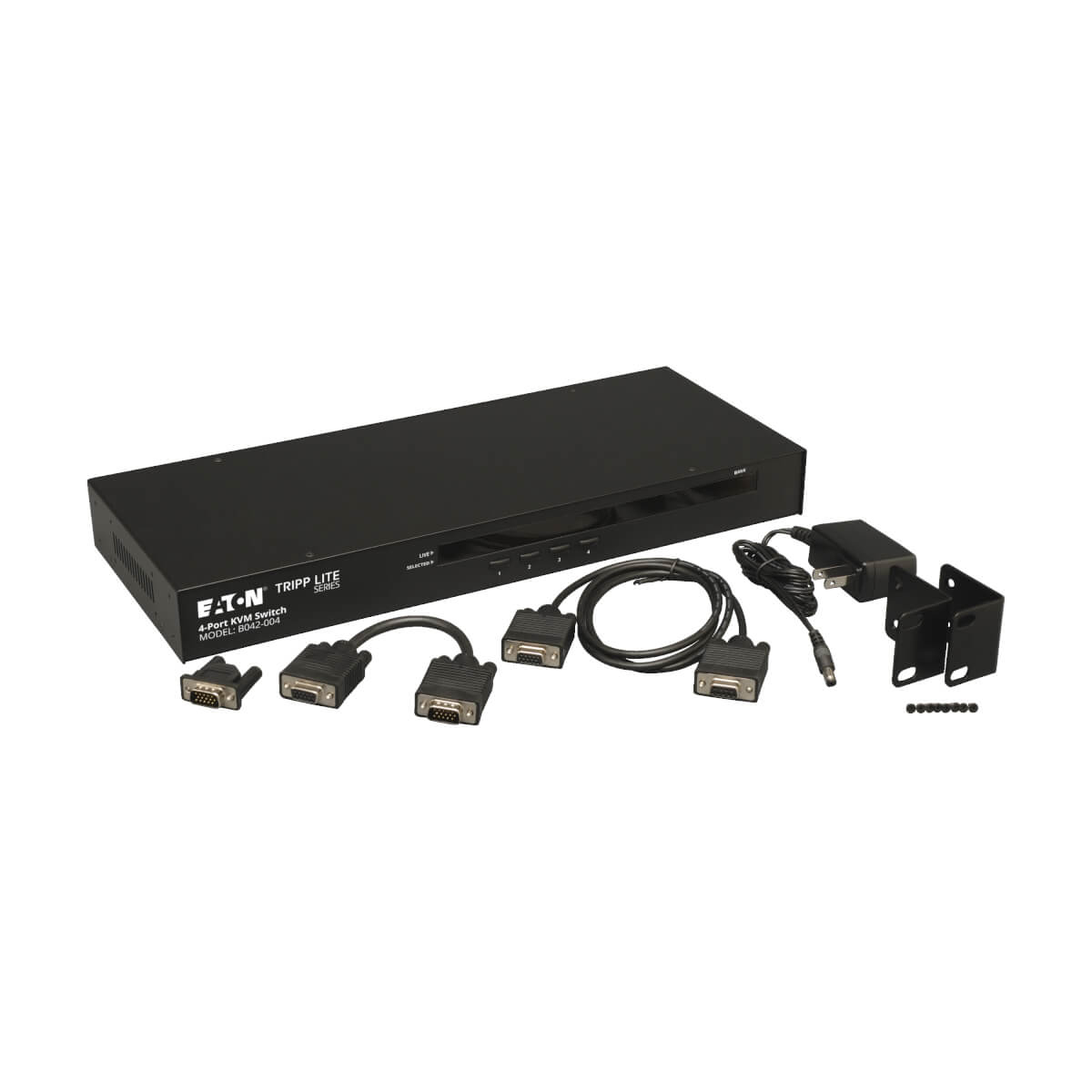

- B042-004 NetController 4-Port, 1U rackmount KVM switch
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.3A / Output: 9V, 1A)
- Rackmount hardware
- 20.32 cm (8-in.) Daisychain cable ( for longer daisy-chain cables, see Tripp Lite P781 series cables)
- Daisychain terminator
- 1.22 m (4-ft.) HD15 to DB9 firmware upgrade cable
- CD with owner's manual and quick start guide
- Quick start guide
- NetController 4-Port, 1U rackmount KVM switch
- Control 4 computers via a single VGA monitor and USB or PS/2 keyboard/mouse
- P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters
- Control up to 244 computers by daisychaining up to 15 additional B042-Series KVM switches
- Allows for easy customization of ports by daisy-chaing any combination of B042-Series KVM's (4-, 8- or 16-port)
- Standard 19" Rackmount size - hardware included
- On-Screen Display (OSD) menu for intuitive operation and easy control
- Switch between connected computers via the On-Screen Display (OSD), pushbuttons, or keyboard hotkey commands
- Supports video resolution up to 2048 x 1536
- Password protection and auto-logout features
- Firmware upgradeable
- Robust metal case design ensures best EMI/RFI shielding and video quality
- Hot-swappable: disconnect and reconnect USB computers without rebooting
- Supports standard 5-button Microsoft, Logitech, or comparable mice
- Supports standard Microsoft, Logitech, or comparable keyboards
- Compatible with all major operating systems
- Constructed of heavy-duty steel housing

Specifications

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Technical details
Product colourBlack
Rack mountingYes
Design
Product colourBlack
Rack mountingYes
Rack capacity1U
Country of originChina
Display
Built-in displayNo
Power
Input voltage100-250 V
Features
Country of originChina
Weight & dimensions
Width19" (482.6 mm)
Depth6.5" (165.1 mm)
Height1.75" (44.4 mm)
Weight4.21 lbs (1.91 kg)
Package width17.3" (439.4 mm)
Package depth11.5" (292.1 mm)
Package height2.8" (71.1 mm)
Package weight6.11 lbs (2.77 kg)
Packaging data
Package width17.3" (439.4 mm)
Package depth11.5" (292.1 mm)
Package height2.8" (71.1 mm)
Package weight6.11 lbs (2.77 kg)
Logistics data
Country of originChina
Master (outer) case width18.3" (464.8 mm)
Master (outer) case length15.4" (391.2 mm)
Master (outer) case height12.6" (320 mm)
Master (outer) case gross weight32.4 lbs (14.7 kg)
Products per master (outer) case5 pc(s)
Master (outer) case GTIN (EAN/UPC)20037332143260
Harmonized System (HS) code8517.62.0020
