Tripp Lite B021-000-19-HD2 rack console 19" 1920 x 1080 pixels Black 1U

Tripp Lite B021-000-19-HD2 rack console 19" 1920 x 1080 pixels Black 1U

  • Brand: Tripp Lite
  • Category:
  • SKU: B021-000-19-HD2
  • EAN: 0037332194343
1U Rack-Mount Console with 19 in. LCD, 1920 x 1080 (1080p), DVI or VGA Video, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries 1U CONSOLE TAA 19" LCD USB/DVI KEYBOARD TRPB021-000-19-HD2 Register free see stock
ASI Corp NT B021-000-19-HD2 1U RM Console w 19LCD 1920x1080 DVI VGA Video 245492
BlueStar TRIPP LITE, RACK CONSOLE 1URM DVI, VGA FOR KVM SWITCH, 19 LCD 1080P TAA B021-000-19-HD2
D&H Rack Console 1U DVI VGA 19"LCD B02100019HD2
Ingram Micro RACK CONSOLE DVI VGA 19IN LCD 8R2515
ScanSource Rack Console 1URM DVI, VGA for POW-B02100019HD2
TD Synnex RACK CONSOLE 1URM DVI VGA 19 LCD 1080P 4815828

Related Products

Description

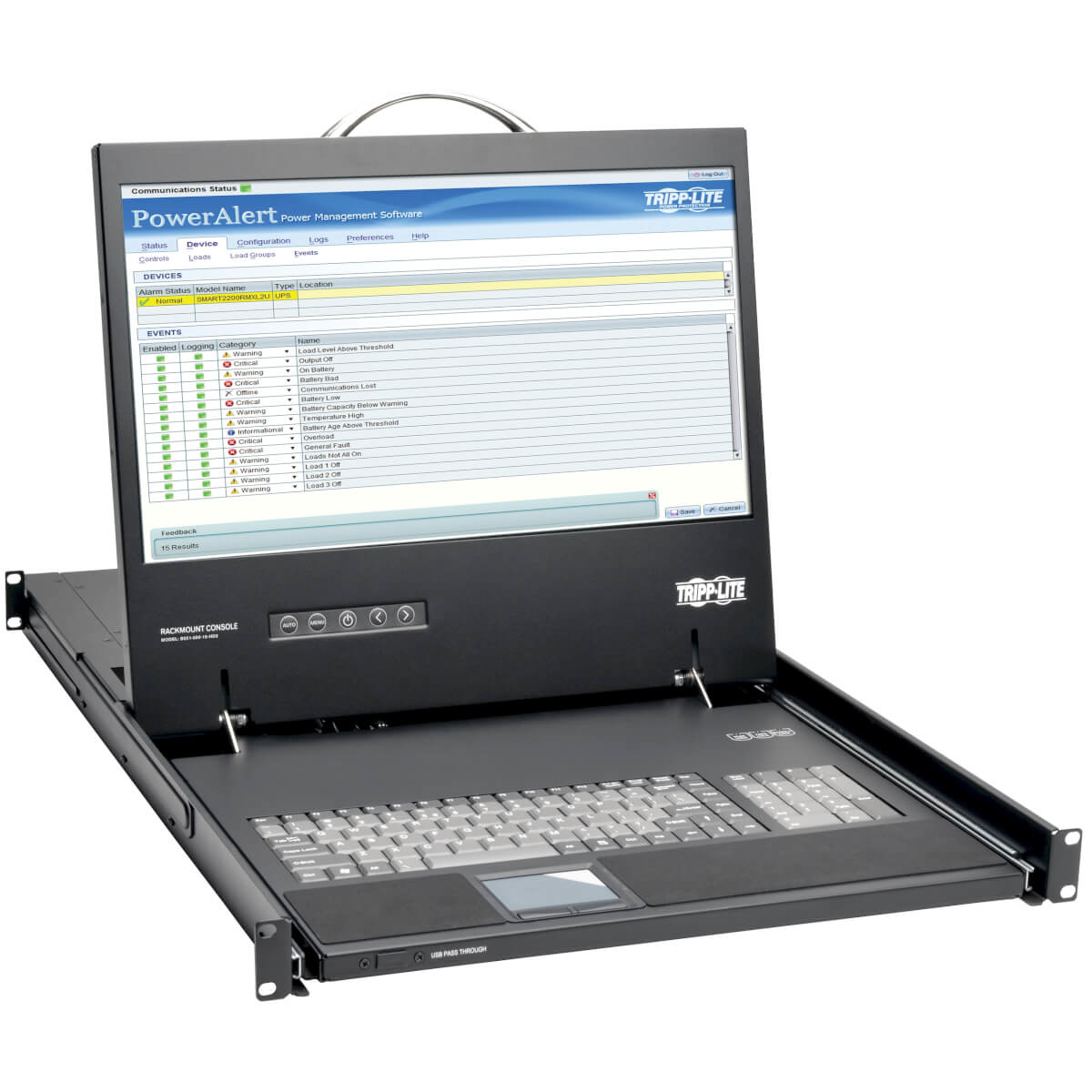

The B021-000-19-HD2 1U Rack-Mount Console combines a full keyboard, numeric keypad, touchpad and 19-inch color LCD for easy all-in-one control of a computer, server or KVM switch. Easy to install and simple to operate, it slides neatly into 1U of rack space when not in use.

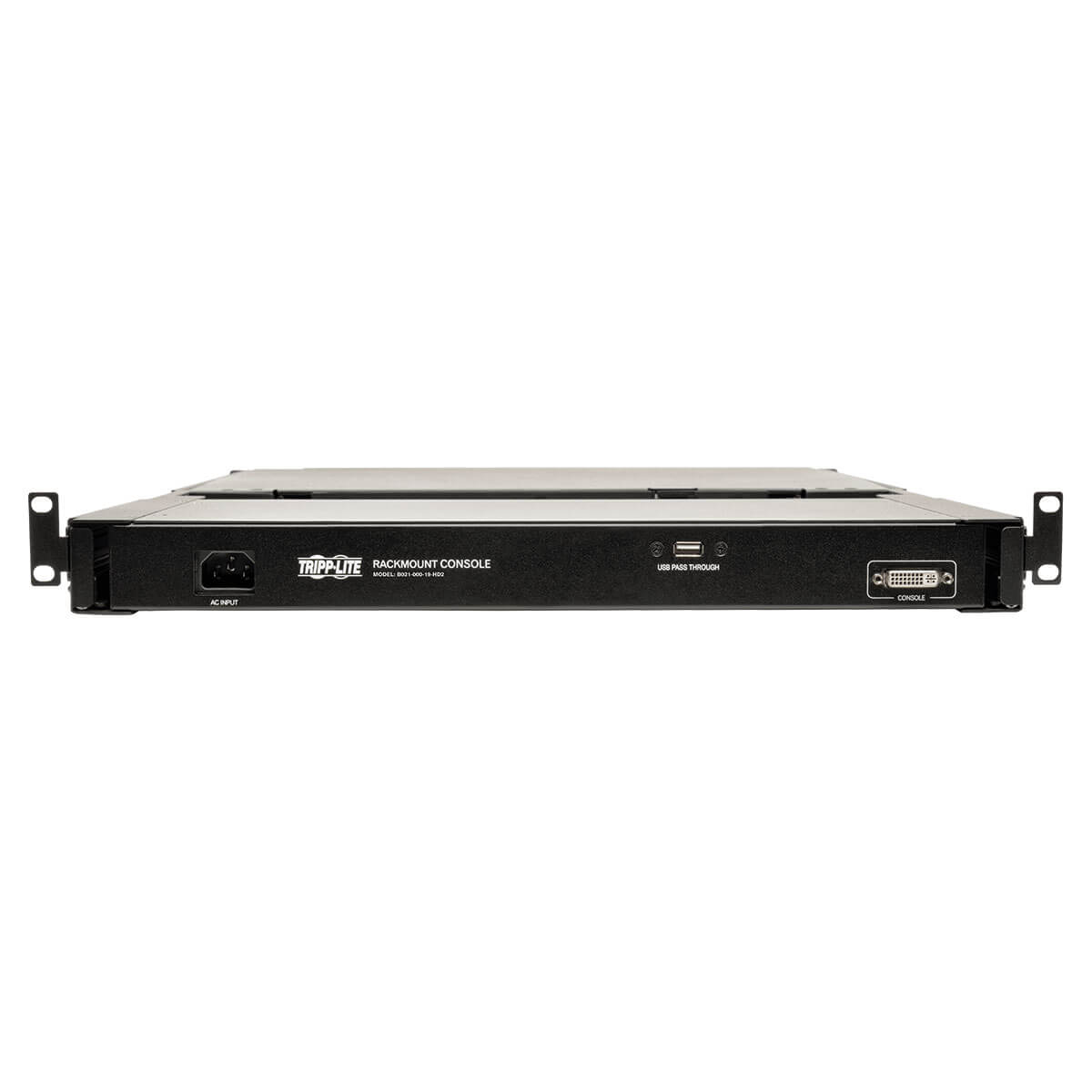

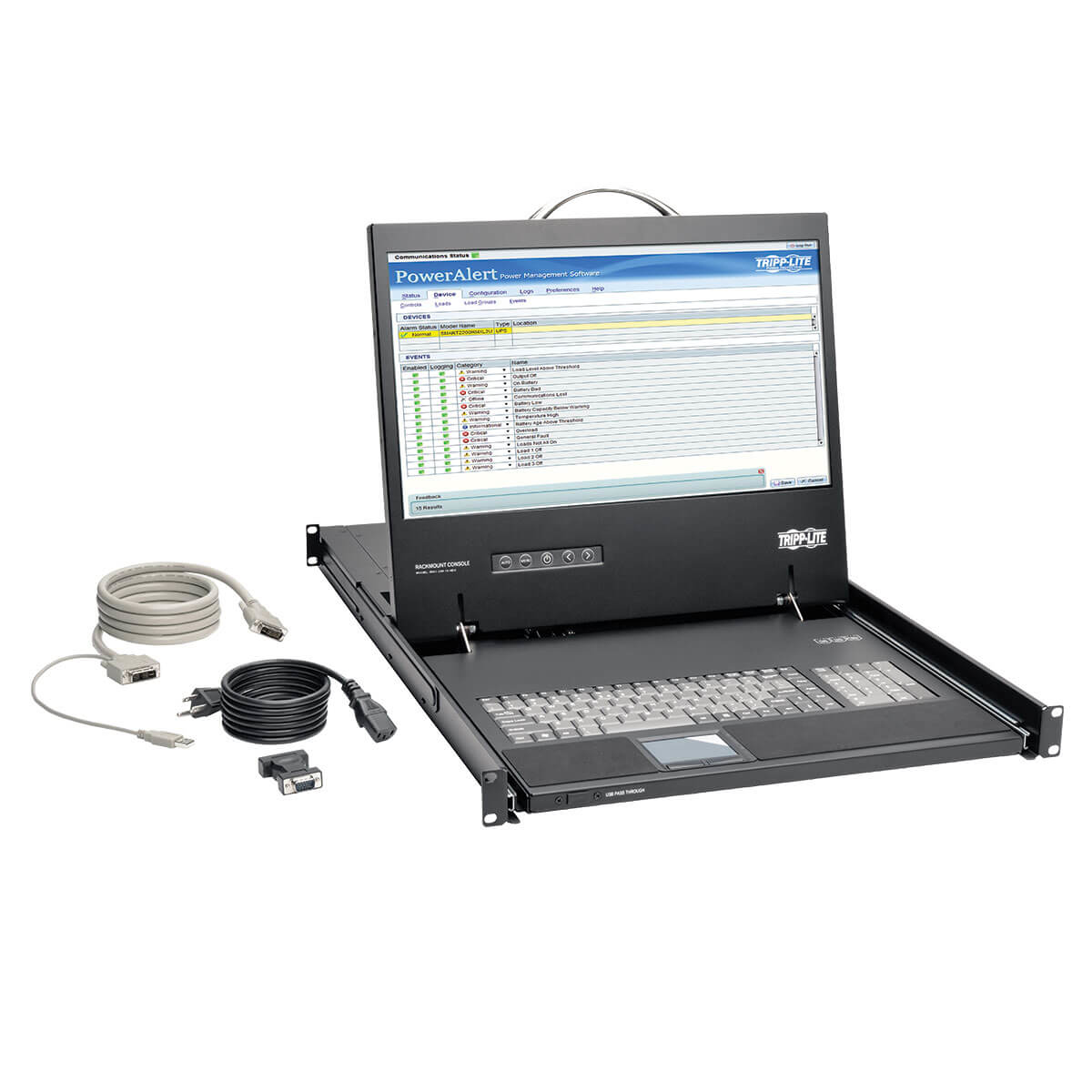

The rear DVI-I console port supports both digital and analog video signals for connecting to a DVI- or VGA-enabled server or KVM switch (a DVI to VGA adapter is included). The LCD screen supports video resolutions up to 1920 x 1080 (1080p). Video settings of the connected computer are automatically adjusted for optimal display on the LCD screen. USB 2.0 pass-through ports on the front and rear allow you to connect a USB peripheral, such as a flash drive or CAC card reader, to your computer with a USB cable (sold separately).

The B021-000-19-HD2 mounts into 1U of space in an EIA-standard 19-inch rack using the included mounting brackets and user-supplied screws. Simply pull out the steel drawer and flip up the screen when needed, then slide it back into the rack in automatic sleep mode when you’re finished. This keeps the keyboard and screen from blocking access to rack equipment when the console is not in use.

This console is compatible with all major operating systems and KVM switches with a VGA or DVI monitor port and USB keyboard/mouse ports. This enables the B021-000-19-HD2 to be integrated into an existing system to provide secure management of critical network systems without a major investment in new hardware.

Specifications

Display
Display typeLCD
Display diagonal19"
Display resolution1920 x 1080 pixels
Technical details
Country of originTaiwan
Relative humidity20 - 90%
Rack capacity1U
Product colourBlack
Cables includedDVI, KVM, VGA
Compliance certificatesRoHS
Ports & interfaces
Video port typeDVI/VGA
Mouse port typeUSB
Power
AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz
Power consumption (typical)30 W
Power consumption (standby)5 W
Operational conditions
Storage temperature (T-T)-25 - 60 °C
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Weight27.8 lbs (12.6 kg)
Width18.8" (477 mm)
Height1.7" (43.2 mm)
Depth27.3" (692.4 mm)
Packaging data
Package width23.3" (591.8 mm)
Package depth32.7" (831.8 mm)
Package height6.1" (154.9 mm)
Package weight39.7 lbs (18 kg)
Packaging content
Mounting brackets includedYes
ManualYes
AC adapter includedYes
Cables includedDVI, KVM, VGA
Logistics data
Products per master (outer) case1 pc(s)
