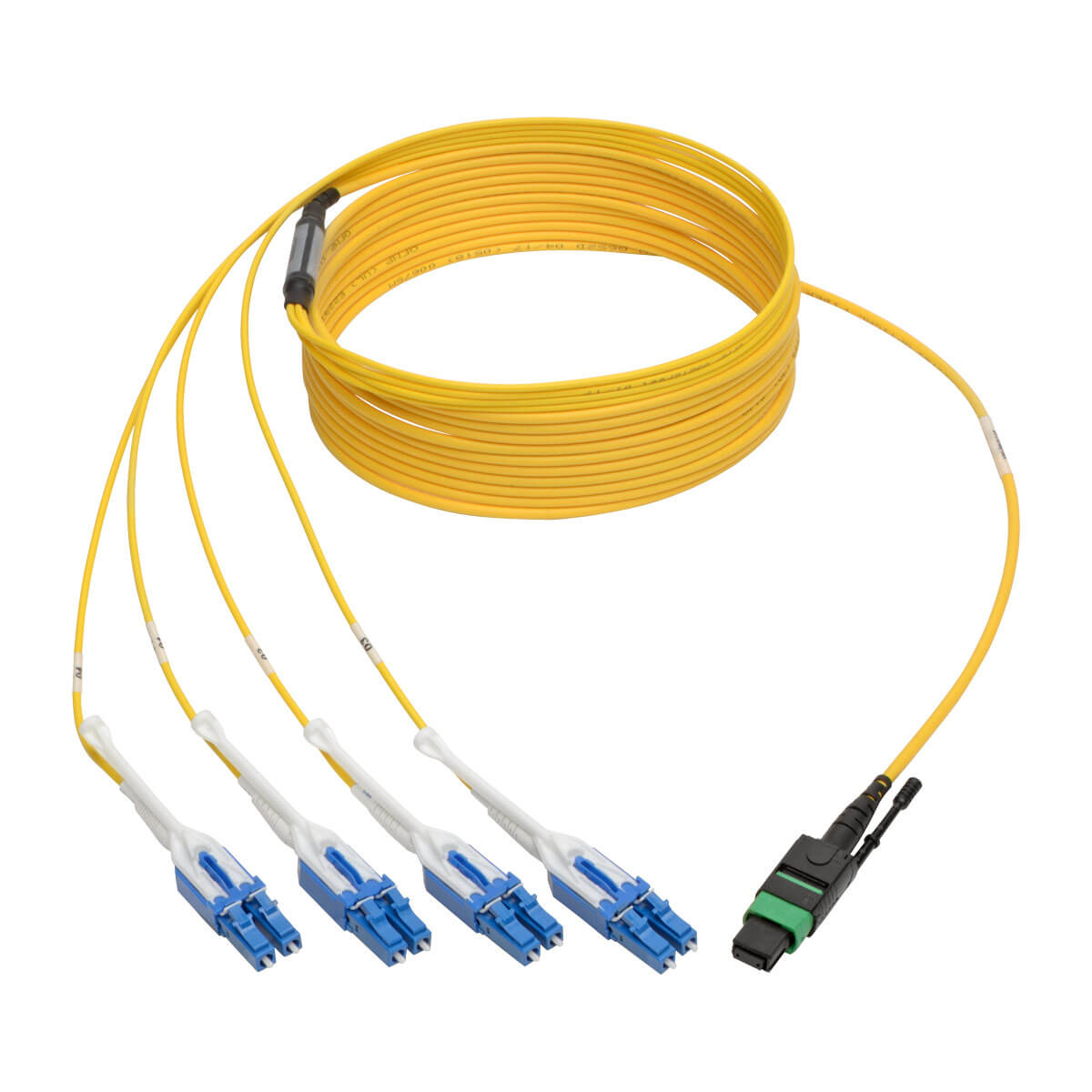

Tripp Lite N390-05M-8LC-AP InfiniBand/fibre optic cable 196.9" (5 m) MTP LC OFNP Yellow
- Brand: Tripp Lite
- Category:
- SKU: N390-05M-8LC-AP
- EAN: 0037332205605
MTP/MPO (APC) to 4xLC (UPC) Singlemode Breakout Patch Cable, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Yellow, 5 m (16 ft.)
Offer details
Related Products
Description
9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable
MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
MTP/MPO female connector and 8 LC duplex male connectors—no splicing required
12-fiber MTP/MPO connector 12 times denser than SC connector
APC connector angled to prevent light from reflecting back into laser
UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
100% tested for low insertion loss and back reflection
Slim, space-saving uniboot design easier to manage in crowded applications
Designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable
MTP/MPO APC and LC Duplex UPC Connectors with Push/Pull Tabs
MTP/MPO female connector and 8 LC duplex male connectors—no splicing required
12-fiber MTP/MPO connector 12 times denser than SC connector
APC connector angled to prevent light from reflecting back into laser
UPC connector with premium-grade ceramic ferrule for 10 GbE and faster applications
Push/pull tabs easy to install and remove with one hand
Error-Free Signal Transfer
Fully transmits 40GBASE-PLR4 with 4 fibers transmitting at 10 Gbps in each direction
100% tested for low insertion loss and back reflection
Slim, space-saving uniboot design easier to manage in crowded applications
Specifications
Technical details | |
---|---|
Fiber mode structure | Single-mode |
Connector 1 | MTP |
Connector 2 | LC |
Cable type | OFNP |
Cable length | 196.9" (5 m) |
Core diameter | 8.3 µm |
Cladding diameter | 125 µm |
Master (outer) case GTIN (EAN/UPC) | 10037332205602 |
Compliance certificates | RoHS |
Features | |
Connector material | Ceramic |
Fiber mode structure | Single-mode |
Connector 1 | MTP |
Connector 2 | LC |
Cable type | OFNP |
Cable length | 196.9" (5 m) |
Core diameter | 8.3 µm |
Cladding diameter | 125 µm |
Operating temperature (T-T) | -20 - 60 °C |
Storage temperature (T-T) | -20 - 60 °C |
Data transfer rate | 100 Gbit/s |
Country of origin | China |
Harmonized System (HS) code | 8544.70.0000 |
Product colour | Yellow |
Connector 2 gender | Female |
Connector 1 gender | Male |
Data transmission | |
Data transfer rate | 100 Gbit/s |
Operational conditions | |
Operating temperature (T-T) | -20 - 60 °C |
Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions | |
Cable length | 196.9" (5 m) |
Package width | 7" (177.8 mm) |
Package depth | 0.5" (12.7 mm) |
Package height | 9" (228.6 mm) |
Package weight | 3.53 oz (100 g) |
Packaging data | |
Package width | 7" (177.8 mm) |
Package depth | 0.5" (12.7 mm) |
Package height | 9" (228.6 mm) |
Package weight | 3.53 oz (100 g) |
Logistics data | |
Master (outer) case width | 7.3" (185.4 mm) |
Master (outer) case length | 5.9" (149.9 mm) |
Master (outer) case height | 4" (101.6 mm) |
Master (outer) case gross weight | 2.25 lbs (1.02 kg) |
Products per master (outer) case | 10 pc(s) |
Harmonized System (HS) code | 8544.70.0000 |
