Tripp Lite N392-23M-3X8-AP InfiniBand/fibre optic cable 905.5" (23 m) MTP OFNP Yellow

Tripp Lite N392-23M-3X8-AP InfiniBand/fibre optic cable 905.5" (23 m) MTP OFNP Yellow

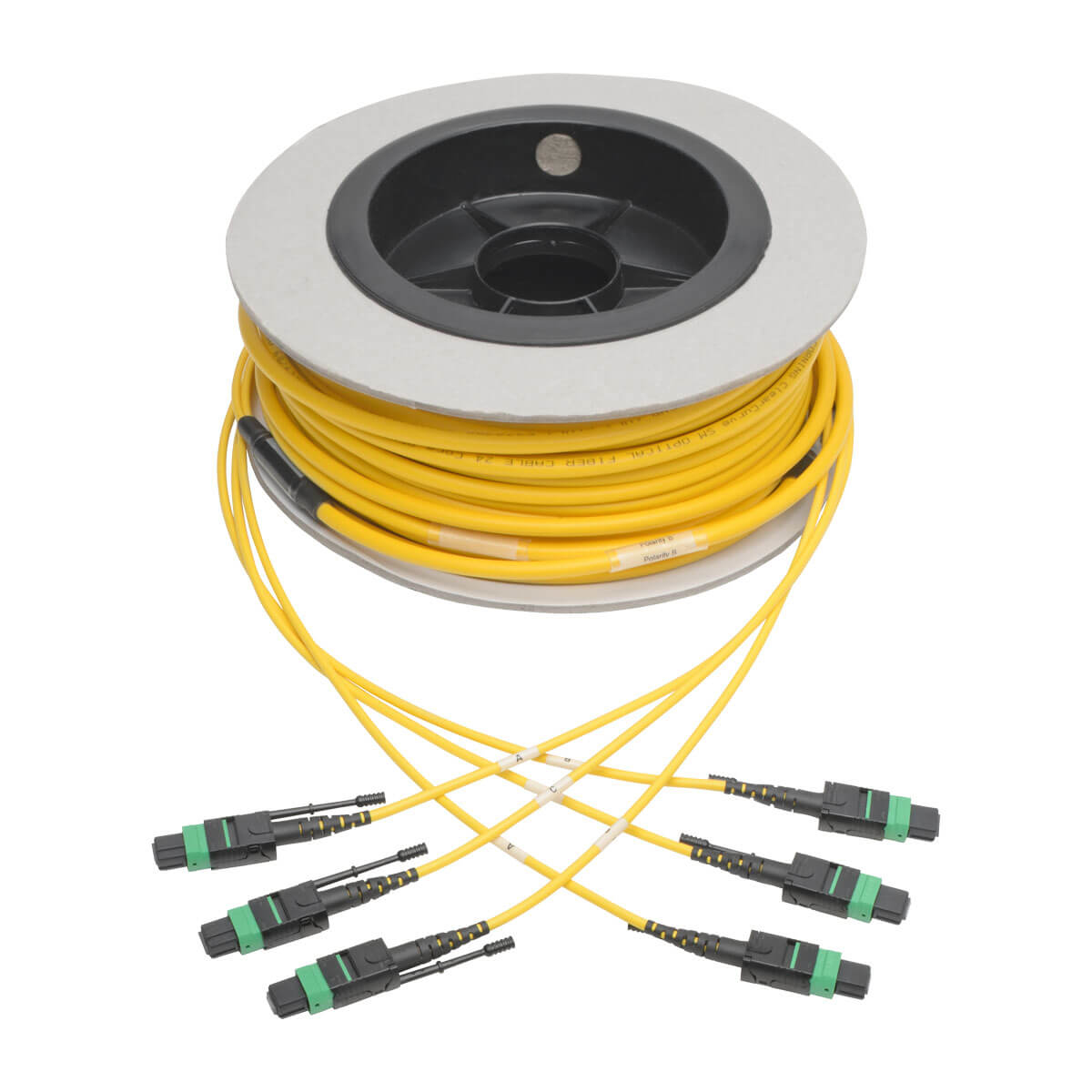

MTP/MPO (APC) Singlemode Slim Trunk Cable, 24-Strand, 40/100 GbE, 40/100GBASE-PLR4, Plenum, 6mm Dual Jacket, 23 m (75 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro 23M MTP/MPO SMF SLIM TRUNK CBL 9U9509 Register free see stock

Related Products

Description

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Designed to extend high-density connections between network equipment in telecom rooms and data centers
Recommended for patching between data center MDFs and IDFs
Optimized for QSFP+ 40GBASE-PLR4 and QSFP28 100GBASE-PSM4 networks
6 mm dual plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

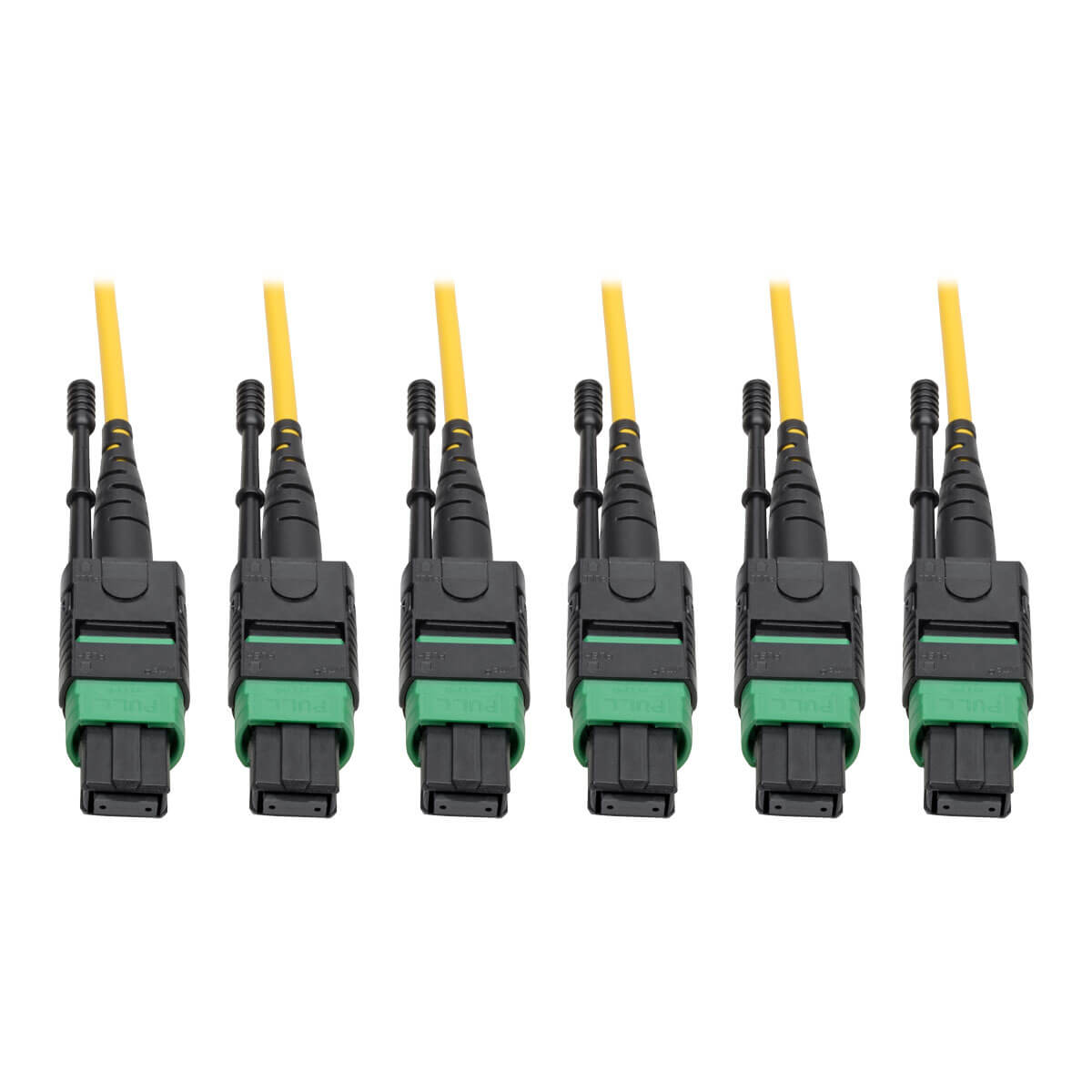

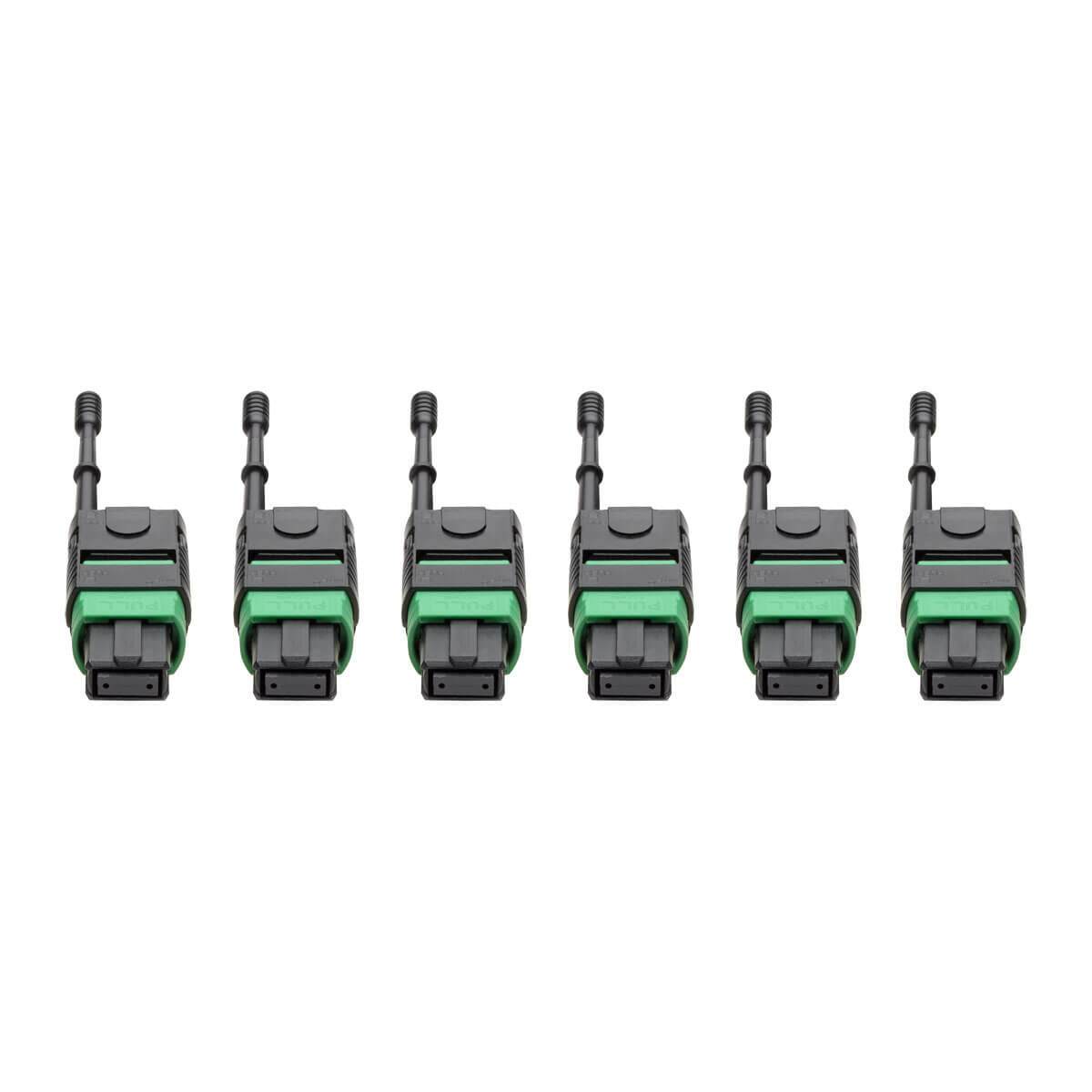

Factory-Terminated MTP/MPO APC Connectors with Push/Pull Tabs
8-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
Angled connectors prevent light from reflecting back into laser
100% tested for low insertion loss and back reflection

Specifications

Technical details
Fiber mode structureSingle-mode
Connector 1MTP
Connector 2MTP
Cable typeOFNP
Cable length905.5" (23 m)
Core diameter8.3 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332205466
Compliance certificatesRoHS
Features
Fiber mode structureSingle-mode
Connector 1MTP
Connector 2MTP
Cable typeOFNP
Cable length905.5" (23 m)
Core diameter8.3 µm
Cladding diameter125 µm
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Data transfer rate100 Gbit/s
Country of originChina
Harmonized System (HS) code8544.70.0000
Product colourYellow
Connector 2 genderFemale
Connector 1 genderFemale
Data transmission
Data transfer rate100 Gbit/s
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Cable length905.5" (23 m)
Package width10.2" (260.1 mm)
Package depth10.2" (260.1 mm)
Package height4.72" (119.9 mm)
Package weight2.73 lbs (1.24 kg)
Packaging data
Package width10.2" (260.1 mm)
Package depth10.2" (260.1 mm)
Package height4.72" (119.9 mm)
Package weight2.73 lbs (1.24 kg)
Logistics data
Master (outer) case width19.7" (500.4 mm)
Master (outer) case length15.7" (398.8 mm)
Master (outer) case height11" (279.4 mm)
Master (outer) case gross weight16.3 lbs (7.4 kg)
Products per master (outer) case5 pc(s)
Harmonized System (HS) code8544.70.0000
