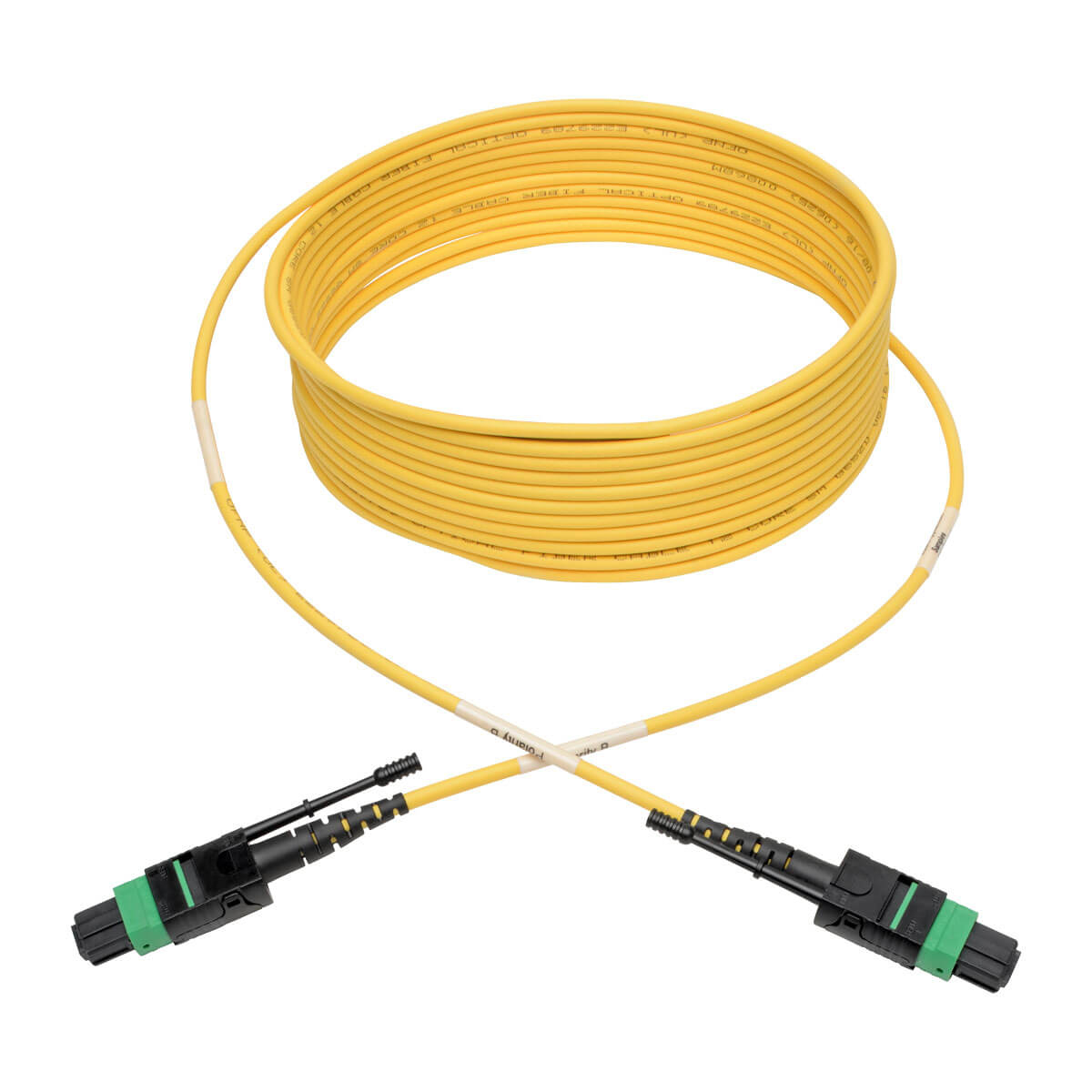

Tripp Lite N390-07M-12-AP InfiniBand/fibre optic cable 275.6" (7 m) MTP OFNP Yellow

Tripp Lite N390-07M-12-AP InfiniBand/fibre optic cable 275.6" (7 m) MTP OFNP Yellow

MTP/MPO (APC) Singlemode Patch Cable (F/F), 12 Fiber, 40/100 GbE, QSFP+ 40GBASE-PLR4, Plenum, Push/Pull Tab, Yellow, 7 m (23 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

MTP/MPO (APC) SINGLEMODEPATCH CABLE (F/F), 12 FIBER,40/100 GBE, QSFP+

 9810434 Register free see stock

Related Products

Description

9/125 Rated Singlemode Cable for 40/100 Gb Ethernet Applications
Designed for enterprise applications in wiring closets, telecom rooms and data centers
Recommended for QSFP+ applications in enterprise installations
Plenum-rated jacket suited for ceilings, walls and ducts
Yellow-colored for identification as a singlemode cable

MTP/MPO APC Connectors with Push/Pull Tabs
12-fiber female connectors 12 times denser than SC connectors
APC connector angled to prevent light from reflecting back into laser
Push/pull tabs easy to install and remove with one hand
100% tested for low insertion loss and back reflection

Specifications

Features
Fiber mode structureSingle-mode
Connector 1MTP
Connector 2MTP
Cable typeOFNP
Cable length275.6" (7 m)
Core diameter8.3 µm
Cladding diameter125 µm
Data transfer rate100 Gbit/s
Product colourYellow
Connector 2 genderFemale
Connector 1 genderFemale
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Country of originChina
Harmonized System (HS) code8544.70.0000
Certificates
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Packaging data
Package width7" (177.8 mm)
Package depth9" (228.6 mm)
Package height0.5" (12.7 mm)
Package weight4.94 oz (140 g)
Technical details
Fiber mode structureSingle-mode
Connector 1MTP
Connector 2MTP
Cable typeOFNP
Cable length275.6" (7 m)
Core diameter8.3 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332205398
Compliance certificatesRoHS
Data transmission
Data transfer rate100 Gbit/s
Weight & dimensions
Cable length275.6" (7 m)
Package width7" (177.8 mm)
Package depth9" (228.6 mm)
Package height0.5" (12.7 mm)
Package weight4.94 oz (140 g)
Logistics data
Master (outer) case width5.8" (147.3 mm)
Master (outer) case length7.4" (188 mm)
Master (outer) case height6.1" (154.9 mm)
Master (outer) case gross weight27.2 oz (770 g)
Products per master (outer) case10 pc(s)
Country of originChina
Harmonized System (HS) code8544.70.0000
Master (outer) case GTIN (EAN/UPC)10037332205398
