Tripp Lite N482-6M24-6M24 patch panel
- Brand: Tripp Lite
- Category:
- SKU: N482-6M24-6M24
- EAN: 0373321845668
100Gb/120Gb Pass-Through Cassette - (x6) 24-Fiber MTP/MPO ( Female )
Offer details
Related Products
Description

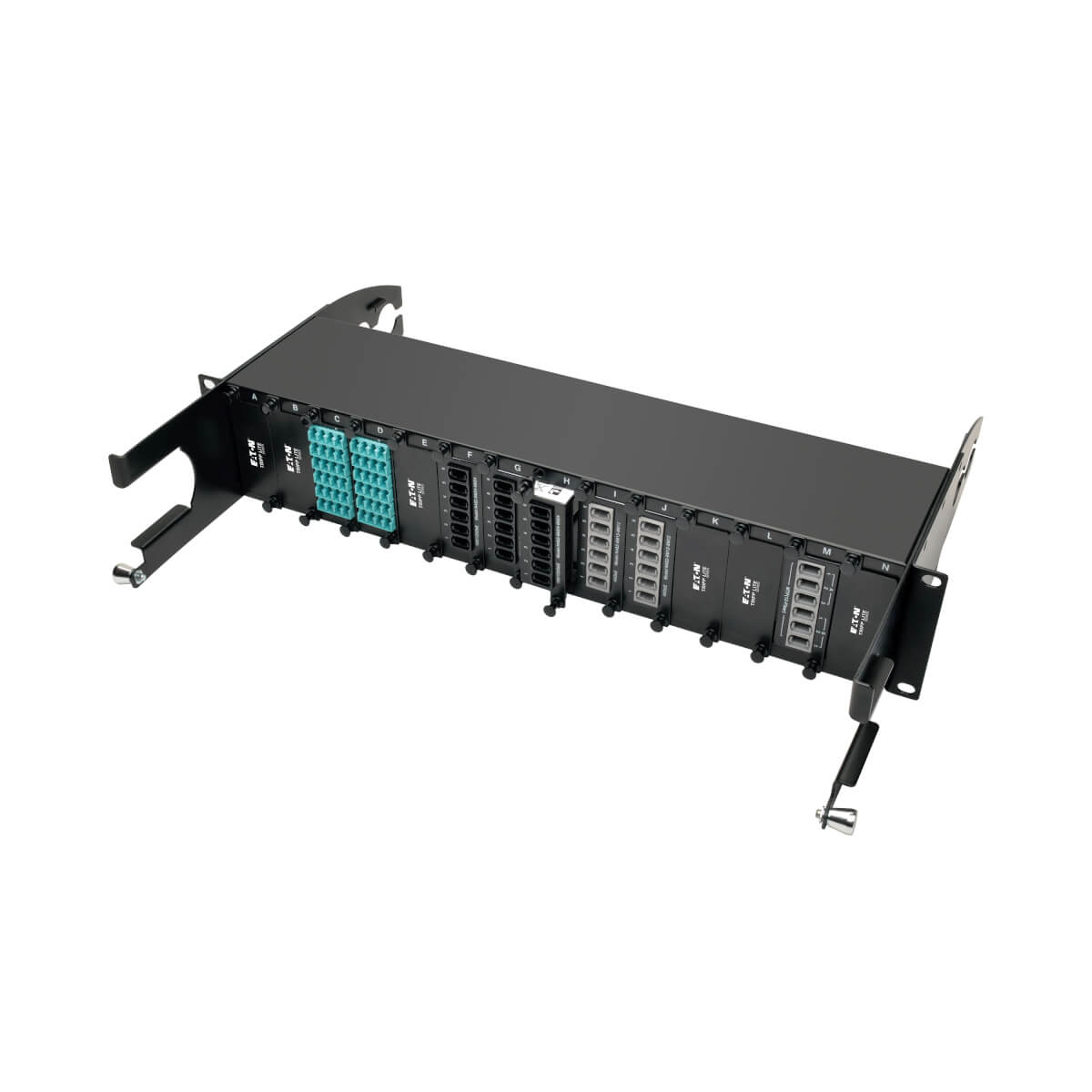

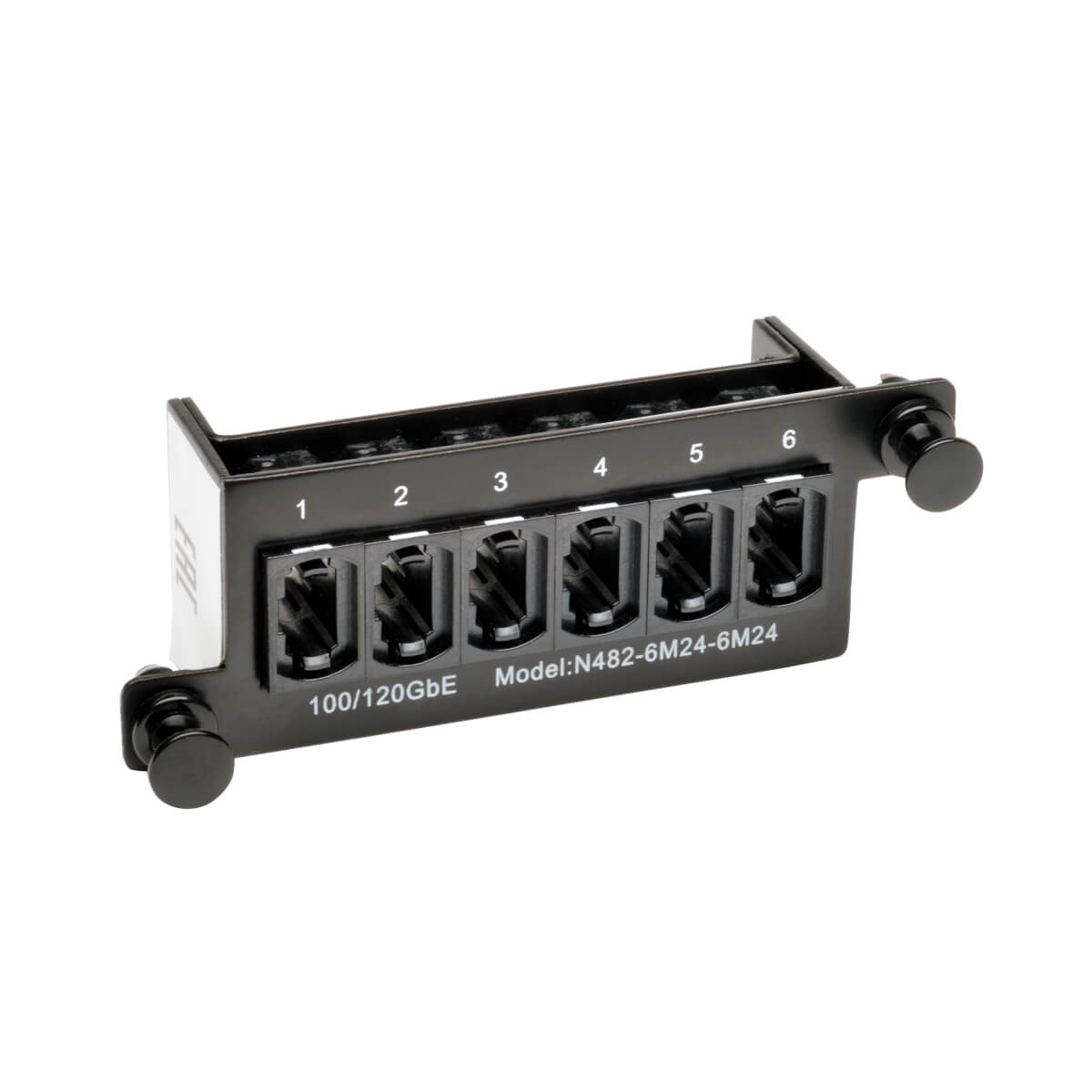

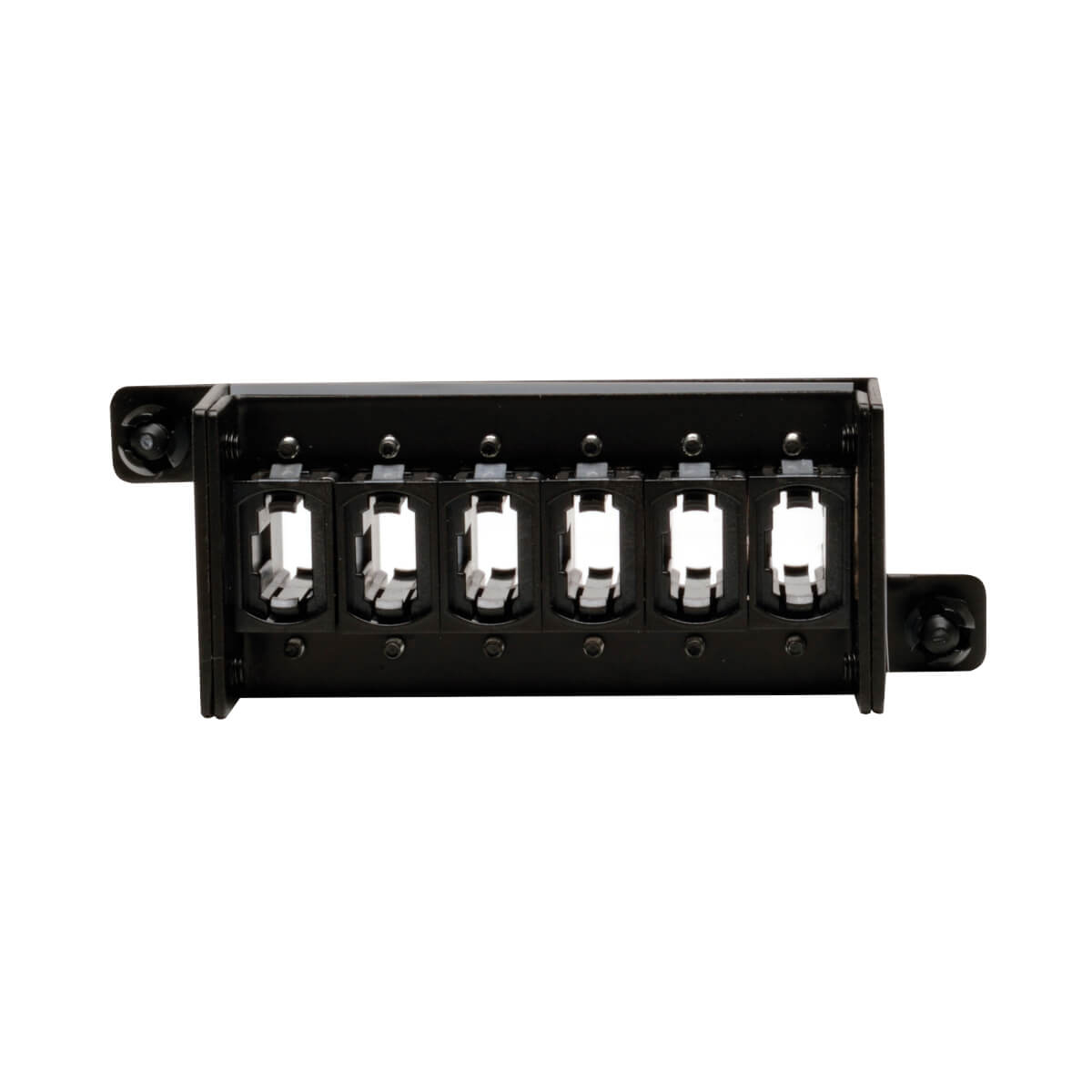

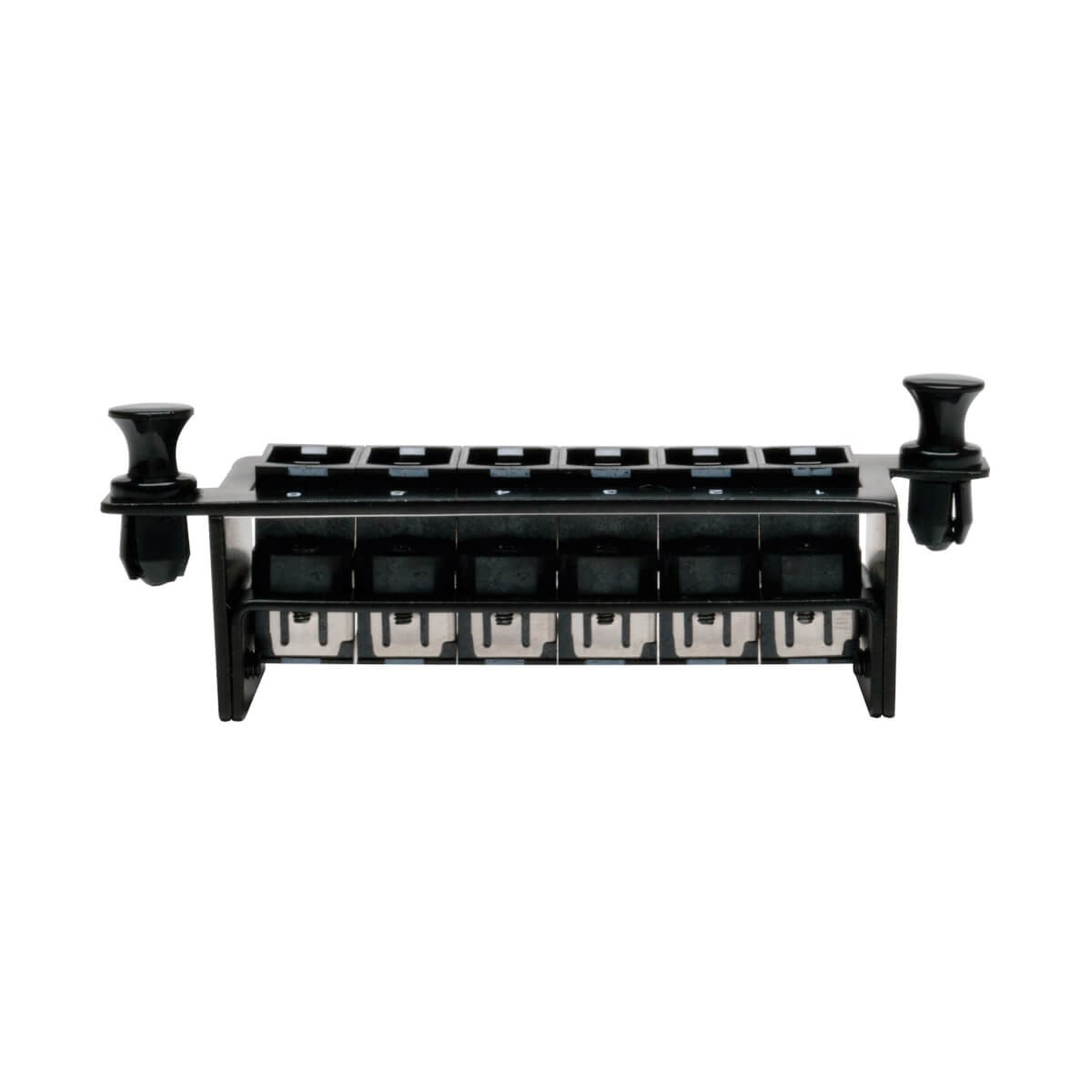

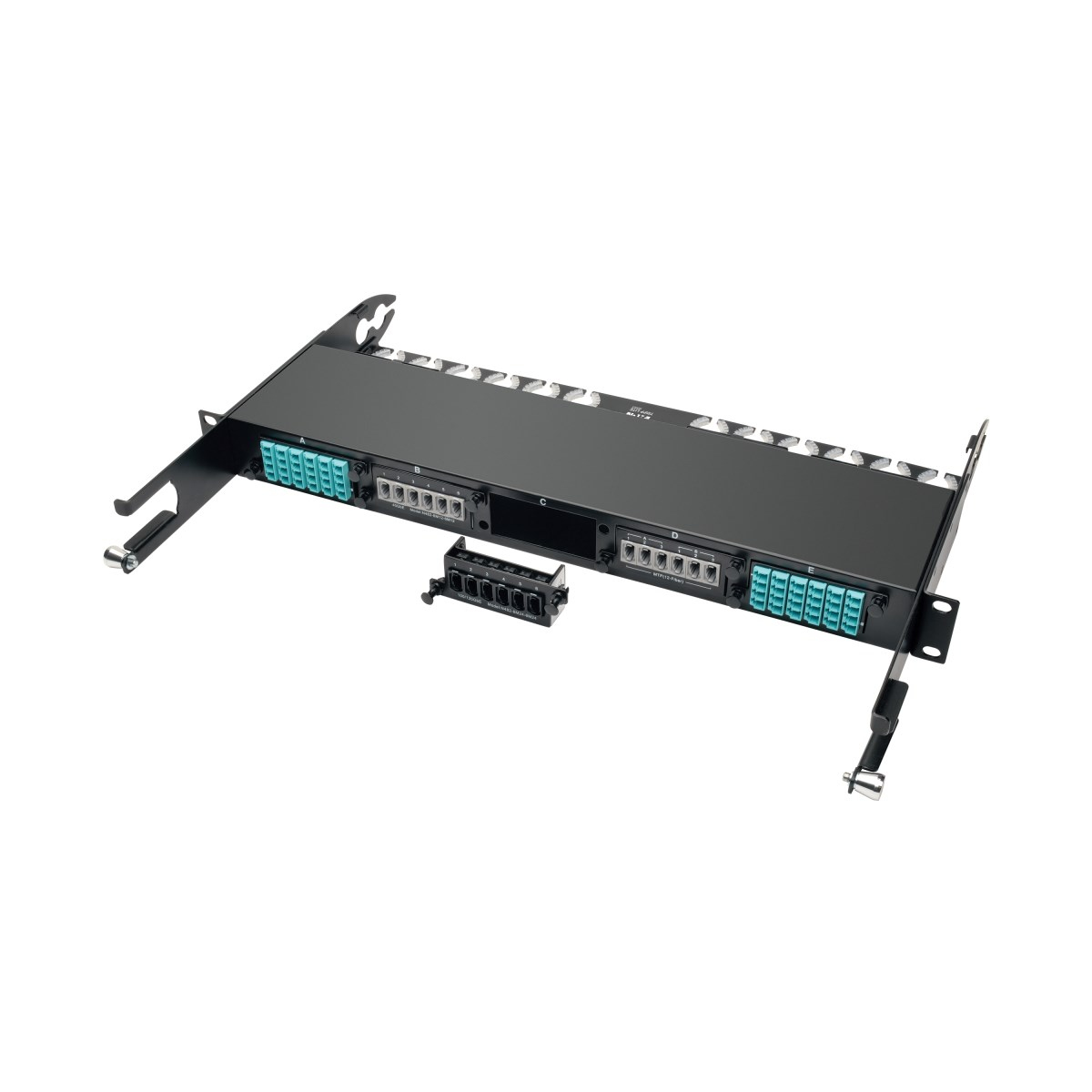

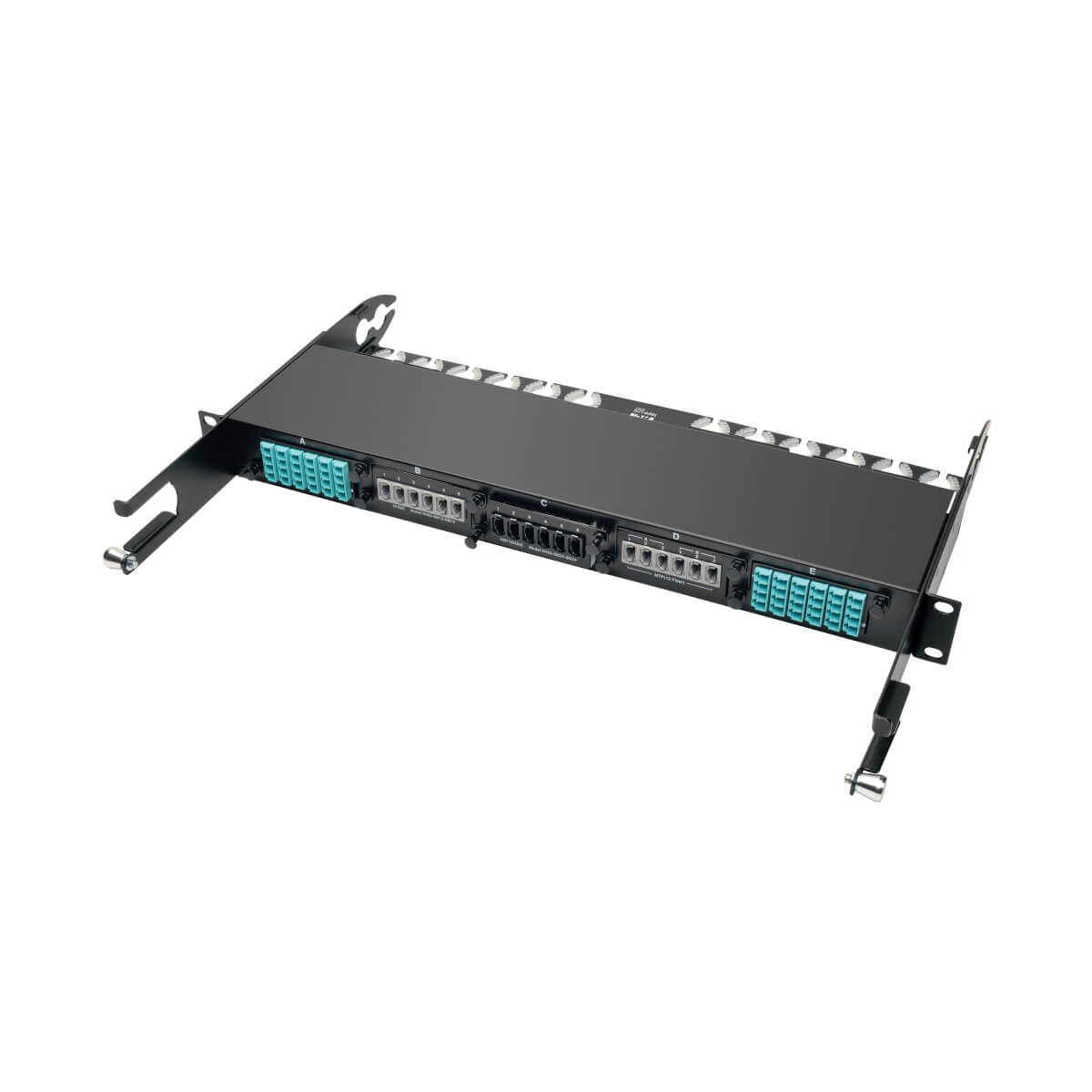

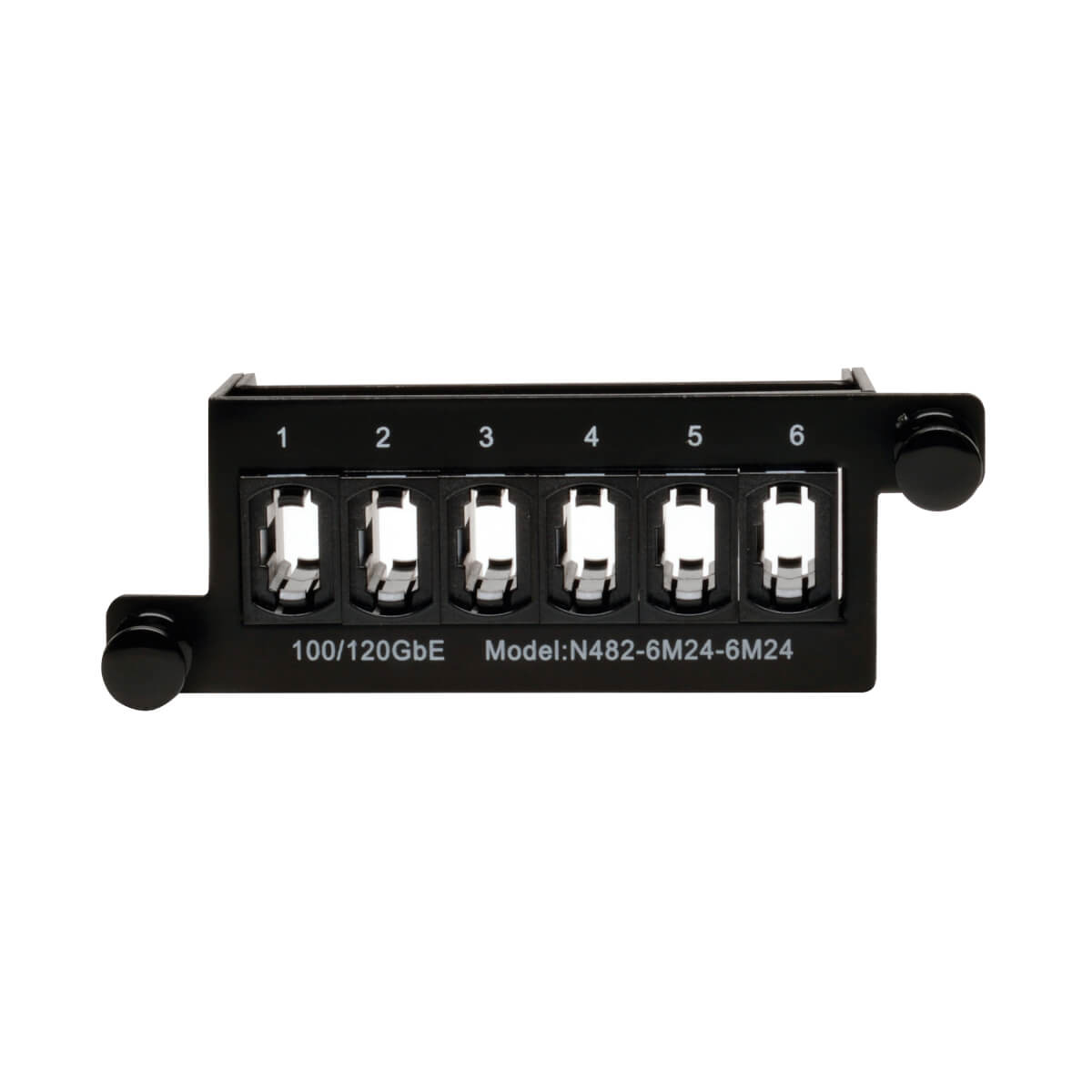

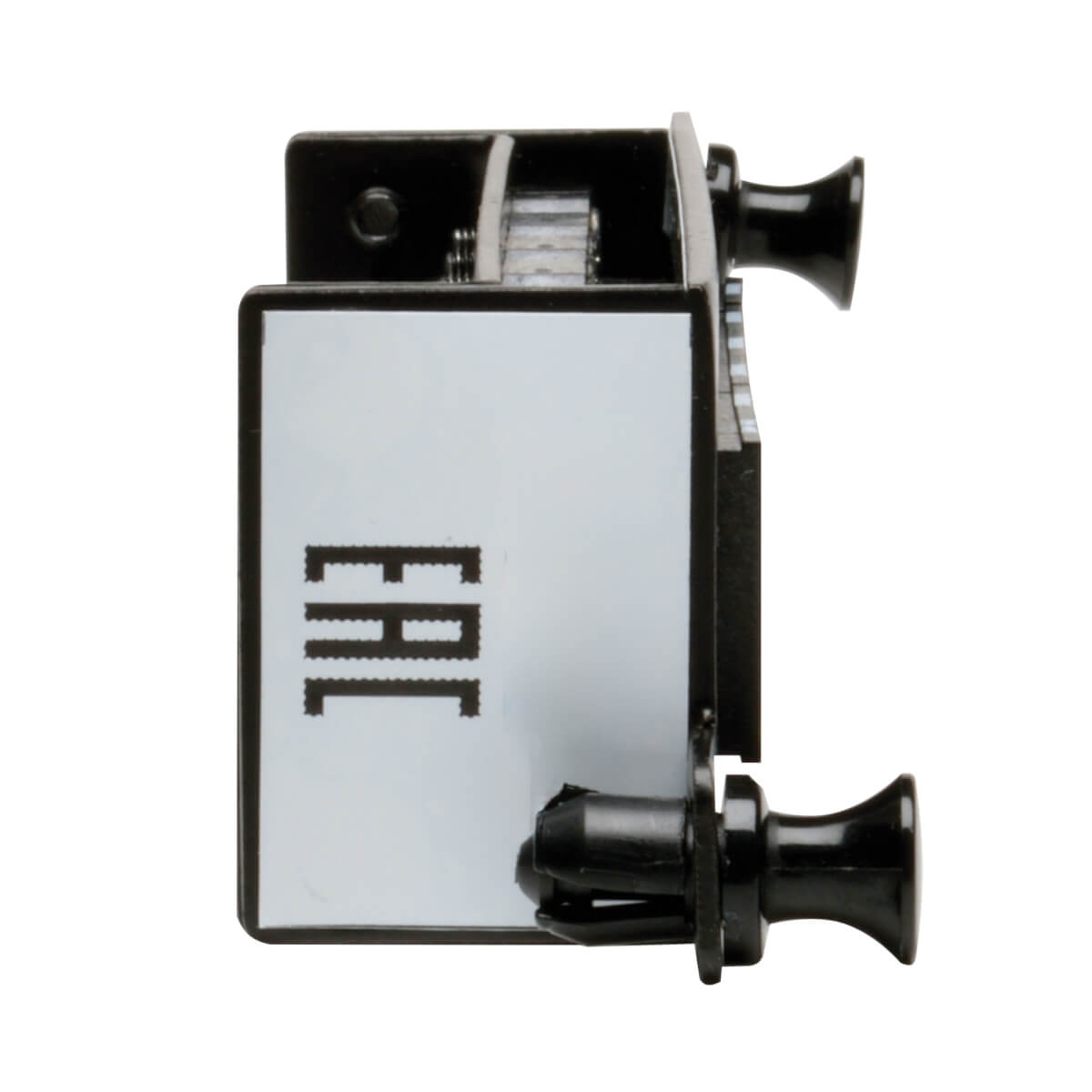

The N482-6M24-6M24 is a high-density 100/120 Gb Pass-Through Cassette with (x6) 24-Fiber MTP/MPO connections. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. Guaranteed compatibility when used with recommended cabling. Designed specifically for use with N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Constructed of heavy-duty steel housing.
Specifications
| Network | |
|---|---|
| Maximum data transfer rate | 120000 Mbit/s |
| Ports quantity | 6 |
| Connector(s) | MTP |
| Design | |
| Material | Steel |
| Product colour | Black |
| Certificates | |

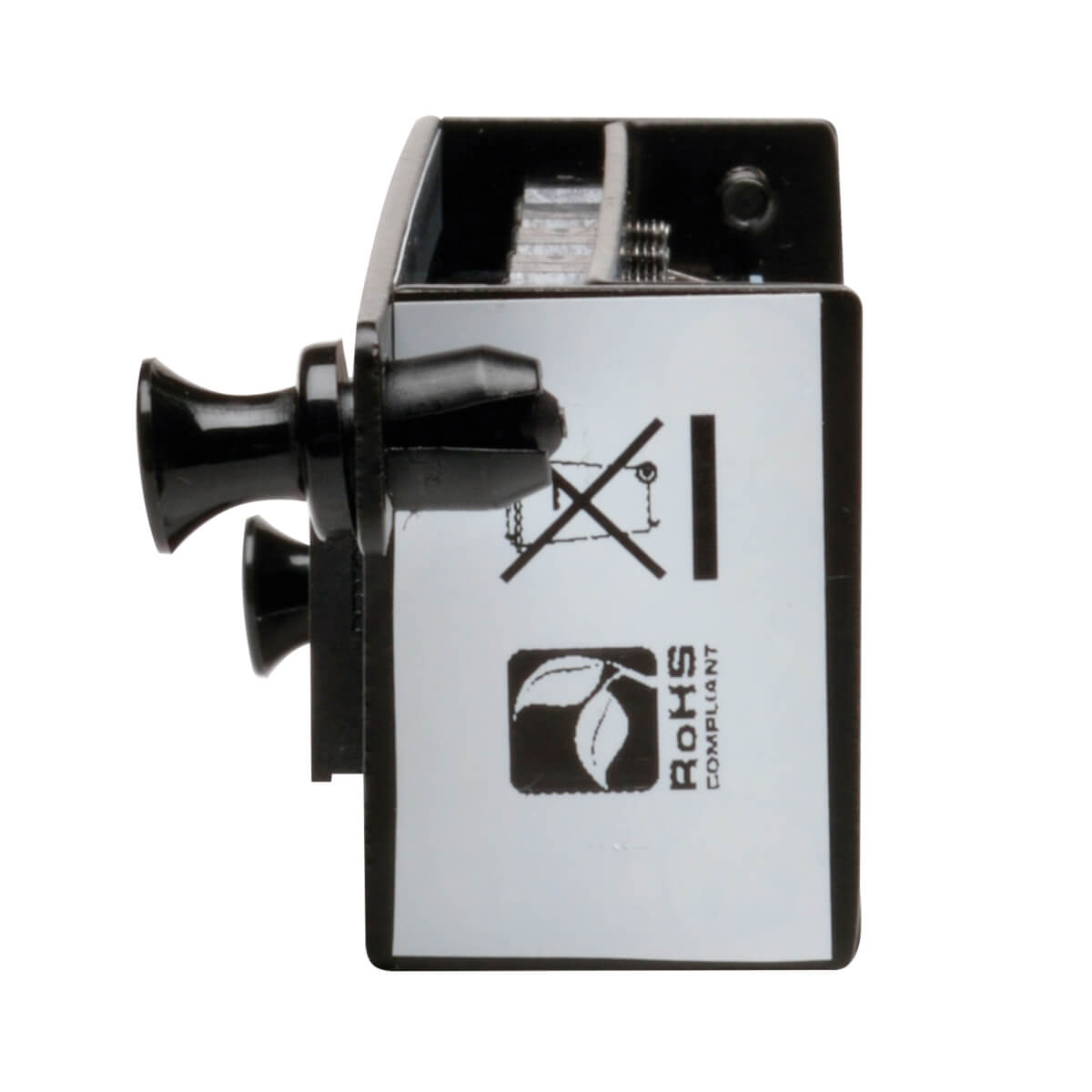

| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 3.5" (88.9 mm) |
| Weight | 2.82 oz (80 g) |
| Height | 1.2" (30.5 mm) |
| Depth | 0.902" (22.9 mm) |
| Package weight | 3.17 oz (90 g) |
| Package width | 4.1" (104.1 mm) |
| Package height | 2.4" (61 mm) |
| Packaging data | |
| Package weight | 3.17 oz (90 g) |
| Package depth | 2.4" (61 mm) |
| Package width | 4.1" (104.1 mm) |
| Package height | 2.4" (61 mm) |
| Features | |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Package width | 4.1" (104.1 mm) |
| Package height | 2.4" (61 mm) |
| Material | Steel |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Products per pallet | 1 pc(s) |
| Master (outer) case gross weight | 19.3 lbs (8.75 kg) |
| Products per master (outer) case | 90 pc(s) |
| Master (outer) case width | 15.4" (391.2 mm) |
| Master (outer) case length | 12.8" (325.1 mm) |
| Master (outer) case height | 12.8" (325.1 mm) |
| Master (outer) case GTIN (EAN/UPC) | 10037332184563 |
| Country of origin | China |
