Tripp Lite N482-1M24-LC12 patch panel

Tripp Lite N482-1M24-LC12 patch panel

  • Brand: Tripp Lite
  • Category:
  • SKU: N482-1M24-LC12
  • EAN: 0037332184535 0373321845354
100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 100GB/120GB TO 10GB BREAKOUTCASSETTE - 24-FIBER MTP/MPOTO (X12) LC 642302 Register free see stock
Ingram Micro 100GB/120GB TO 10GB BREAKOUT XU0400
TD Synnex 24-FIBER OM4 MTP/MPO TO X12 LC CASSETTE 4032434

Related Products

Description

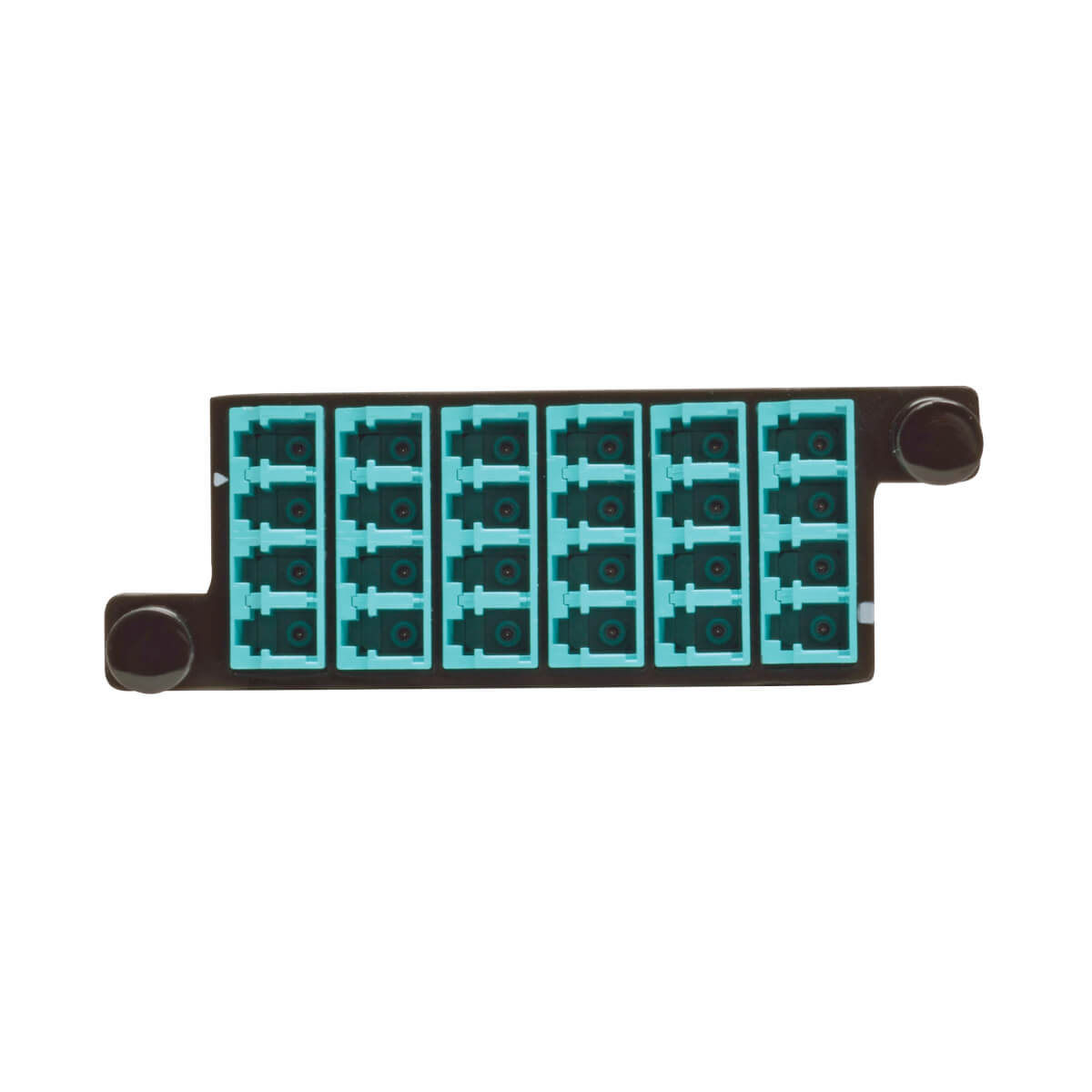

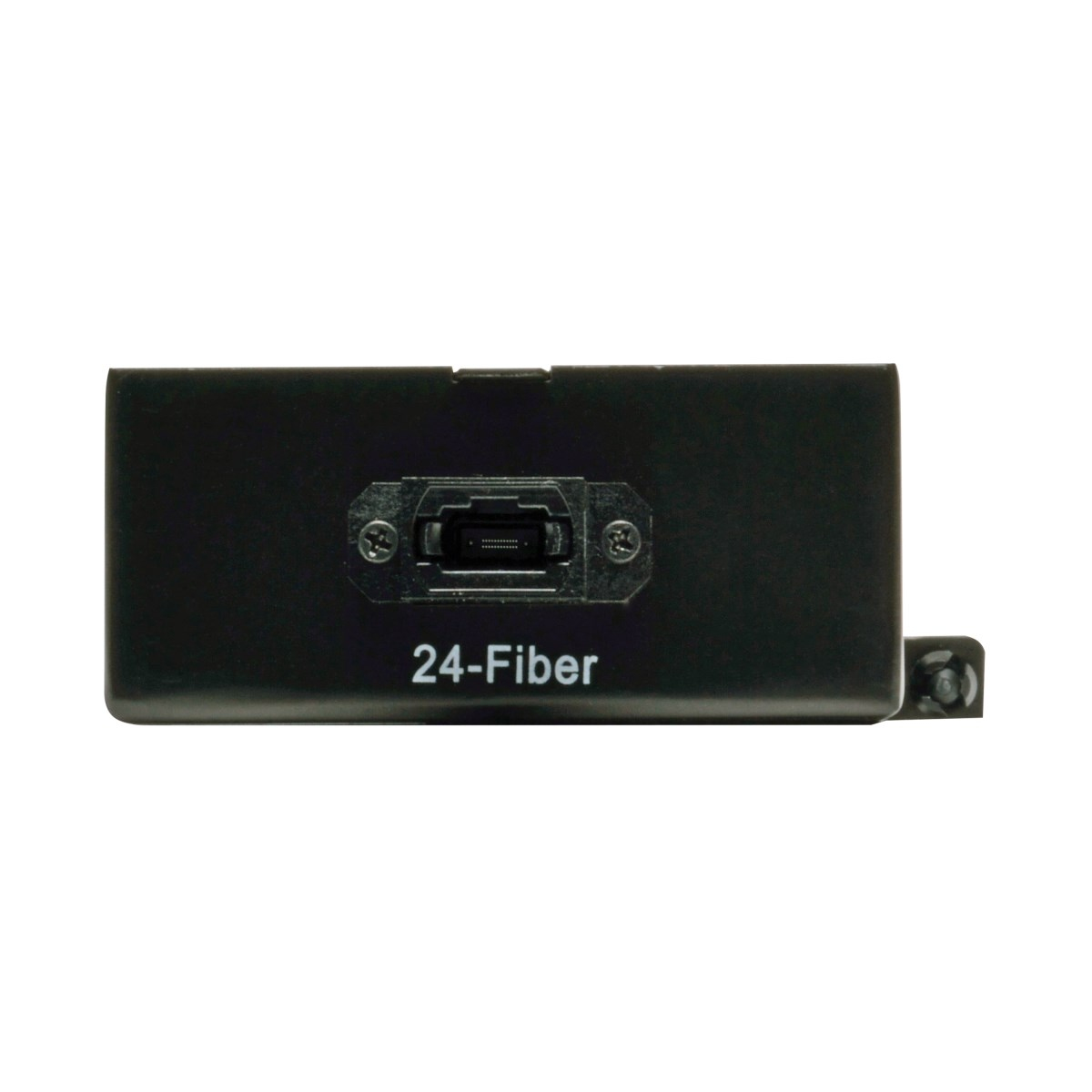

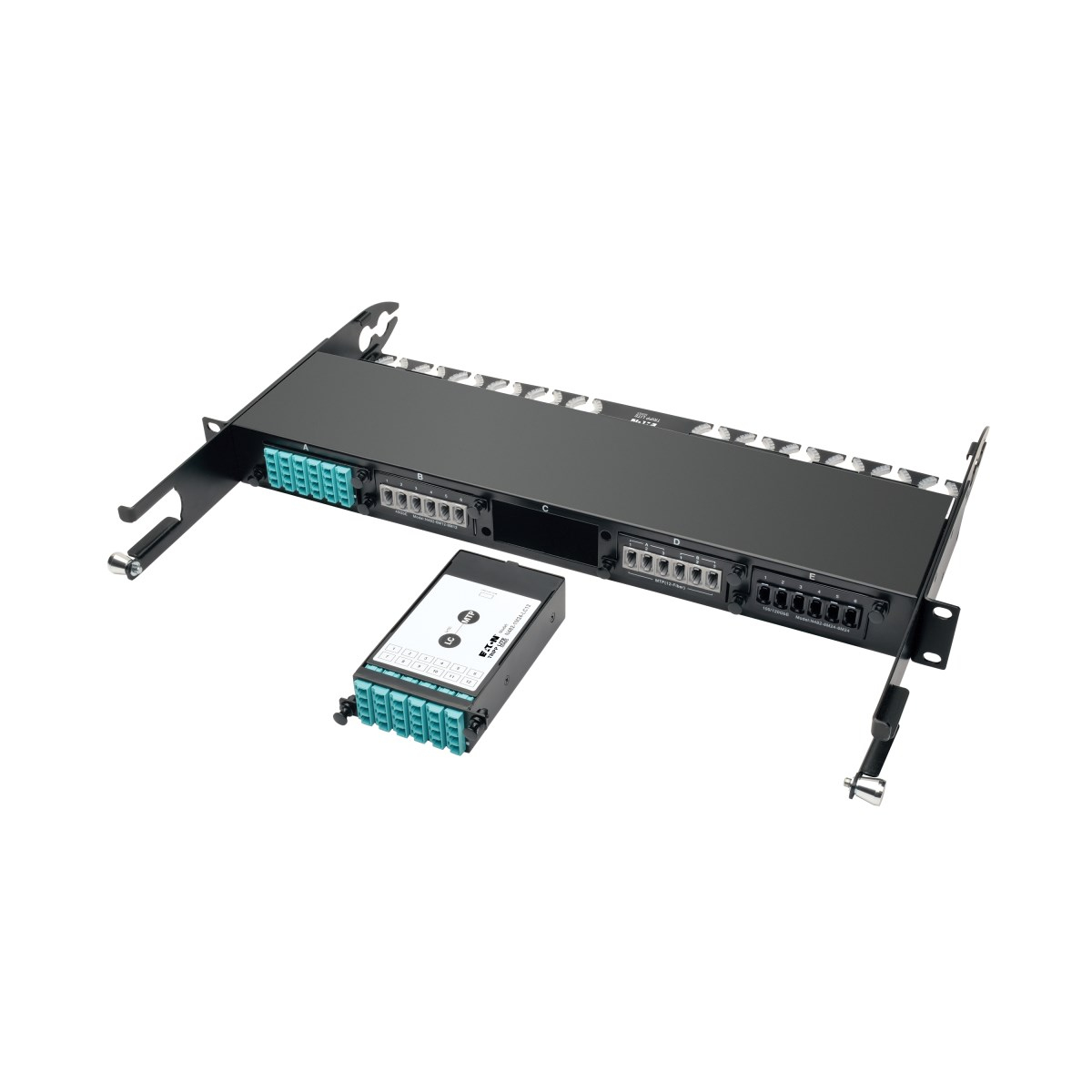

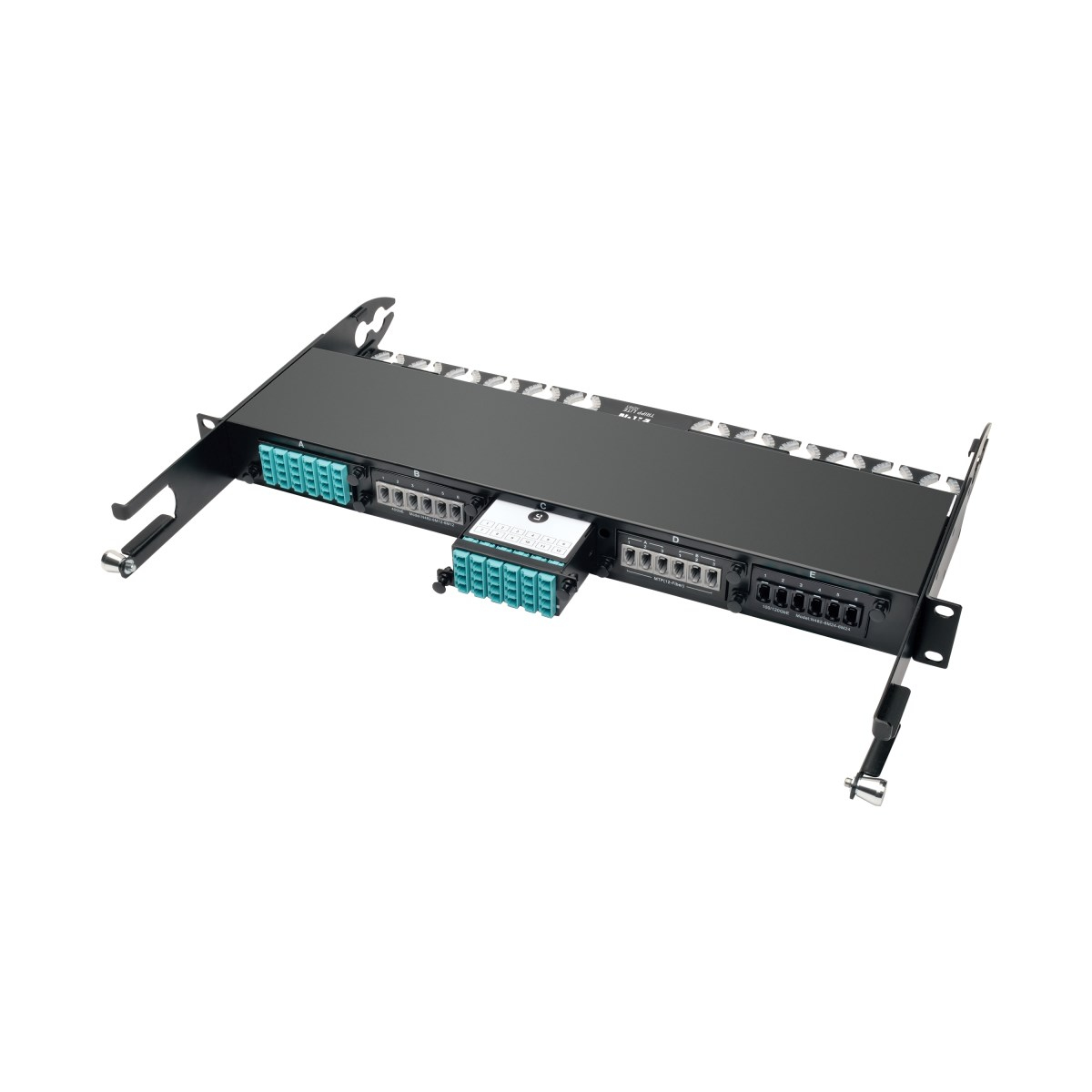

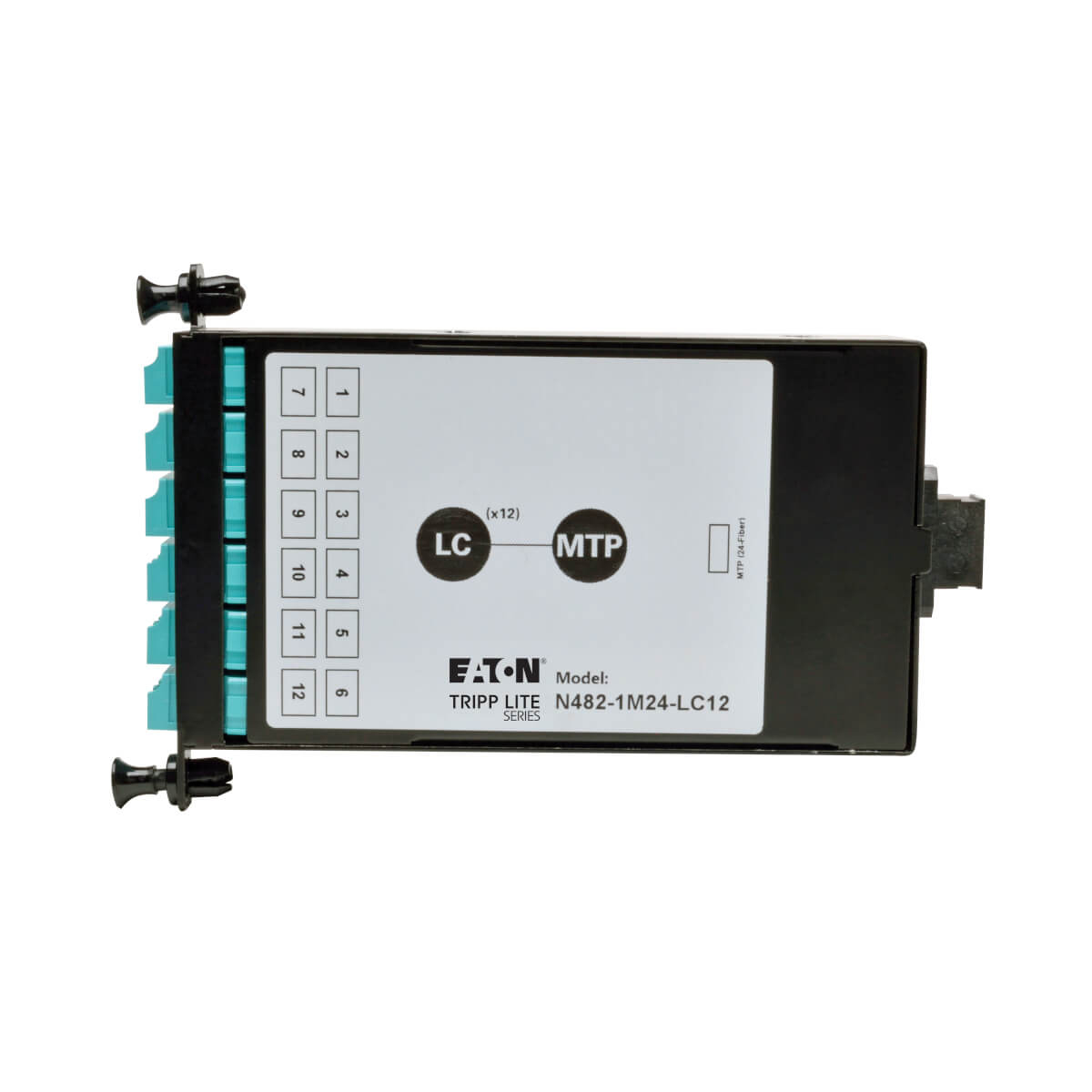

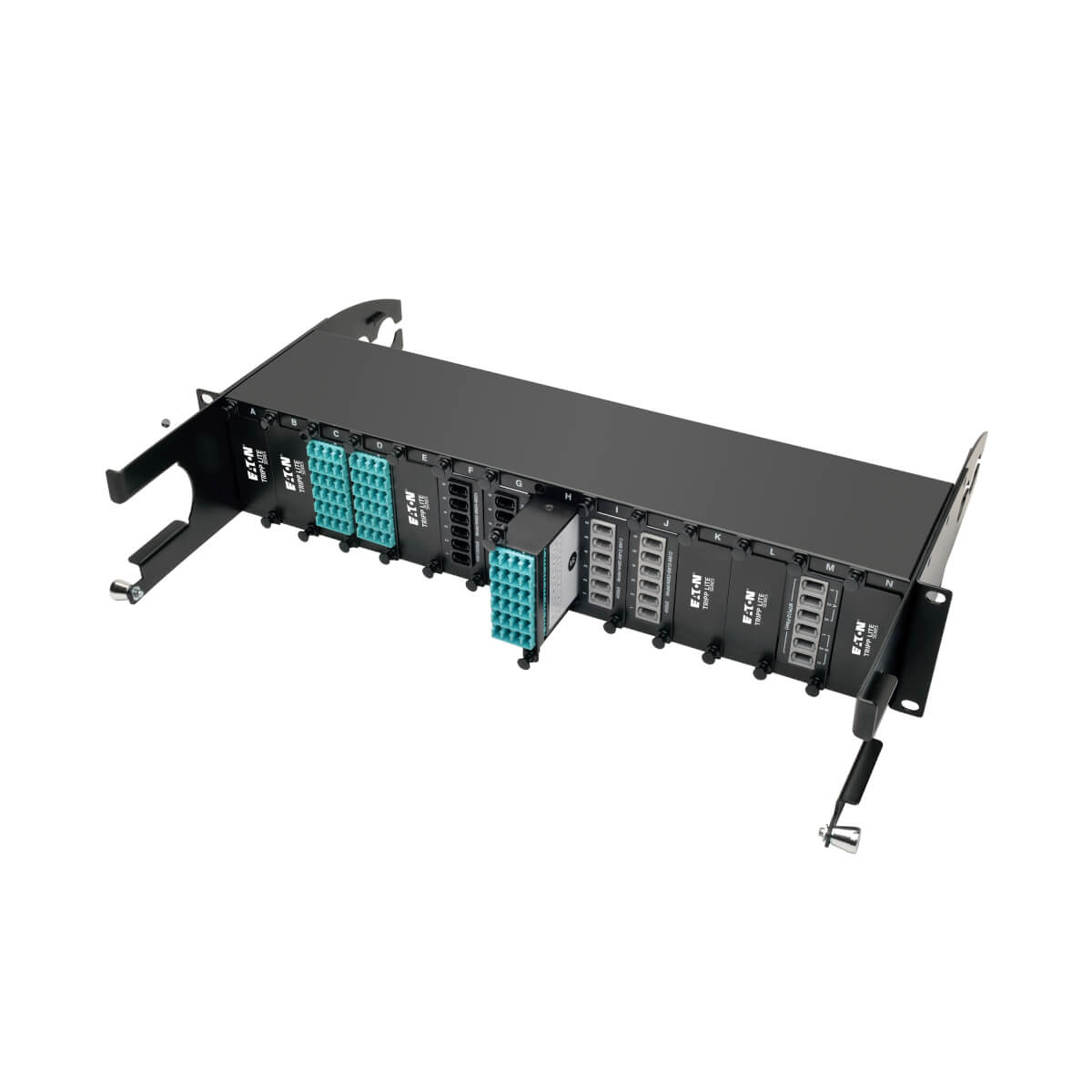

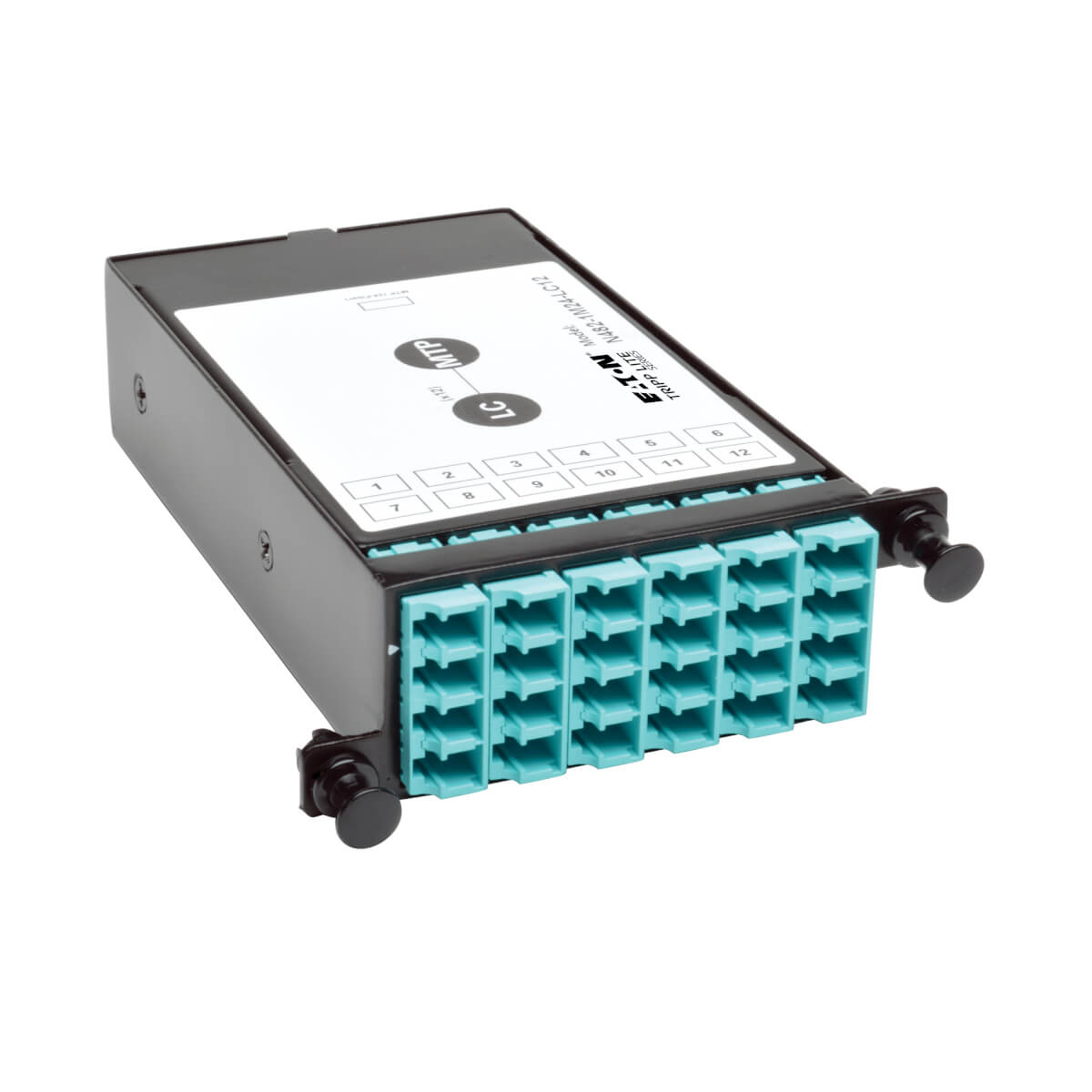

The N482-1M24-LC12 is a high-density 100/120 Gb to 10 Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with N482-01U and N482-02U high-density Fiber Enclosure Panels. Up to five cassettes per N482-01U or up to 14 cassettes per N482-02U. 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling, such as the N820-, N821- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push/pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.

Specifications

Network
Maximum data transfer rate120000 Mbit/s
Ports quantity12
Networking standardsIEEE 802.3ae
Connector(s)LC
Features
MaterialSteel
Product colourBlack
Technical details
Package width4.6" (116.8 mm)
Package height2" (50.8 mm)
Networking standardsIEEE 802.3ae
MaterialSteel
Compliance certificatesRoHS
Design
MaterialSteel
Product colourBlack
Colour
Product colourBlack
Weight & dimensions
Width3.5" (88.9 mm)
Weight8.47 oz (240 g)
Height1.2" (30.5 mm)
Depth4.7" (119.4 mm)
Package weight11.3 oz (320 g)
Package width4.6" (116.8 mm)
Package height2" (50.8 mm)
Packaging data
Package weight11.3 oz (320 g)
Package depth7.8" (198.1 mm)
Package width4.6" (116.8 mm)
Package height2" (50.8 mm)
Logistics data
Products per pallet1 pc(s)
Master (outer) case gross weight16.3 lbs (7.39 kg)
Products per master (outer) case27 pc(s)
Master (outer) case width12.7" (322.6 mm)
Master (outer) case length15.4" (391.2 mm)
Master (outer) case height12.9" (327.7 mm)
Master (outer) case GTIN (EAN/UPC)10037332184532
Country of originChina
