Tripp Lite N482-02U patch panel 2U

Tripp Lite N482-02U patch panel 2U

  • Brand: Tripp Lite
  • Category:
  • SKU: N482-02U
  • EAN: 0037332184528 0373321845286
Enclosure for 14 High-Density Fiber Cassettes, 2U

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

HIGH DENSITY FIBER ENCLOSUREPANEL, 2U 14-CASSETTE CAPACITY

 642301 Register free see stock
D&H

HD Rckmnt Fiber Enc Pnl 14

 N48202U
ScanSource

High Density Rackmount Fiber E

 POW-N48202U
TD Synnex

Tripp Lite Series Enclosure for 14 High-Density Fiber Cassettes, 2U

 4011161

Related Products

Description

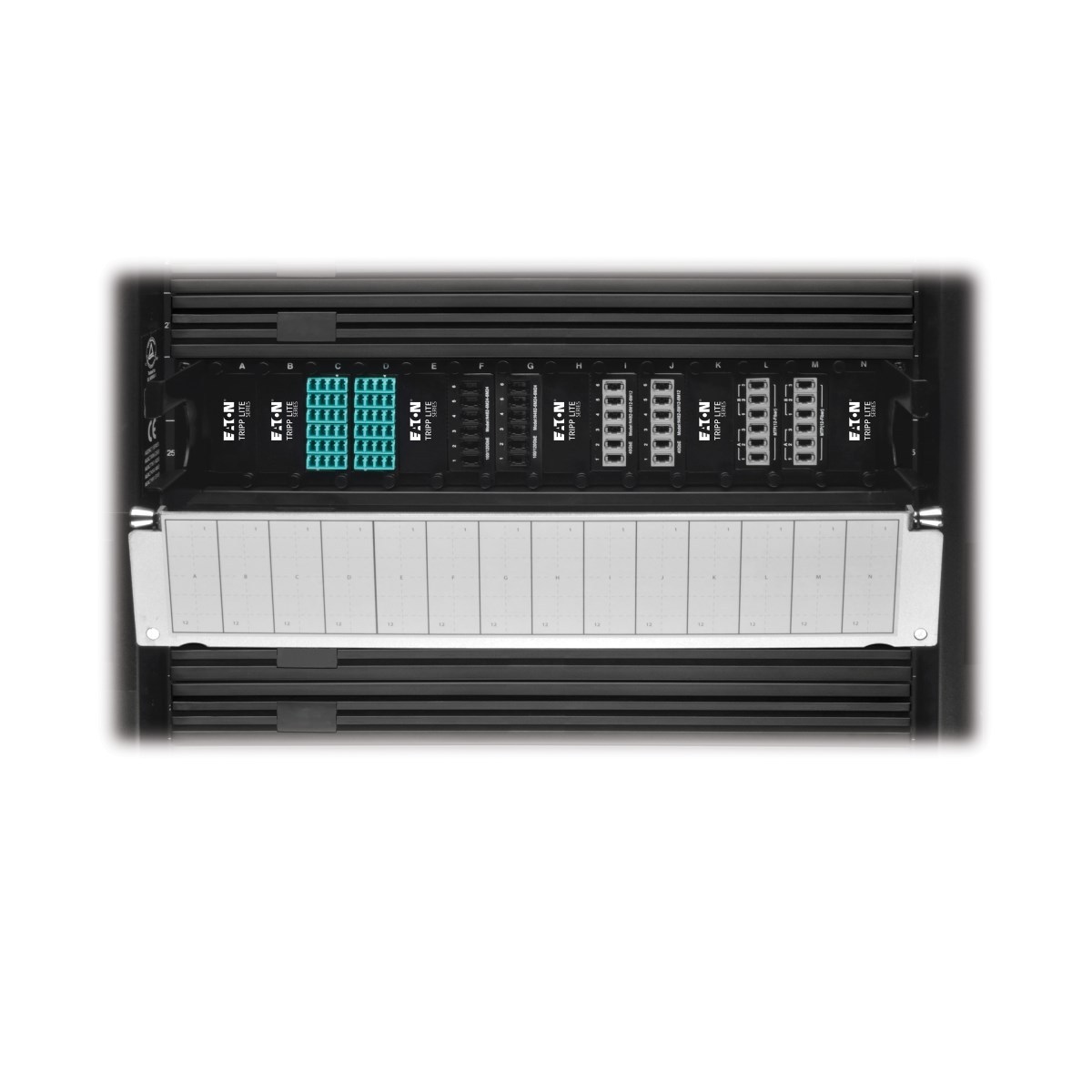

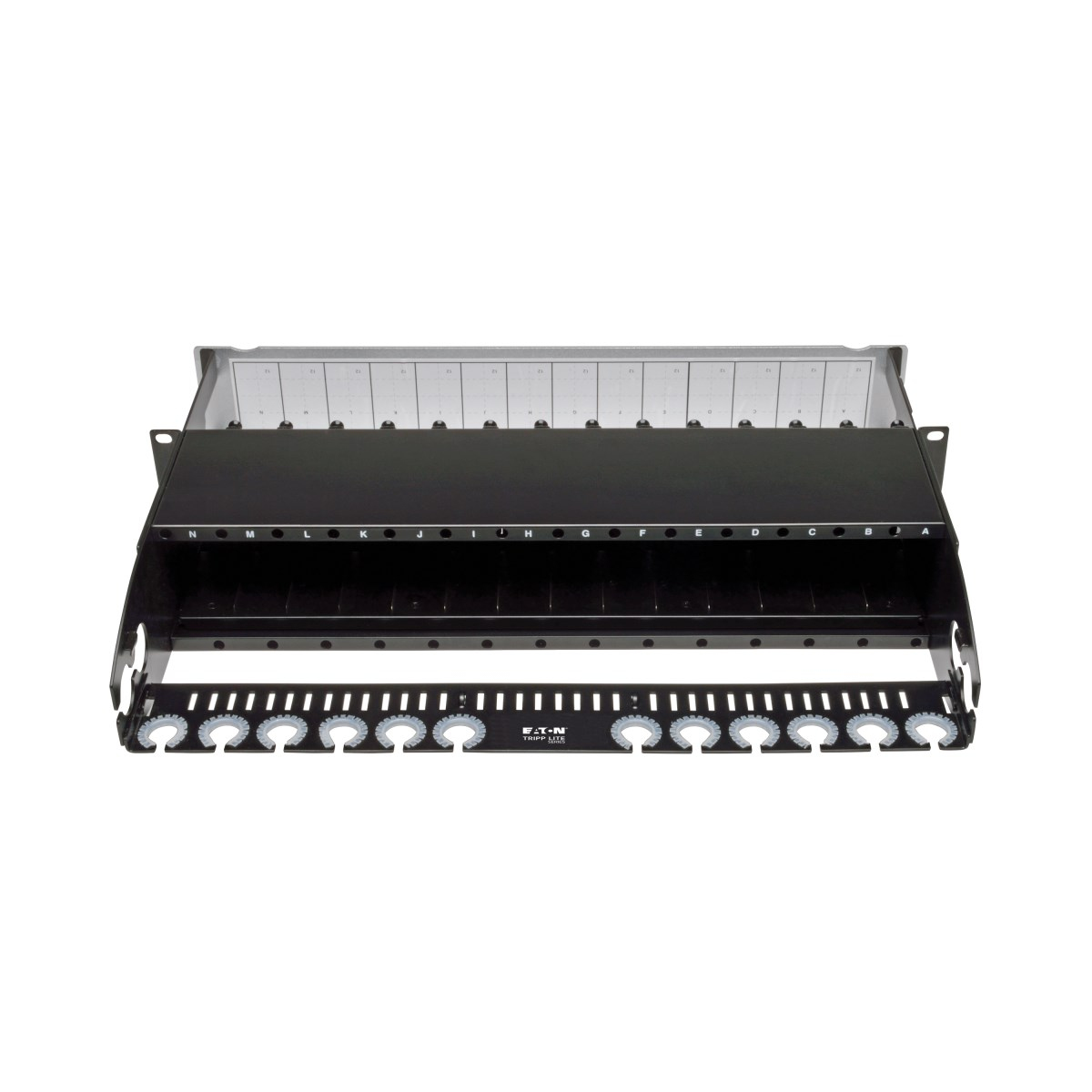

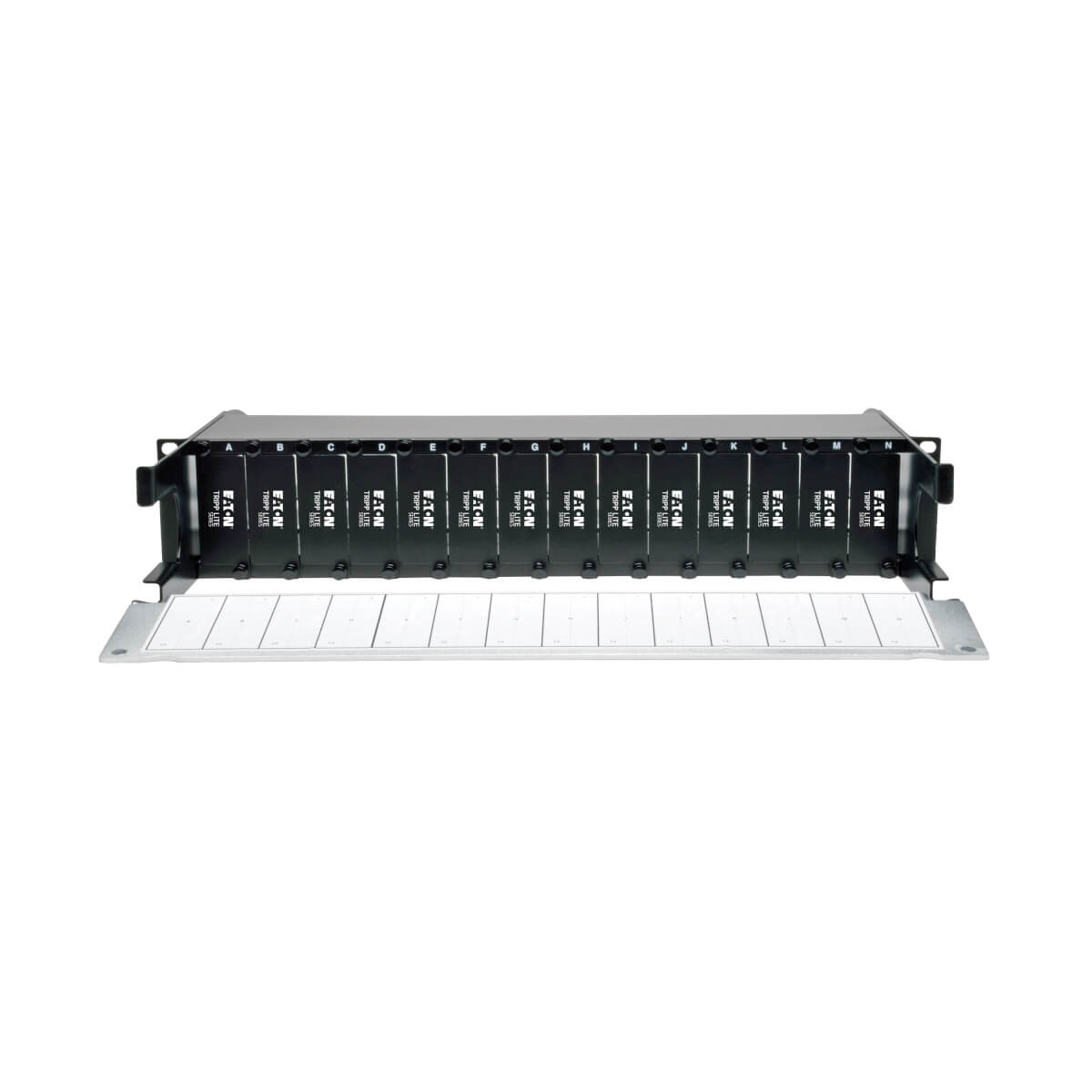

The N482-02U is a high-density Fiber Cassette solution that supports up to 14 high-density Fiber Cassettes, maximizing rack space and allowing for up to 168 Duplex LC Ports (336 fiber connections) in just 1U of space. High-density Fiber Cassettes come in multiple variations, allowing you to connect different generations of equipment (10 Gb, 40 Gb, 100/120 Gb), and giving you the flexibility to adapt as your technology changes. Installation is simple, with the cassettes being easily installed or removed using push/pull tabs to lock or unlock them from the panel; no tools required. Management is a breeze with an optional rear-mounting cable management bracket that allows you to rout your cabling neatly and safely. A fold-down door panel is featured on the front of the unit and protects your connections, while rotating out of the way to provide full access. The door panel can also be removed altogether for installations where constant access is preferred. Constructed of heavy-duty steel housing.

Specifications

Network
Ports quantity168
Design
MountingRack mounting
Rack capacity2U
MaterialSteel
Product colourBlack
Certificates
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Weight & dimensions
Width19" (482.6 mm)
Weight6.9 lbs (3.13 kg)
Height3.5" (88.9 mm)
Depth13" (330.2 mm)
Package weight9.9 lbs (4.49 kg)
Package width4.5" (114.3 mm)
Package height21.3" (541 mm)
Packaging data
Package weight9.9 lbs (4.49 kg)
Package depth15" (381 mm)
Package width4.5" (114.3 mm)
Package height21.3" (541 mm)
Features
MountingRack mounting
Rack capacity2U
MaterialSteel
Product colourBlack
Technical details
MountingRack mounting
Operating temperature (T-T)-20 - 60 °C
Package width4.5" (114.3 mm)
Package height21.3" (541 mm)
MaterialSteel
Compliance certificatesRoHS
Colour
Product colourBlack
Logistics data
Products per pallet1 pc(s)
Master (outer) case gross weight39.9 lbs (18.1 kg)
Products per master (outer) case4 pc(s)
Master (outer) case width19.7" (500.4 mm)
Master (outer) case length15.7" (398.8 mm)
Master (outer) case height22" (558.8 mm)
Master (outer) case GTIN (EAN/UPC)10037332184525
Country of originChina
