Tripp Lite N48K-15M8L60S-B patch panel 1U

Tripp Lite N48K-15M8L60S-B patch panel 1U

40/100Gb Fiber Breakout Patch Panel, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, 15 MTP QSFP to 60 LC Duplex 9/125 Singlemode Ports, 1U

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

40/100GB FIBER BREAKOUT PATCHPANEL, 40GB TO 4 X 10GB,100GB TO 4 X 25GB

 9810440 Register free see stock

Related Products

Description

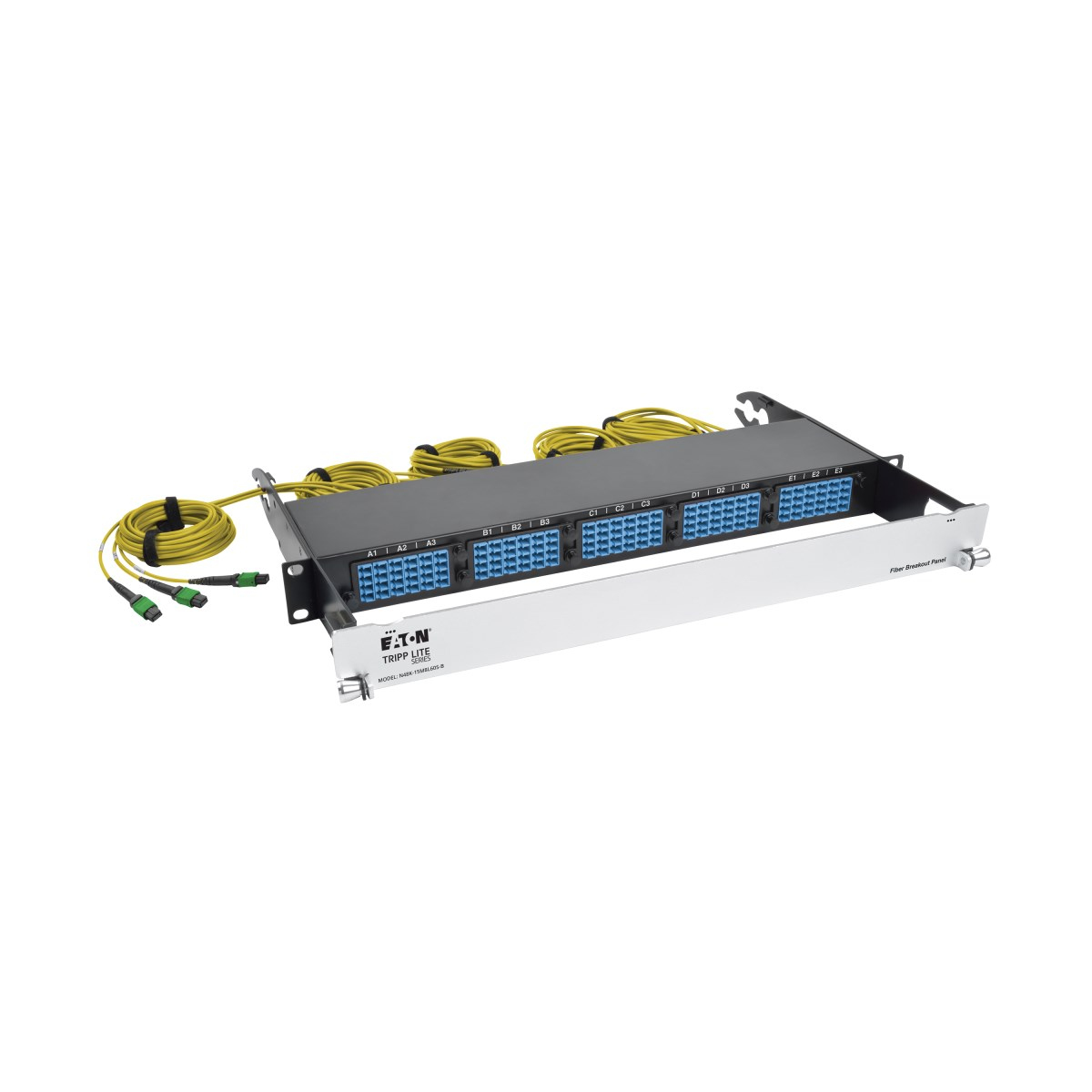

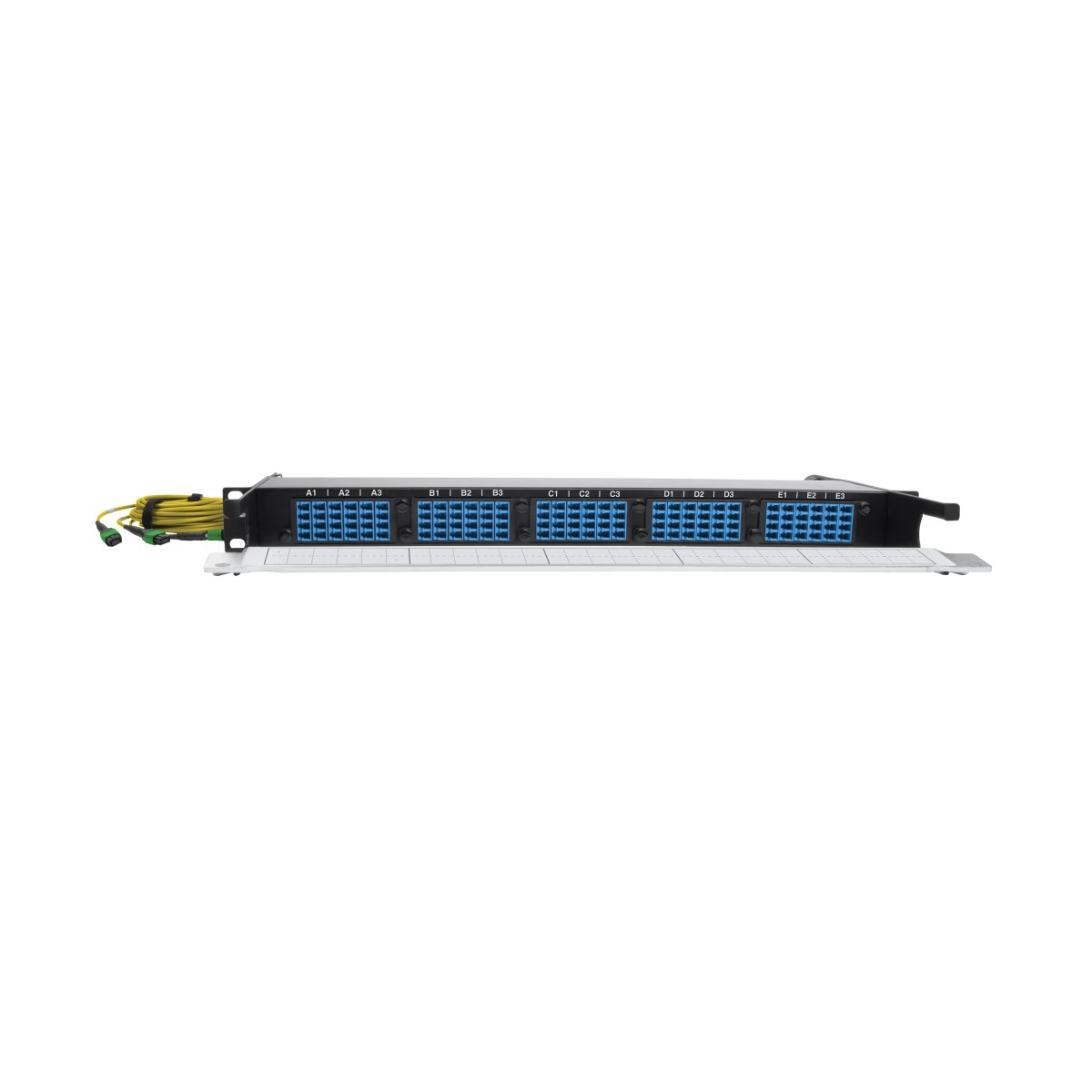

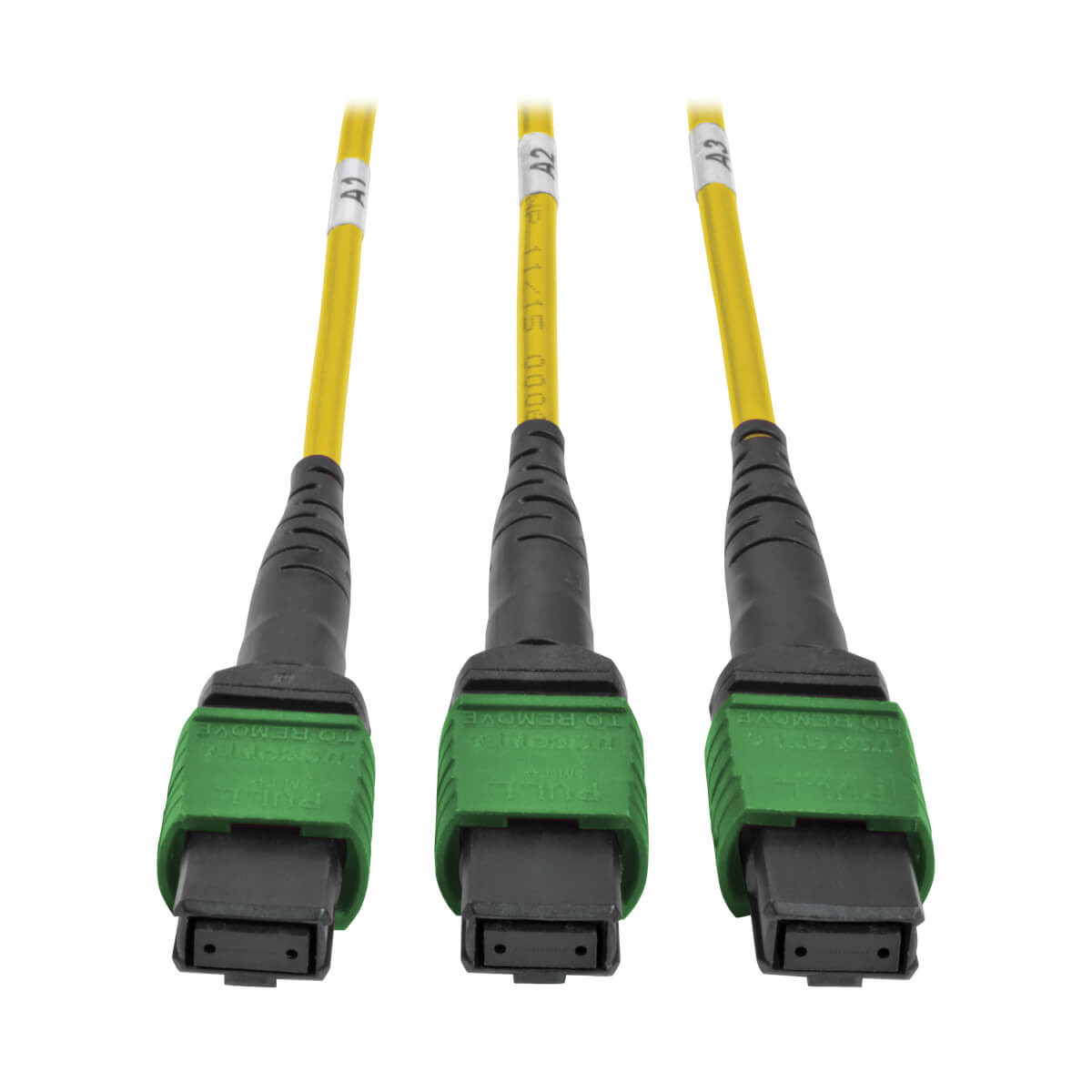

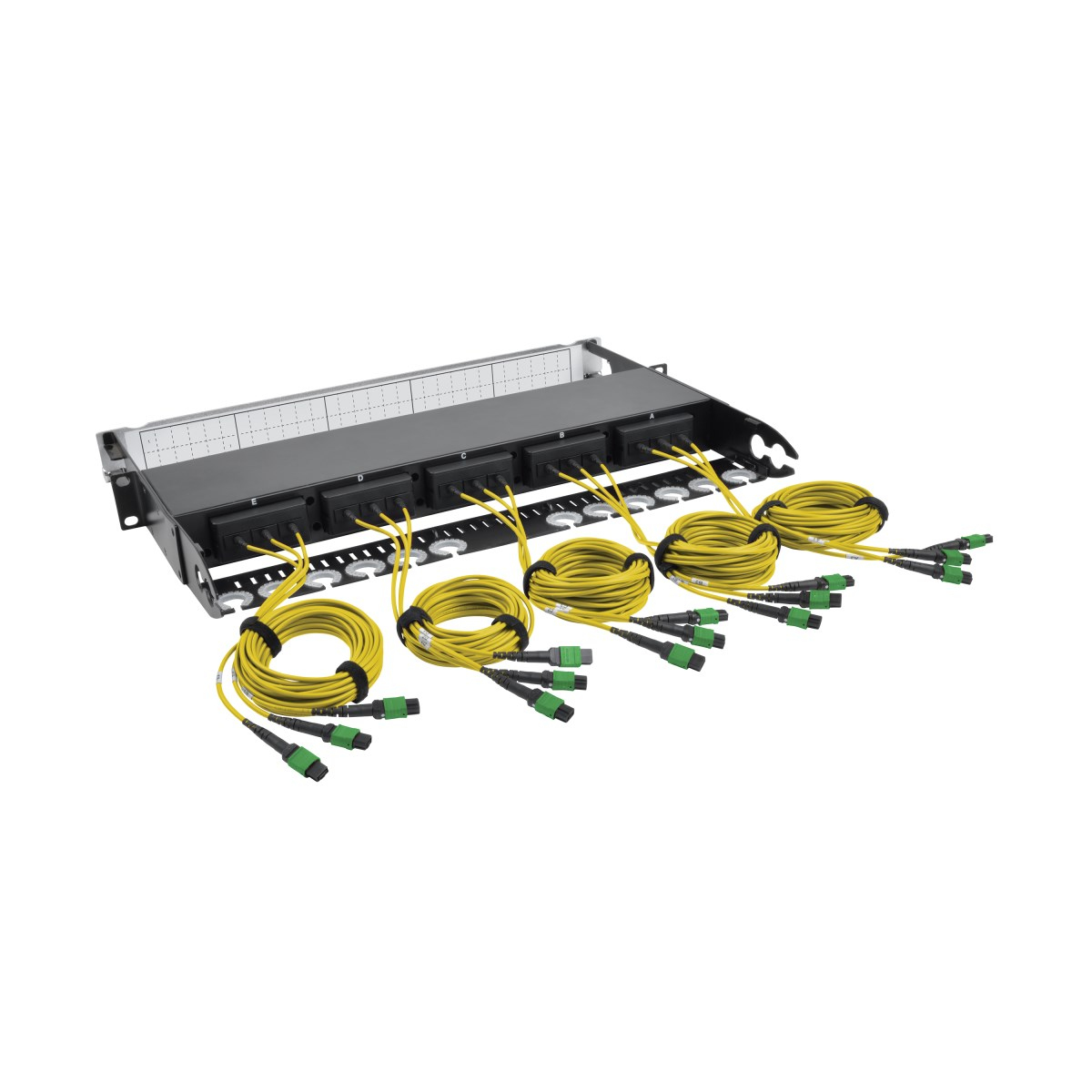

The N48K-15M8L60S-B 9/125 Breakout Fiber Patch Panel not only integrates equipment with 10G and 40G speeds, but also provides a simple, flexible path from 25Gb to 100Gb as well as upcoming 50Gb to 200Gb speeds and beyond. The 1U chassis features five breakout cassettes. Each cassette contains 12 LC duplex ports and three built-in two-meter MTP singlemode cables for a total of 15 QSFP fiber switch ports breaking out to 60 LC ports.

Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-15M8L60S-B uses all 60 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.

Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded yellow singlemode cables are easily distinguished from traditional aqua OM3 multimode fiber.

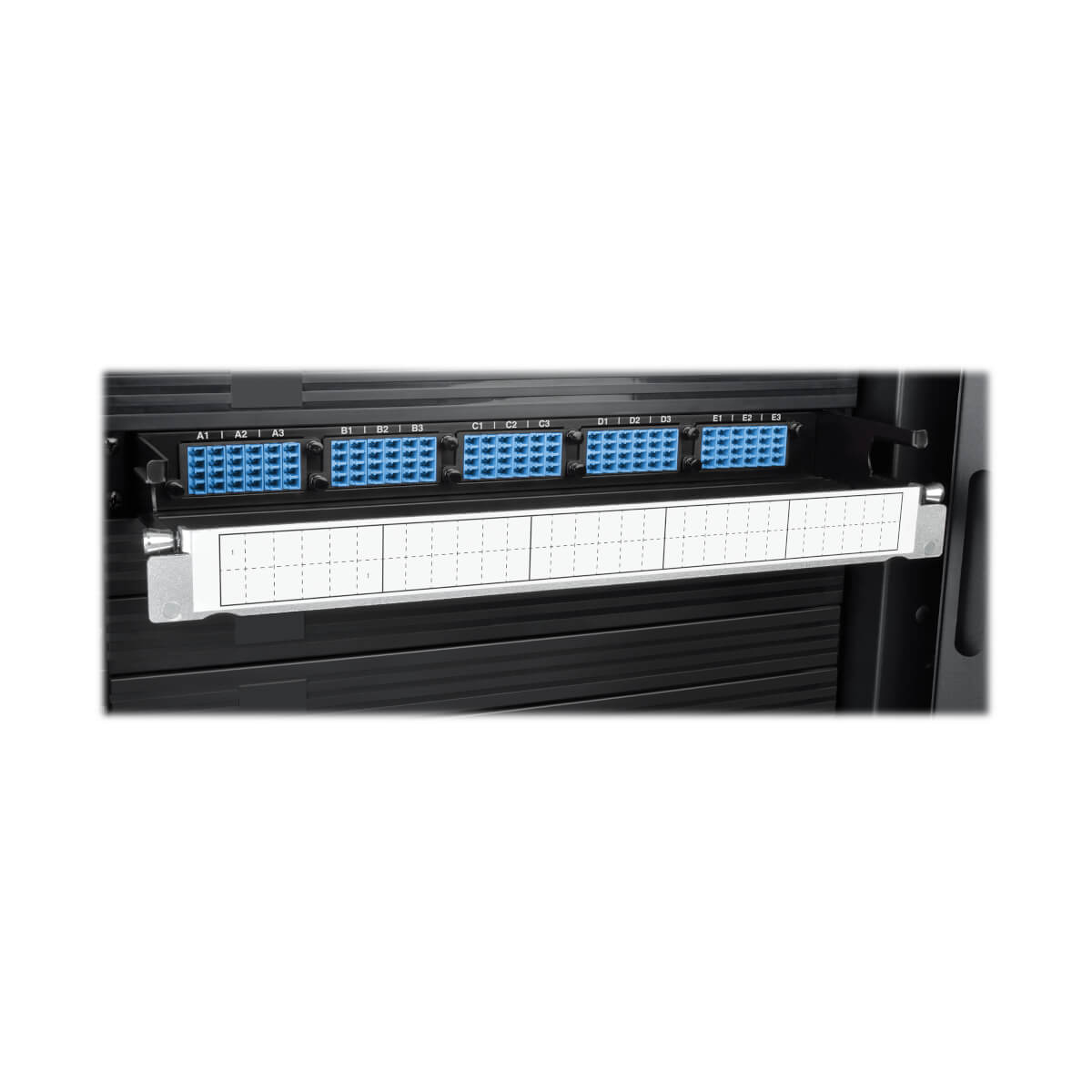

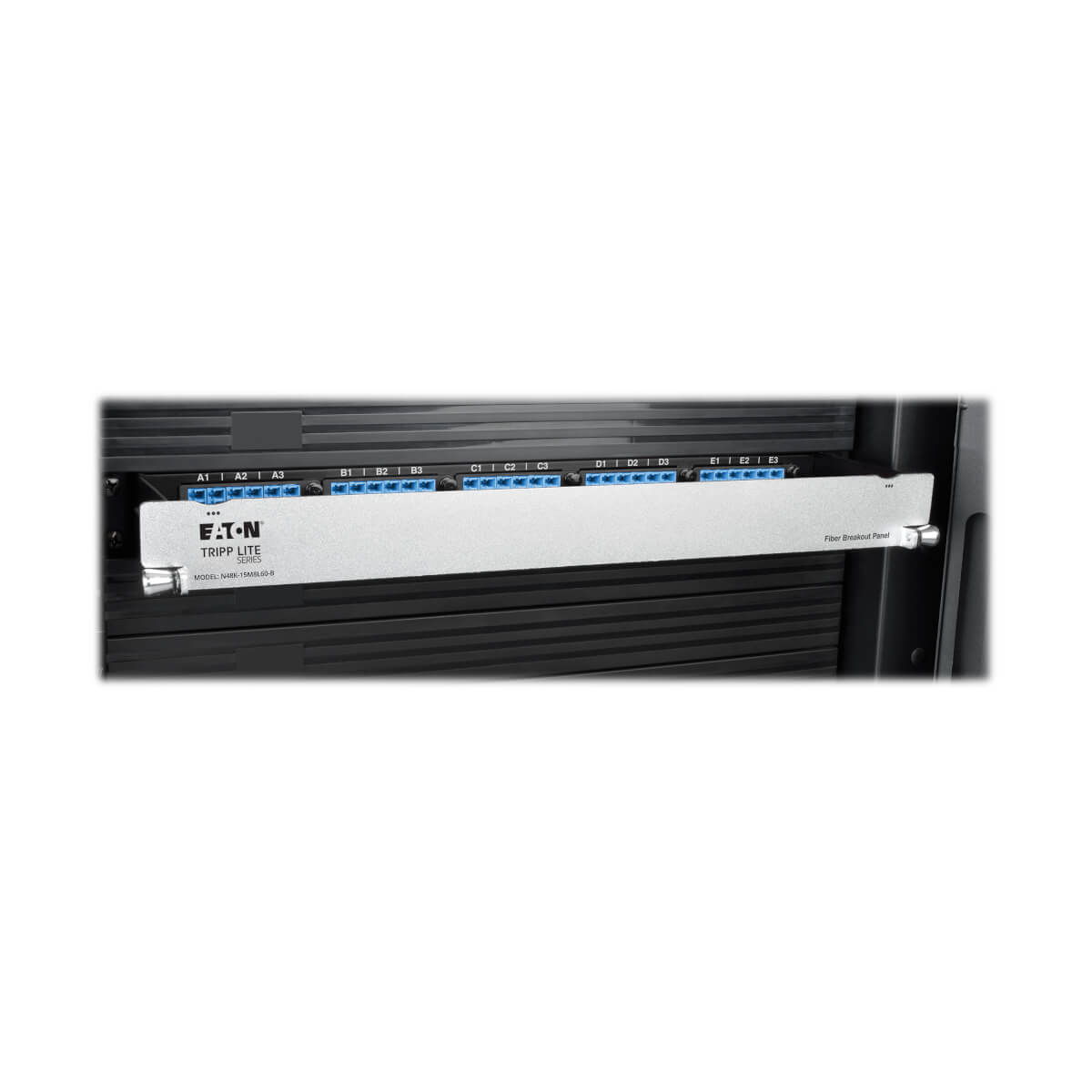

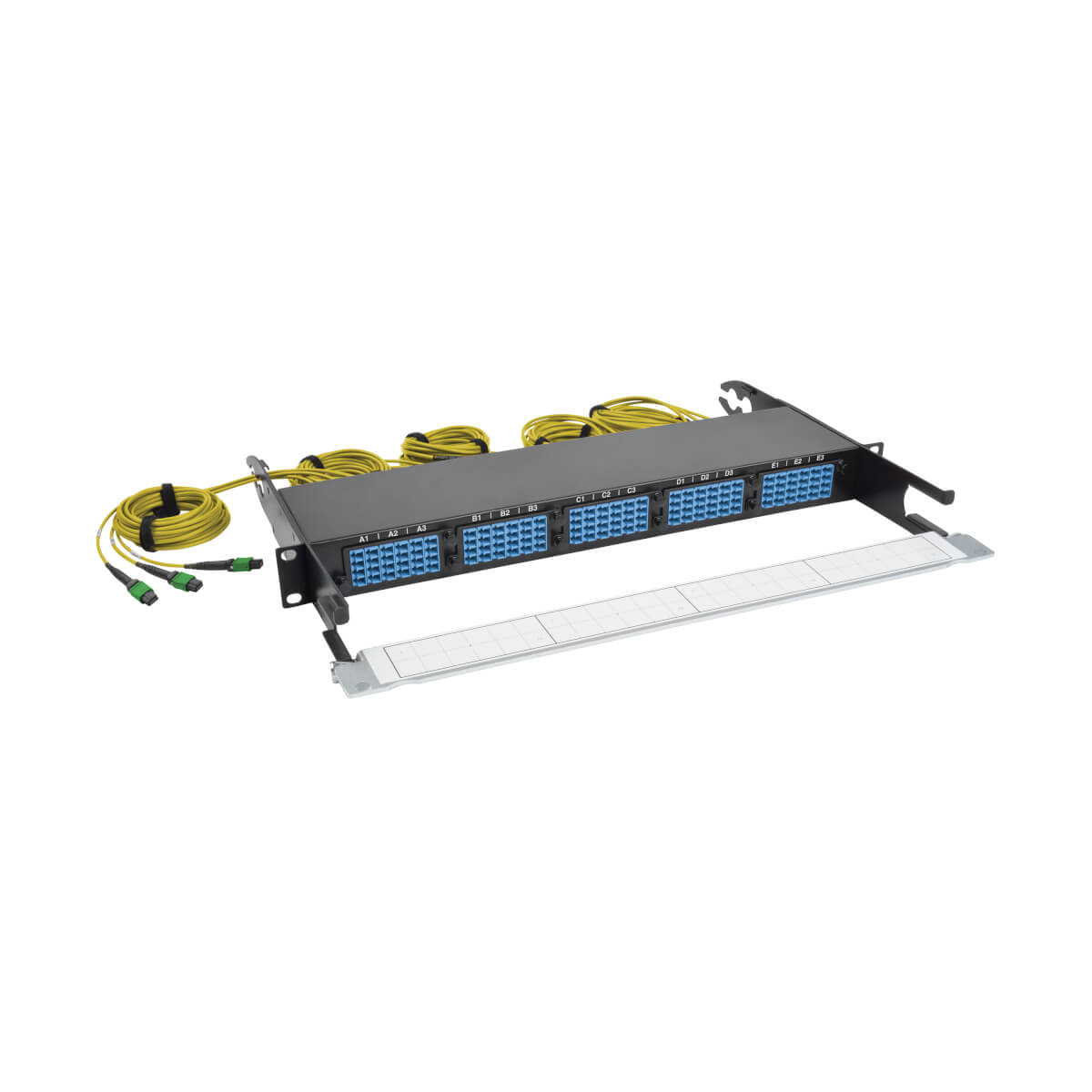

The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette’s labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port. Each panel is serialized and insertion loss data is available upon request via the unit’s serial number.

Specifications

Network
Ethernet interface type10 Gigabit Ethernet, 40 Gigabit Ethernet
Ports quantity60
Connector(s)LC, MTP
Design
MountingRack mounting
Rack capacity1U
Product colourBlack, Blue, White
Certificates
Compliance certificatesRoHS
Packaging data
Package weight8 lbs (3.63 kg)
Package depth18.8" (477.5 mm)
Package width21.3" (541 mm)
Package height3.8" (96.5 mm)
Features
MountingRack mounting
Rack capacity1U
Product colourBlack, Blue, White
Technical details
MountingRack mounting
Package width21.3" (541 mm)
Package height3.8" (96.5 mm)
Compliance certificatesRoHS
Colour
Product colourBlack, Blue, White
Logistics data
Master (outer) case gross weight35.5 lbs (16.1 kg)
Products per master (outer) case4 pc(s)
Master (outer) case width22.3" (566.4 mm)
Master (outer) case length19.6" (497.8 mm)
Master (outer) case height15.8" (401.3 mm)
Master (outer) case GTIN (EAN/UPC)10037332200874
Country of originChina
Weight & dimensions
Package weight8 lbs (3.63 kg)
Package width21.3" (541 mm)
Package height3.8" (96.5 mm)
