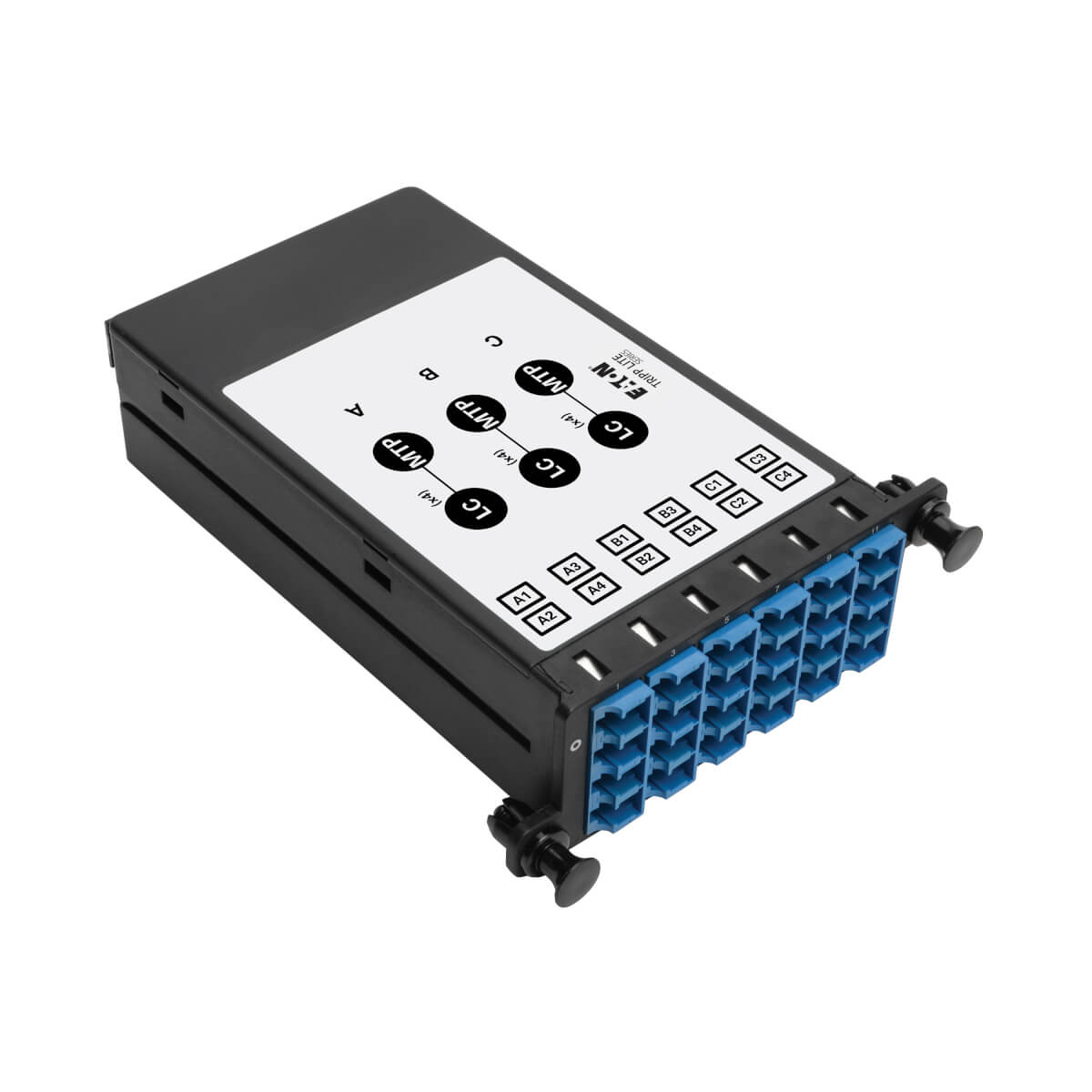

Tripp Lite N482-3M8L12S patch panel

Tripp Lite N482-3M8L12S patch panel

  • Brand: Tripp Lite
  • Category:
  • SKU: N482-3M8L12S
  • EAN: 0037332205742
40/100Gb Singlemode Fiber, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, Breakout Cassette, (x3) 8-Fiber MTP/MPO (APC) to (x12) LC (UPC) Duplex 9/125, N482 Chassis

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro MTP/MPO TO LC BREAKOUT CASSETTE 9U9518 Register free see stock

Related Products

Description

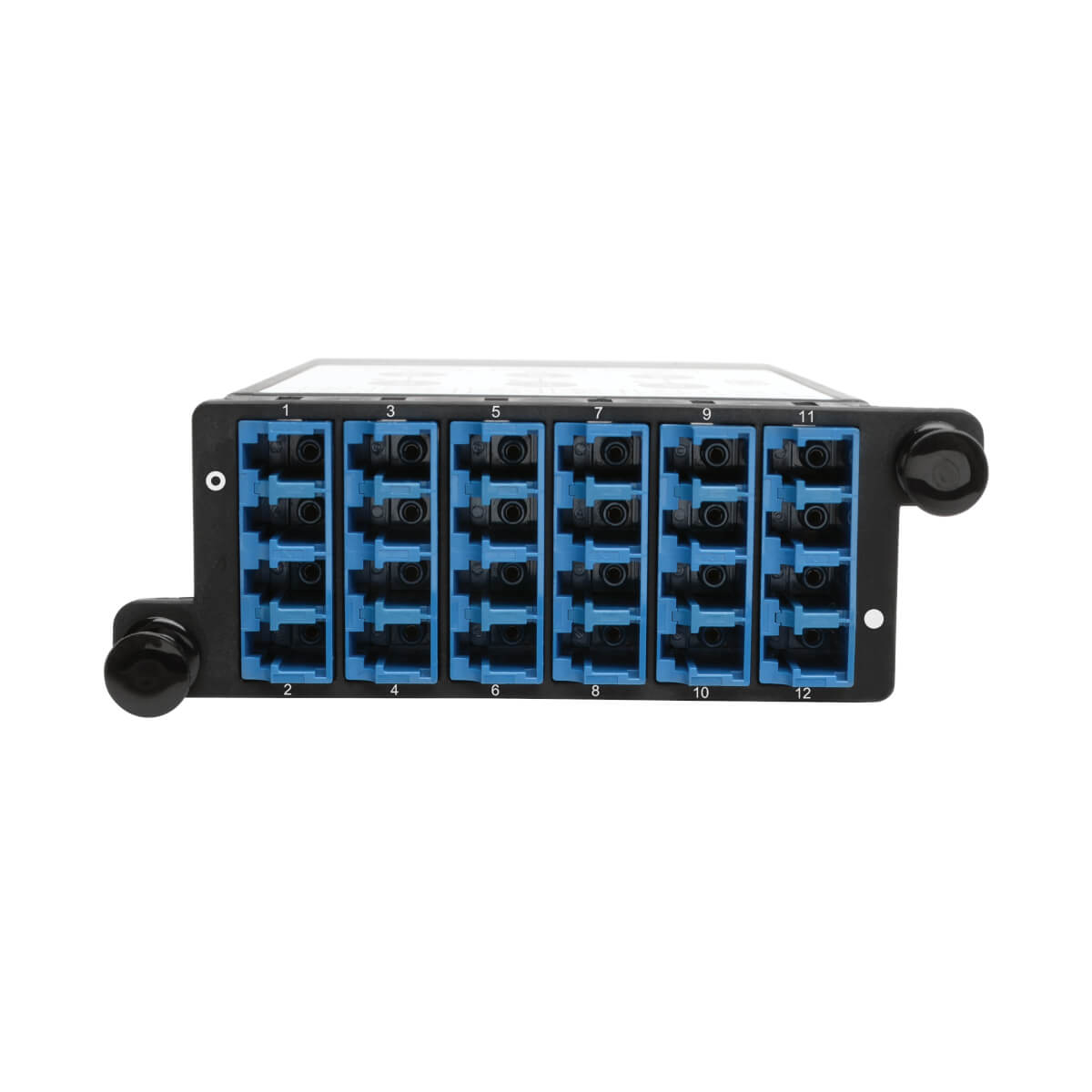

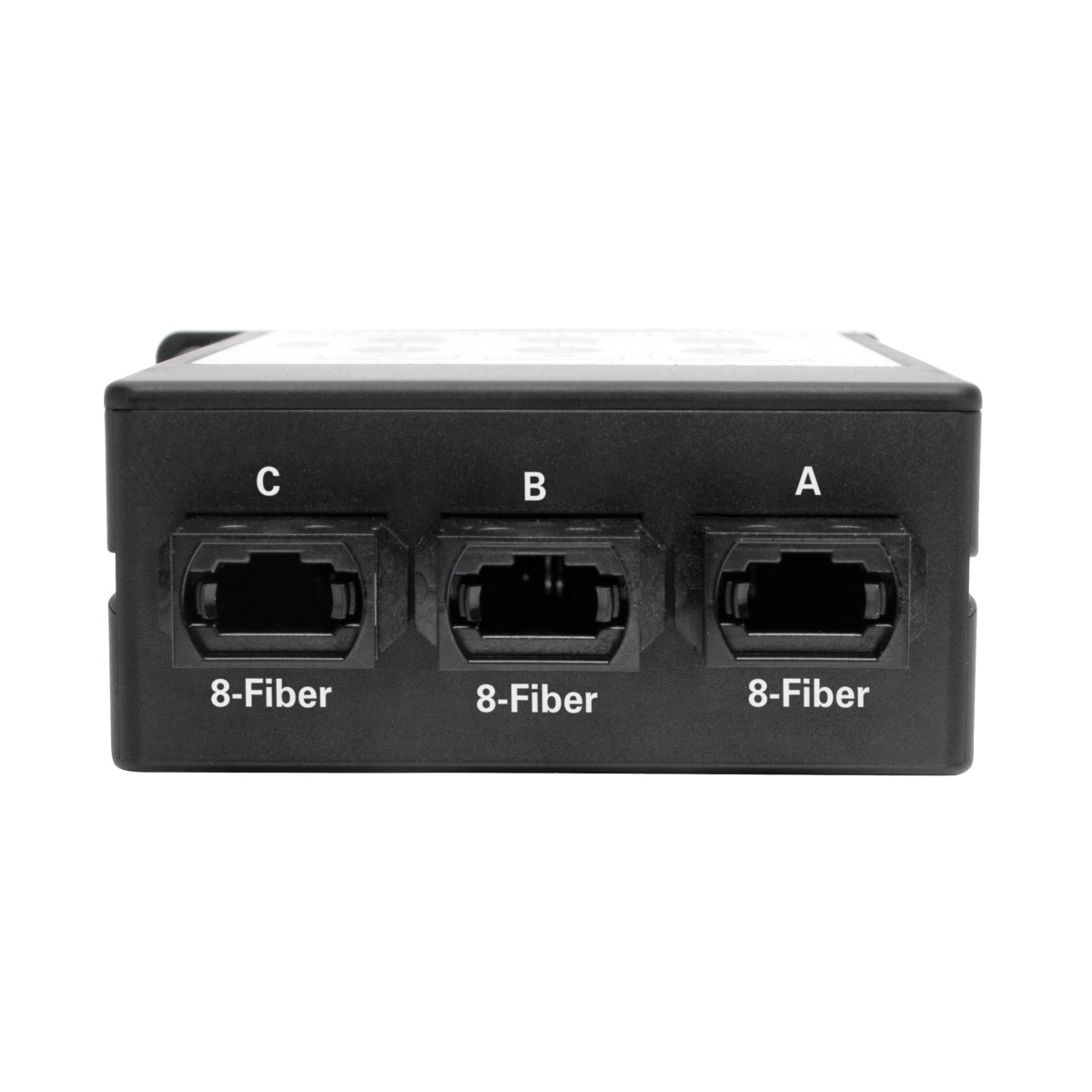

The N482-3M8L12S 9/125 Singlemode Fiber Optic 40/100 Gb to 10/25 Gb Breakout Cassette works in tandem with an N482-00U, N482-01U or N482-02U chassis (sold separately) to join 12 duplex LC fiber cables with three 8-fiber MTP/MPO connections. Ideal for interconnecting any combination of 10Gb, 25Gb, 40Gb and 100Gb network equipment in a simple, elegant and highly flexible way, it’s compatible with recommended cabling, including the N370- and N390-Series (sold separately). Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity.

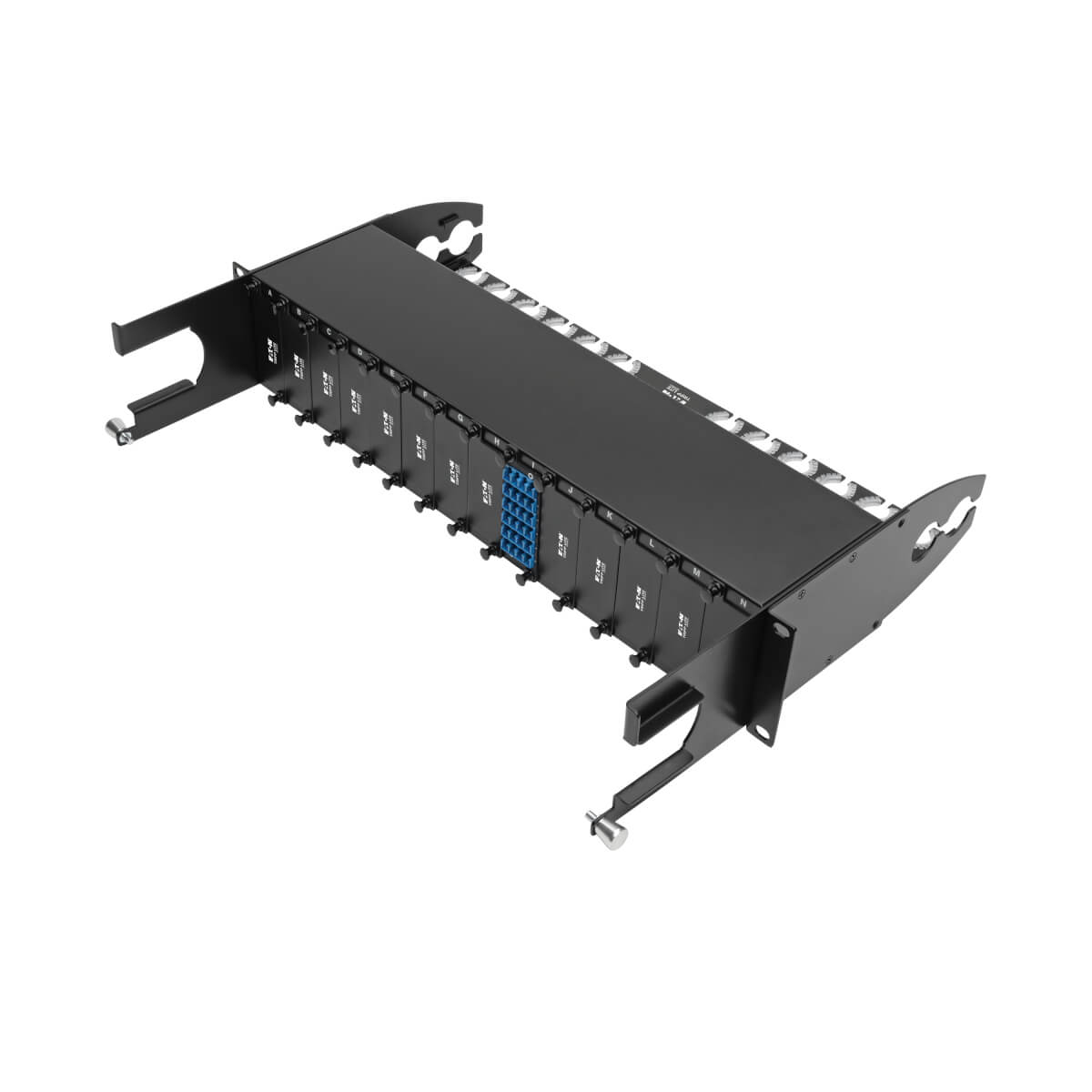

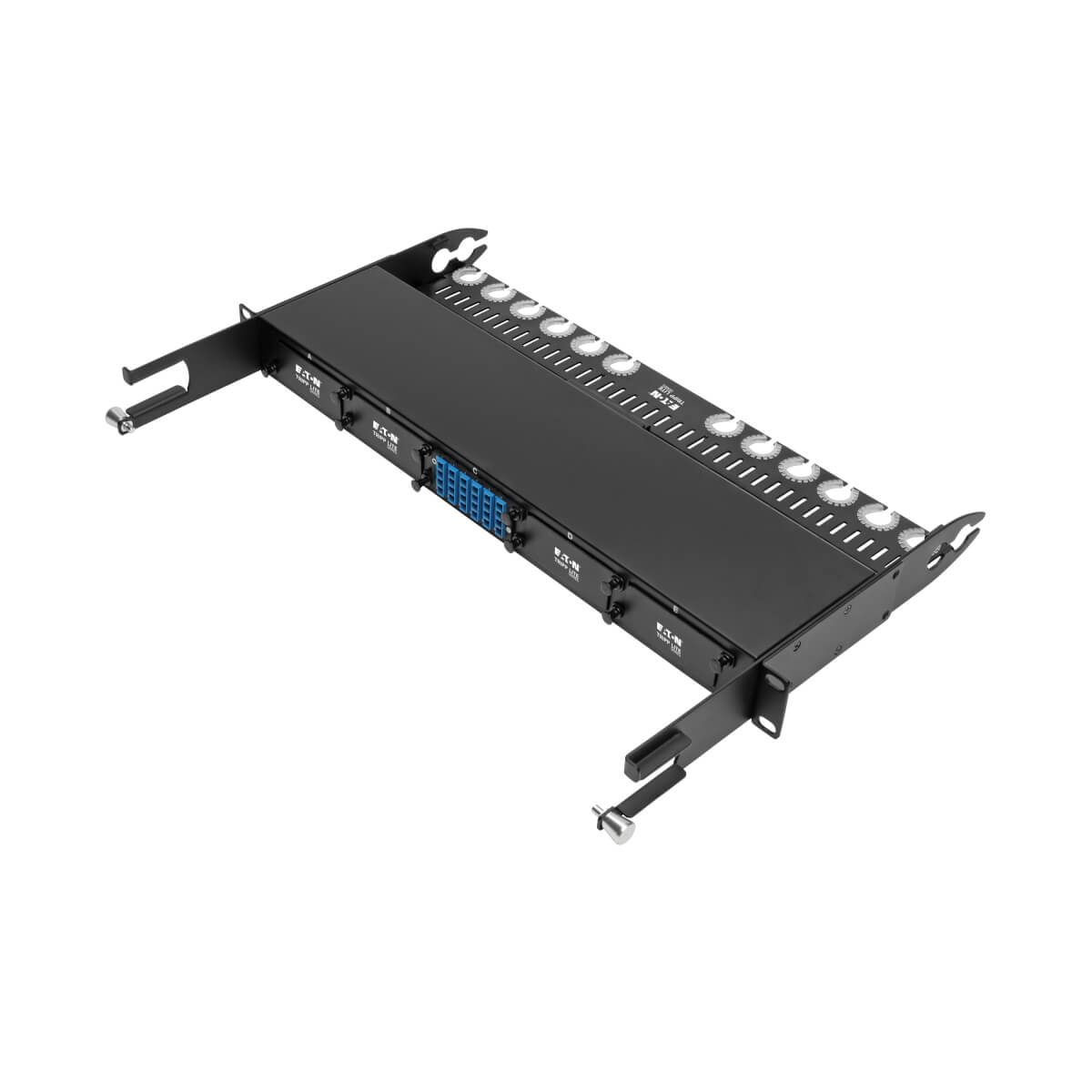

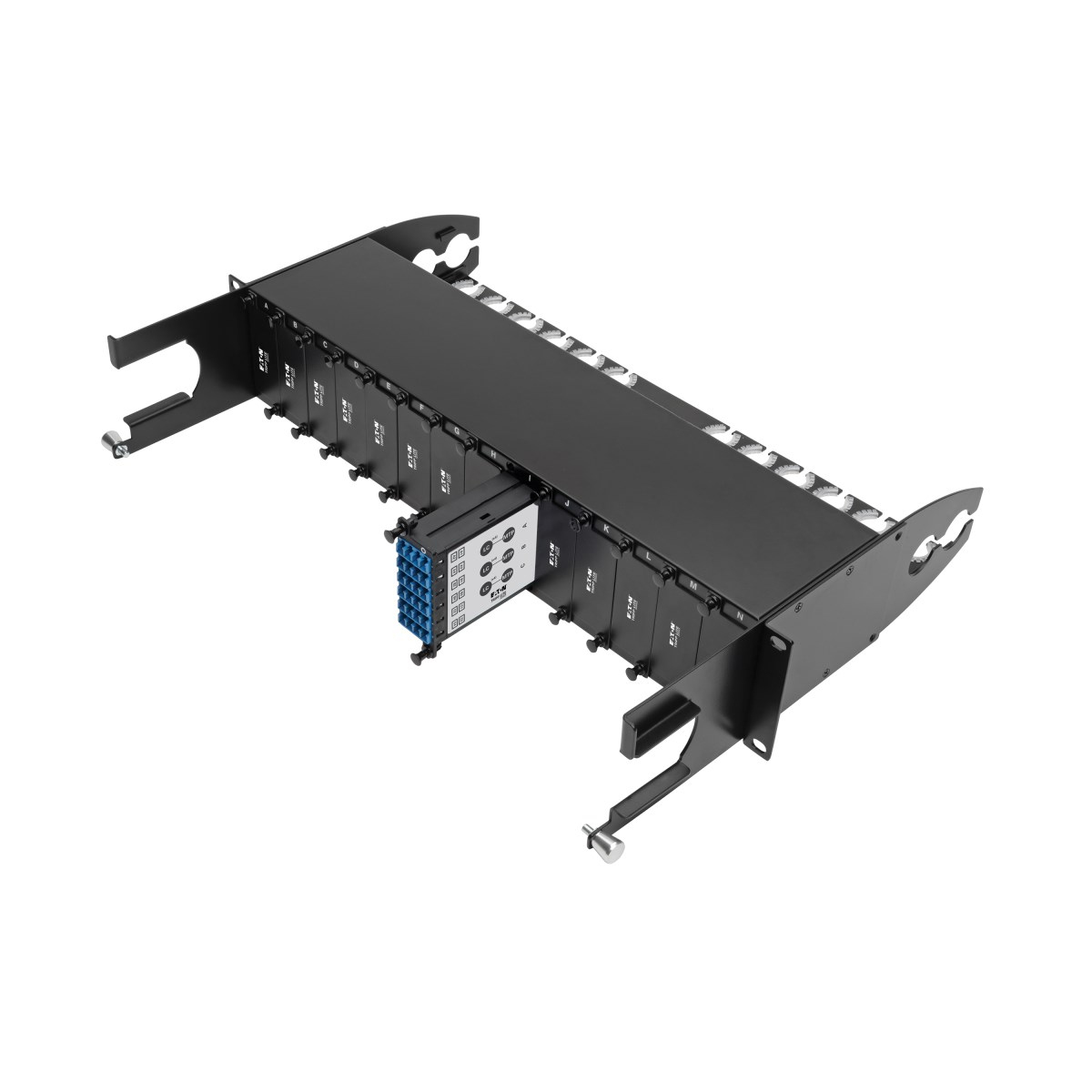

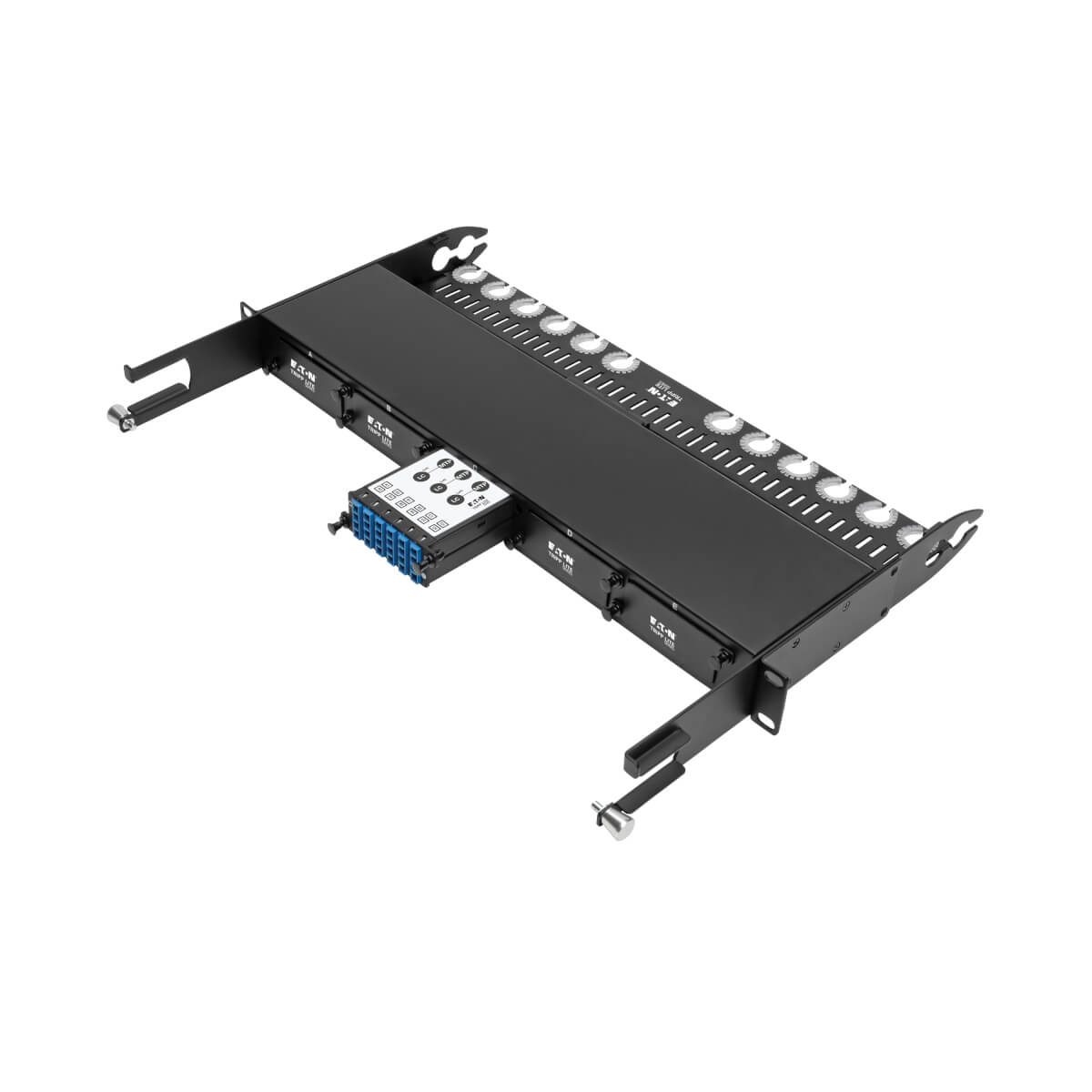

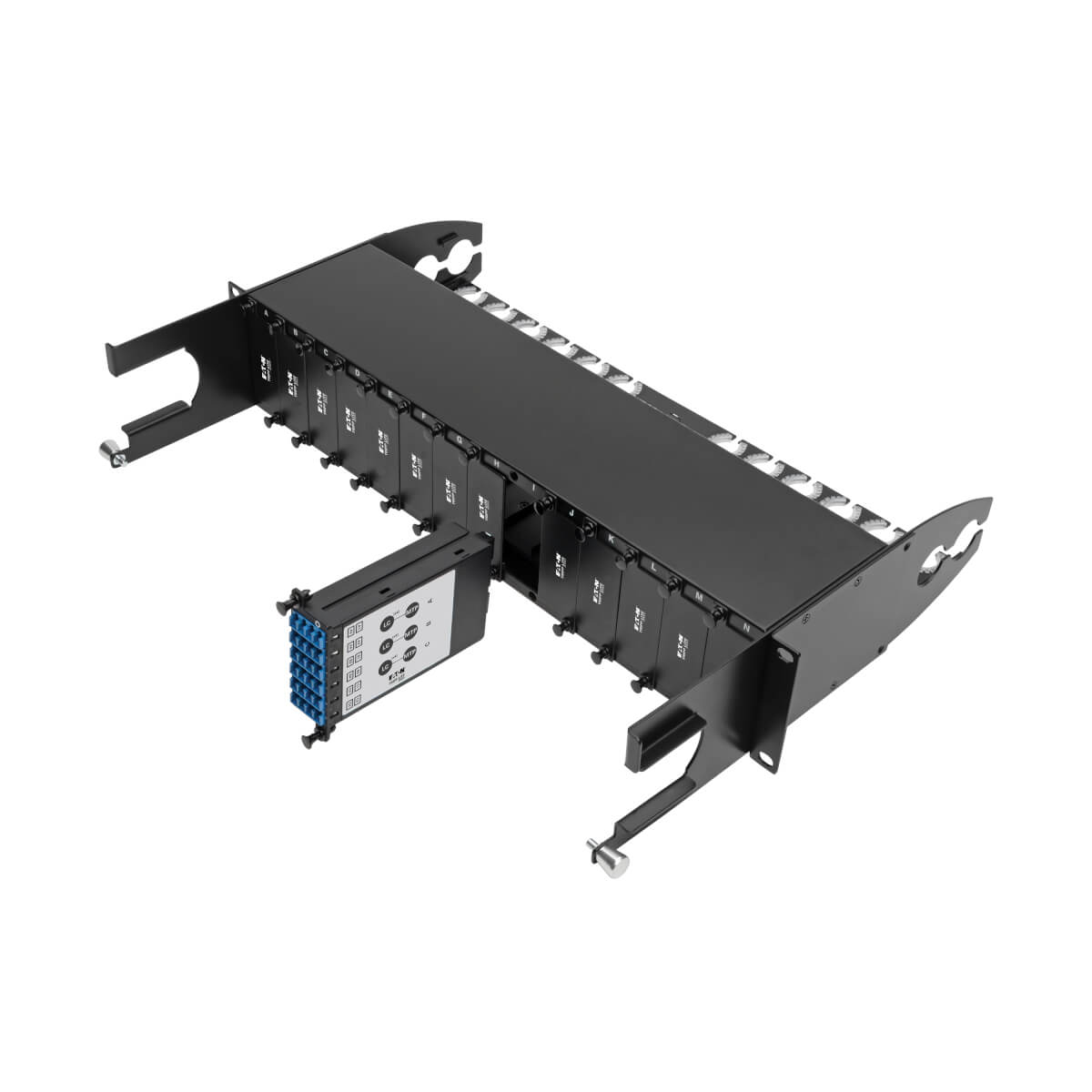

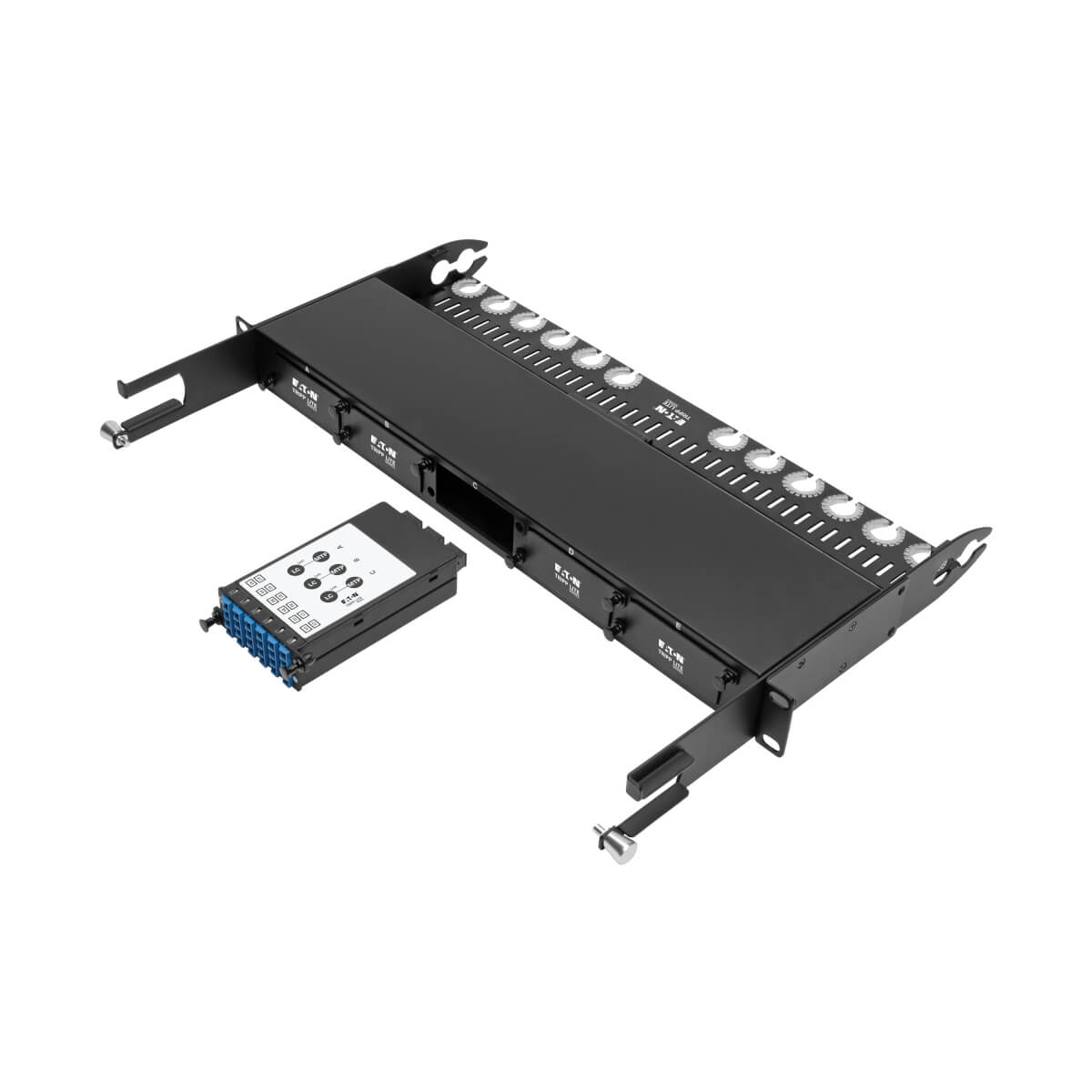

The fiber optic cassette installs easily in the N482-00U, N482-01U or N482-02U chassis chassis with no tools required. Just insert the cassette into the chassis, and tighten its retention clips to secure it. Plug LC Ethernet cables, such as N370- and N390-Series cables, into the cassette using the cable’s convenient push/pull tabs. One cassette fits into the N482-00U chassis, five fit into the N482-01U, and 14 fit into the N482-02U. Dust tabs protect unused ports from potential damage.

The modular design makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. Because this system supports devices of varying speeds, you can mix and match 10Gb, 25Gb, 40Gb and 100Gb network equipment. The fiber cassette supports 40/100 GbE internally using singlemode fiber optic cables and is ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40/100 Gb.

The N482-3M8L12S complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB.

Specifications

Network
Ethernet interface type10 Gigabit Ethernet, 40 Gigabit Ethernet
Ports quantity12
Networking standardsIEEE 802.3ae
Connector(s)LC, MTP
Features
Product colourBlack, Blue, White
Technical details
Package width4.6" (116.8 mm)
Package height1.9" (48.3 mm)
Networking standardsIEEE 802.3ae
Compliance certificatesRoHS
Design
Product colourBlack, Blue, White
Colour
Product colourBlack, Blue, White
Packaging data
Package weight8.11 oz (230 g)
Package depth7.7" (195.6 mm)
Package width4.6" (116.8 mm)
Package height1.9" (48.3 mm)
Logistics data
Master (outer) case gross weight13.5 lbs (6.11 kg)
Products per master (outer) case27 pc(s)
Master (outer) case width15.4" (391.2 mm)
Master (outer) case length12.8" (325.1 mm)
Master (outer) case height12.8" (325.1 mm)
Master (outer) case GTIN (EAN/UPC)10037332205749
Country of originChina
Weight & dimensions
Package weight8.11 oz (230 g)
Package width4.6" (116.8 mm)
Package height1.9" (48.3 mm)
