Tripp Lite N482-3M8L12S-B patch panel

Tripp Lite N482-3M8L12S-B patch panel

  • Brand: Tripp Lite
  • Category:
  • SKU: N482-3M8L12S-B
  • EAN: 0037332200860
40/100Gb Fiber Breakout Cassette with Built-In MTP Cables, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber Singlemode MTP/MPO to (x12) LC Duplex 9/125

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro 8.3/125 FIBER BREAKOUT CASSETTE 8D9098 Register free see stock
ScanSource 8.3/125 40GB -10GB Fiber Break POW-N4823M8L12SB
TD Synnex 40GB -10GB 8.3 FIBER BREAKOUT CASSETTE 4755348

Related Products

Description

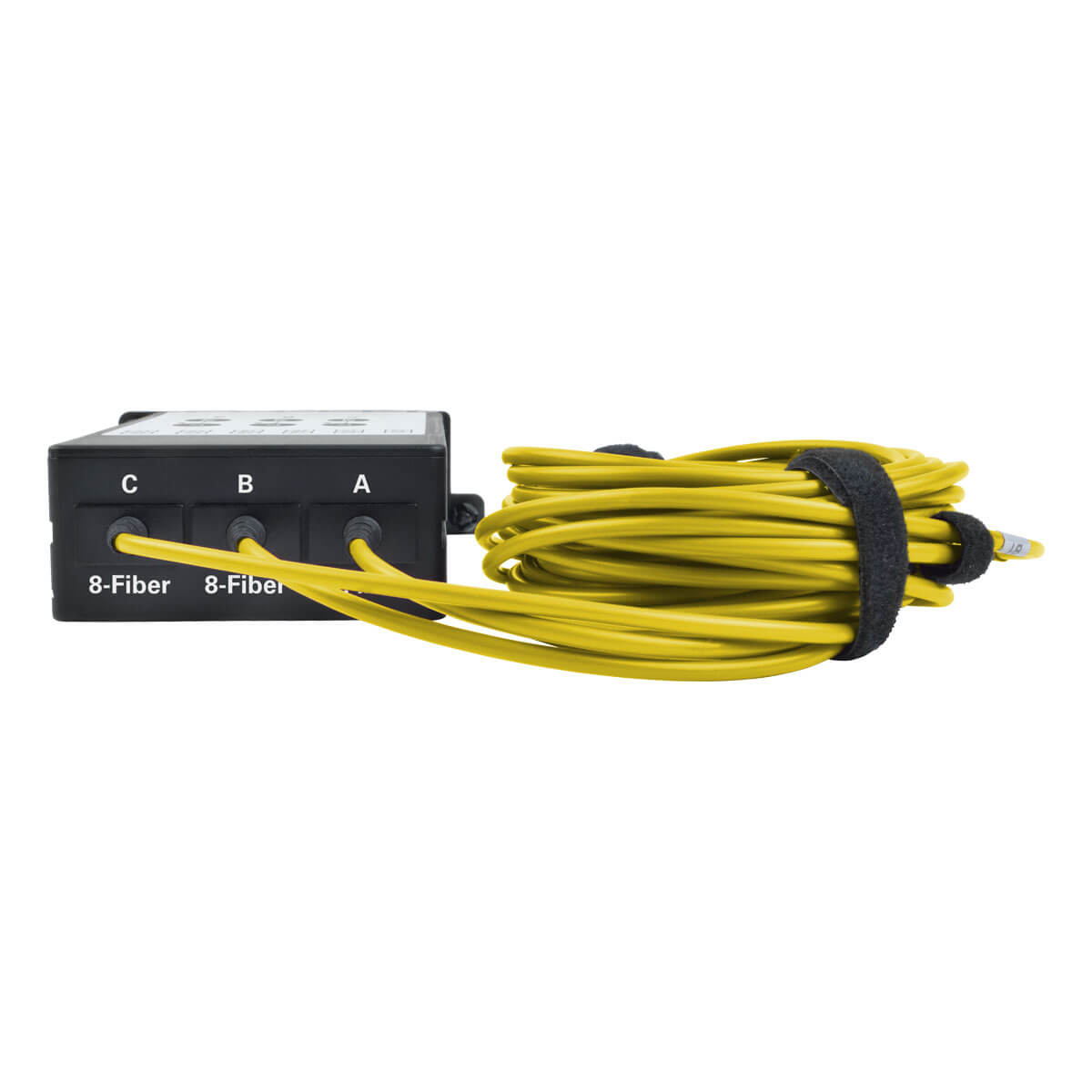

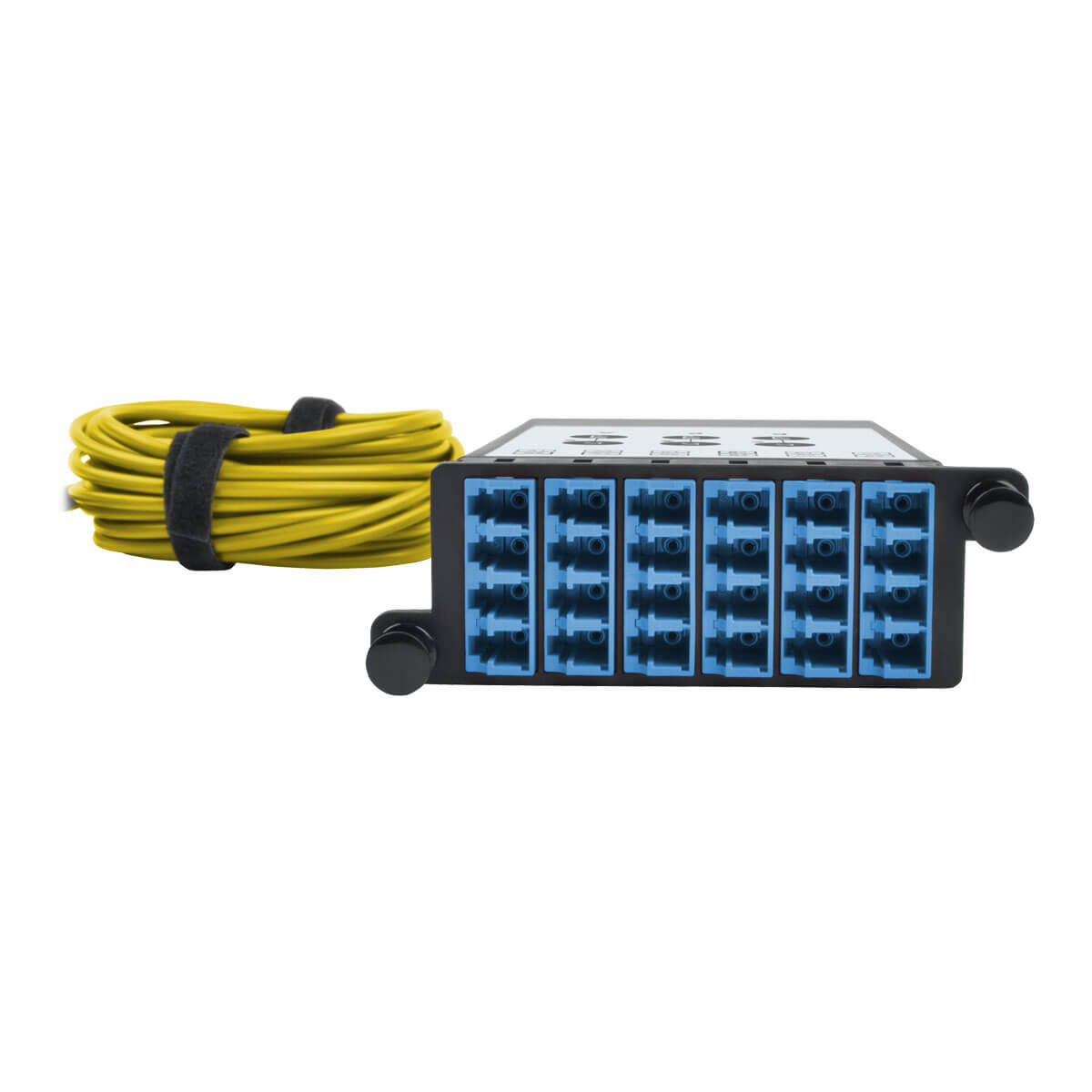

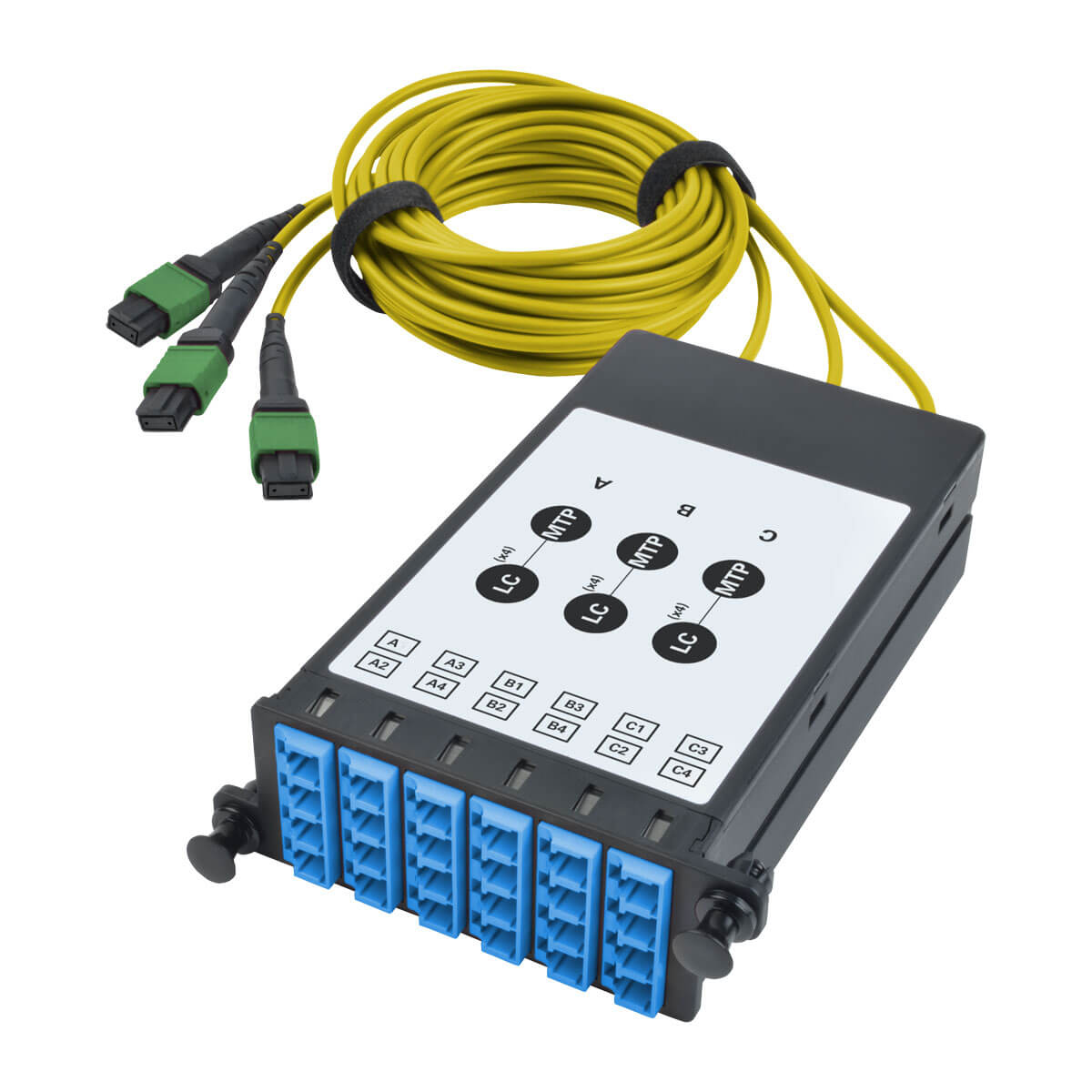

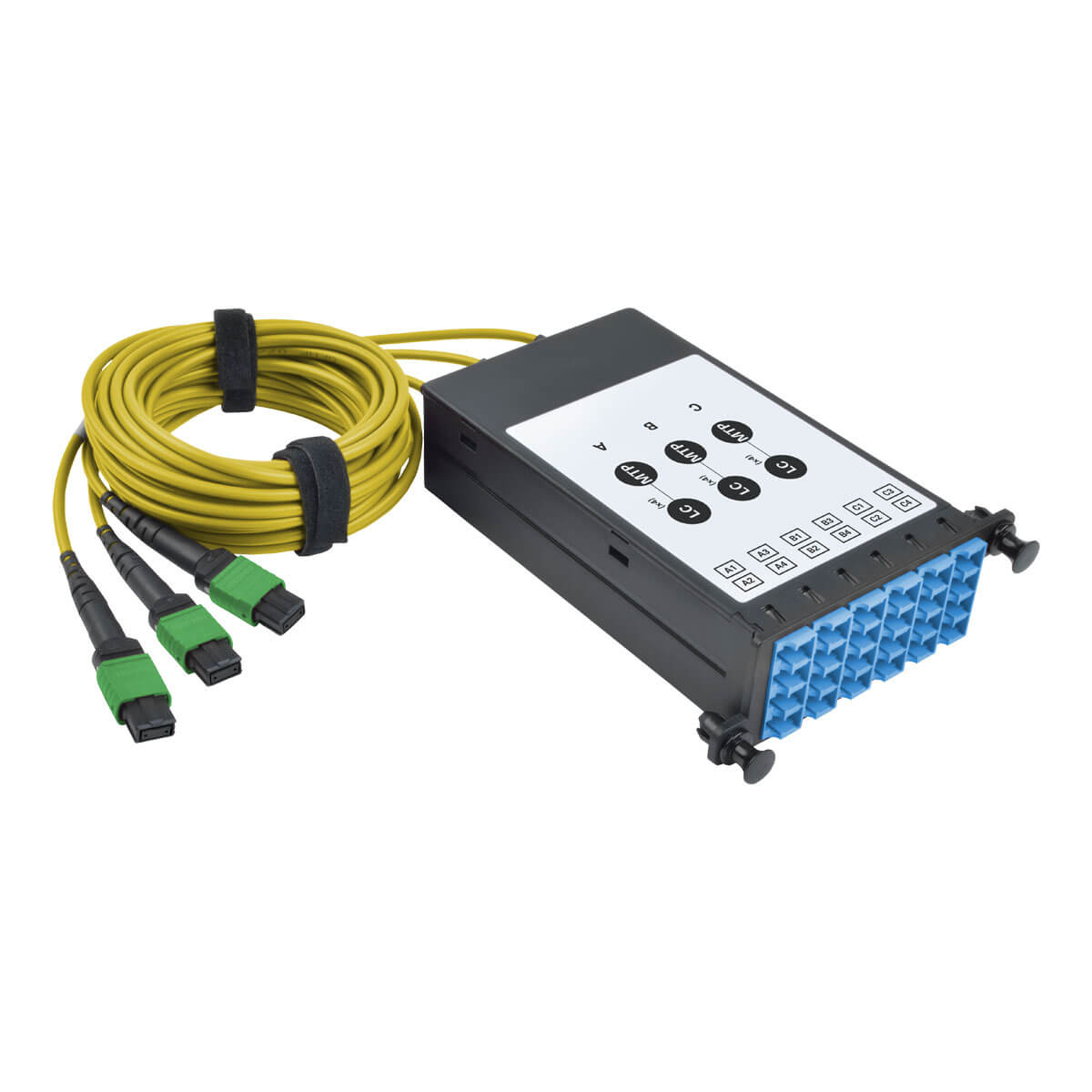

The N482-3M8L12S-B 9/125 Fiber Breakout Cassette works in tandem with a N482-01U or N482-02U chassis (sold separately) to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. The cassette features three built-in 2-meter 8-fiber MTP cables. Color-coded yellow singlemode cables are easily distinguished from traditional aqua OM3 multimode fiber.

The cassette’s modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and screw in its retention clips to secure it. Plug LC Ethernet cables, such as N370-Series cables (sold separately), into the cassette. Up to five N482-3M8L12S-B cassettes fit in the N482-01U 1U enclosure panel, and up to 14 cassettes fit in the N482-02U 2U sleeve. Dust tabs protect unused ports from potential damage. Guaranteed compatibility when used with recommended cabling, including N370-Series cables.

The N482-3M8L12S-B complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Supports 40 GbE internally using 9/125 singlemode fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of <25 dB. This cassette also supports devices of varying speeds, including 10Gb, 25Gb, 40Gb and 100Gb network equipment.

With factory-terminated connectors that reduce time and labor, the N482-3M8L12S-B is made from only the finest materials to ensure fast installations and optimal performance.

Specifications

Network
Ethernet interface type10 Gigabit Ethernet, 40 Gigabit Ethernet
Ports quantity12
Networking standardsIEEE 802.3ae
Connector(s)LC, MTP
Features
Product colourYellow, Black, Blue
Technical details
Package width13.2" (335.3 mm)
Package height2" (50.8 mm)
Networking standardsIEEE 802.3ae
Harmonized System (HS) code85371098
Compliance certificatesRoHS
Design
Product colourYellow, Black, Blue
Colour
Product colourYellow, Black, Blue
Packaging data
Package weight8.11 oz (230 g)
Package depth4.4" (111.8 mm)
Package width13.2" (335.3 mm)
Package height2" (50.8 mm)
Logistics data
Master (outer) case gross weight6.5 lbs (2.95 kg)
Products per master (outer) case10 pc(s)
Master (outer) case width13.5" (342.9 mm)
Master (outer) case length10.6" (269.2 mm)
Master (outer) case height9.5" (241.3 mm)
Master (outer) case GTIN (EAN/UPC)10037332200867
Country of originChina
Harmonized System (HS) code85371098
Weight & dimensions
Package weight8.11 oz (230 g)
Package width13.2" (335.3 mm)
Package height2" (50.8 mm)
