Tripp Lite N844-02M-8LC-PT InfiniBand/fibre optic cable 78.7" (2 m) MPO/MTP LC Blue

Tripp Lite N844-02M-8LC-PT InfiniBand/fibre optic cable 78.7" (2 m) MPO/MTP LC Blue

MTP/MPO Fan-out Cable with Push/Pull Tab Connectors, MTP/MPO to 4xLC, 40GbE, 40GBASE-SR4,OM3 Plenum-rated - Aqua, 2M (6.56 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

MTP/MPO FAN-OUT CBLW PUSH/PULL TAB CONN, AQUA 6'N844-02M-8LC-PT

 812505 Register free see stock

Related Products

Description

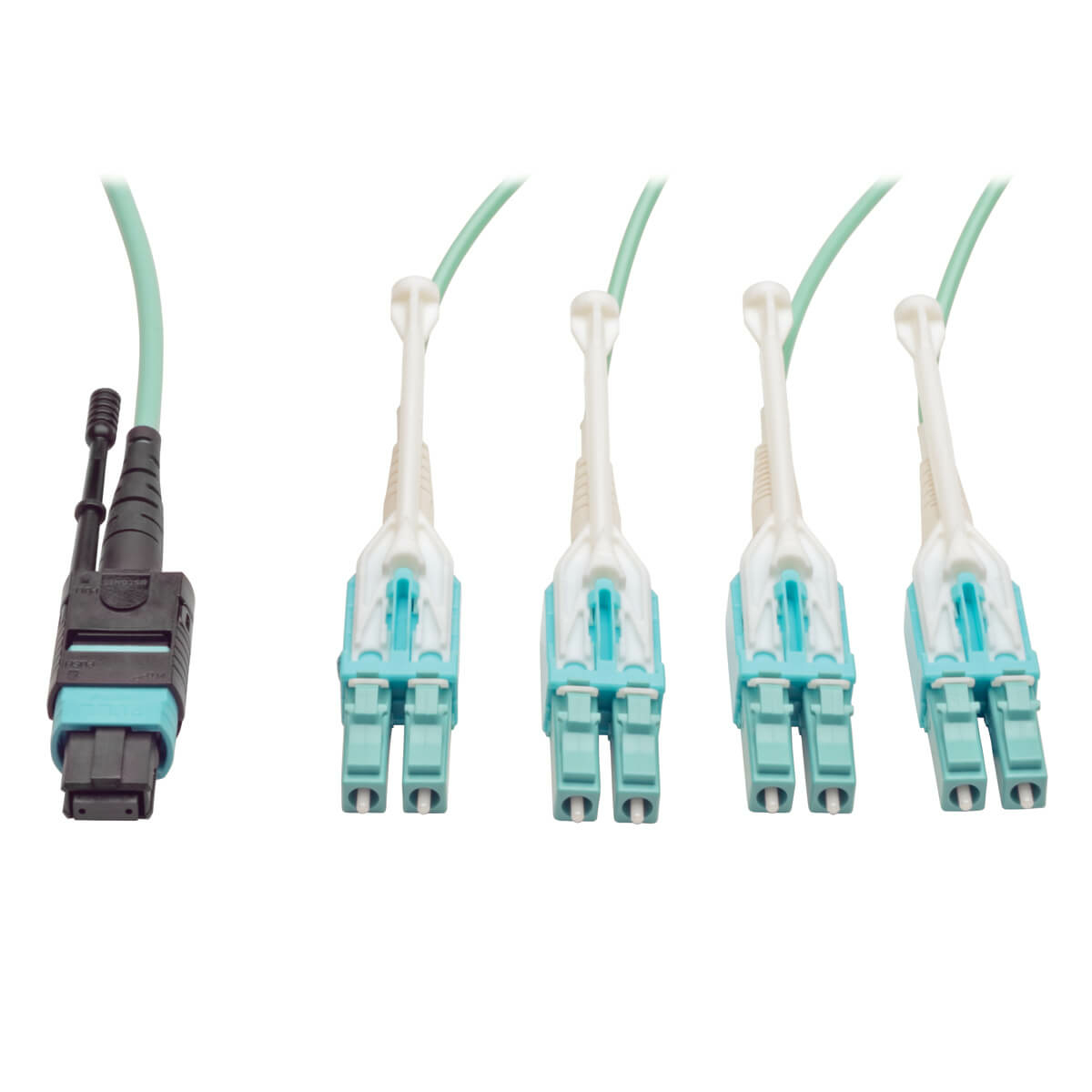

MTP / MPO to 8 x LC Fan-out Cable

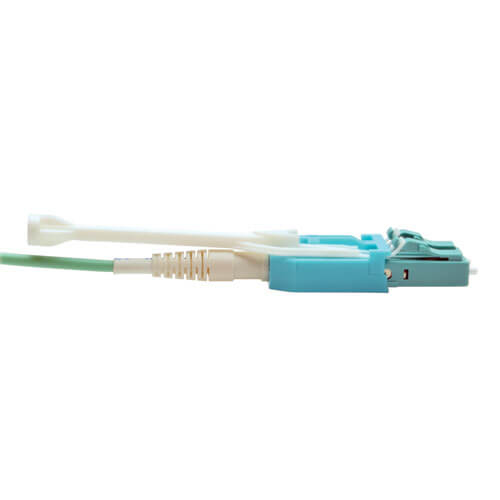

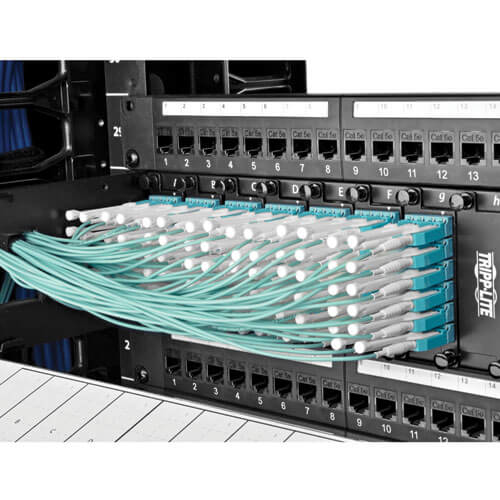

Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
Slim uniboot design saves space and makes cables easier to manage
Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
Sturdy plastic housing for long-lasting durability
OM3, 40GbE rated, 40GBASE-SR4
Backward compatible with existing 50/125 fiber
Plenum rated jacket

Specifications

Features
Fibre optic typeOM3
Fiber mode structureMulti-mode

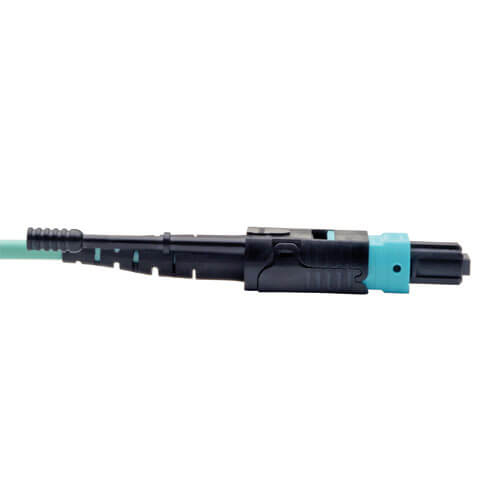

Connector 1MPO/MTP
Connector 2LC
Cable length78.7" (2 m)
Core diameter50 µm
Cladding diameter125 µm
Data transfer rate40 Gbit/s
Product colourBlue
Connector 2 genderMale
Connector 1 genderMale
Country of originChina
Harmonized System (HS) code8544.70.0000
Certificates
Compliance certificatesRoHS
Packaging data
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight2.47 oz (70 g)
Technical details
Fiber mode structureMulti-mode
Connector 1MPO/MTP
Connector 2LC
Cable length78.7" (2 m)
Core diameter50 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332185263
Compliance certificatesRoHS
Data transmission
Data transfer rate40 Gbit/s
Weight & dimensions
Cable length78.7" (2 m)
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight2.47 oz (70 g)
Logistics data
Master (outer) case width7.3" (185.4 mm)
Master (outer) case length5.9" (149.9 mm)
Master (outer) case height4" (101.6 mm)
Master (outer) case gross weight27.2 oz (770 g)
Products per master (outer) case10 pc(s)
Country of originChina
Harmonized System (HS) code8544.70.0000
Master (outer) case GTIN (EAN/UPC)10037332185263
