Tripp Lite N844-05M-8LC-PT InfiniBand/fibre optic cable 196.9" (5 m) MPO/MTP LC Blue

Tripp Lite N844-05M-8LC-PT InfiniBand/fibre optic cable 196.9" (5 m) MPO/MTP LC Blue

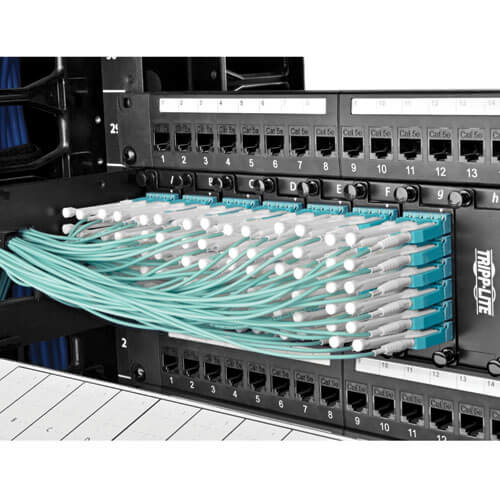

MTP/MPO Fan-out Cable with Push/Pull Tab Connectors, MTP/MPO to 4xLC, 40GbE, 40GBASE-SR4,OM3 Plenum-rated - Aqua, 5M (16.4 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Ingram Micro 5M FAN-OUT CABLE PUSH/PULL TAB YE3133 Register free see stock
TD Synnex 5M MTP/MPO FANOUT FIBER CABLE OM3 W TABS 4074030

Related Products

Description

MTP / MPO to 8 x LC Fan-out Cable
Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand without needing additional tools
Slim uniboot design saves space and makes cables easier to manage
Premium-grade ceramic ferrule designed specifically for 10GbE and faster applications
Sturdy plastic housing for long-lasting durability
OM3, 40GbE rated, 40GBASE-SR4
Backward compatible with existing 50/125 fiber
Plenum rated jacket

Specifications

Technical details
Fiber mode structureMulti-mode
Connector 1MPO/MTP
Connector 2LC
Cable length196.9" (5 m)
Core diameter50 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332185287
Compliance certificatesRoHS
Features
Fibre optic typeOM3
Fiber mode structureMulti-mode
Connector 1MPO/MTP
Connector 2LC
Cable length196.9" (5 m)
Core diameter50 µm
Cladding diameter125 µm
Data transfer rate40 Gbit/s
Country of originChina
Harmonized System (HS) code8544.70.0000
Product colourBlue
Connector 2 genderMale
Connector 1 genderMale
Data transmission
Data transfer rate40 Gbit/s
Weight & dimensions
Cable length196.9" (5 m)
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight3.17 oz (90 g)
Packaging data
Package width7" (177.8 mm)
Package depth0.5" (12.7 mm)
Package height9" (228.6 mm)
Package weight3.17 oz (90 g)
Logistics data
Master (outer) case width7.3" (185.4 mm)
Master (outer) case length6.1" (154.9 mm)
Master (outer) case height5.9" (149.9 mm)
Master (outer) case gross weight2.29 lbs (1.04 kg)
Products per master (outer) case10 pc(s)
Harmonized System (HS) code8544.70.0000
