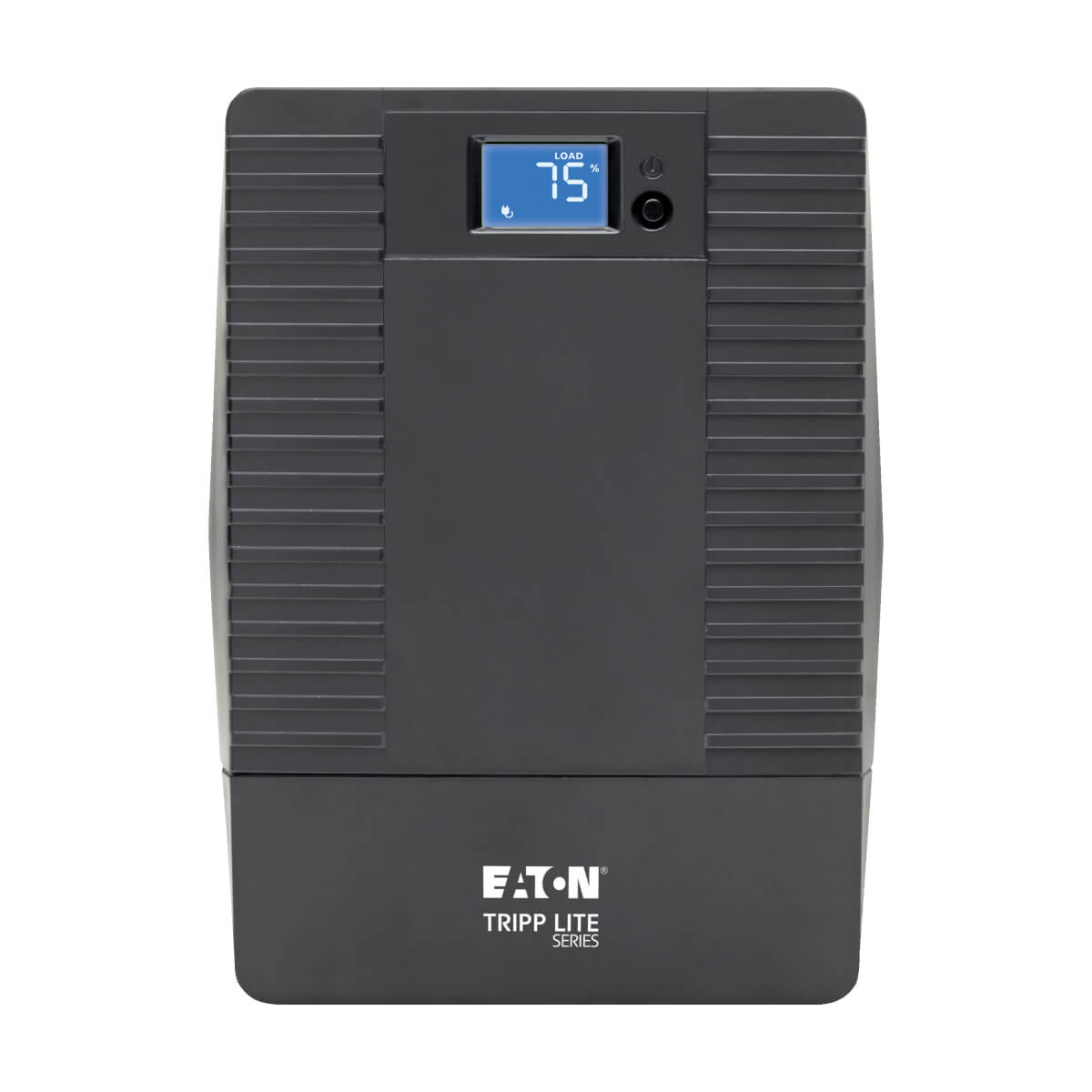

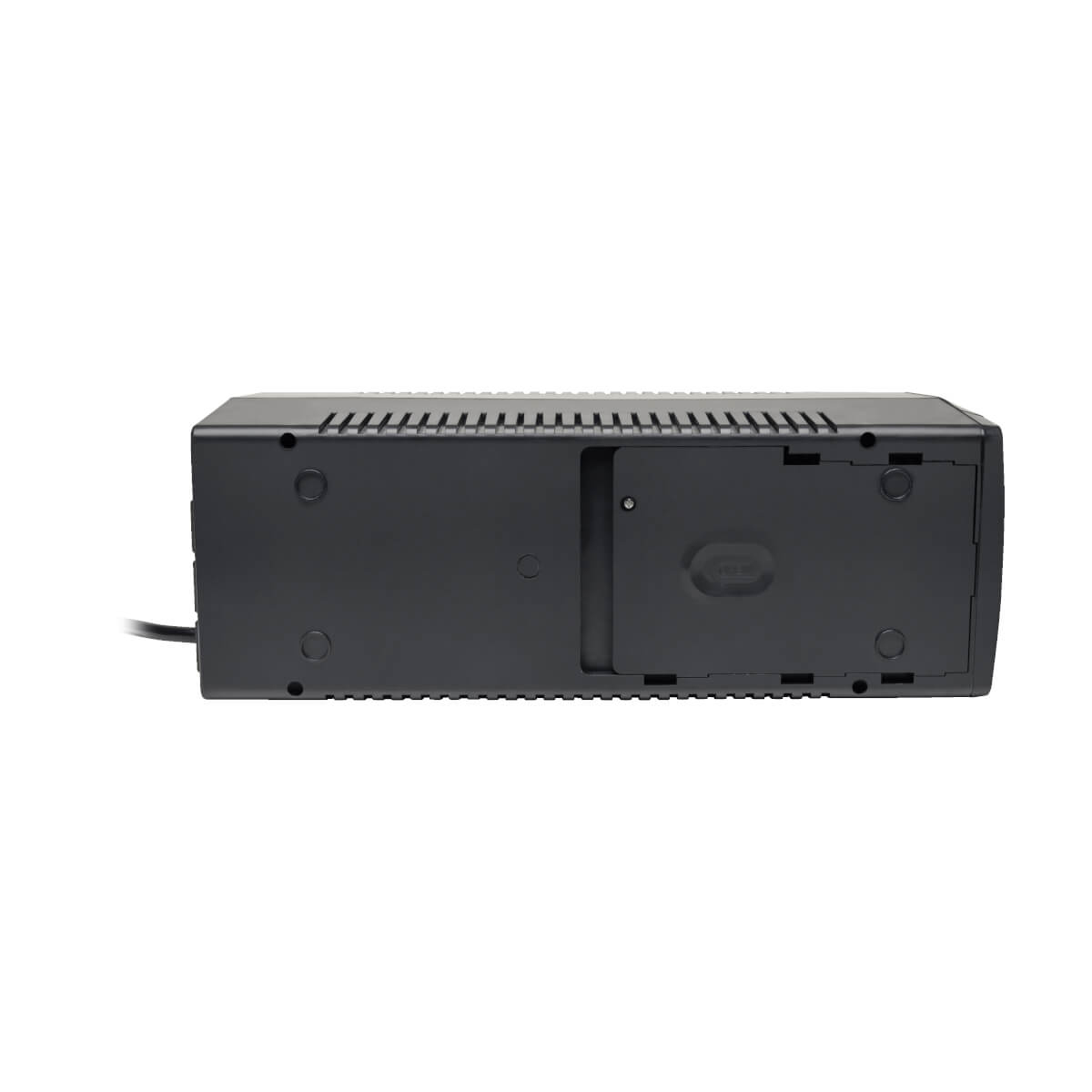

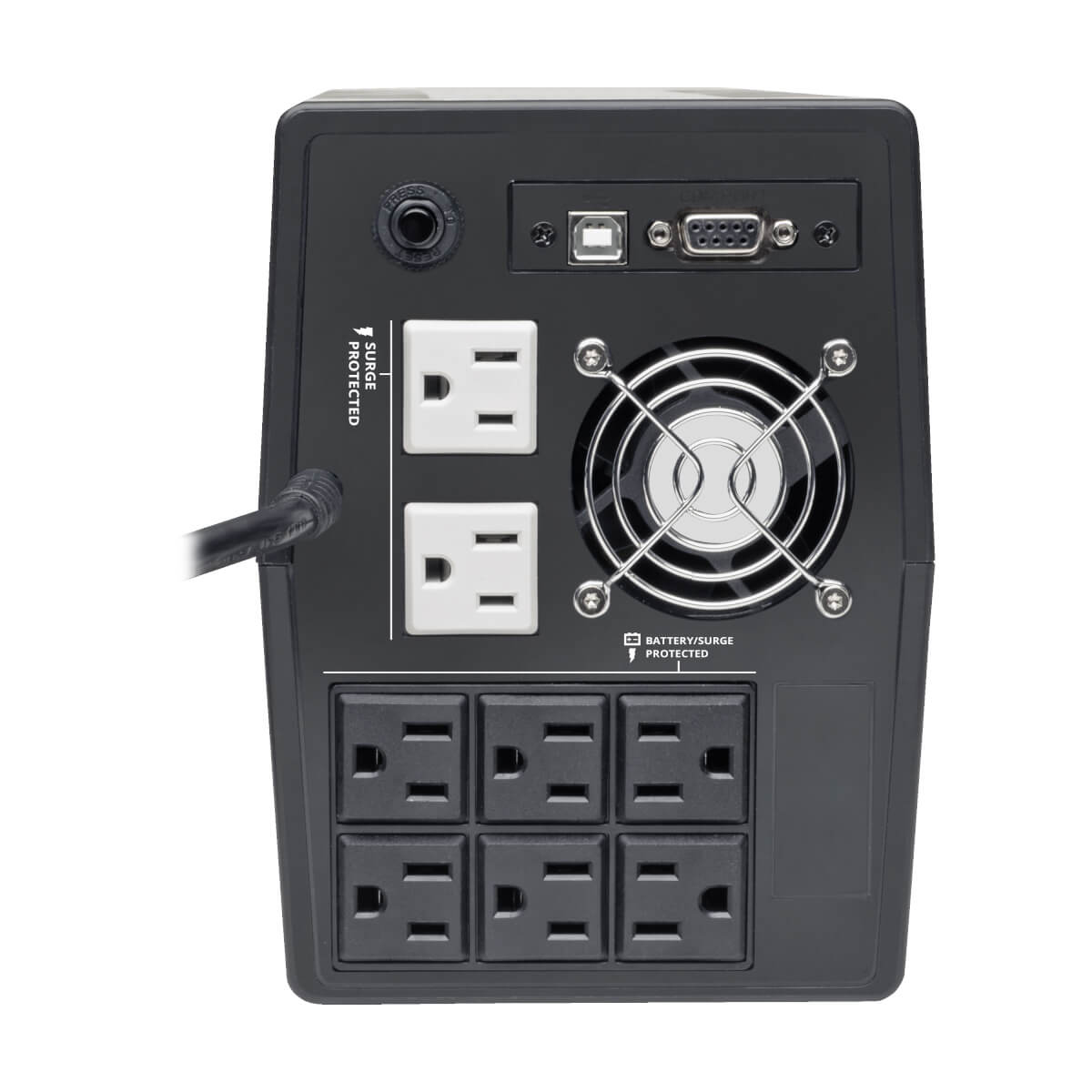

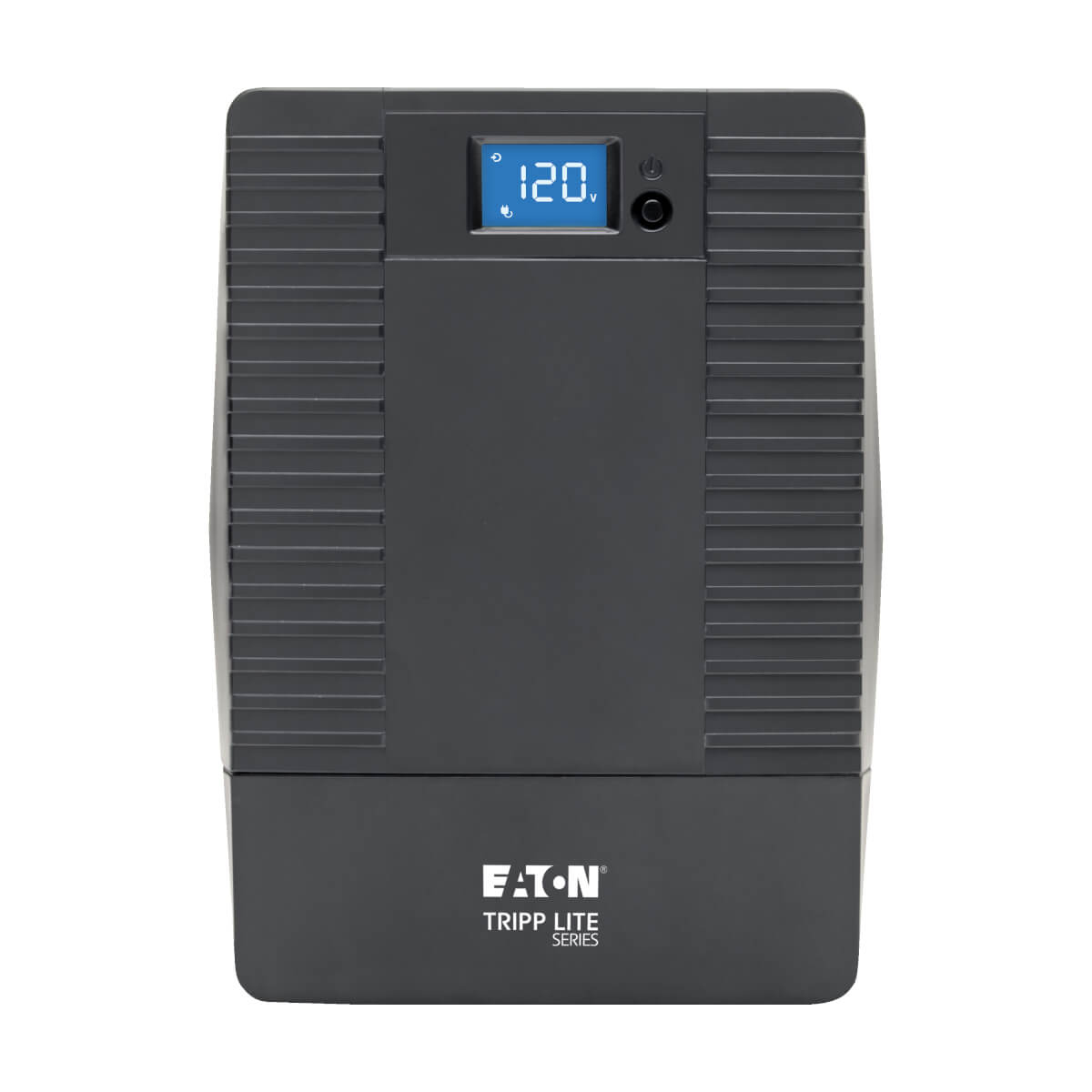

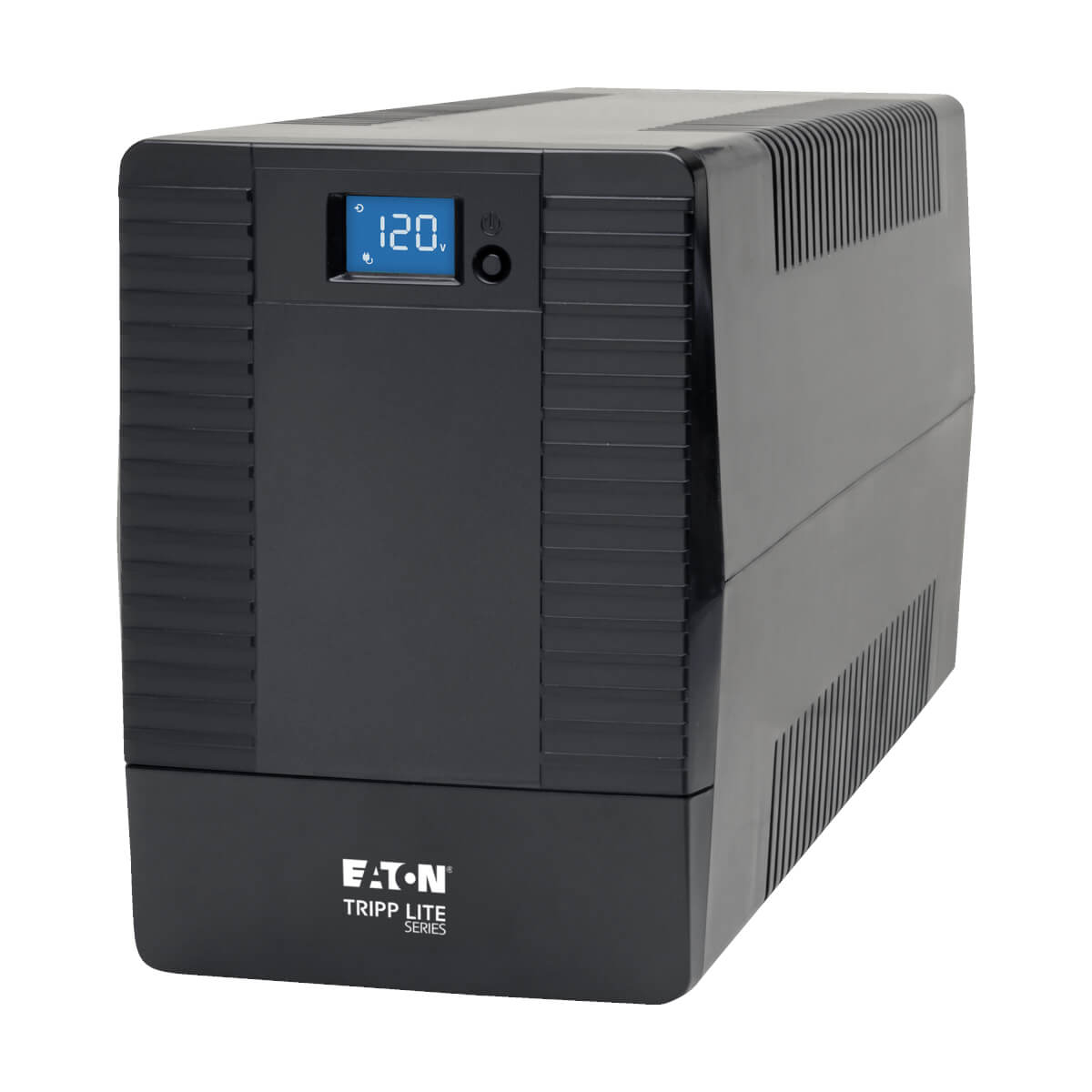

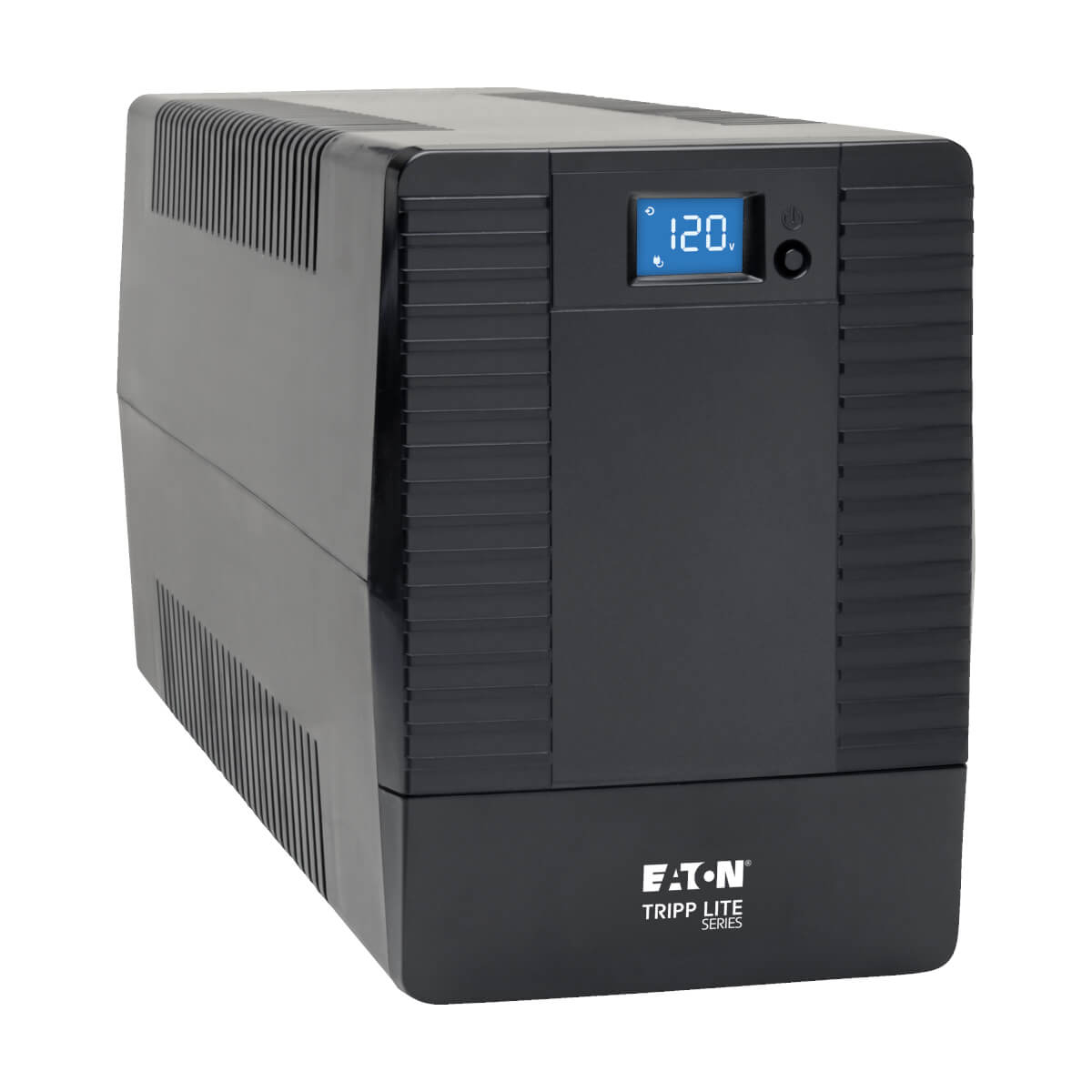

Tripp Lite OMNIVS1500LCD uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 900 W 8 AC outlet(s)

Tripp Lite OMNIVS1500LCD uninterruptible power supply (UPS) Line-Interactive 1.44 kVA 900 W 8 AC outlet(s)

Tripp Lite OMNIVS1500LCD, Line-Interactive, 1.44 kVA, 900 W, Pure sine, 110 V, 120 V

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

LINE-INTERACTIVE UPS, 1440VA,900W, 8XNEMA 5-15R, USB,LCD, TOWER

 10300195 Register free see stock

Related Products

Description

Tripp Lite OMNIVS1500LCD. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 900 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 2 min, Typical backup time at half load: 6 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Width: 5.5" (139.7 mm), Depth: 15" (381 mm), Height: 7.5" (190.5 mm)

Specifications

Power
Output frequency50/60 Hz
Output power900 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current12 A
Output power capacity1.44 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length59.1" (1.5 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
Performance
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topologyLine-Interactive
WaveformPure sine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Power protection featuresOver voltage, Under voltage
Noise level50 dB
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Country of originChina
Audible alarm modesAlarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm
UPS topologyLine-Interactive
WaveformPure sine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power900 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current12 A
EMI/RFI noise filteringYes
Surge protectionYes
Power protection featuresOver voltage, Under voltage
Noise level50 dB
Audible alarm(s)Yes
Output power capacity1.44 kVA
Input frequency50/60 Hz
Battery
Typical backup time at half load6 min
Typical backup time at full load2 min
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
Cable length59.1" (1.5 m)
Built-in fanYes
Housing materialAcrylonitrile butadiene styrene (ABS)
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%
Technical details
Output frequency50/60 Hz
Cooling
Built-in fanYes
Weight & dimensions
Package width9.3" (236.2 mm)
Package depth19.5" (495.3 mm)
Package height11.7" (297.2 mm)
Weight23.1 lbs (10.5 kg)
Width5.5" (139.7 mm)
Package weight26.5 lbs (12 kg)
Height7.5" (190.5 mm)
Depth15" (381 mm)
Packaging data
Package width9.3" (236.2 mm)
Package depth19.5" (495.3 mm)
Package height11.7" (297.2 mm)
Package weight26.5 lbs (12 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width9.3" (236.2 mm)
Master (outer) case length19.5" (495.3 mm)
Master (outer) case height11.7" (297.2 mm)
Master (outer) case gross weight24.3 lbs (11 kg)
