Tripp Lite OMNIVSINT1500XL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 940 W 8 AC outlet(s)

Tripp Lite OMNIVSINT1500XL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 940 W 8 AC outlet(s)

OmniVS 230V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port, C13 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1500VA 940W UPS INTERNATIONALBATTERY BACK UP TOWER AVR 565289 Register free see stock
ASI Corp Tripp Lite UPS OMNIVSINT1500XL OmniVS Series 1500VA 230V 340Joule Retail 122513
BlueStar TRIPP LITE, OMNI VS 230V 1500VA 940W LINE INTERACTIVE UPS, EXTENDED RUN, TOWER, USB PORT, C13 OUTLETS OMNIVSINT1500XL
D&H 1500VA Intl UPS Omni Smart VS OMNIVSINT1500XL
Ingram Micro UPS INT 1500VA 940W TOWER 230V E81230
TD Synnex 1500VA 940W UPS INTERNATIONAL BATTERY BACK UP TOWER AVR 230V C13 1716740

Related Products

Description

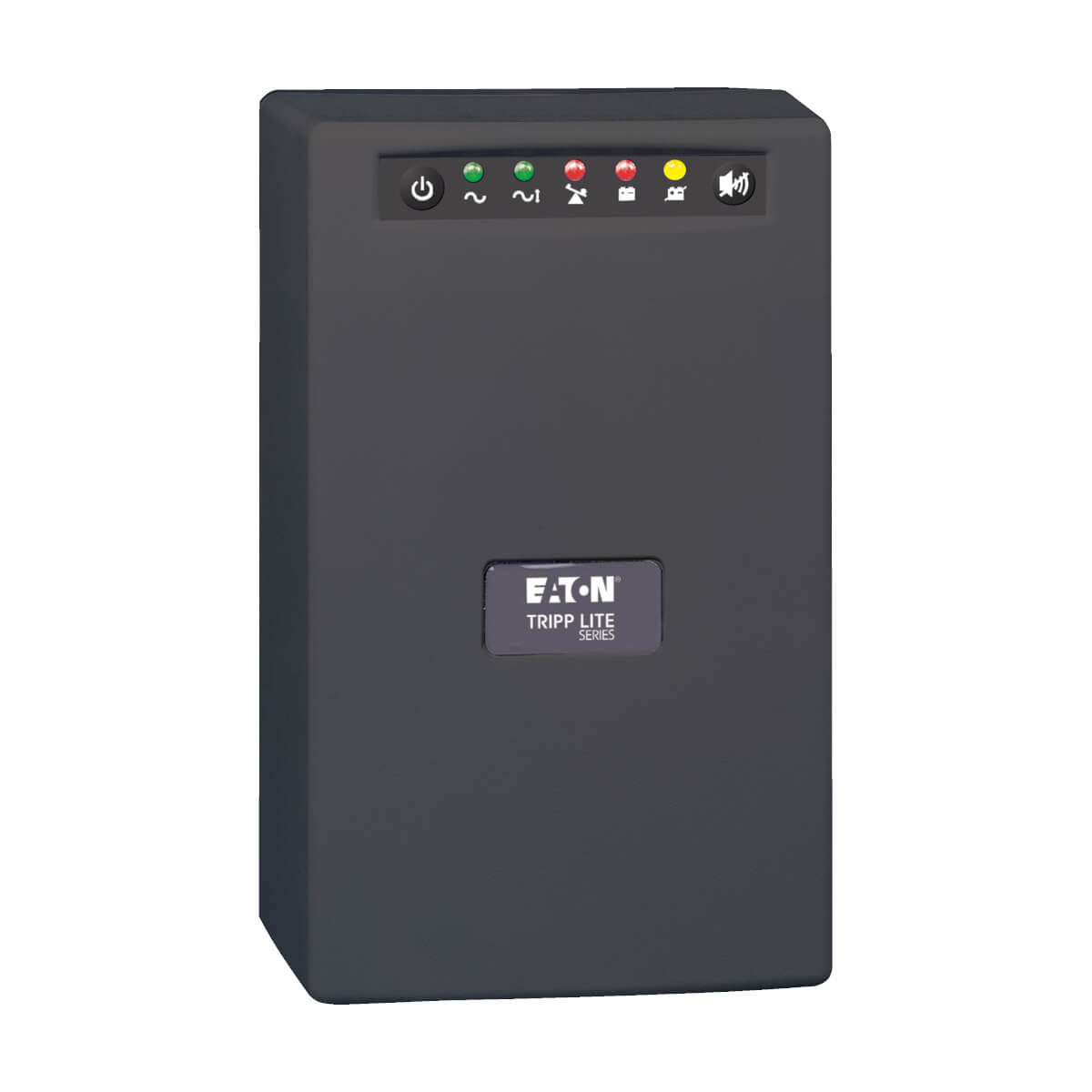

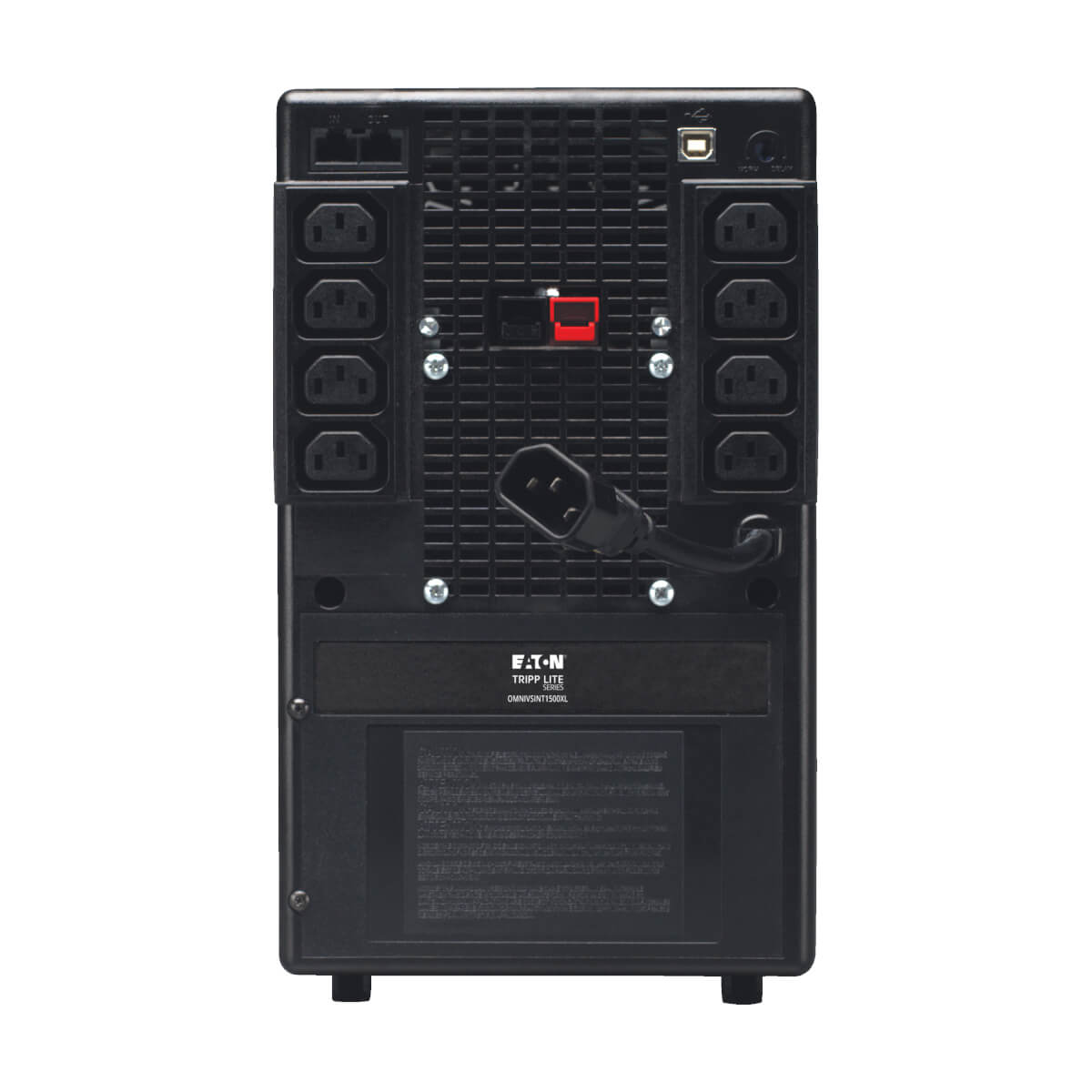

The OMNIVSINT1500XL line-interactive UPS system offers voltage regulation, surge suppression and long-lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS circuits support entry-level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 151V and overvoltages up to 282V back to usable 230V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes eight IEC320-C13 outlets with battery support and AC surge suppression. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cable included. PowerAlert® software available via free download. Built-in single-line RJ jacks protect modem, fax machine, Ethernet, cordless phone or other peripheral with a standard dialup/DSL phone connection. Built-in audible alarm and four front-panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. 1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel. Extended runtime available with optional BP24V15RT2U or BP24V28-2U external battery packs.

Specifications

Power
Output voltage regulation-18, +8%
Output power940 W
Input operation voltage (min)151 V
Input operation voltage (max)282 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating340 J
Maximum current5 A
Efficiency97%
Output power capacity1.5 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length7.87" (0.2 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresNetwork, Telephone
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyLine-Interactive
WaveformSine
Output voltage regulation-18, +8%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power940 W
Input operation voltage (min)151 V
Input operation voltage (max)282 V
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating340 J
Maximum current5 A
Efficiency97%
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresNetwork, Telephone
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Output power capacity1.5 kVA
Input frequency50/60 Hz
Battery
Battery recharge time4.5 h
Typical backup time at half load13 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Rack capacity2U
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationUL1778/CE 62040/GOST/SASO/IRAM/CE 62040
Cable length7.87" (0.2 m)
Housing materialPolycarbonate (PC)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Sustainability certificatesRoHS
Weight & dimensions
Package width10.4" (264.2 mm)
Package depth10.8" (274.3 mm)
Package height15.6" (396.2 mm)
Weight32 lbs (14.5 kg)
Width7.25" (184.2 mm)
Package weight32.4 lbs (14.7 kg)
Height11.7" (298.4 mm)
Depth7.5" (190.5 mm)
Packaging data
Package width10.4" (264.2 mm)
Package depth10.8" (274.3 mm)
Package height15.6" (396.2 mm)
Package weight32.4 lbs (14.7 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width10.4" (264.2 mm)
Master (outer) case length10.8" (274.3 mm)
Master (outer) case height15.6" (396.2 mm)
Master (outer) case gross weight32.4 lbs (14.7 kg)
Certificates
CertificationUL1778/CE 62040/GOST/SASO/IRAM/CE 62040
Other features
Weight (imperial)33 lbs
Non-operating relative humidity (non-condensing)0 - 95%
