Tripp Lite OMNISMART350HG uninterruptible power supply (UPS) 0.33 kVA 215 W

Tripp Lite OMNISMART350HG uninterruptible power supply (UPS) 0.33 kVA 215 W

Tripp Lite OMNISMART350HG, 0.33 kVA, 215 W, 18 min, 46 min, 4.5 h, Tower

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

330VA/225W TOWER UPS 4 OUTLET46MIN HALFLOAD/18MIN FULL LOADHOSPITAL GRADE

 245315 Register free see stock

Related Products

Description

Tripp Lite OMNISMART350HG. Output power capacity: 0.33 kVA, Output power: 215 W. Typical backup time at full load: 18 min, Typical backup time at half load: 46 min, Battery recharge time: 4.5 h. Form factor: Tower, Product color: Black, Cable length: 70.9" (1.8 m). Certification: UL1778, CSA, FCC Part 15 Category B, ROHS. Width: 5.25" (133.4 mm), Depth: 7.5" (190.5 mm), Height: 10.7" (273 mm)

Specifications

Power
Output power215 W
Output power capacity0.33 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
Performance

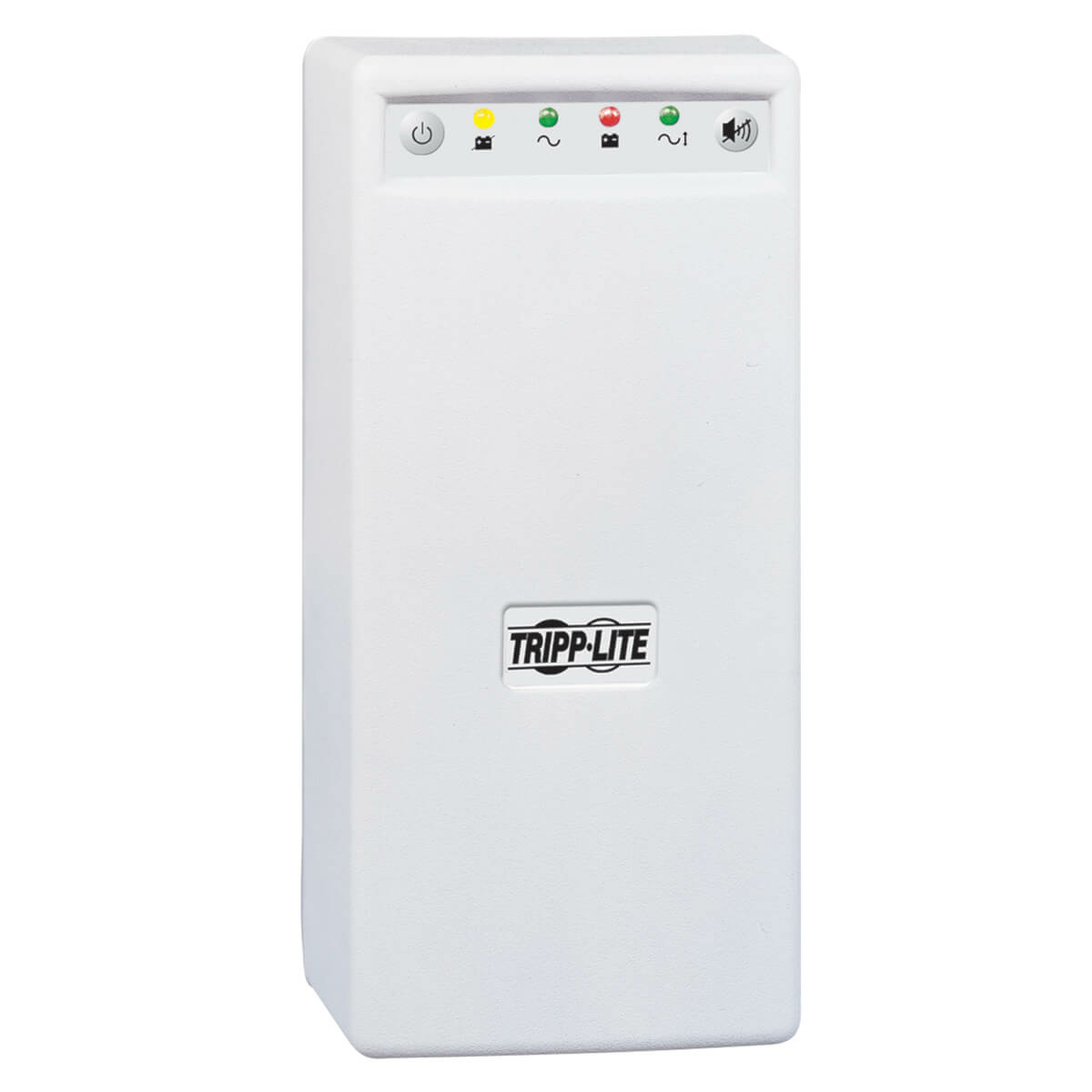

LED indicatorsYes
Audible alarm(s)Yes
Features
Country of originChina
Output power215 W
Audible alarm(s)Yes
Output power capacity0.33 kVA
Battery
Battery recharge time4.5 h
Typical backup time at half load46 min
Typical backup time at full load18 min
Hot-swap batteryYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationUL1778, CSA, FCC Part 15 Category B, ROHS
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Packaging data
Package dimensions (WxDxH)8.5 x 11 x 14" (216 x 279 x 356 mm)
Package width8" (203.2 mm)
Package depth10.1" (256.5 mm)
Package height14" (355.6 mm)
Package weight27.8 lbs (12.6 kg)
Certificates
CertificationUL1778, CSA, FCC Part 15 Category B, ROHS
Weight & dimensions
Package width8" (203.2 mm)
Package depth10.1" (256.5 mm)
Package height14" (355.6 mm)
Weight24.9 lbs (11.3 kg)
Width5.25" (133.4 mm)
Package weight27.8 lbs (12.6 kg)
Height10.7" (273 mm)
Depth7.5" (190.5 mm)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width8" (203.2 mm)
Master (outer) case length10.1" (256.5 mm)
Master (outer) case height14" (355.6 mm)
Master (outer) case gross weight27.8 lbs (12.6 kg)
Other features

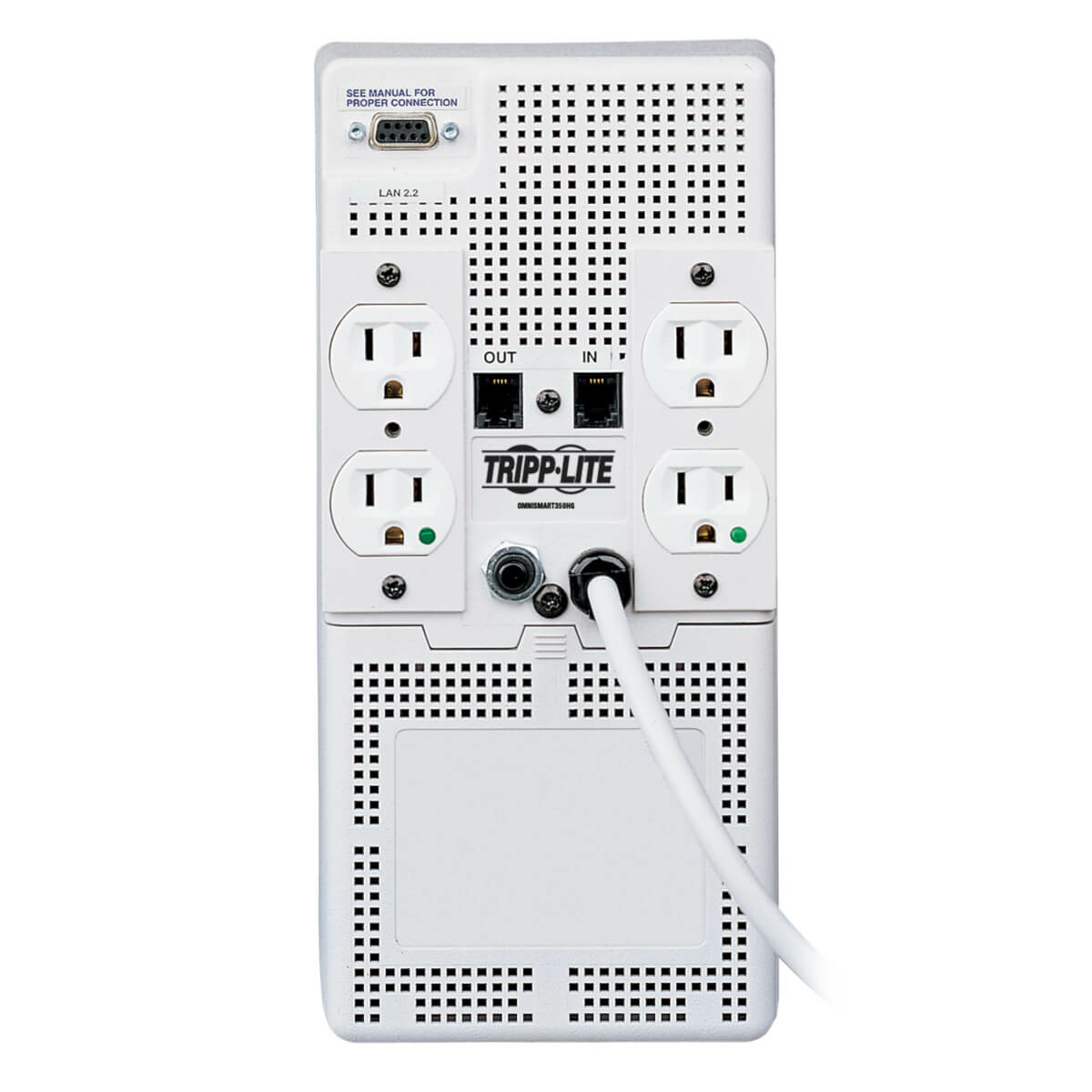

Output connections4 x 5-15R
Input connection type5-15P
Dimensions (WxDxH)5.24 x 7.24 x 10.7" (133 x 184 x 273 mm)
Package dimensions (WxDxH)8.5 x 11 x 14" (216 x 279 x 356 mm)
Nominal output voltage120 V
Nominal input voltage120 V
