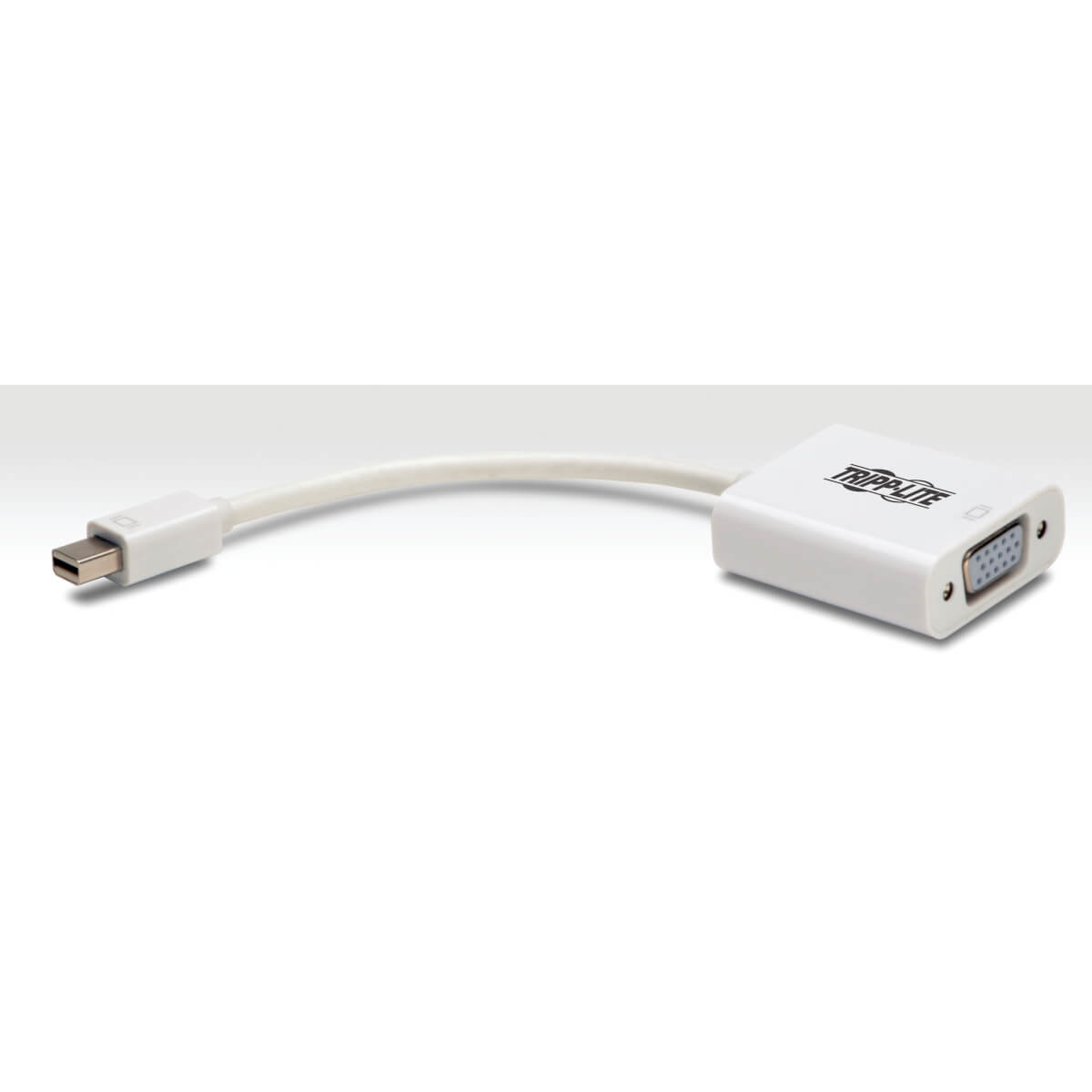

Tripp Lite P137-06N-VGA-BP video cable adapter 5.91" (0.15 m) Mini DisplayPort VGA (D-Sub) White

Tripp Lite P137-06N-VGA-BP video cable adapter 5.91" (0.15 m) Mini DisplayPort VGA (D-Sub) White

Keyspan Mini DisplayPort to Active VGA Adapter, Video Converter (M/F), Black, 6-in. (15.24 cm), 50 pack

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter KEYSPAN MINI DISPLAYPORT TOVGA ACTIVE ADAPTER - 1920 X1200 (1080P) 9810520 Register free see stock

Related Products

Description

Mini DisplayPort to VGA Converters Connect Mini DP Source to VGA Display

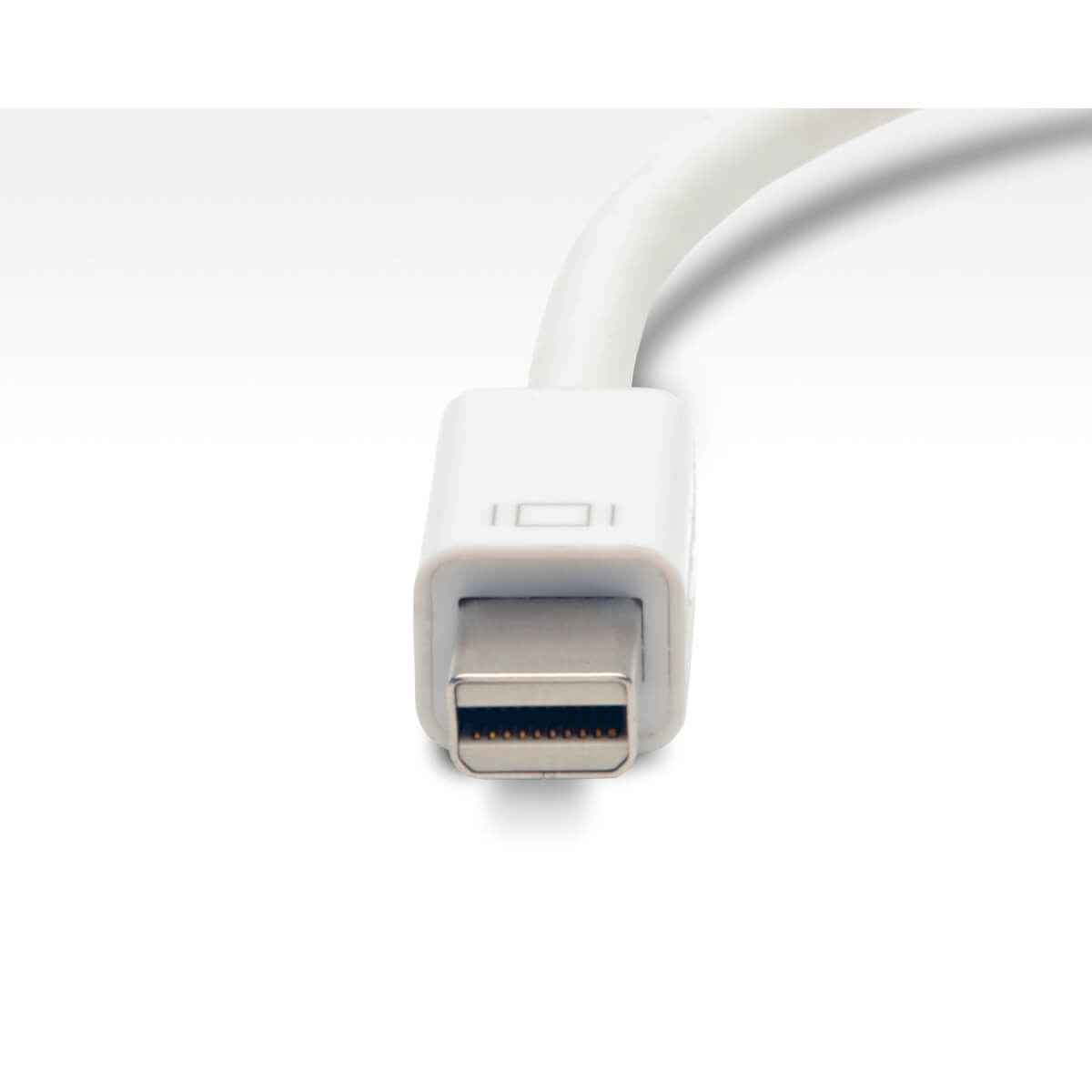

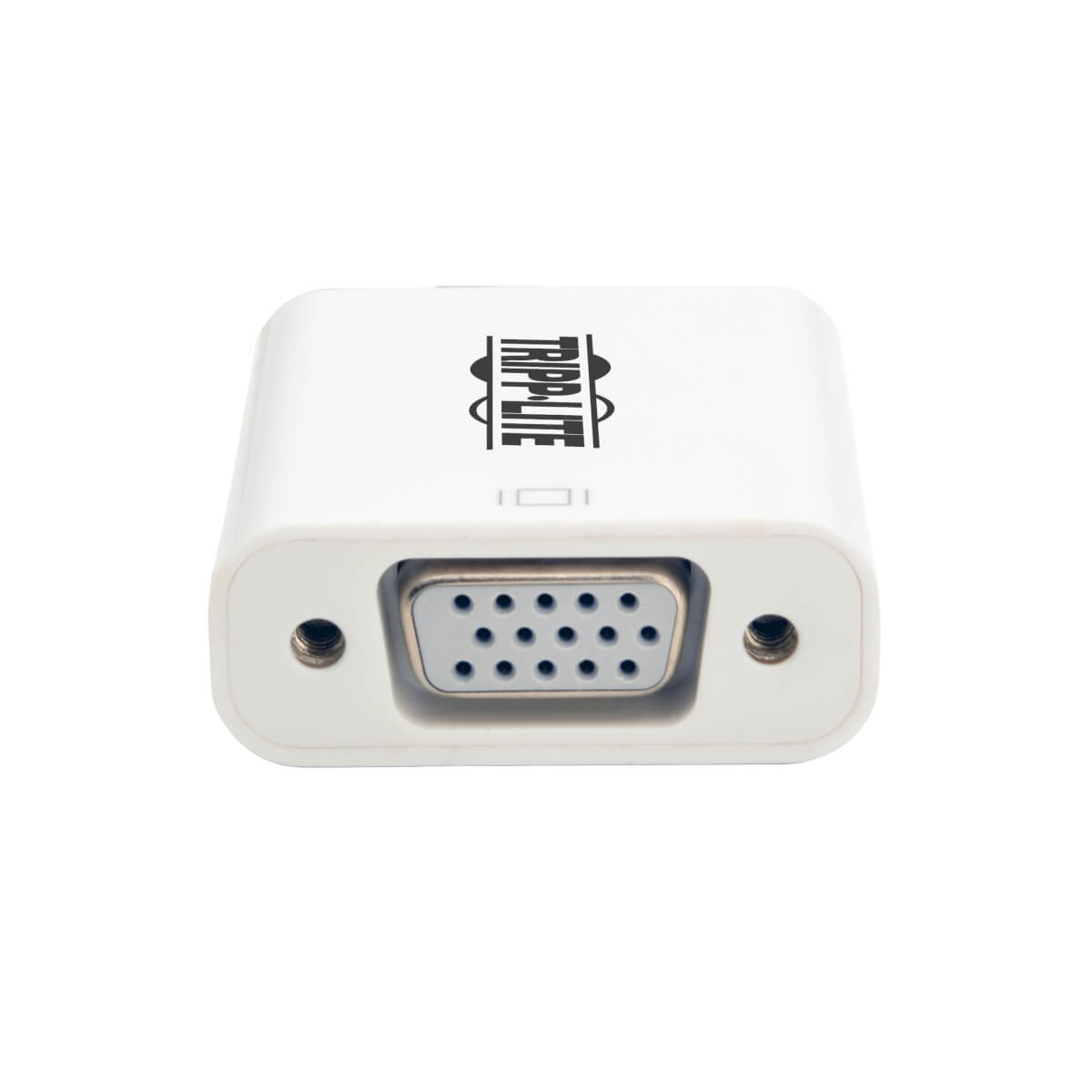

This set includes 50 P137-06N-VGA Keyspan® Mini DP to VGA active adapters. Each adapter connects a VGA monitor, projector or television to the Mini DisplayPort or Thunderbolt 1 or 2 port on your PC, Mac, Chromebook, MacBook, Microsoft Surface or other compatible computer or tablet. They feature a male Mini DP connector and a female VGA connector, allowing you to continue using your existing VGA display and VGA cable to transmit video signals without the expense of a new Mini DP display.

Transmit Outstanding 1080p Video for High-Definition Presentations
Ideal for classrooms, lecture halls and anywhere else you may need to connect to a VGA monitor, these Mini DisplayPort to VGA converters support VGA computer video resolutions up to 1920 x 1200, including 1080p, and high-definition resolutions up to 1080p. The active adapters convert both Single-Mode and Dual-Mode (DP++) DisplayPort output. They come recommended for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals.

Ready to Use Right Out of the Package
The plug-and-play Mini DP to VGA adapters require no software, drivers or external power, work with both Windows and Mac operating systems, and are compatible with laptops, tablets and other devices equipped with a female Mini DisplayPort or Thunderbolt 1 or 2 port. With its small size and built-in cable, the P137-06N-VGA is recommended for stowing in your laptop bag and carrying to school or the office.

Specifications

Features
Converter typeActive video converter
Country of originChina
DisplayPort version1.1
Product colourWhite
Cable length5.91" (0.15 m)
Connector 1Mini DisplayPort
Connector 2VGA (D-Sub)
Connector 1 genderMale
Connector 2 genderFemale
Connector contacts platingNickel/Gold
Jacket materialABS synthetics, Polyvinyl chloride (PVC)
Maximum resolution1920 x 1200 pixels
Supported video modes1080p
Plug and PlayYes
CertificationCE, FCC, REACH
Connector 1 form factorStraight
Maximum refresh rate60 Hz
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 90%
Technical details
Country of originChina
Compliance certificatesRoHS
Weight & dimensions
Cable diameter0.177" (4.5 mm)
Package width10.2" (260.1 mm)
Package depth7.48" (190 mm)
Package height5.91" (150.1 mm)
Package weight3.11 lbs (1.41 kg)
Packaging data
Package width10.2" (260.1 mm)
Package depth7.48" (190 mm)
Package height5.91" (150.1 mm)
Package weight3.11 lbs (1.41 kg)
Quantity per pack50 pc(s)
Packaging content
Quantity per pack50 pc(s)
Logistics data
Master (outer) case width15.7" (400 mm)
Master (outer) case length12.4" (315 mm)
Master (outer) case height11.2" (285 mm)
Master (outer) case gross weight15.5 lbs (7.05 kg)
Products per master (outer) case4 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332237689
