Tripp Lite P116-000-HDSC1 video signal converter 1920 x 1440 pixels

Tripp Lite P116-000-HDSC1 video signal converter 1920 x 1440 pixels

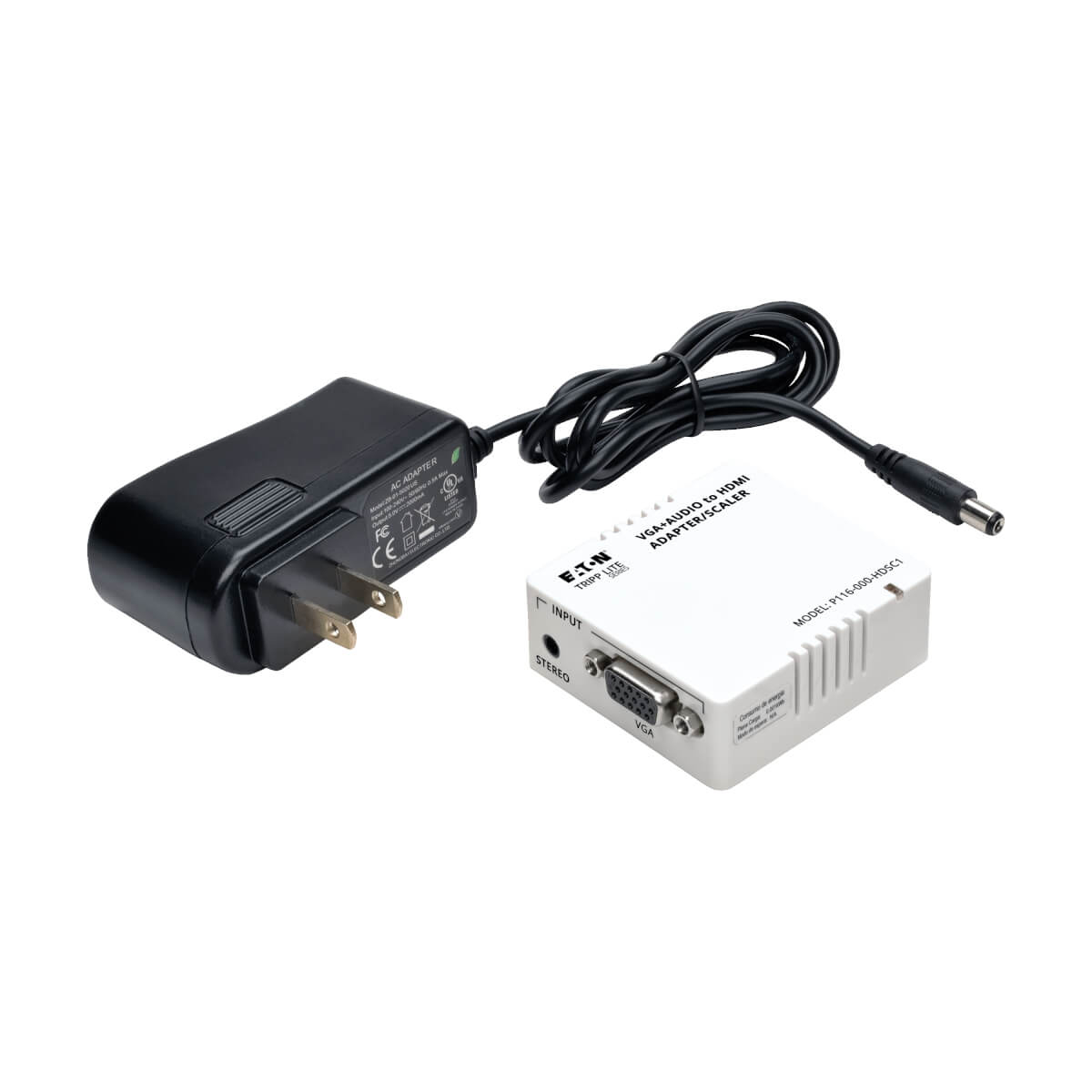

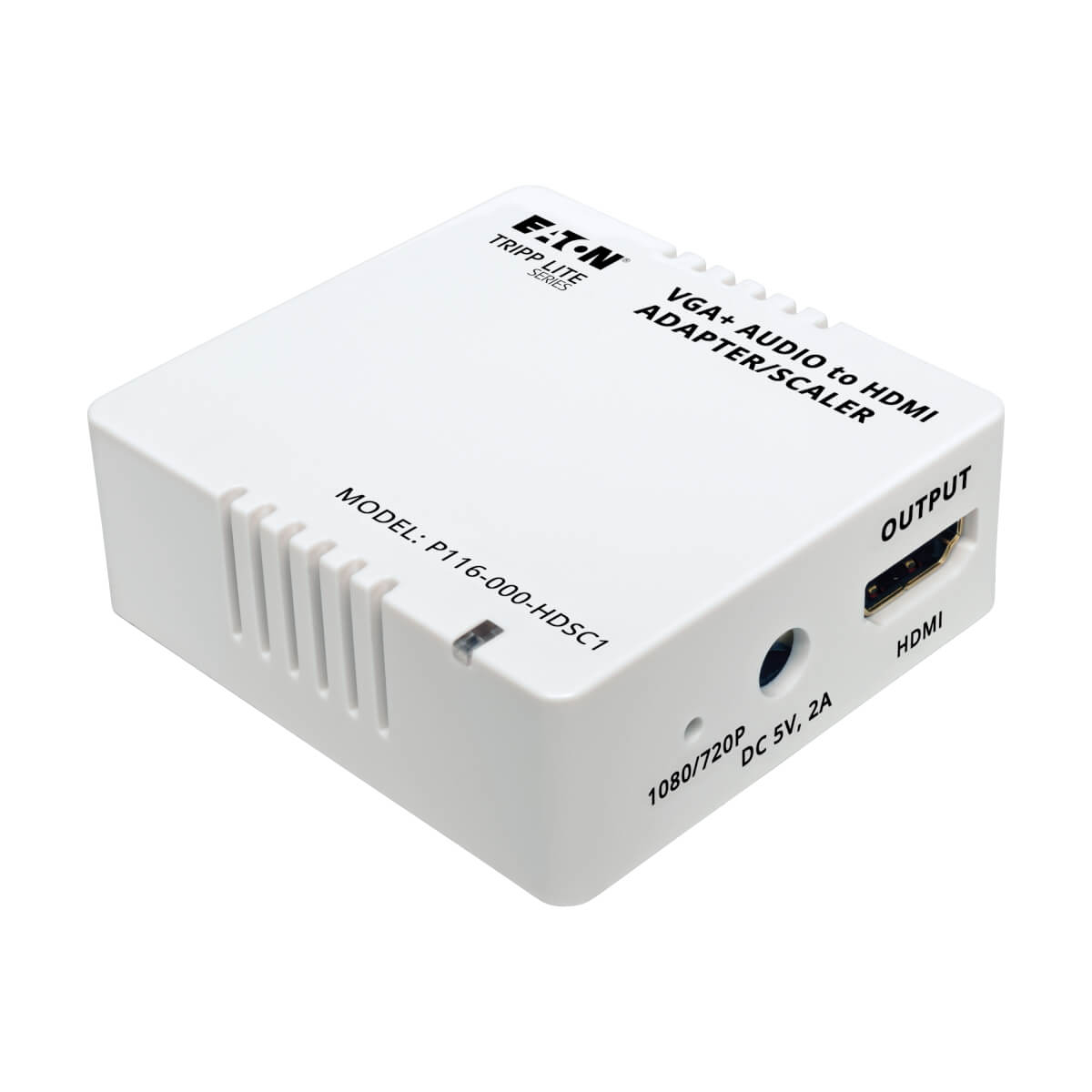

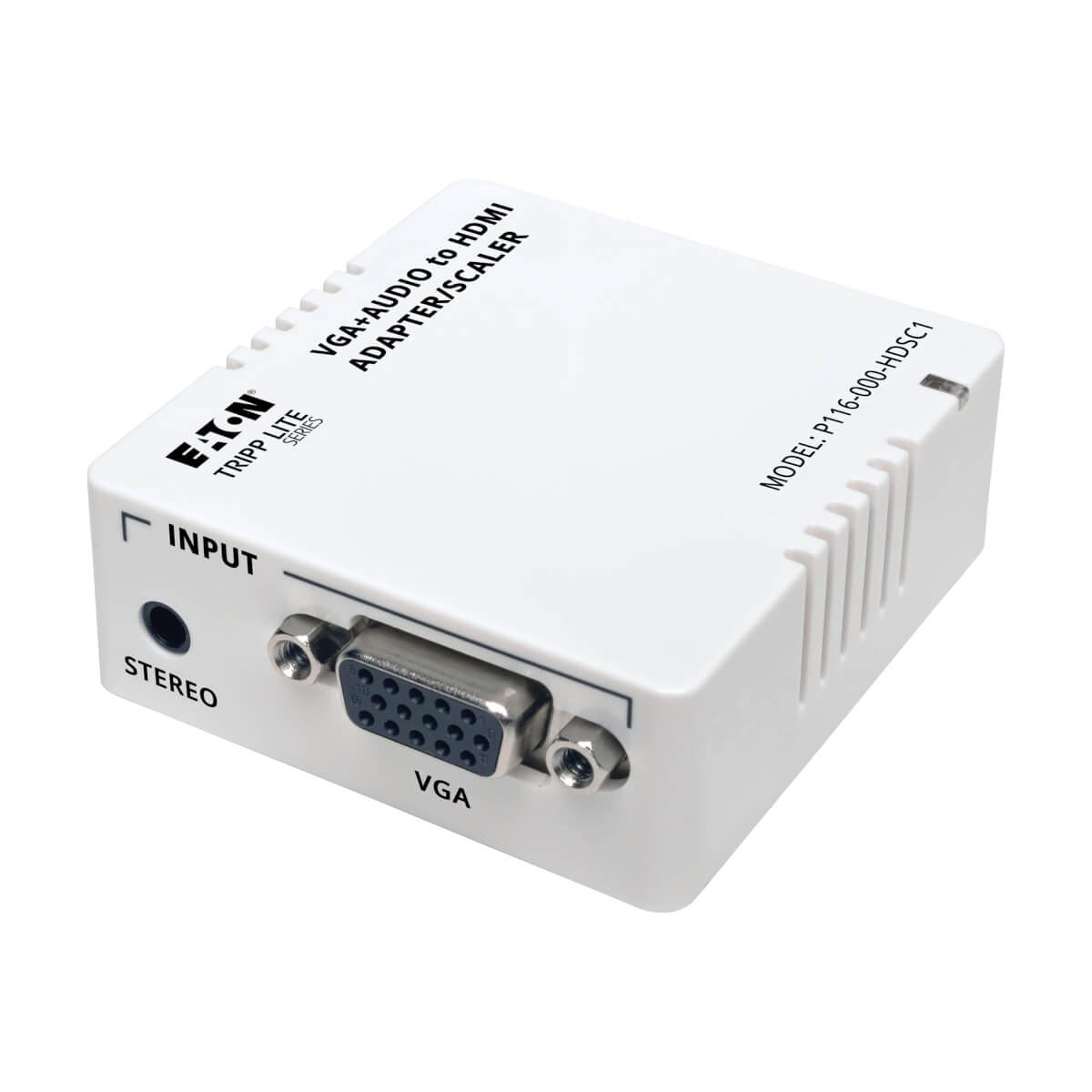

VGA with Audio to HDMI Converter with Scaler Function

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter COMPONENT VGA VIDEO & AUDIOTO HDMI CONVERTER/SCALER 1080PP116-000-HDSC1 812548 Register free see stock
Ingram Micro COMPONENT VGA TO HDMI ADAPTER 1R0088
TD Synnex VGA TO HDMI ADAPTER VIDEO/AUDIO SCALER 4254442

Related Products

Description

Save Money on Costly Computer Upgrades to Video Source Equipment
The P116-000-HDSC1 VGA converts and upscales a VGA video signal for viewing on an HDMI display. The built-in scaler upgrades the VGA input signal, allowing you to display 720p or 1080p high-definition video in your audio/video setup, media presentation or digital signage using your tried-and-true analog source equipment. The media converter is ready to use right from the box with no software installations required.

Upscales Analog Video to 1080p

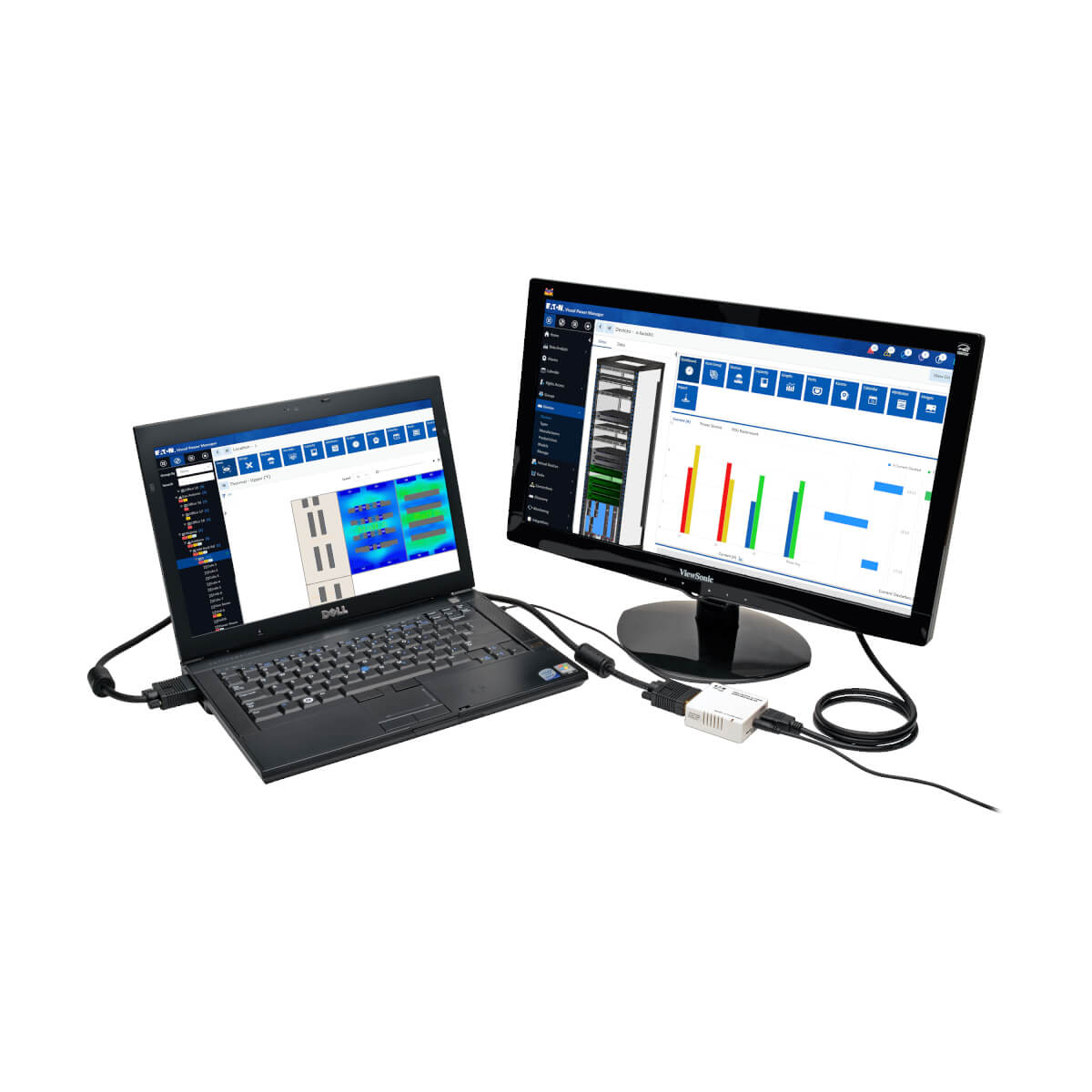

Connect the VGA video and 3.5 mm mini-stereo audio ports to your computer and the HDMI port to your HDMI projector, monitor or television with user-supplied cables. The P116-000-HDSC1 automatically upscales the video signal to 720p. Toggle the display to 1080p by pressing the button on the unit. The converter supports computer input video resolutions up to 1920 x 1440 at 60 Hz. It also supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel).

Specifications

Other features
Plug and PlayYes
Product colourWhite
Features
Plug and PlayYes
Product colourWhite
Video
Bandwidth165 MHz
Colour depth24 bit
Maximum video resolution1920 x 1440 pixels
Supported video modes720p, 1080p
Ports & interfaces
Output interfaceHDMI
Host interfaceVGA (D-Sub) + 3.5 mm (1/8")
Power
Operating current0.5 A
Input voltage100 - 240 V
Input frequency50/60 Hz
External power adapterYes
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width2.2" (55.9 mm)
Depth2.3" (58.4 mm)
Height0.902" (22.9 mm)
Weight1.76 oz (50 g)
Packaging data
AC adapter includedYes
Package width6.69" (169.9 mm)
Package depth4.92" (125 mm)
Package height2.36" (59.9 mm)
Package weight5.64 oz (160 g)
ManualYes
Logistics data
Master (outer) case width12.2" (309.9 mm)
Master (outer) case length10.4" (264.9 mm)
Master (outer) case height7.48" (190 mm)
Master (outer) case gross weight4.19 lbs (1.9 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332188332
Country of originVietnam
