Tripp Lite SM2200RMXL2UTAA uninterruptible power supply (UPS) 2.2 kVA 1600 W 8 AC outlet(s)

Tripp Lite SM2200RMXL2UTAA uninterruptible power supply (UPS) 2.2 kVA 1600 W 8 AC outlet(s)

TAA Compliant SmartPro Expandable Rack/Tower UPS System

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter TAA TAA COMPLIANT SMARTPROEXPANDABLE RA 760824 Register free see stock
Arlington Industries 8-OUT 1920W 2U LINE-ACTIVE TAA UPS TRPSM2200RMXL2UTAA
D&H TAA Compliant 2200VA UPS rack SM2200RMXL2UTAA
Ingram Micro UPS SMART 2200VA 1920WAVR 120V CE9870
TD Synnex UPS 2200VA SMART 1920W EXT RUN 2URM TAA 2561925

Related Products

Description

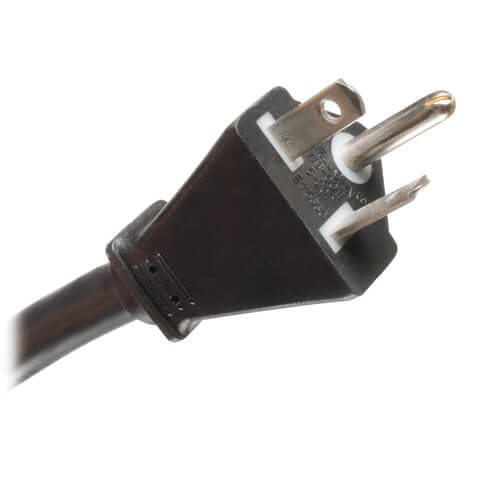

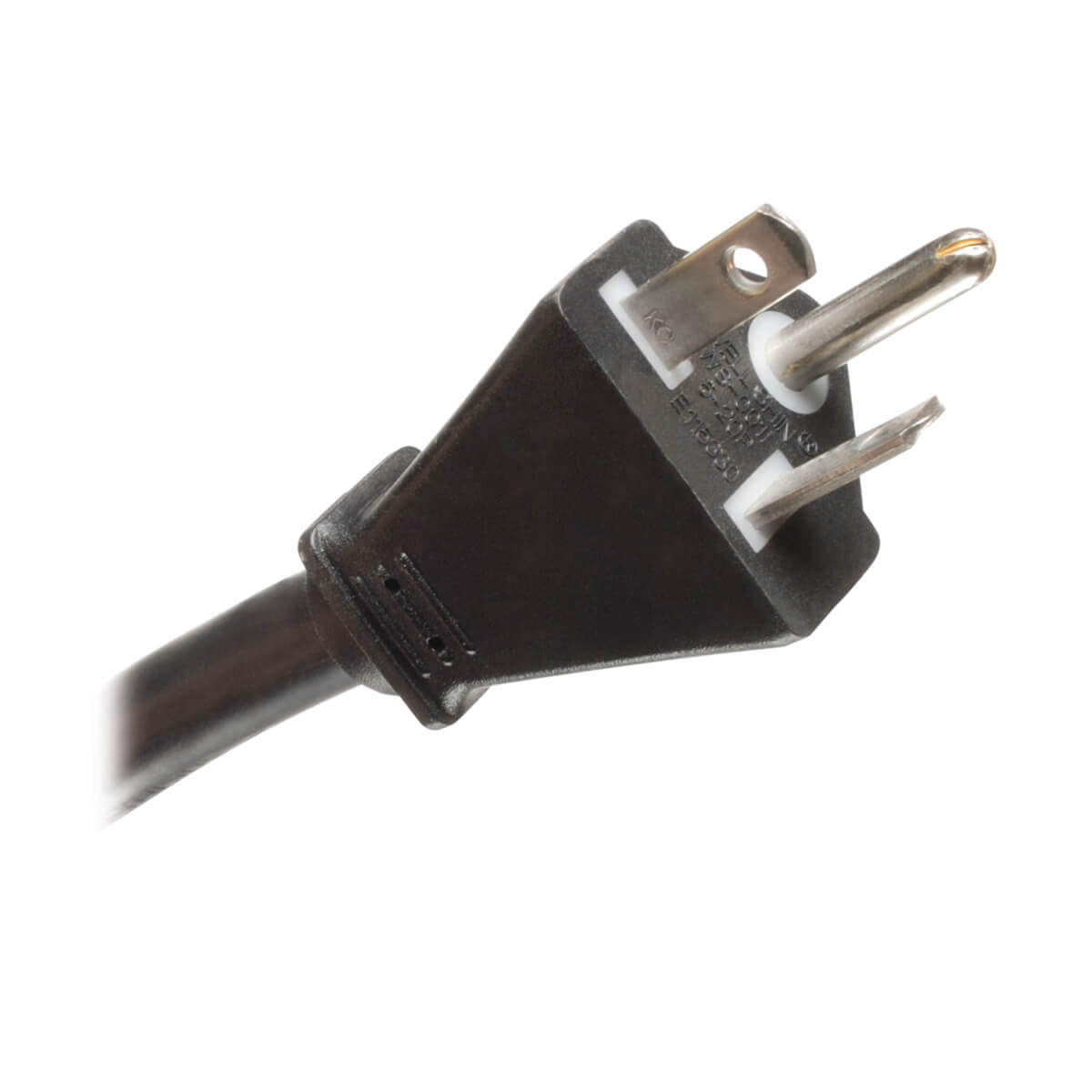

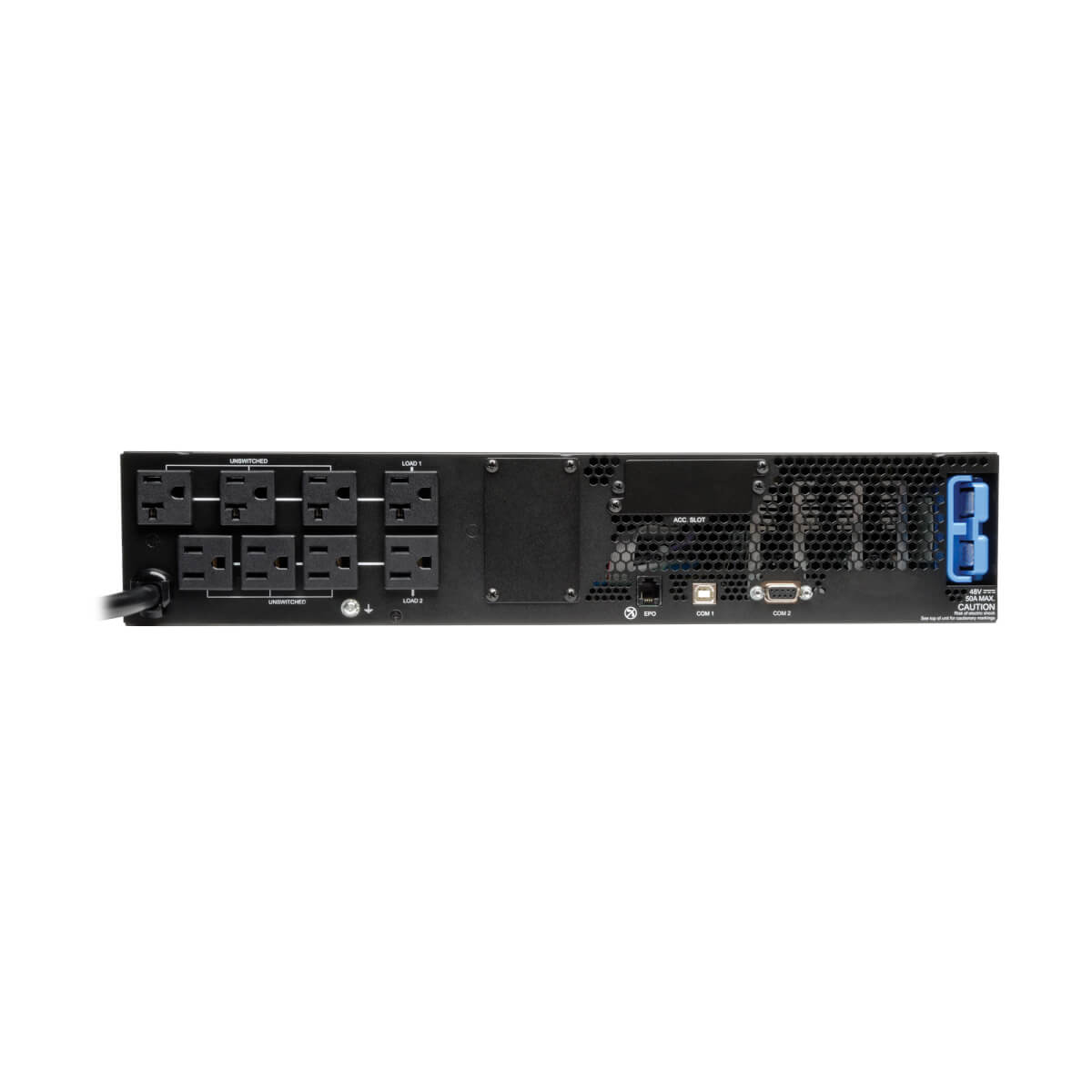

The SM2200RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 2200VA line interactive UPS system for server, network and telecommunications equipment. 2U rackmount or tower form factor with an installed depth of only 19 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT-3U external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages to maintain regulated 100, 110, 120v selectable output over an input range of 83-145V. Includes NEMA 5-20P input plug and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITWM two post rack & wallmount accessories available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. 2-year warranty and $250,000 connected equipment insurance; extended warranty and service contracts available.

Specifications

Power
Output power1600 W
Input operation voltage (min)83 V
Input operation voltage (max)145 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating570 J
Maximum current20 A
Emergency Power Off (EPO)Yes
Output power capacity2.2 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)

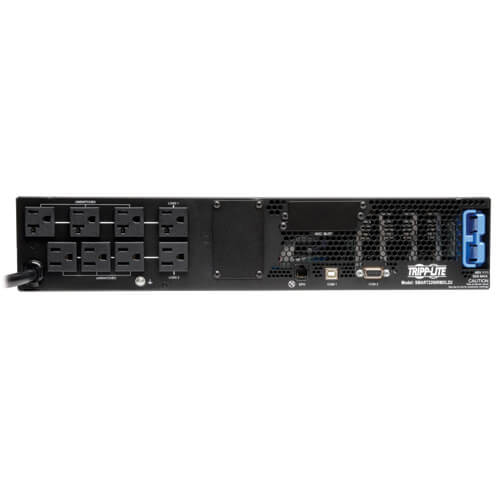

AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R
Performance
LED indicatorsYes
EMI/RFI noise filteringYes
Audible alarm(s)Yes
Features
Country of originTaiwan
Output power1600 W
Input operation voltage (min)83 V
Input operation voltage (max)145 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating570 J
Maximum current20 A
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Audible alarm(s)Yes
Output power capacity2.2 kVA
Input frequency50/60 Hz
Battery
Battery recharge time4.5 h
Typical backup time at half load16 min
Typical backup time at full load6 min
Hot-swap batteryYes
Design
Country of originTaiwan
Rack capacity2U
Form factorRackmount
LED indicatorsYes
Product colourBlack
CertificationUL1778 TAA
Cable length118.1" (3 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Package width24" (609.6 mm)
Package depth20.9" (530.9 mm)
Package height8.8" (223.5 mm)
Weight57.5 lbs (26.1 kg)
Width17.5" (444.5 mm)
Package weight78 lbs (35.4 kg)
Height3.5" (88.9 mm)
Depth19" (482.6 mm)
Packaging data
Package width24" (609.6 mm)
Package depth20.9" (530.9 mm)
Package height8.8" (223.5 mm)
Package weight78 lbs (35.4 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width24" (609.6 mm)
Master (outer) case length20.9" (530.9 mm)
Master (outer) case height8.8" (223.5 mm)
Master (outer) case gross weight78 lbs (35.4 kg)
Certificates
CertificationUL1778 TAA
Other features
InterfaceUSB
Nominal output voltage120 V
Nominal input voltage120 V
