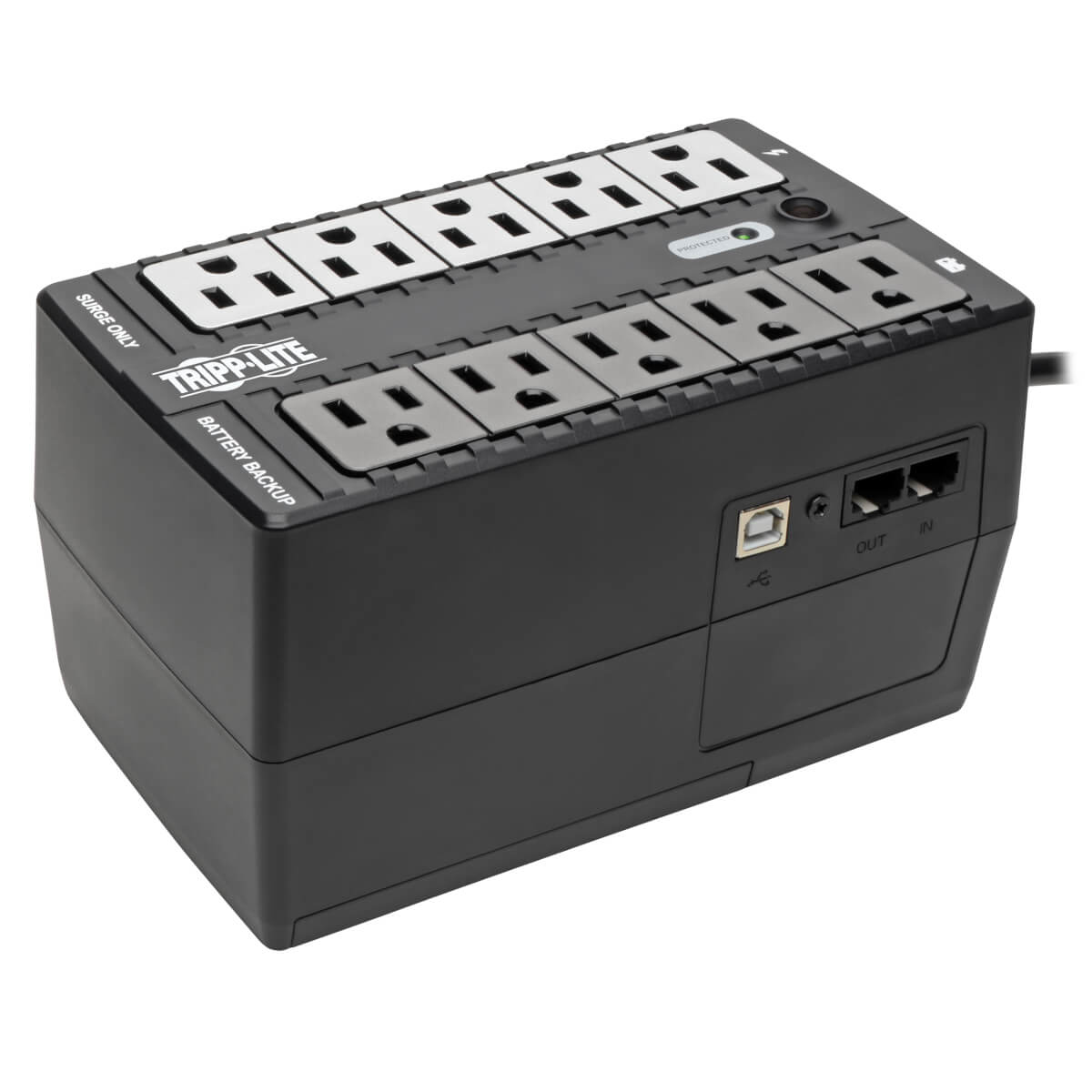

Tripp Lite INTERNET550U uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 300 W 10 AC outlet(s)

Tripp Lite INTERNET550U uninterruptible power supply (UPS) Standby (Offline) 0.55 kVA 300 W 10 AC outlet(s)

Tripp Lite INTERNET550U, Standby (Offline), 0.55 kVA, 300 W, Pure sine, 110 V, 120 V

Trade Prices

Distributor Product SKU Stock Updated Price
Accutech Data Supplies UPS TRPINTERNET550U Register free see stock
Anixter UPS COMPACT LOW PROFILE 550VA8 OUTLET(4UPS/4SURGE)1-LINEMULTI DEVICE 329672
ASI Corp Tripp Lite INTERNET550U 550VA UPS Compact LP Standby 8 outlets w USB Port 44499
BlueStar TRIPP LITE, 550VA 300W UPS DESKTOP BATTERY BACK UP, COMPACT 12OV USB, RJ11 PC INTERNET550U
D&H 550VA 300W UPS INTERNET550U
Ingram Micro UPS 550VA 300W BACK UP STANDBY G67312
TD Synnex UPS 550VA STANDBY BATTERY BACKUP USB DSL 1060056

Related Products

Description

Tripp Lite INTERNET550U. UPS topology: Standby (Offline), Output power capacity: 0.55 kVA, Output power: 300 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 10 AC outlet(s). Typical backup time at full load: 1.2 min, Typical backup time at half load: 5 min. Form factor: Tower, Product color: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Width: 4.33" (110 mm), Depth: 7.28" (184.9 mm), Height: 4.13" (104.9 mm)

Specifications

Power
Output frequency50/60 Hz
Output power300 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current15 A
Output power capacity0.55 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length59.8" (1.52 m)
USB portYes
AC outlets quantity10 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports2
Performance
UPS topologyStandby (Offline)
WaveformPure sine
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Network, Telephone
Audible alarm(s)Yes
Features
Output frequency50/60 Hz
Country of originChina
UPS topologyStandby (Offline)
WaveformPure sine
Number of input phases1
Output power300 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Output operation voltage (min)110 V
Output operation voltage (max)120 V
Surge energy rating316 J
Maximum current15 A
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresDigital Subscriber Line (DSL), Network, Telephone
Audible alarm(s)Yes
Output power capacity0.55 kVA
Input frequency50/60 Hz
Battery
Typical backup time at half load5 min
Typical backup time at full load1.2 min
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourBlack
Cable length59.8" (1.52 m)
Housing materialAcrylonitrile butadiene styrene (ABS)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 120000" (0 - 3048 m)
Technical details
Output frequency50/60 Hz
Compliance certificatesRoHS
Weight & dimensions
Package width5.67" (144 mm)
Package depth10.9" (275.8 mm)
Package height7.36" (186.9 mm)
Weight3.97 lbs (1.8 kg)
Width4.33" (110 mm)
Package weight4.92 lbs (2.23 kg)
Height4.13" (104.9 mm)
Depth7.28" (184.9 mm)
Packaging data
Cables includedUSB cable
Package width5.67" (144 mm)
Package depth10.9" (275.8 mm)
Package height7.36" (186.9 mm)
Package weight4.92 lbs (2.23 kg)
Logistics data
Products per master (outer) case8 pc(s)
Master (outer) case width11.3" (286 mm)
Master (outer) case length23.3" (591.8 mm)
Master (outer) case height15.5" (394 mm)
Master (outer) case gross weight39.5 lbs (17.9 kg)
Master (outer) case GTIN (EAN/UPC)10037332211023
Packaging content
Cables includedUSB cable
