Tripp Lite SMART750USBTAA uninterruptible power supply (UPS) 0.75 kVA 450 W 6 AC outlet(s)

Tripp Lite SMART750USBTAA uninterruptible power supply (UPS) 0.75 kVA 450 W 6 AC outlet(s)

450W, 750VA, 60 Hz, AVR, 9.1 kg, Black

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

TAA COMPLIANT 750VA UPS SMARTPRO TOWER 6 OUTLETS & USB

 565432 Register free see stock

Related Products

Description

Tripp Lite's SMART750USBTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This line-interactive UPS system offers automatic voltage regulation, surge suppression and long lasting battery support. 750VA/450 watt power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Internal UPS circuits support entry level PC systems for up to 45 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive, black tower configuration. Includes 3 battery-supported outlets for computer, monitor and one vital system peripheral as well as 3 additional surge-only outlets for printers and other system accessories that do not require battery support. USB port (USB cable included) enables optional unattended system shutdown without data loss in the case of extended power failure. PowerAlert Software available via free download from www.tripplite.com. Built-in dataline protection jacks offer protection of a single dialup phone/DSL line or network Ethernet connection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage boost operation. Offers 3 minutes battery runtime with a full load of 750VA/450 watts and 11 minutes with a half load of 375VA/225 watts. Supports battery replacement via built-in access panel.

- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- SMART750USBTAA line-interactive UPS system offers extended voltage regulation (AVR) and battery support as well as complete AC and dialup/DSL/Ethernet line surge suppression
- Supports entry level PC systems for up to 45 minutes during power failures to enable a safe system shutdown
- Supports a max load of 750VA/450 watts for 3 minutes and a half load of 375VA/225 watts for 11 minutes
- Automatic Voltage Regulation (AVR) circuits correct brownouts as low as 89 volts without using battery power
- Attractive black tower configuration

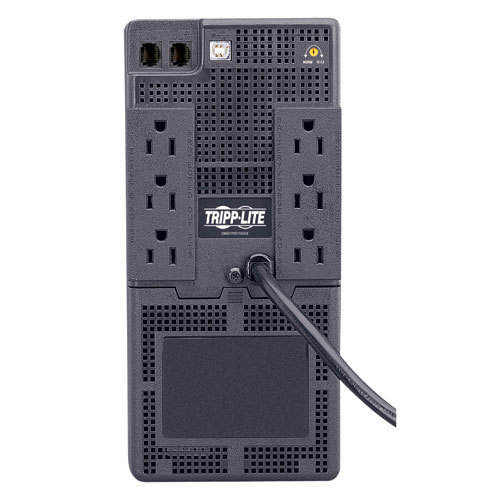

- Includes 3 battery-supported outlets, plus 3 additional surge-only outlets, 6 foot AC line cord (all NEMA 5-15)
- USB port enables unattended shutdown without data loss during extended power failures; includes USB cable
- Built-in USB port supports on battery, low battery, power restored, AC line voltage, DC battery voltage and battery capacity messaging; interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
- PowerAlert UPS monitoring and unattended shutdown software available via free download from www.tripplite.com
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again (part #WATCHDOGSW)
- Built-in dataline suppression jacks protect a single dialup phone/DSL line or network Ethernet line connection

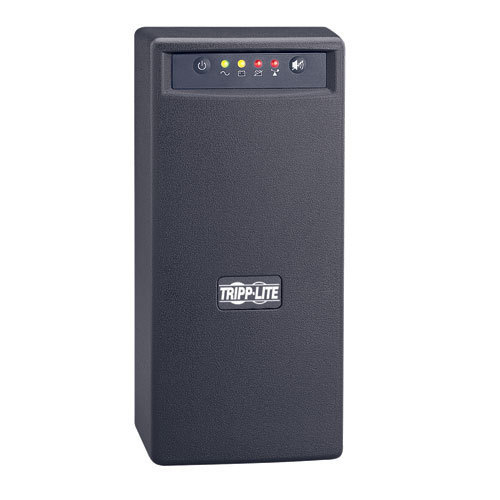

- Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
- 750VA/450 watt power handling ability supports a variety of computer, internetworking, telecom and consumer electronics equipment
- Supports battery replacement via built-in access panel
- Compatible with 120V/60Hz applications for USA, Canada, Mexico and more

Package Includes
- SMART750USBTAA TAA Compliant UPS System
- USB and telephone interconnection cables
- Instruction manual with warranty information

Specifications

Power
Output power450 W
Input operation voltage (max)120 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Efficiency95%
Output power capacity0.75 kVA
Input frequency60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15P
USB 2.0 ports quantity1
Modem (RJ-11) ports2
Performance
LED indicatorsYes
Surge protection featuresModem, Telephone
Audible alarm(s)Yes
Features
Output power450 W
Input operation voltage (max)120 V
Output operation voltage (min)115 V
Output operation voltage (max)120 V
Efficiency95%
Surge protection featuresModem, Telephone
Audible alarm(s)Yes
Output power capacity0.75 kVA
Input frequency60 Hz
Battery
Typical backup time at half load11 min
Typical backup time at full load3 min
Hot-swap batteryYes
Design
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationTAA
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Technical details
Compliance certificatesRoHS
Packaging data
Package dimensions (WxDxH)8.5 x 10.5 x 14" (216 x 267 x 356 mm)
Package weight22 lbs (10 kg)
Certificates
CertificationTAA
Compliance certificatesRoHS
Weight & dimensions
Weight20.1 lbs (9.1 kg)
Width5.24" (133 mm)
Package weight22 lbs (10 kg)
Height10.7" (273 mm)
Depth7.48" (190 mm)
Other features
Package dimensions (WxDxH)8.5 x 10.5 x 14" (216 x 267 x 356 mm)
