Tripp Lite SU20KRTHWTFASSM uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 18000 W

Tripp Lite SU20KRTHWTFASSM uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 18000 W

SmartOnline 20kVA On-Line Double-Conversion UPS, 240/120V Hardwire Output

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 20000VA 18000W UPS SMARTONLINE TOWER 20KVA 240V / 565573 Register free see stock
ASI Corp UPS SU20KRTHWTFASSM 25U SmartOnline 240 & 120V 20kVA 18kW USB 225419

Related Products

Description

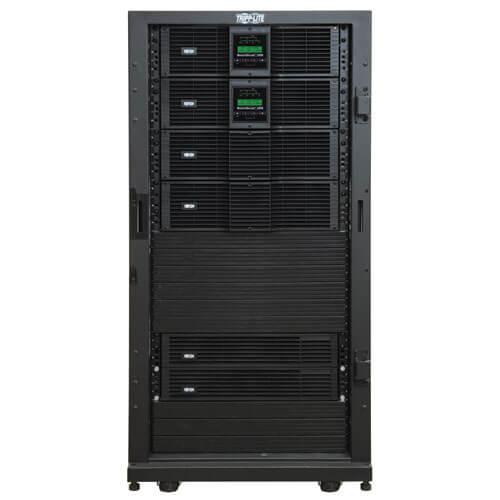

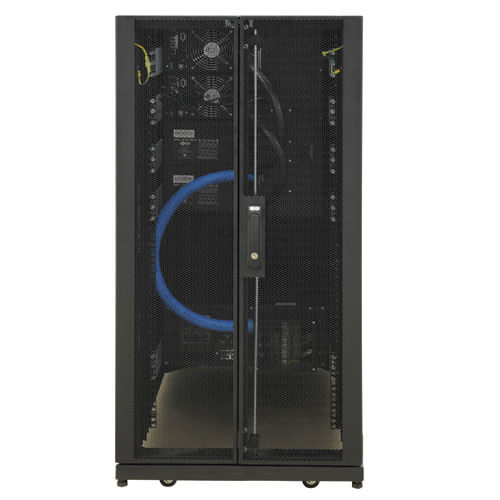

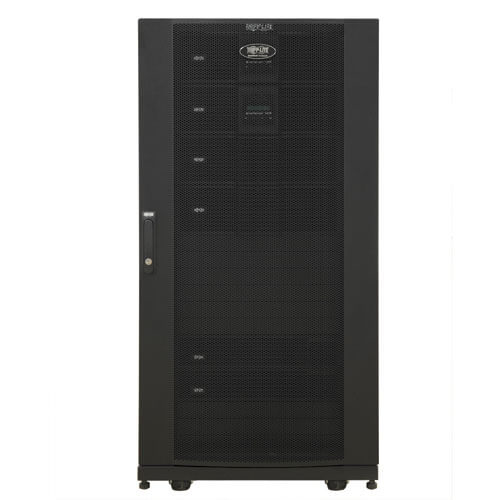

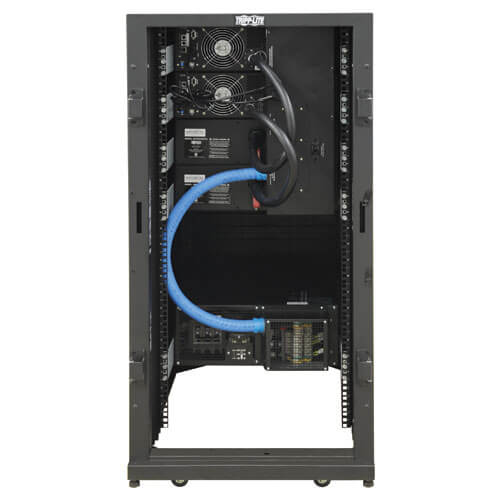

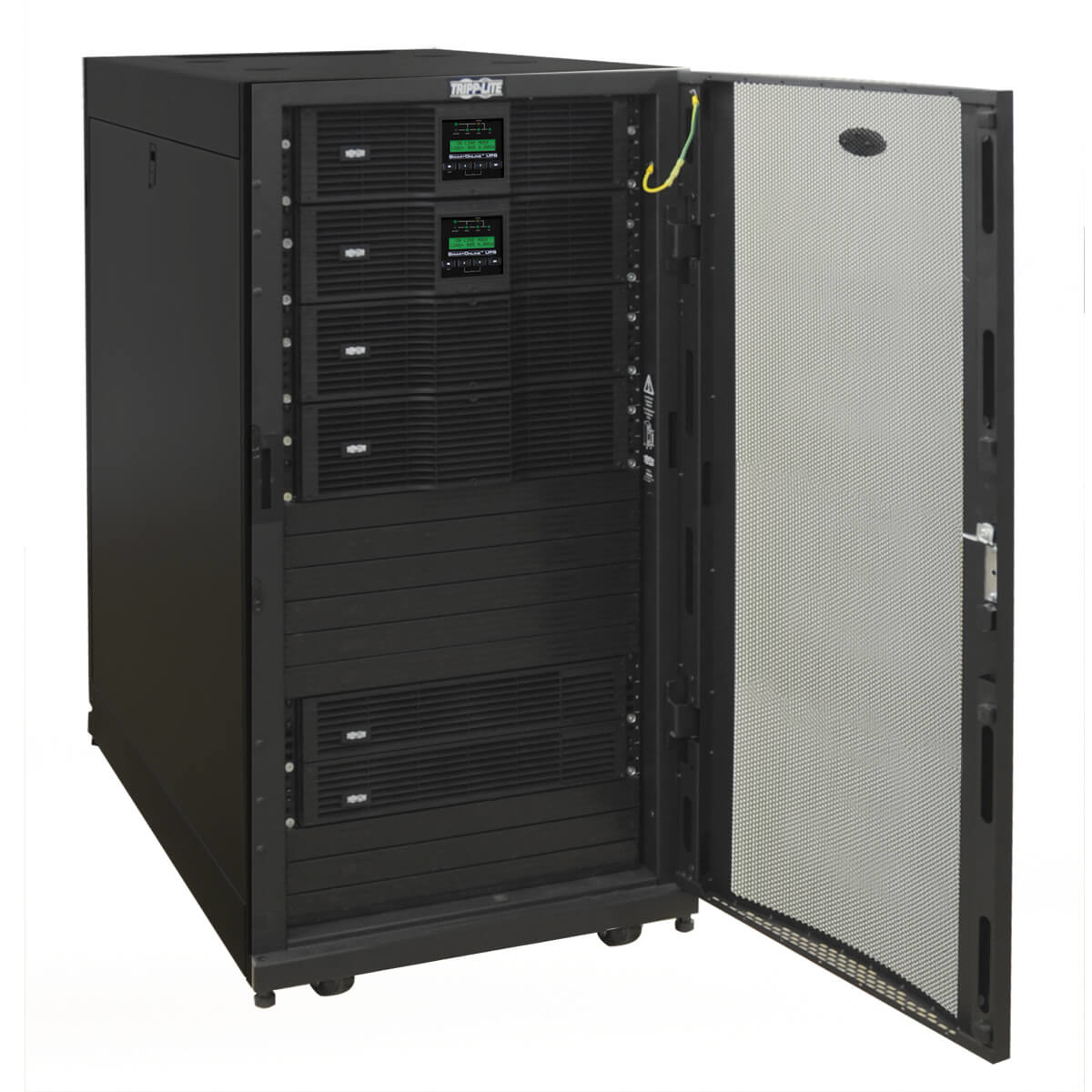

Tripp Lite SU20KRTHWTFASSM 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 16U rack/tower configuration pre-assembled into a Tripp Lite 25U rack enclosure. This system delivers complete N+1 redundancy when used at loads up to 50%, and non-redundant operation at loads between 50 and 100%. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Specifications

Power
Output voltage regulation2%
Output power18000 W
Input operation voltage (min)208 V
Input operation voltage (max)240 V
Output operation voltage (min)120 V
Output operation voltage (max)240 V
Maximum current98 A
Emergency Power Off (EPO)Yes
Power factor0.9
Crest factor3:1
Output power capacity20 kVA
Input frequency60 Hz
Battery
Battery typeBP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH
Battery recharge time6 h
Typical backup time at half load12.5 min
Typical backup time at full load4.3 min
Hot-swap batteryYes
Cold startYes
Automatic battery testYes
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Noise level60 dB
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
WaveformSine
Output voltage regulation2%
Number of input phases1
Output power18000 W
Input operation voltage (min)208 V
Input operation voltage (max)240 V
Output operation voltage (min)120 V
Output operation voltage (max)240 V
Maximum current98 A
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power factor0.9
Noise level60 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity20 kVA
Input frequency60 Hz
Ports & interfaces
AC outlet typesTerminal
Design
Country of originChina
Rack capacity14U
Form factorRackmount
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778 CSA FCC
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Sustainability certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width27" (685.8 mm)
Package depth50" (1270 mm)
Package height52" (1320.8 mm)
Weight44.1 lbs (20 kg)
Width17.5" (445 mm)
Package weight918 lbs (416.4 kg)
Height5.16" (131 mm)
Depth25.8" (656 mm)
Packaging data
Package width27" (685.8 mm)
Package depth50" (1270 mm)
Package height52" (1320.8 mm)
Package weight918 lbs (416.4 kg)
Logistics data
Products per master (outer) case1 pc(s)
Certificates
CertificationUL1778 CSA FCC
Other features
Battery typeBP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH
