Tripp Lite SV20KL uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 18000 W

Tripp Lite SV20KL uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 18000 W

SmartOnline SV Series 20kVA Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTONLINE SV SERIES 20KVALARGE-FRAME MODULAR SCALABLE3-PHASE ON-LINE 9810699 Register free see stock
BlueStar TRIPP LITE, 20KVA SMART ONLINE 3-PHASE UPS LARGE FRAME MODULAR 208/120V SV20KL

Related Products

Description

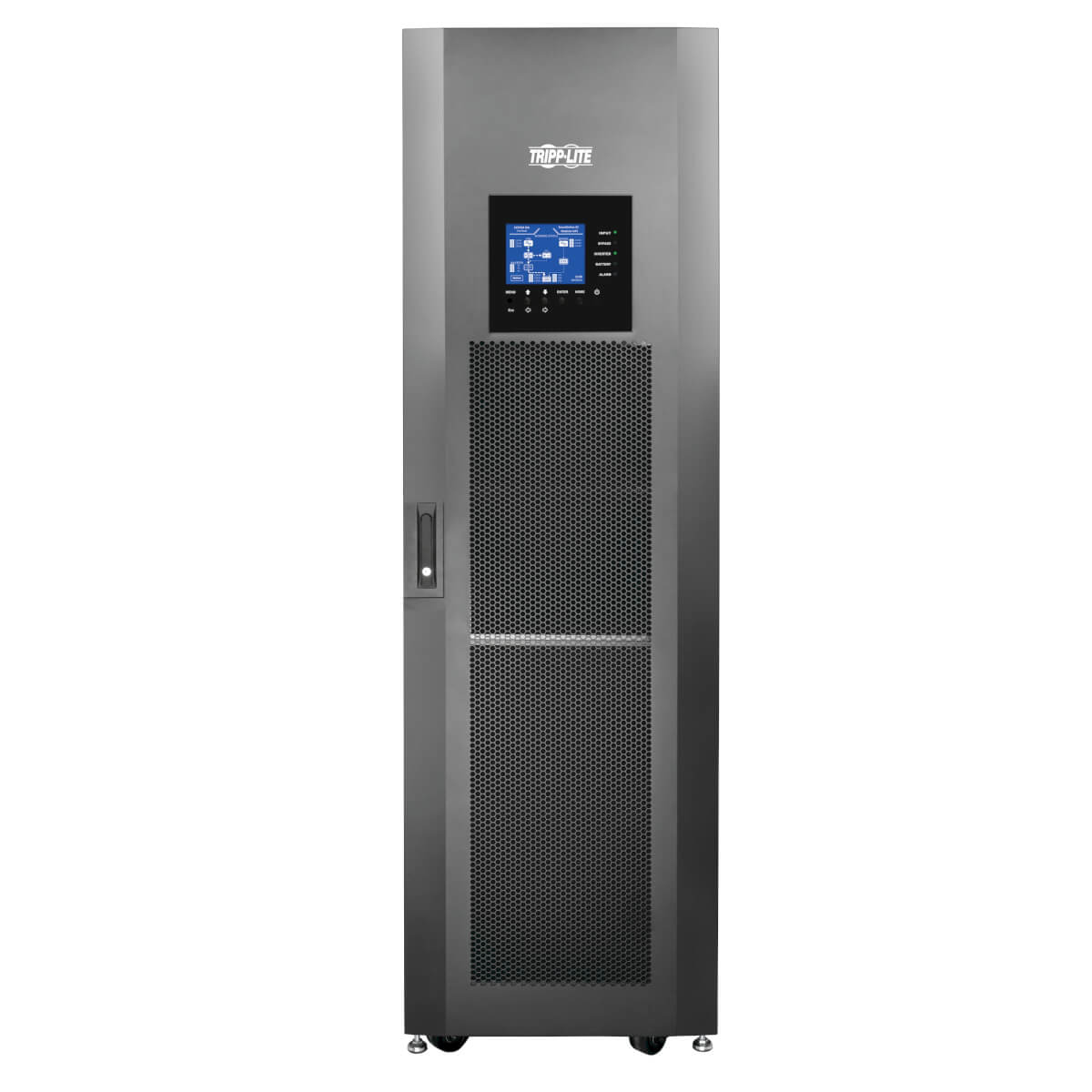

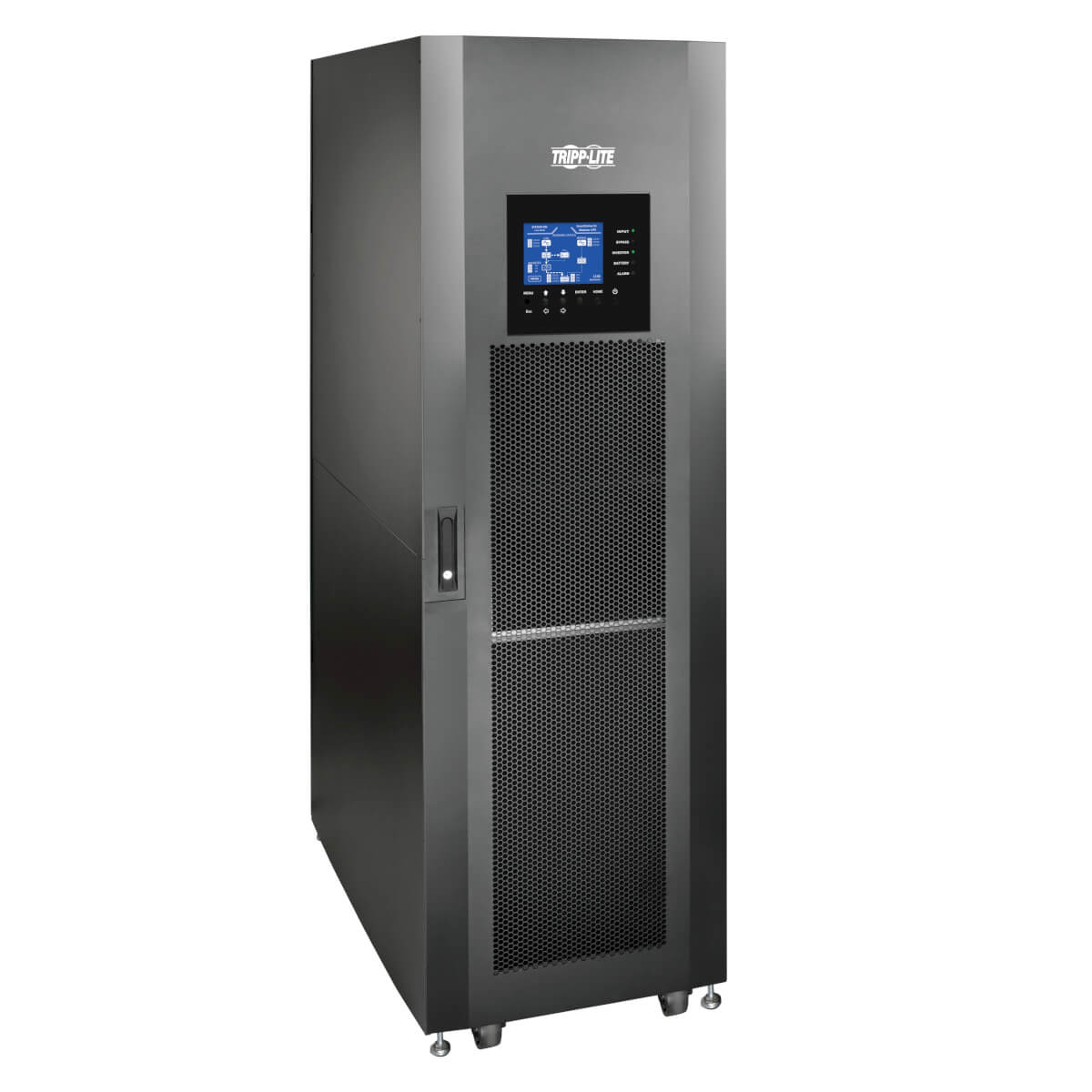

The SV20KL SmartOnline® SV Series 20kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

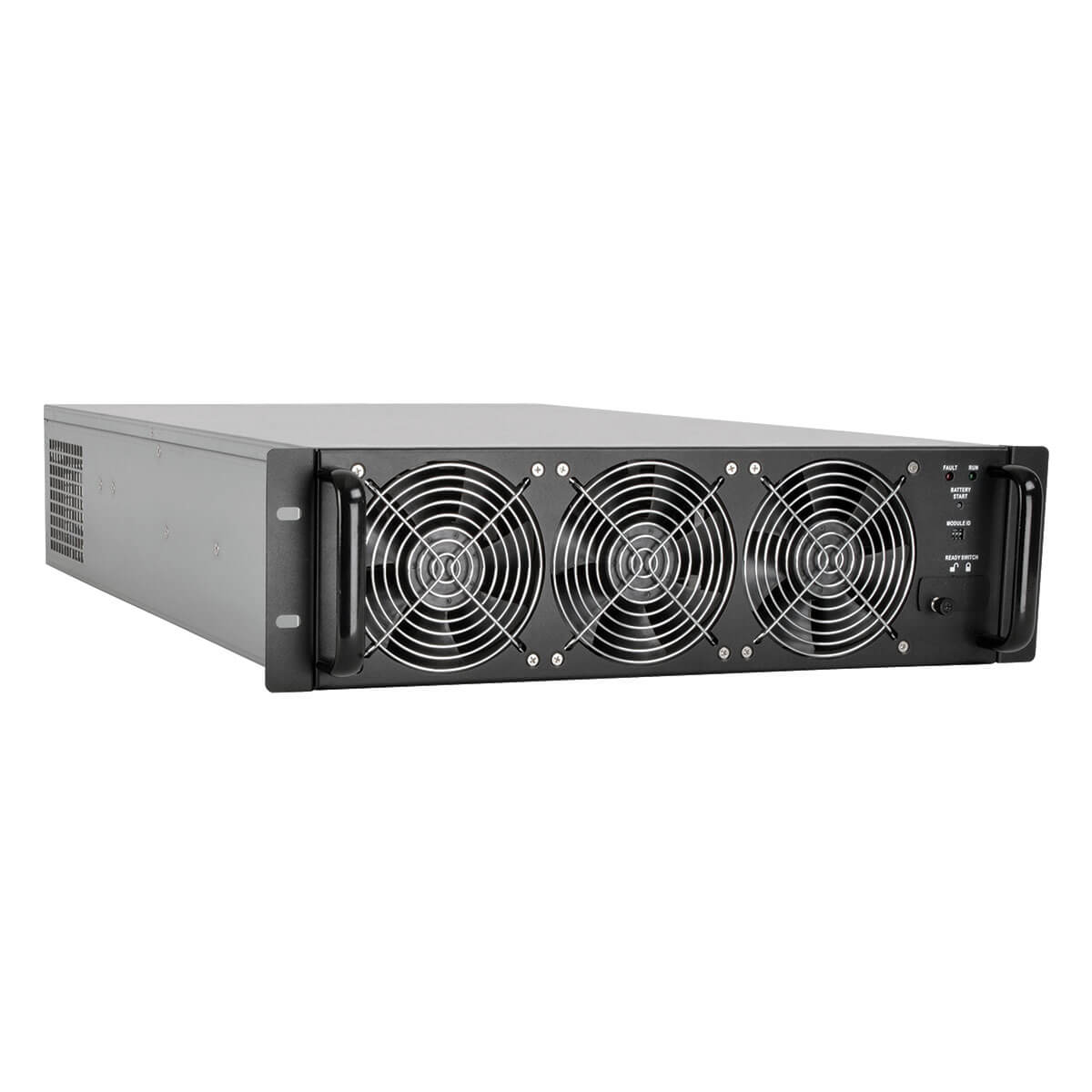

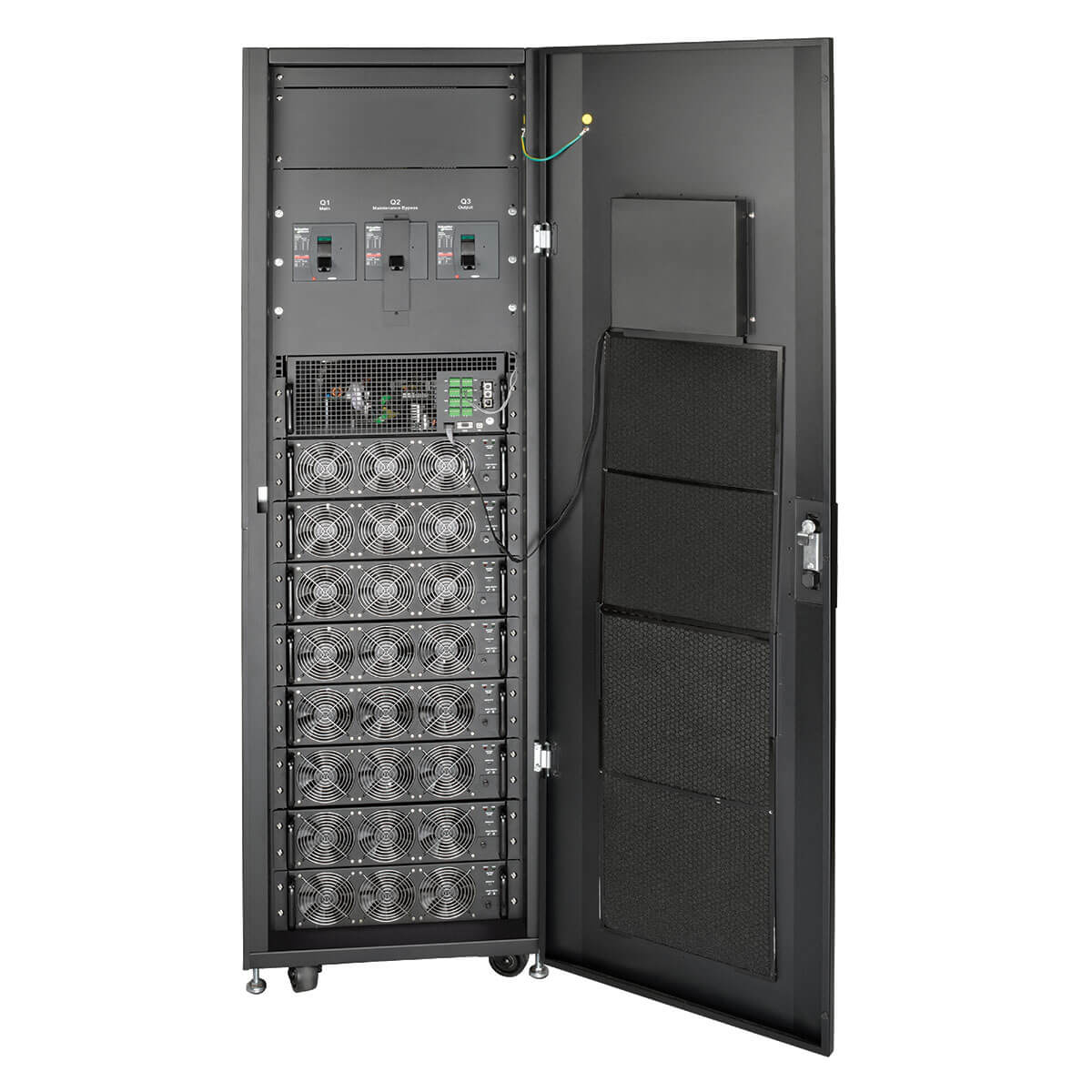

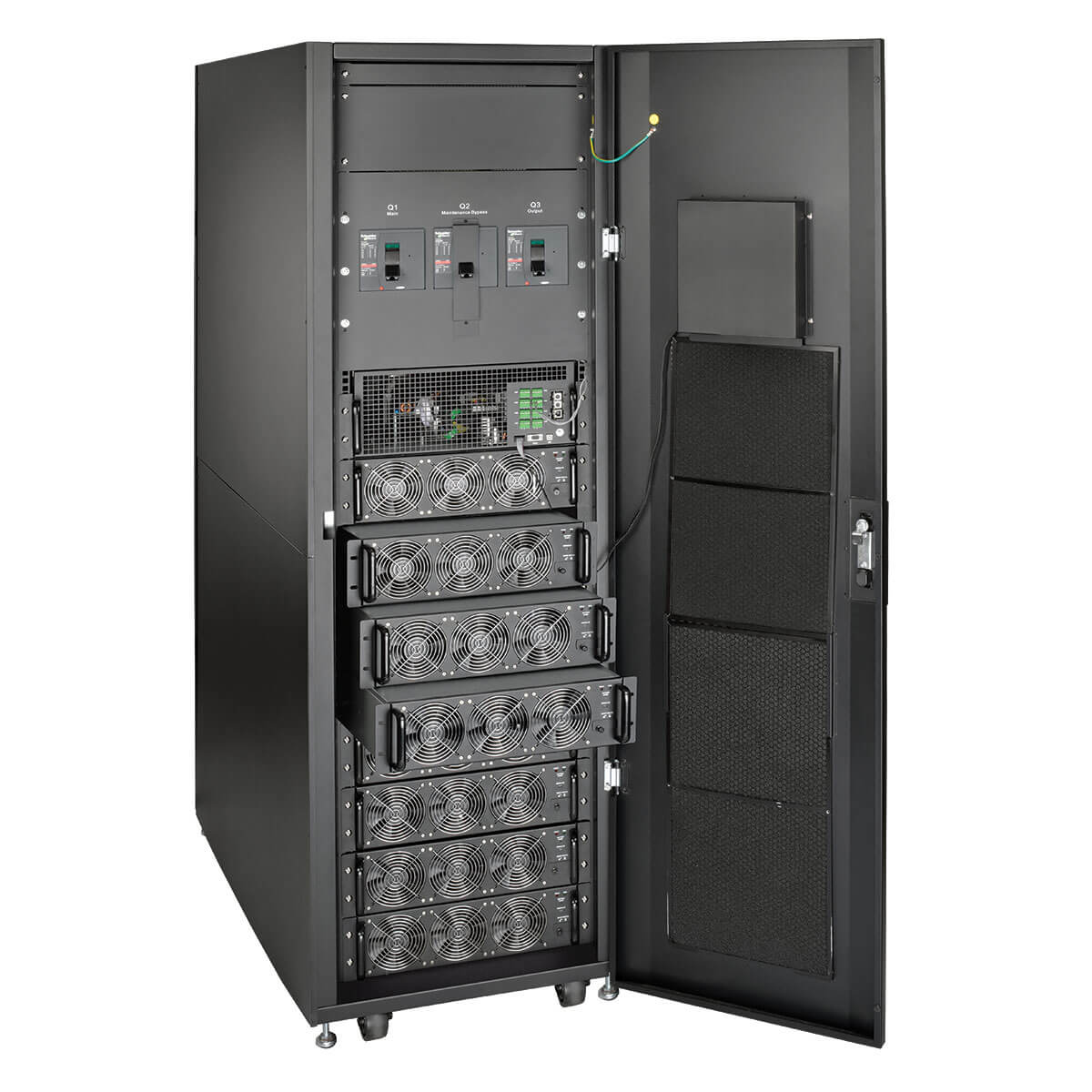

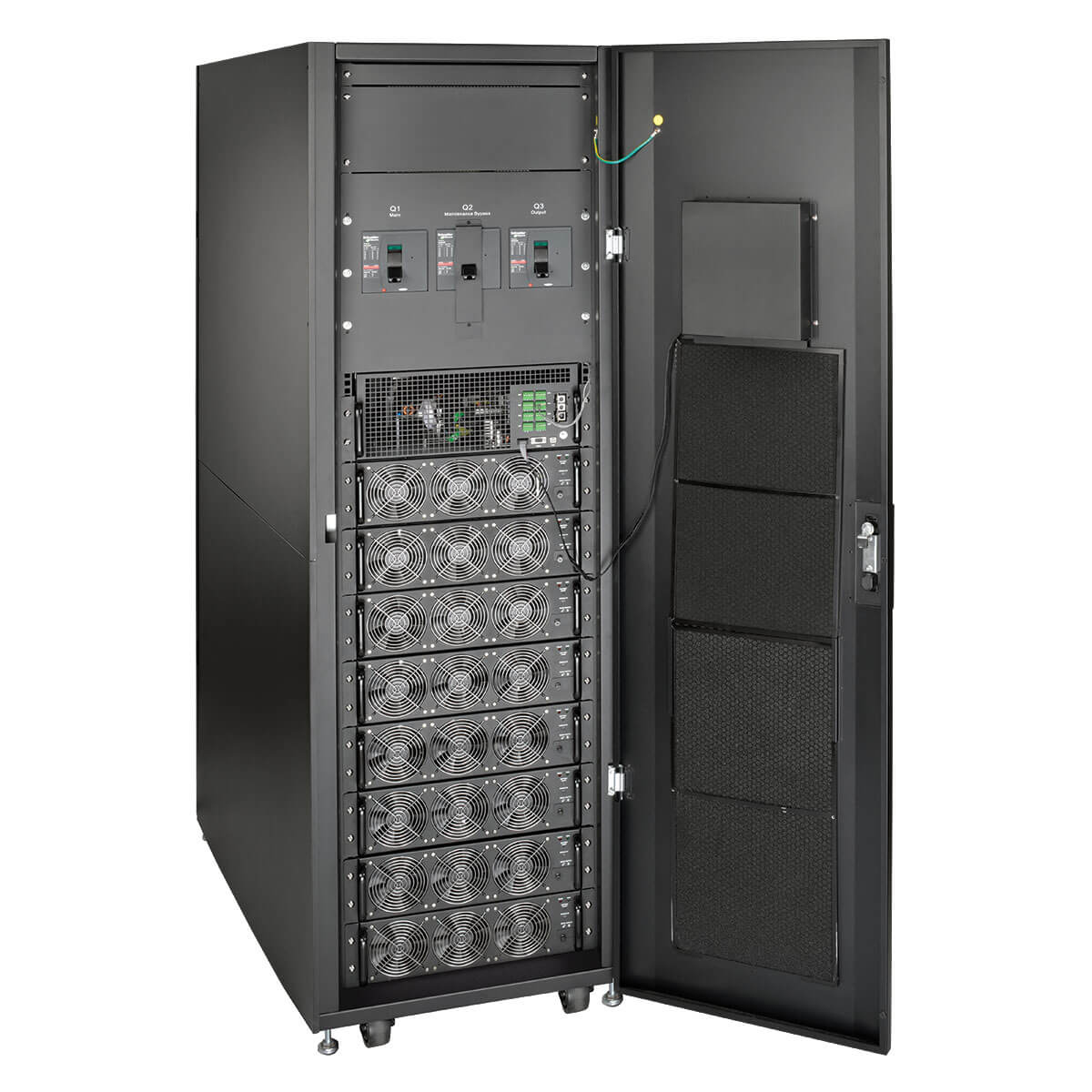

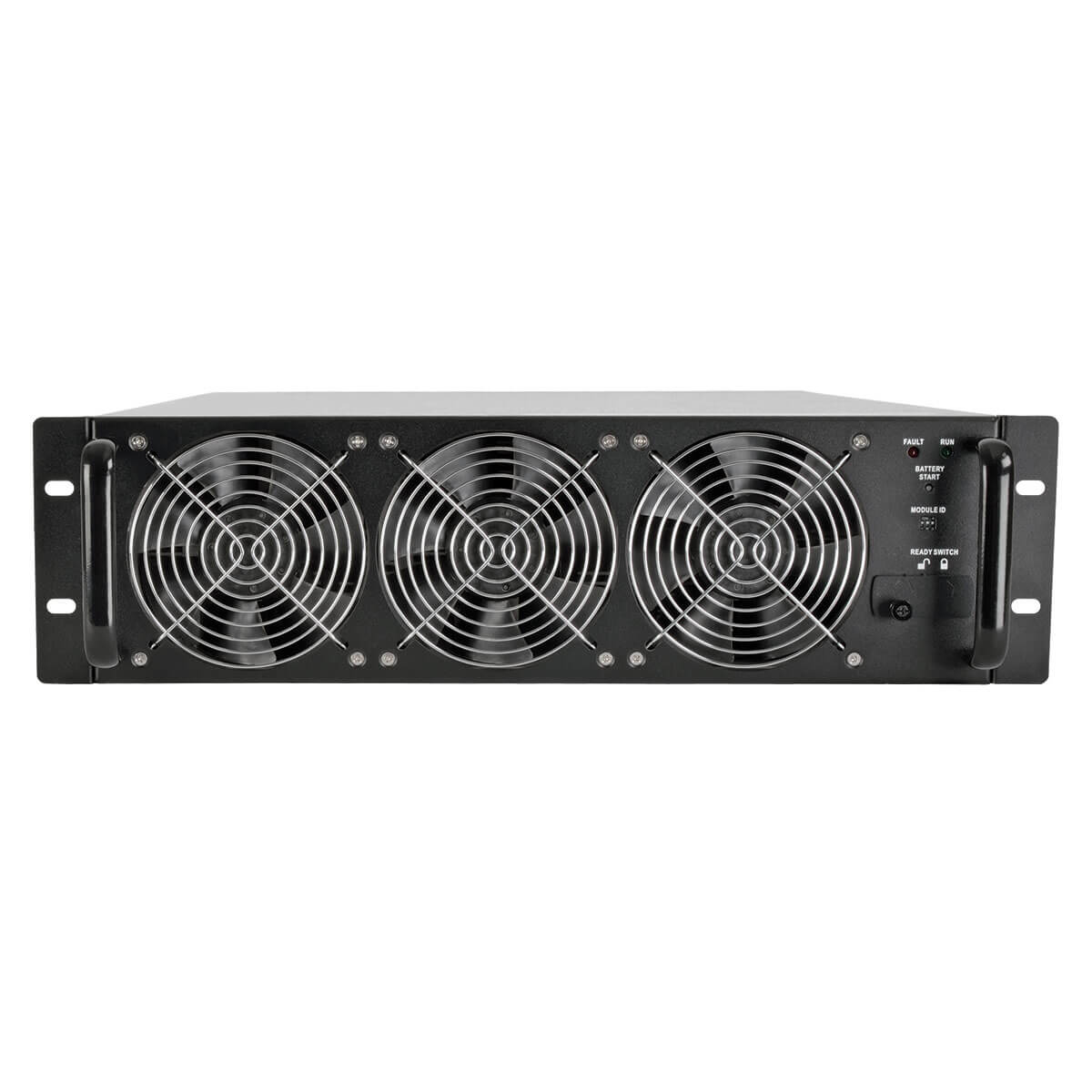

The SV20KL includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS) and one included 20kVA SV20PM power module. Space is included for up to seven additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.

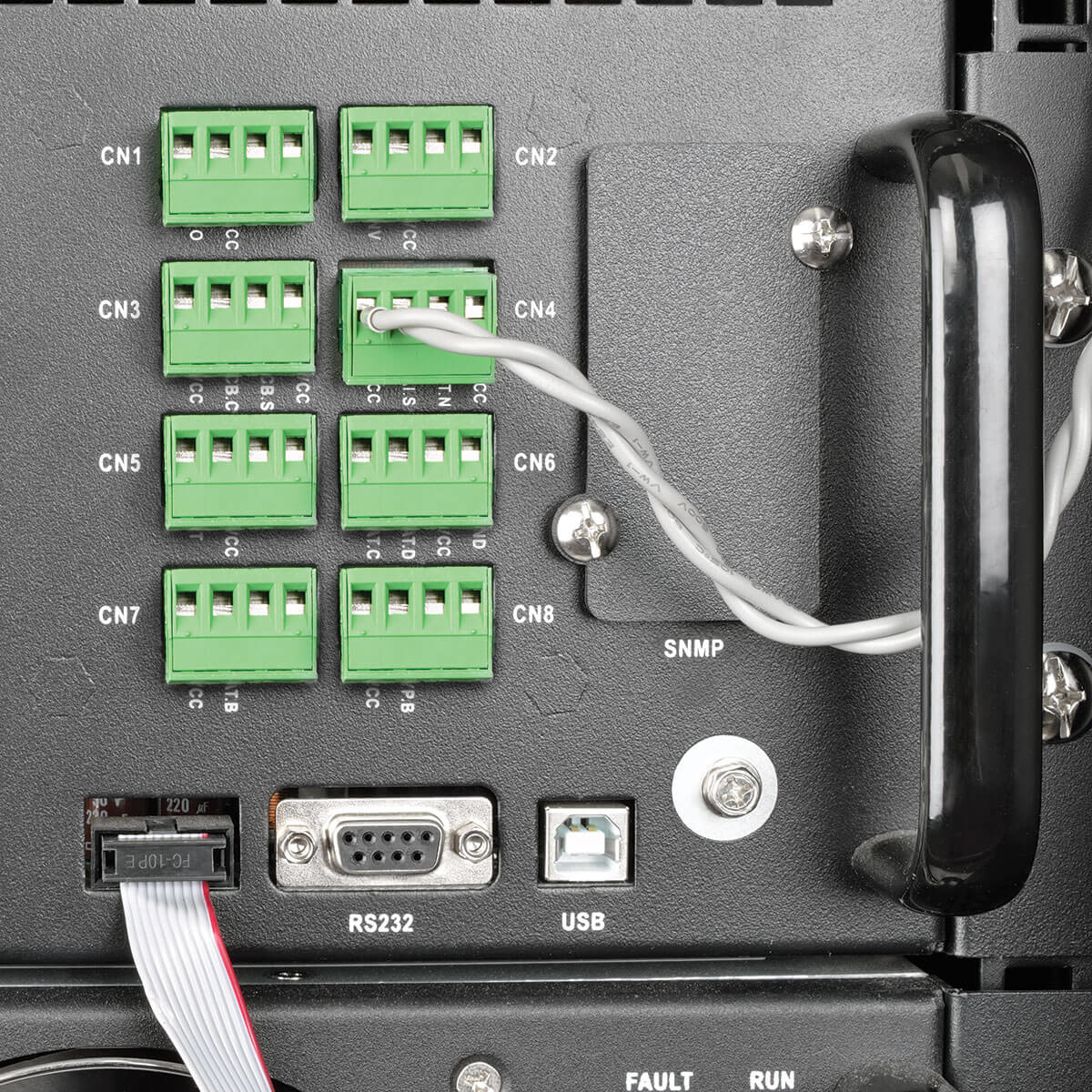

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 20kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite’s BP240V370, are sold separately.

Specifications

Power
Input power factor0.99
Output power18000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Surge energy rating2496 J
Maximum current420 A
Efficiency99%
Emergency Power Off (EPO)Yes
Power factor0.9
Crest factor3:1
Output power capacity20 kVA
Input frequency50/60 Hz
Performance
Audible alarm modesFault, Low battery alarm
UPS topologyDouble-conversion (Online)
WaveformSine
Number of input phases3
LED indicatorsAlarm
EMI/RFI noise filteringYes
Noise level73 dB
Audible alarm(s)Yes
Features
Country of originChina
Audible alarm modesFault, Low battery alarm
UPS topologyDouble-conversion (Online)
WaveformSine
Number of input phases3
Input power factor0.99
Output power18000 W
Input operation voltage (min)120 V
Input operation voltage (max)220 V
Output operation voltage (min)120 V
Output operation voltage (max)220 V
Surge energy rating2496 J
Maximum current420 A
Efficiency99%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power factor0.9
Noise level73 dB
Crest factor3:1
Audible alarm(s)Yes
Output power capacity20 kVA
Input frequency50/60 Hz
Battery
Battery voltage3120 V
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsAlarm
Product colourBlack
Cooling typeActive
Housing materialSteel

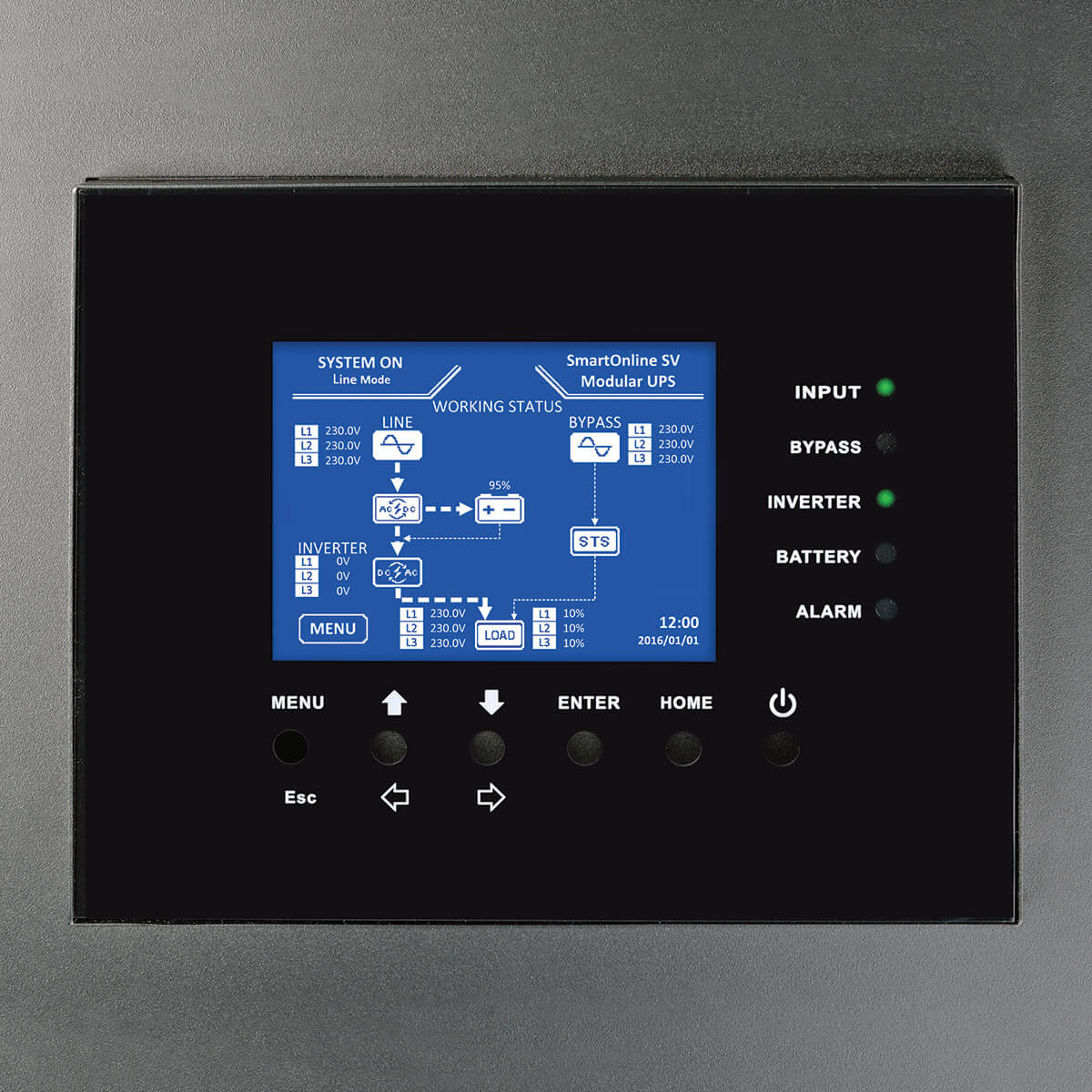

Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 59%
Technical details
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width22.8" (579.9 mm)
Package depth34.3" (870 mm)
Package height85.6" (2174.7 mm)
Weight604.7 lbs (274.3 kg)
Width19.3" (490 mm)
Package weight739.7 lbs (335.5 kg)
Height79.1" (2009.9 mm)
Depth29" (736.3 mm)
Packaging data
ManualYes
Package width22.8" (579.9 mm)
Package depth34.3" (870 mm)
Package height85.6" (2174.7 mm)
Package weight739.7 lbs (335.5 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width22.8" (579.9 mm)
Master (outer) case length34.3" (870 mm)
Master (outer) case height9.84" (249.9 mm)
Master (outer) case gross weight82 lbs (37.2 kg)
Packaging content
ManualYes
