USB 3.0 to SATA Hard Drive Lay-Flat Enclosure for 3.5-in. HDD and SSD

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "USB 3.0 TO SATA HD QUICK DOCK2.5"" AND 3.5"" HDD AND SSDU339-001-FLAT" 812823 Register free see stock
Ingram Micro USB TO SATA HARD DRIVE DOCK ZZ1821

Related Products

Description

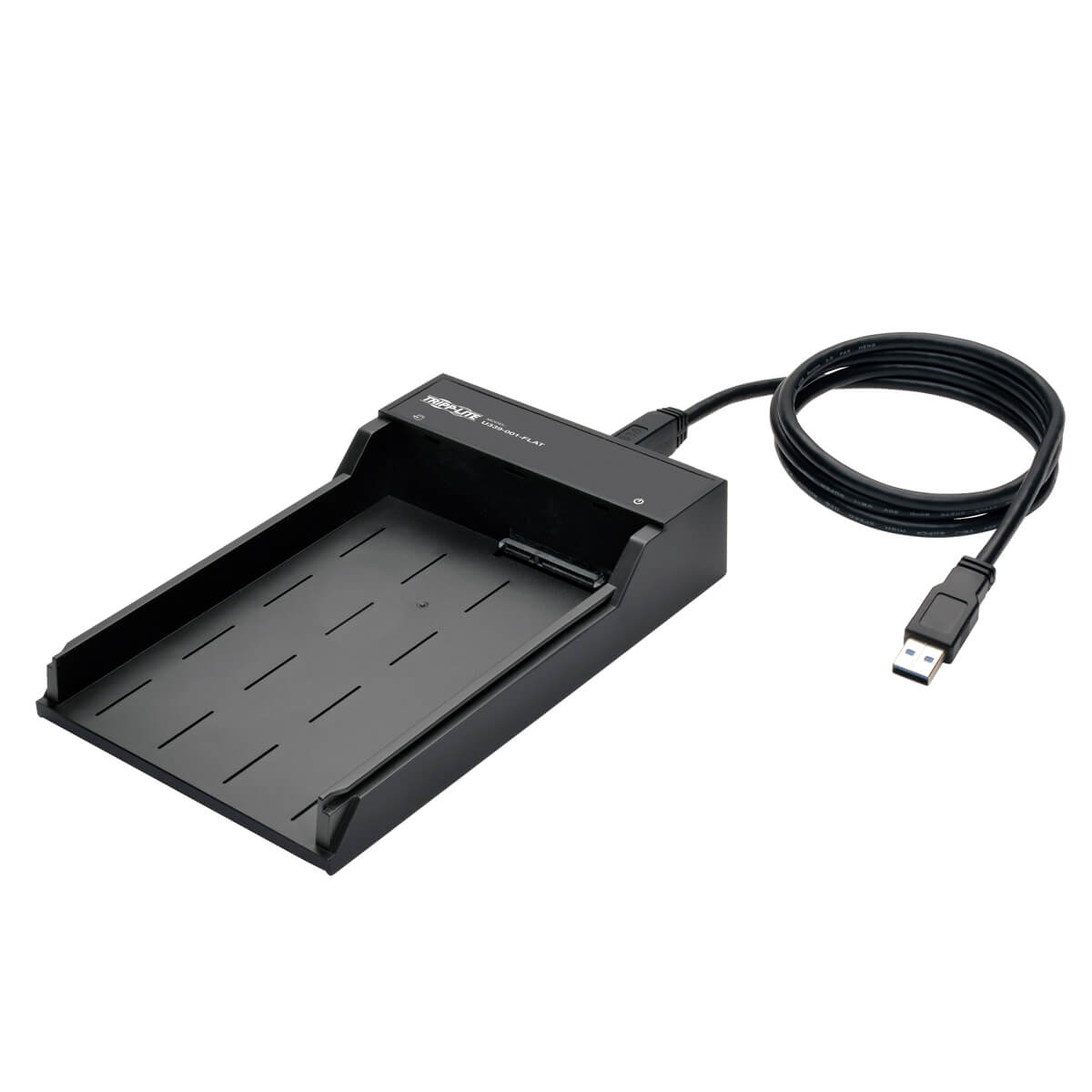

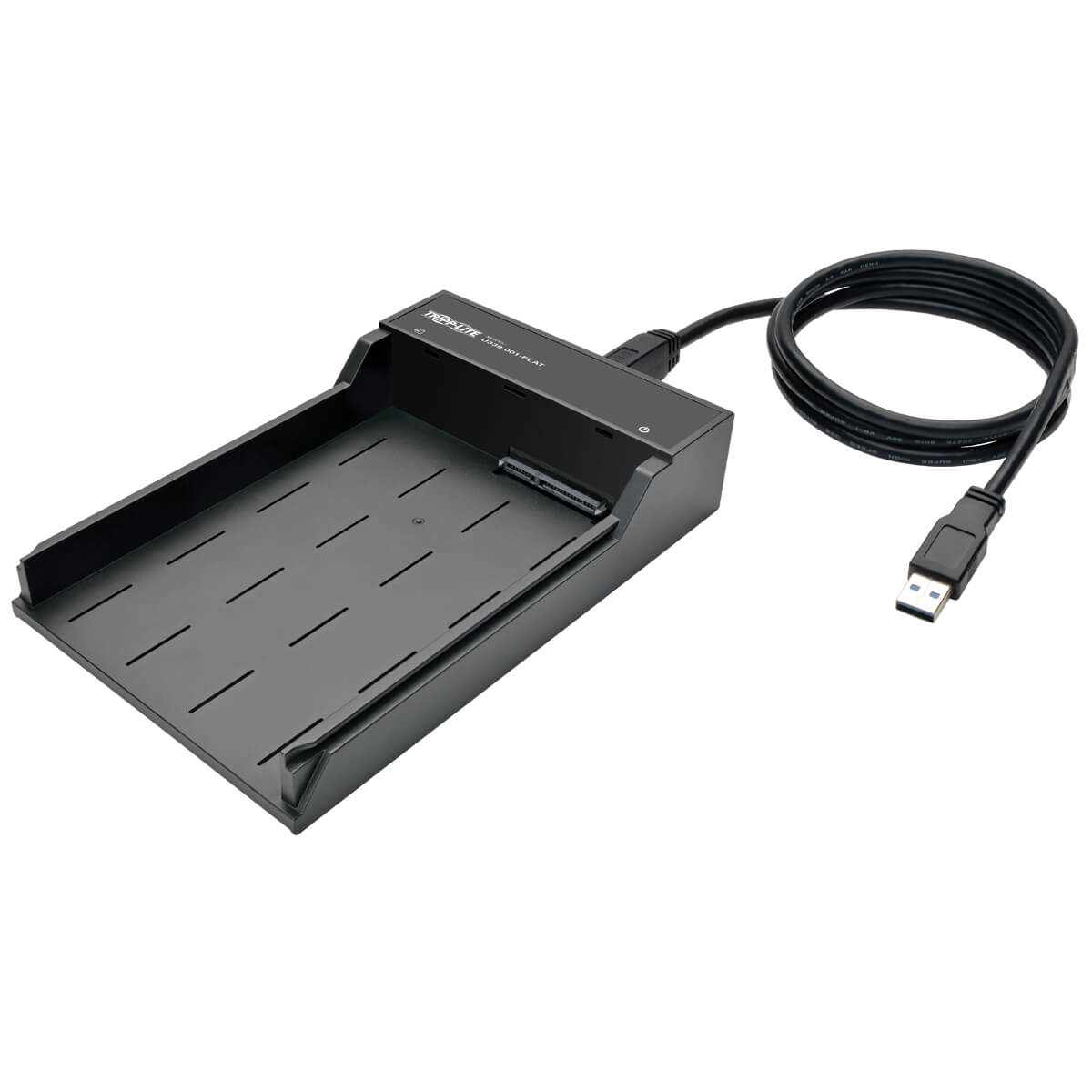

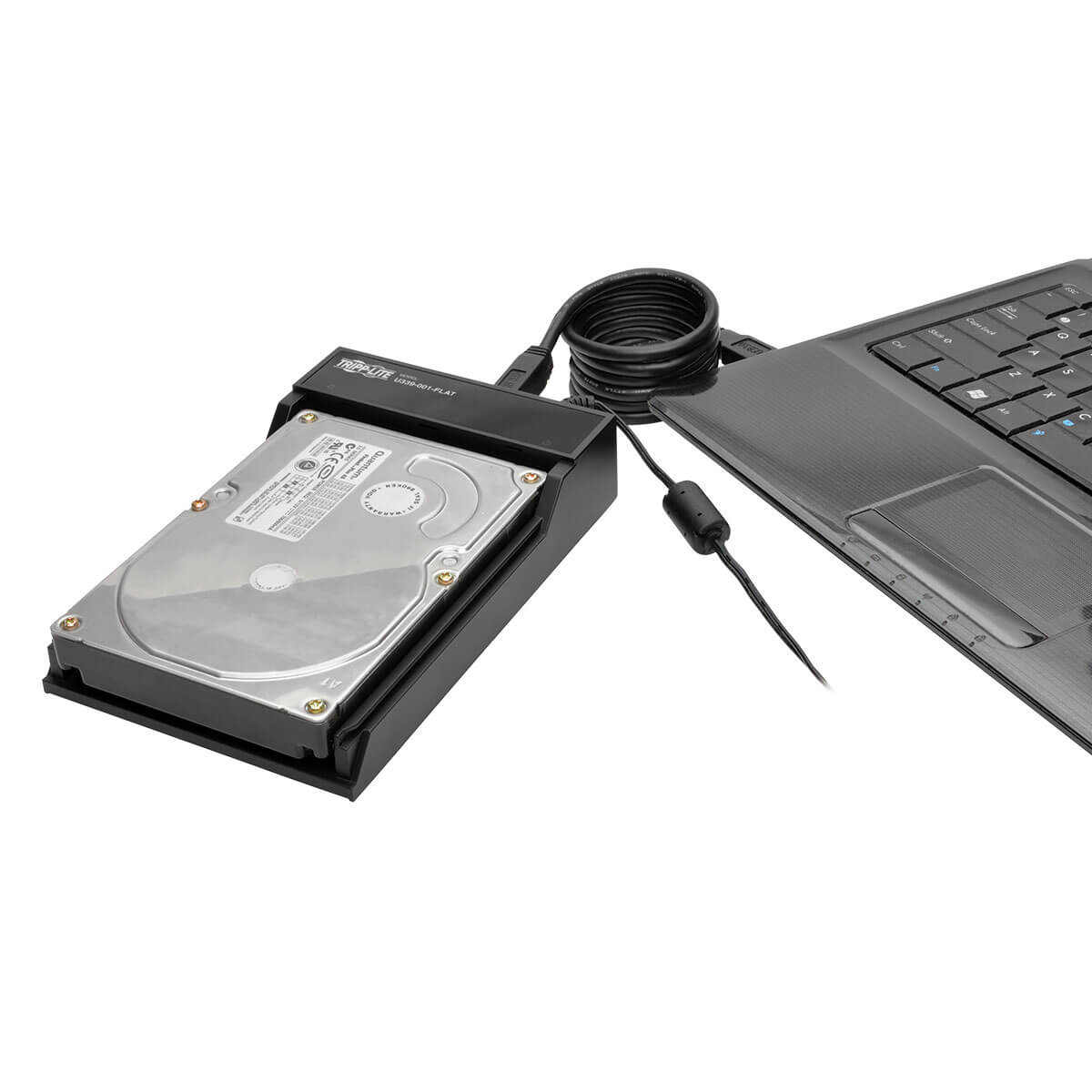

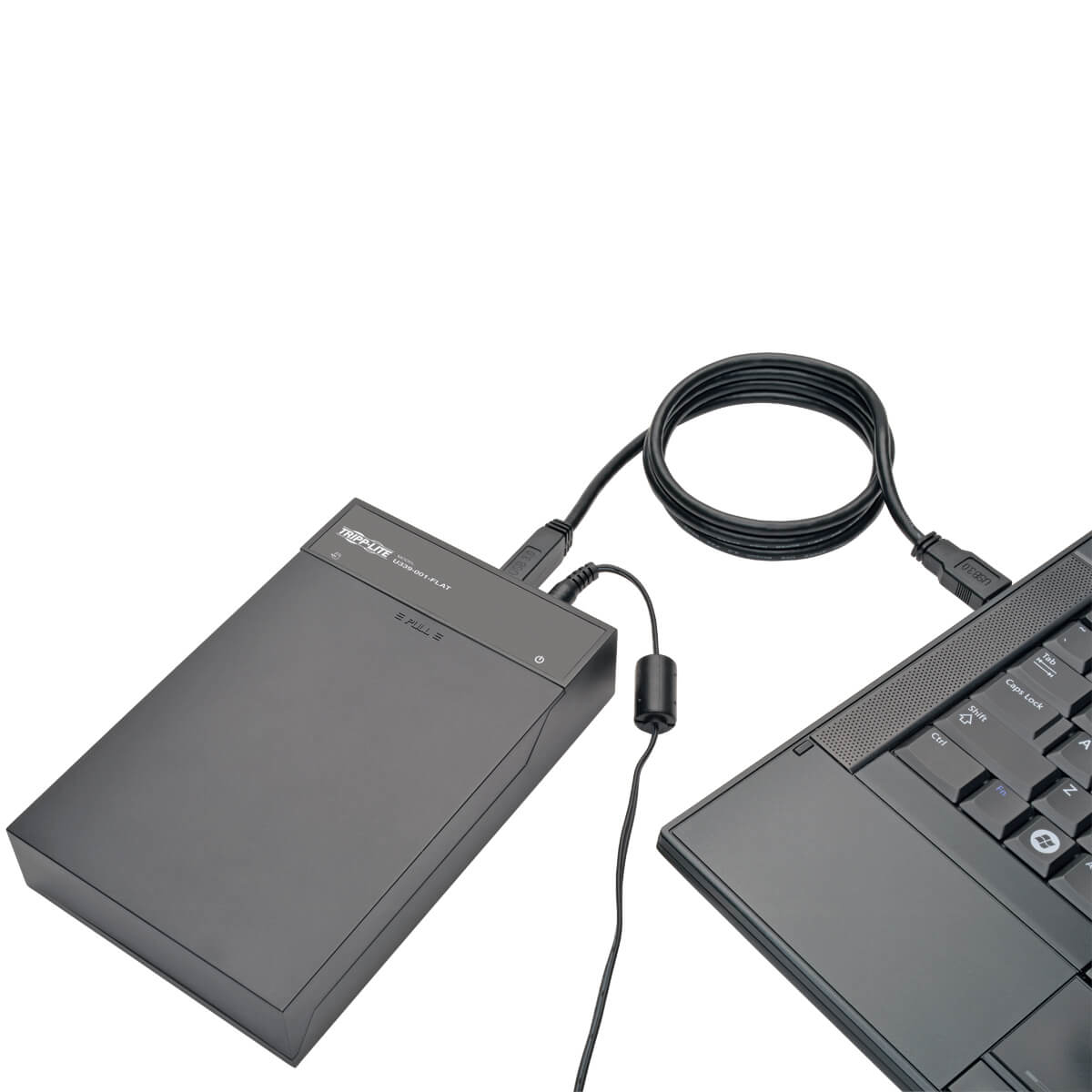

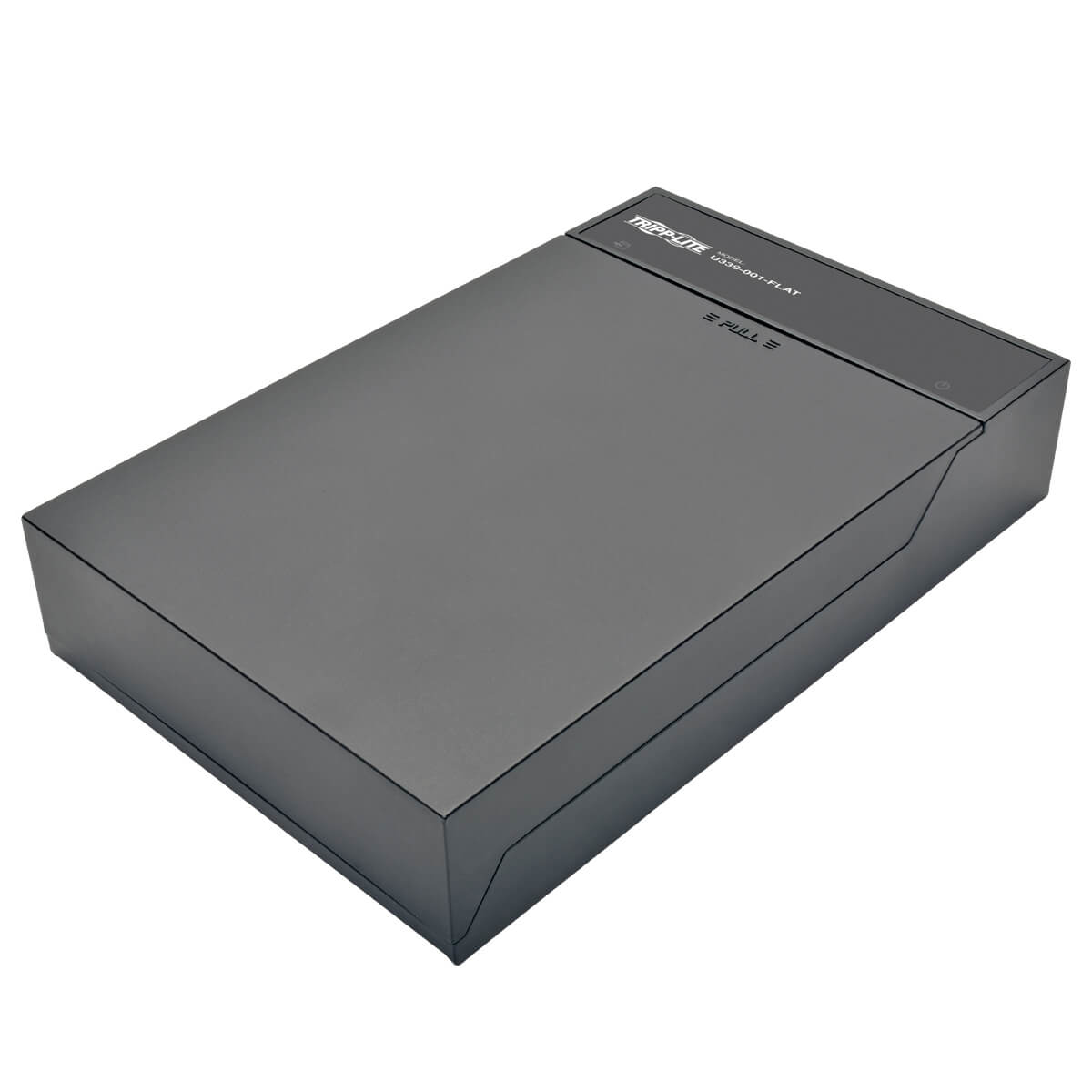

The U339-001-FLAT USB 3.0 to SATA Hard Drive Lay-Flat Enclosure allows you to quickly and easily add storage and transfer data to your computer or laptop from a SATA hard drive. It lays flat to take up little space and maintain stability. Just insert a 2.5-in. or 3.5-in. SATA HDD (Hard Disk Drive) or SSD (Solid State Drive) into the slot, and connect the included 1.22 m USB 3.0 cable to the USB port on your computer. Slide the protective cover over the dock, even when it’s in use, to keep the SATA drive dust-free at all times. The docking station accepts SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives. It supports USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds, as well as UASP (USB Attached SCSI Protocol), which transfers data faster than
conventional USB 3.0 and requires a UASP-enabled host controller. Plug-and-play configuration means it works right out of the box with no software or drivers to download or install. Green LED indicates the unit is connected to a USB port. Blue LED indicates the unit is receiving power. Works with Windows and Mac.

Easy to Use Right from the Box

● Lays flat for stable performance
● Plug and play—no extra software or drivers to download or install
● SATA drive slides easily into convenient slot

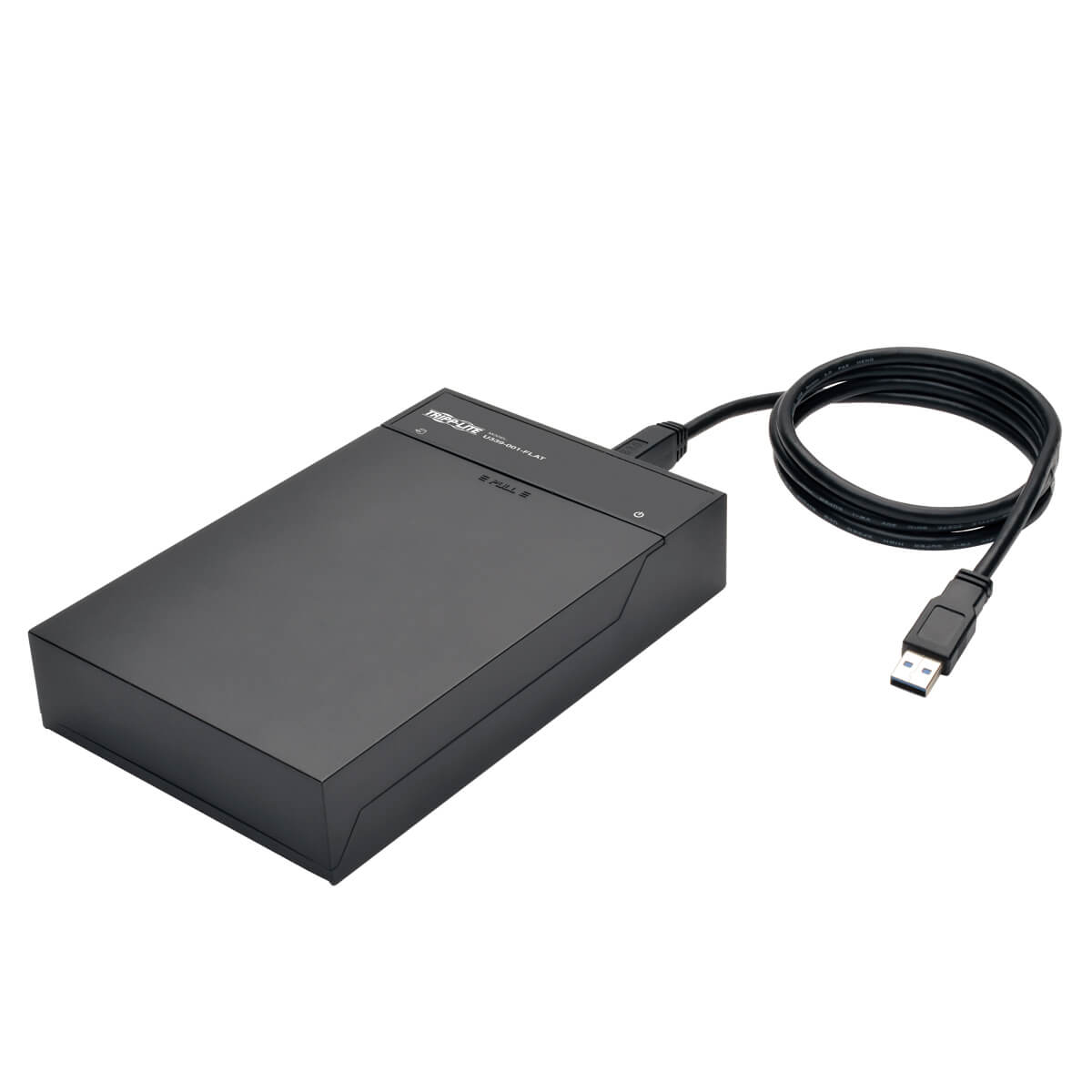

● Protective cover keeps dust and dirt away from sensitive SATA drives

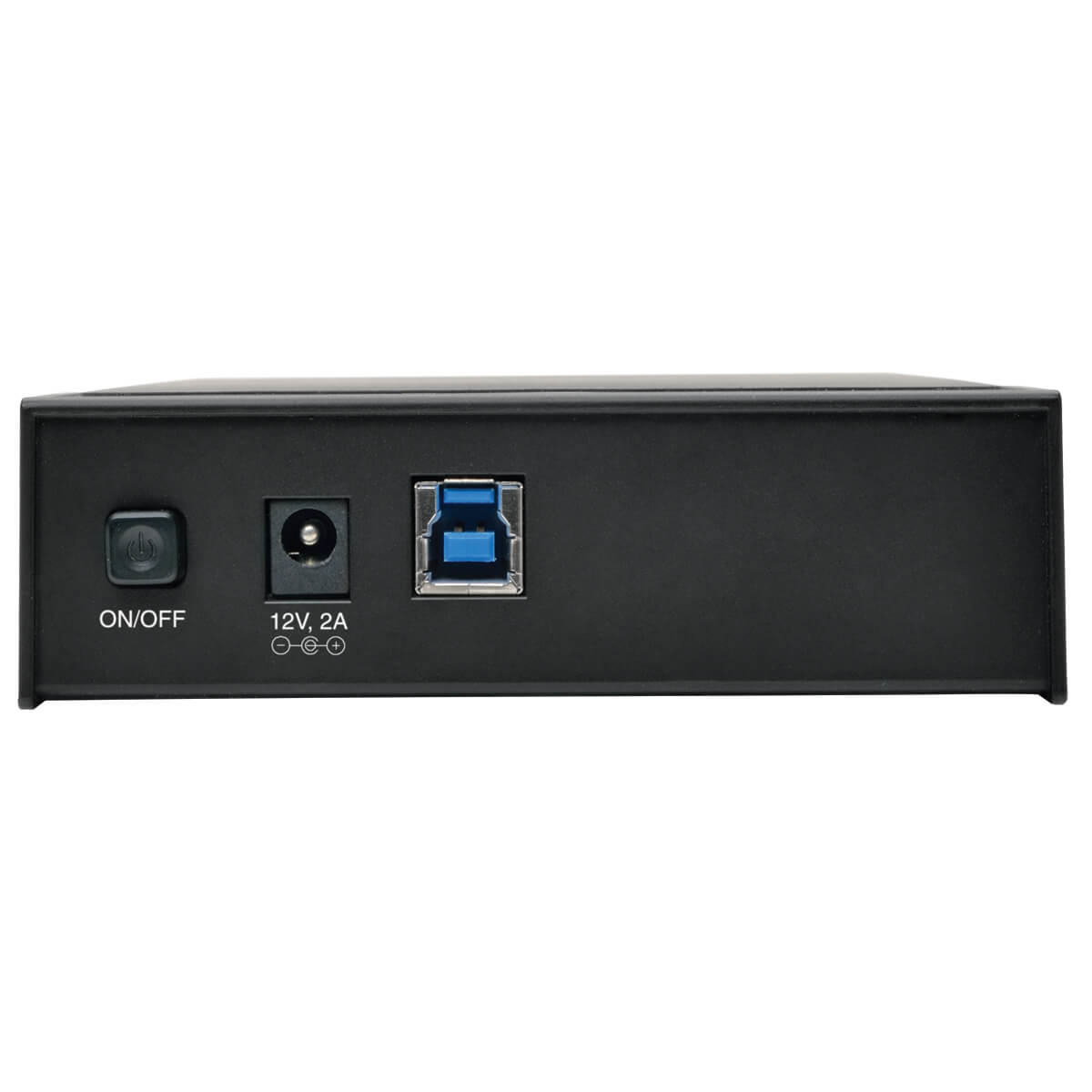

● On/off button powers off SATA drive when not in use
● LEDs indicate when the unit is powered on and connected

Compliant with Most Applications

● Accepts 2.5-in. or 3.5-in. SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives
● Supports USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds
● Supports UASP (USB Attached SCSI Protocol) for even faster transfer speeds than USB 3.0*
● Works with both HDD (Hard Disk Drive) and SSD (Solid State Drive)
*Requires UASP-enabled host controller. UASP is supported by Windows 8 and later, Mac OS X 10.8 and later, and Linux.

● Compact, stable lay-flat design
● No software or drivers to download or install
● Compliant with USB 3.0, USB 2.0 and USB 1.1 transfer rates
● Compliant with SATA HDD or SSD drives up to SATA III
● Protective cover keeps SATA drive free of dust

System Requirements

● Computer with available USB port (USB 3.0 port required to achieve USB 3.0 data transfer
speeds)
● 2.5-in. or 3.5-in. SATA HDD or SSD
● UASP-enabled host controller (for UASP data transfer speeds only)

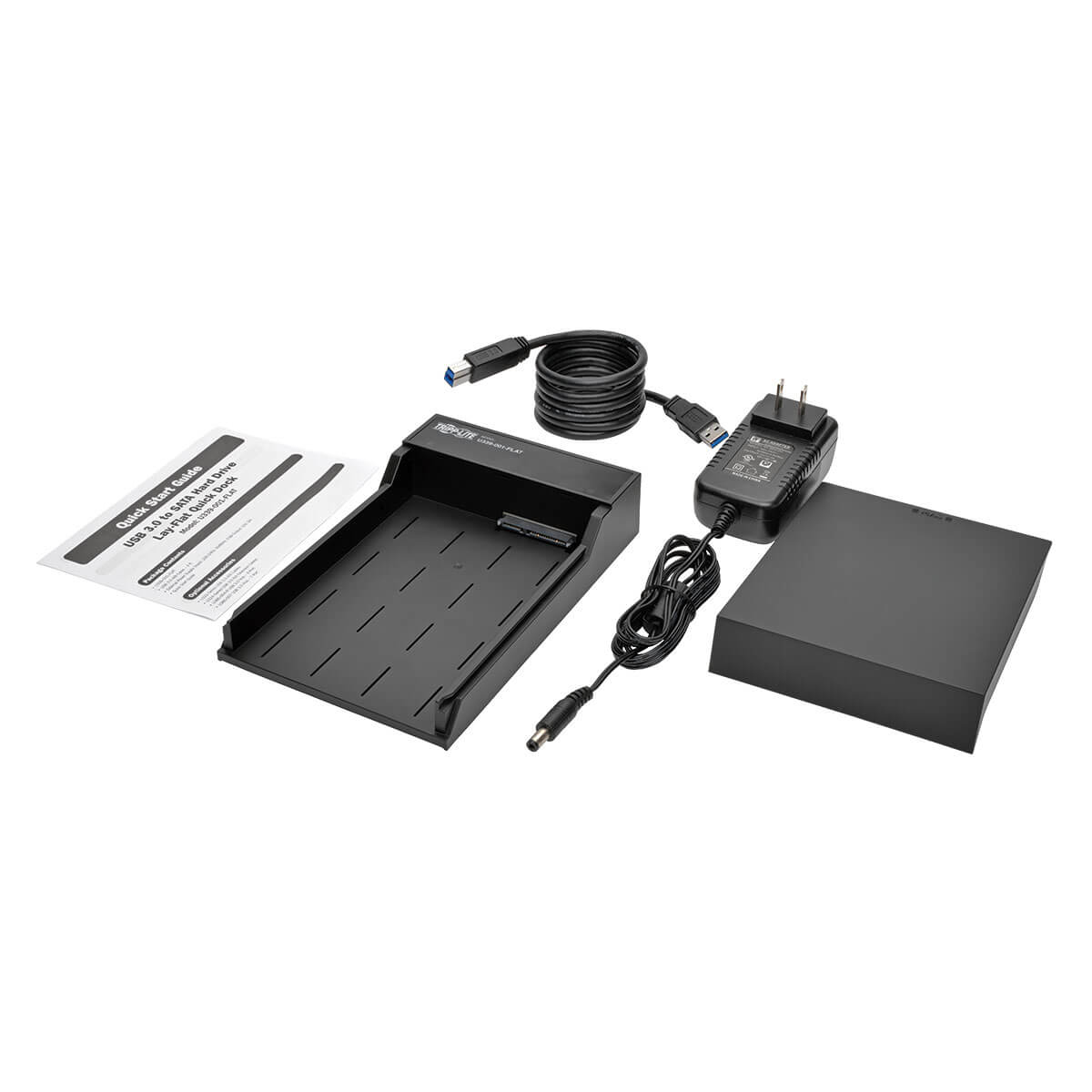

Package Includes

● U339-001-FLAT USB 3.0 to SATA Hard Drive Lay-Flat Enclosure
● USB 3.0 A/B cable, 1.22 m length

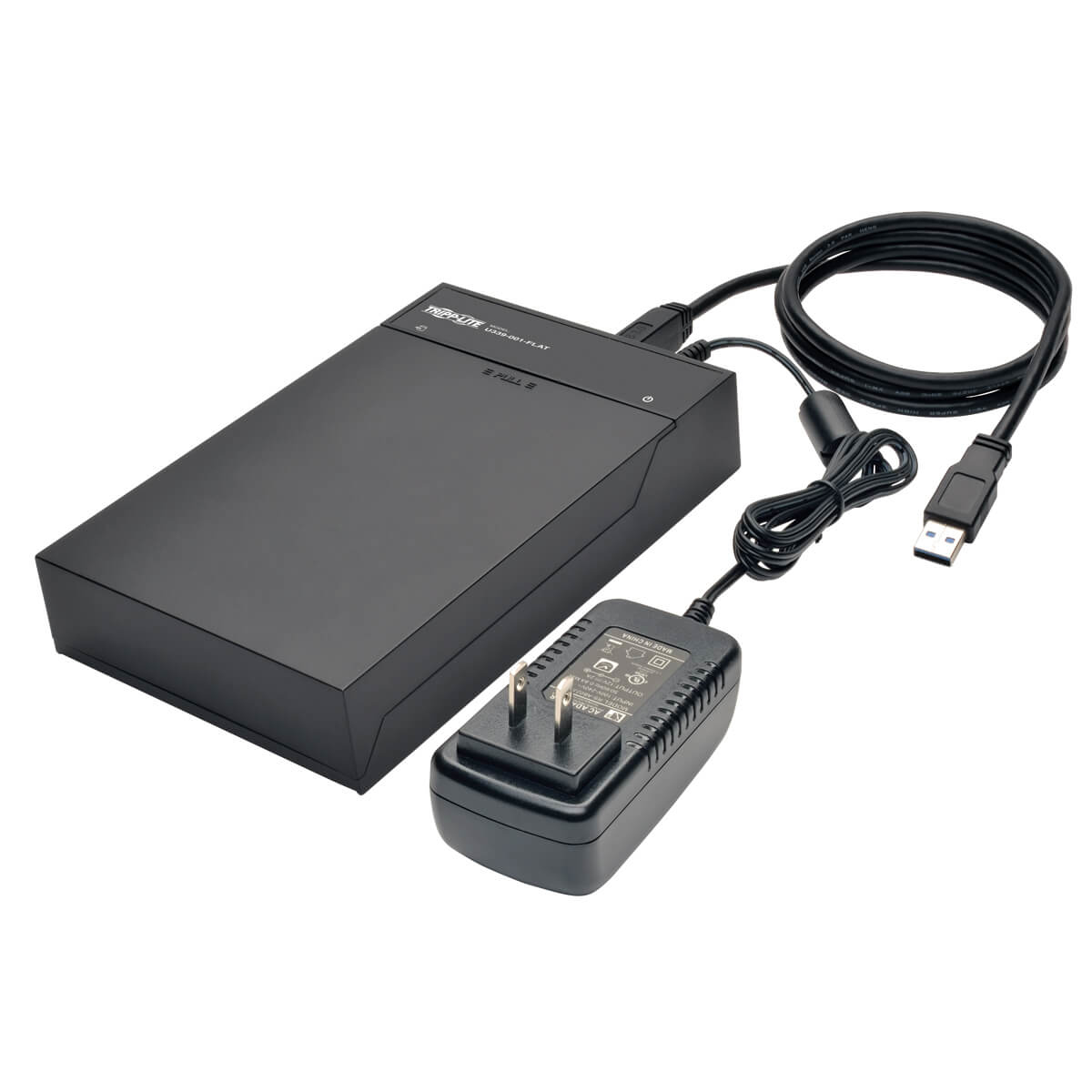

● External Power Supply with NEMA 1-15P Plug (Input: 100–240V, 50/60 Hz, 0.8A; Output: 12V, 2A, 1.52 m)
● Quick Start Guide

Batteries not Required to Operate

Specifications

Storage
Number of storage drives supported1
Storage drive size2.5/3.5"
Supported storage drive interfacesSerial ATA III
Ports & interfaces
USB version3.2 Gen 1 (3.1 Gen 1)
USB connectivityYes
USB connector typeUSB Type-B
USB connector genderFemale
USB ports quantity1
DC-in jackYes
Technical details
Plug and PlayYes
LED indicatorsYes
Data transfer rate5 Gbit/s
Product colourBlack
Cable length60" (1.52 m)
USB version3.2 Gen 1 (3.1 Gen 1)
Country of originChina
Compliance certificatesRoHS
Design
Product typeHDD/SSD enclosure
On/off switchYes
LED indicatorsYes
Product colourBlack
Cable length60" (1.52 m)
Performance
Country of originChina
Plug and PlayYes
External power adapterYes
Data transfer rate5 Gbit/s
Power
Power source typeAC
AC adapter output voltage12 V
AC adapter output current2 A
AC adapter input voltage100 - 240 V
AC adapter input current0.8 A
AC adapter frequency50/60 Hz
External power adapterYes
Packaging data
Package weight19 oz (540 g)
Package width8.3" (210.8 mm)
Package depth8.1" (205.7 mm)
Package height2.1" (53.3 mm)
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)5 - 40 °C
Weight & dimensions
Weight8.11 oz (230 g)
Width4.6" (116.8 mm)
Depth7.1" (180.3 mm)
Height1.4" (35.6 mm)
Package weight19 oz (540 g)
Cable length60" (1.52 m)
Package width8.3" (210.8 mm)
Package depth8.1" (205.7 mm)
Package height2.1" (53.3 mm)
Packaging content
AC adapter includedYes
Quick installation guideYes
Cables includedUSB
Logistics data
Master (outer) case width16.7" (424.2 mm)
Master (outer) case length8.9" (226.1 mm)
Master (outer) case height11.8" (299.7 mm)
Master (outer) case gross weight13.2 lbs (6 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332188127
