Tripp Lite U439-001-CG2 storage drive docking station USB 3.2 Gen 2 (3.1 Gen 2) Type-C Black
- Brand: Tripp Lite
- Category:
- SKU: U439-001-CG2
- EAN: 0037332230973
USB 3.1 Type-C to SATA Quick Dock, 10 Gbps, 2.5 and 3.5 in. HDD/SDD, Thunderbolt 3 Compatible
Offer details
Related Products
Description
USB-C to SATA Adapter Connects a SATA Drive to Your Device’s USB-C or Thunderbolt 3 Port

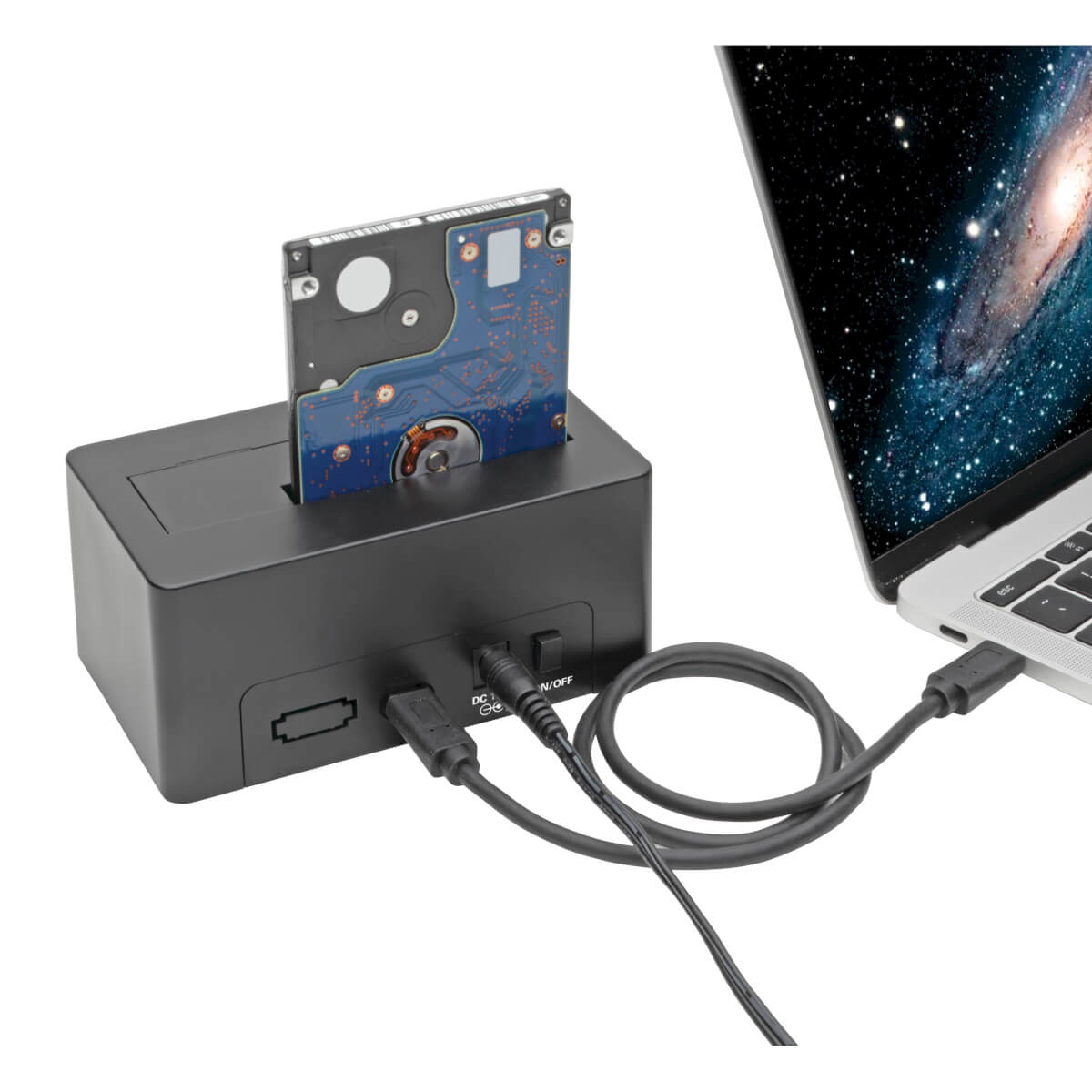

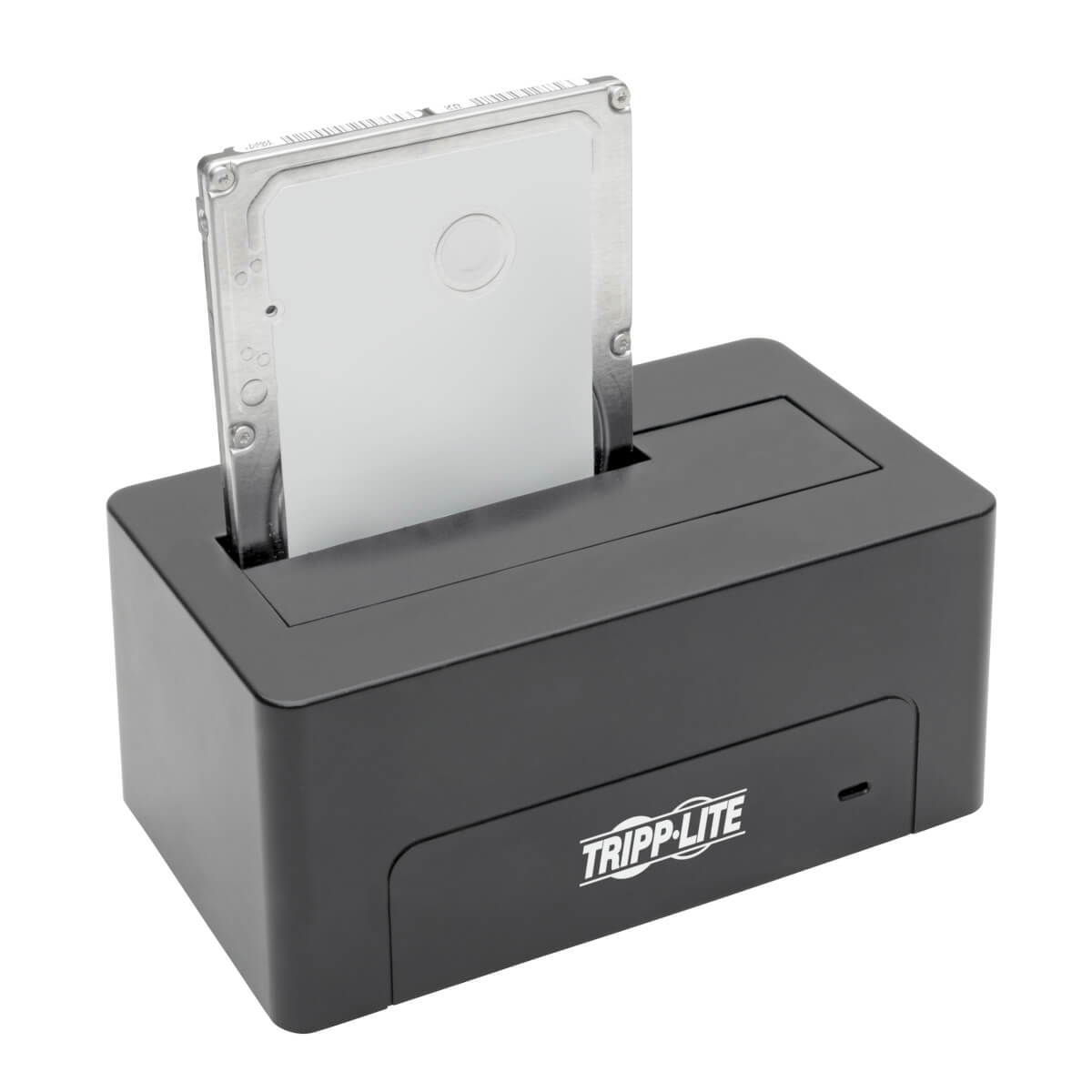

This single-drive USB 3.1 Type-C to SATA quick dock allows you to quickly and easily add extra storage space to your computer, tablet, laptop, notebook, MacBook, Ultrabook or Chromebook. The plug-and-play unit connects to your device’s USB Type-C or Thunderbolt 3 port using the included USB 3.1 Gen 2 cable. Just insert a 2.5- or 3.5-inch SATA drive into the top slot, and activate the on/off switch. An LED indicates a link with the device’s USB port.
Complies with USB 3.1 Gen 2 Standards for Ultra-Fast File Transfers
This USB Type-C to SATA adapter supports USB 3.1 Gen 2 data transfer speeds up to 10 Gbps. It is backward compatible with previous USB 3.0 and USB 2.0 generations, so you can use it with older USB devices and cables. It also reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.
Works with Most SATA Drives
The dock accepts 2.5-inch and 3.5-inch SATA I, II and III hard disc drives (HDDs) and solid state drives (SSDs) up to 10 TB (and higher-capacity drives when they become available). It also works with all major operating systems, including Windows, Mac and Linux.
This single-drive USB 3.1 Type-C to SATA quick dock allows you to quickly and easily add extra storage space to your computer, tablet, laptop, notebook, MacBook, Ultrabook or Chromebook. The plug-and-play unit connects to your device’s USB Type-C or Thunderbolt 3 port using the included USB 3.1 Gen 2 cable. Just insert a 2.5- or 3.5-inch SATA drive into the top slot, and activate the on/off switch. An LED indicates a link with the device’s USB port.
Complies with USB 3.1 Gen 2 Standards for Ultra-Fast File Transfers
This USB Type-C to SATA adapter supports USB 3.1 Gen 2 data transfer speeds up to 10 Gbps. It is backward compatible with previous USB 3.0 and USB 2.0 generations, so you can use it with older USB devices and cables. It also reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.
Works with Most SATA Drives
The dock accepts 2.5-inch and 3.5-inch SATA I, II and III hard disc drives (HDDs) and solid state drives (SSDs) up to 10 TB (and higher-capacity drives when they become available). It also works with all major operating systems, including Windows, Mac and Linux.
Specifications
| Hard drive | |
|---|---|
| Storage media type | HDD, SSD |
| Storage drive interface | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Number of storage drives supported | 1 |
| Maximum storage capacity | 10 TB |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |

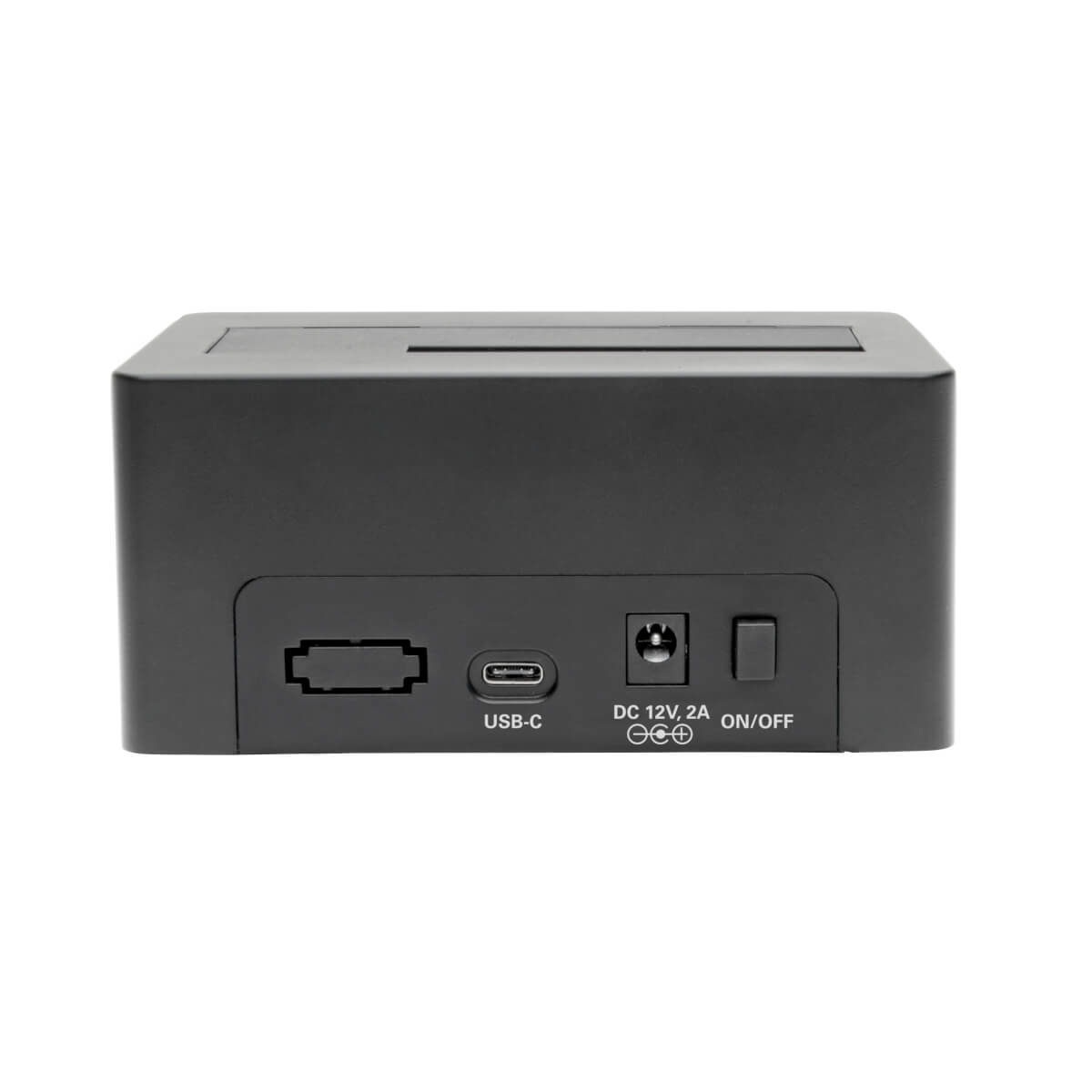

| DC-in jack | Yes |
| Technical details | |
| UASP support | Yes |
| Country of origin | China |
| Package width | 6.69" (169.9 mm) |
| Package height | 3.15" (80 mm) |
| Maximum data transfer rate | 10 Gbit/s |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| On/off switch | Yes |
| Connection to PC | Yes |
| Master (outer) case GTIN (EAN/UPC) | 10037332230970 |
| Compliance certificates | RoHS |
| Features | |
| UASP support | Yes |
| Country of origin | China |
| Maximum data transfer rate | 10 Gbit/s |
| LED indicators | Yes |
| Product colour | Black |
| Material | Plastic |
| Plug and Play | Yes |
| On/off switch | Yes |
| Connection to PC | Yes |
| Certification | FCC, REACH |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 5.4" (137.2 mm) |
| Depth | 3" (76.2 mm) |
| Height | 2.6" (66 mm) |
| Weight | 11.3 oz (320 g) |
| Packaging data | |
| Package depth | 5.12" (130 mm) |
| Package width | 6.69" (169.9 mm) |
| Package height | 3.15" (80 mm) |
| Package weight | 8.82 oz (250 g) |
| Packaging content | |

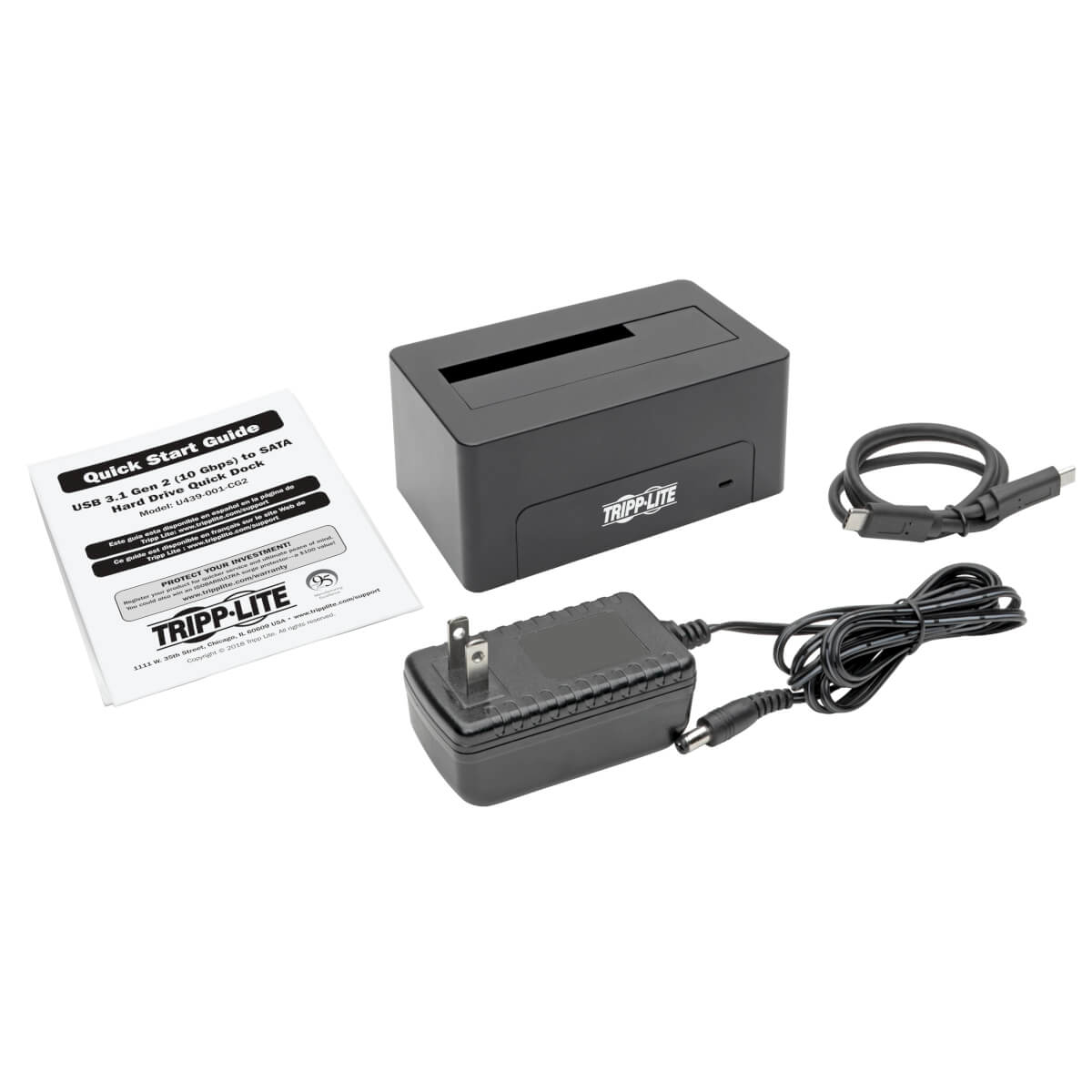

| AC adapter included | Yes |
| Cables included | USB Type-C |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | 0 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 80% |
| Certificates | |
| Certification | FCC, REACH |
| Indication | |
| LED indicators | Yes |
| Ethernet LAN features | |
| LED indicators | Yes |
| Other features | |
| Connection to PC | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 16.7" (424.9 mm) |
| Master (outer) case length | 10.8" (274.1 mm) |
| Master (outer) case height | 7.48" (190 mm) |
| Master (outer) case gross weight | 12.5 lbs (5.65 kg) |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332230970 |
