Tripp Lite DMR1015X3 signage display mount 15" Silver

Tripp Lite DMR1015X3 signage display mount 15" Silver

Triple Flat-Panel Rail Wall Mount for 10” to 15” TVs and Monitors

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

TV/MONITOR WALL MOUNT, FLATPANEL RAIL, TRIPLE, FULLMOTION, 50" WIDTH X

 931586 Register free see stock

Related Products

Description

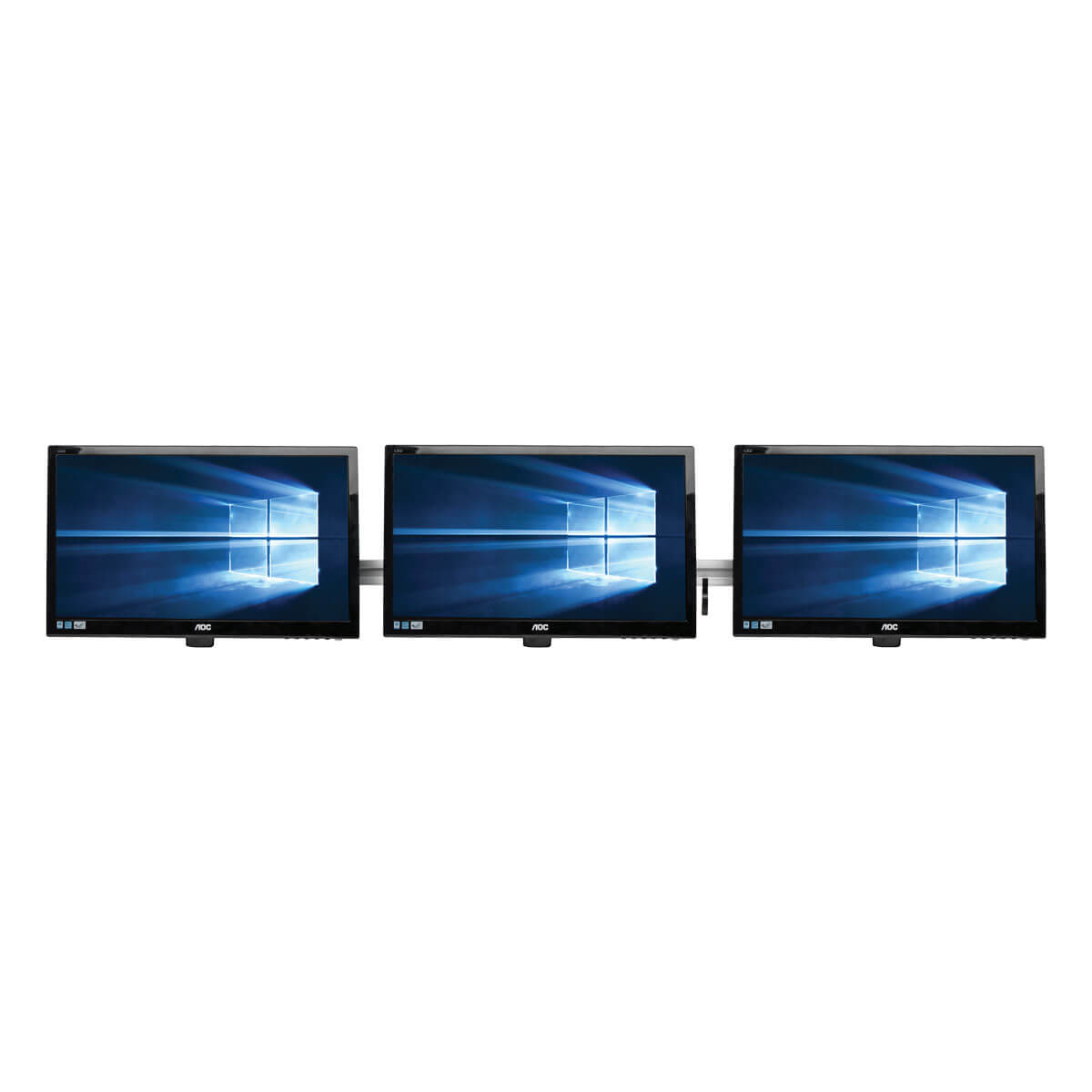

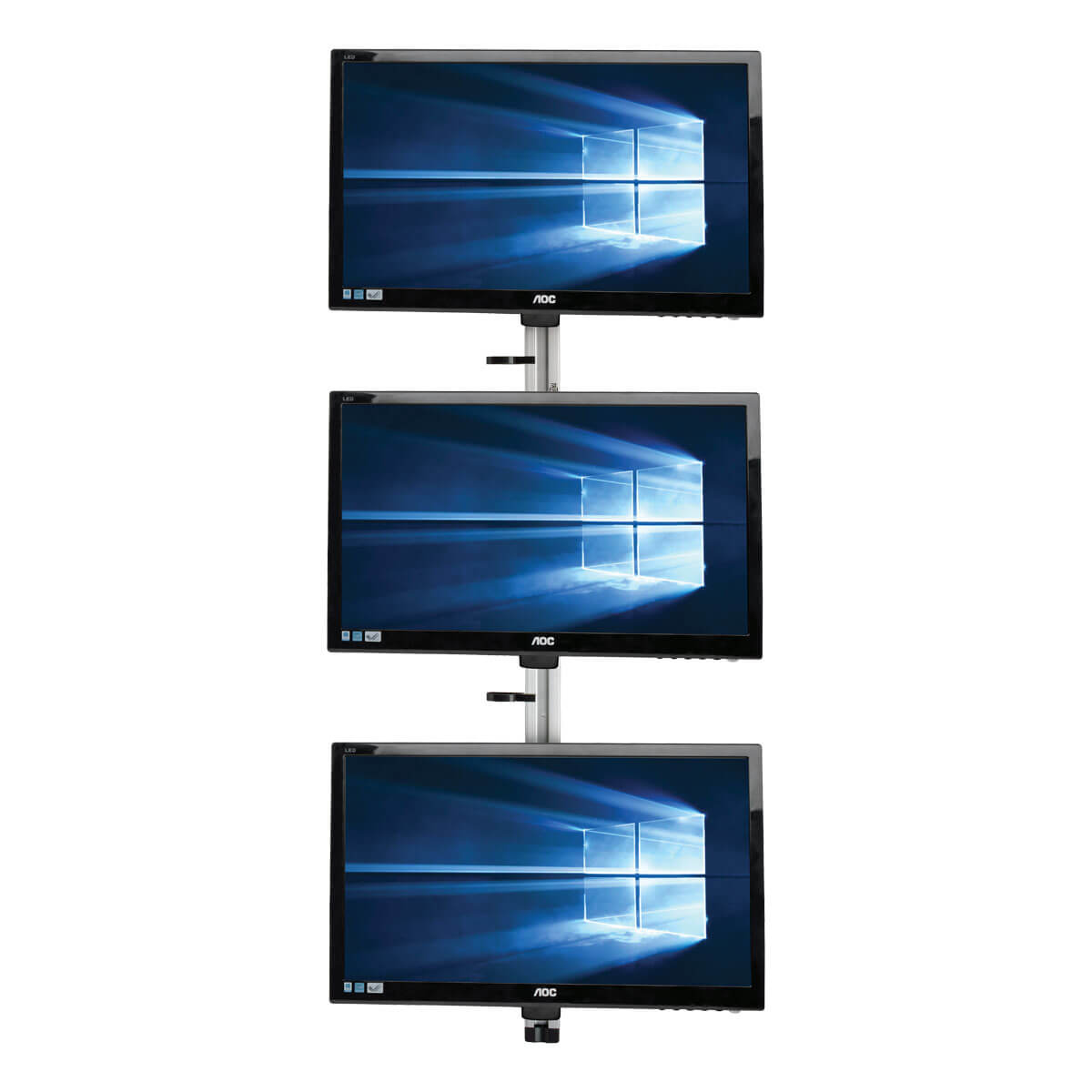

The VESA-compliant DMR1015X3 Triple Flat-Panel Rail Wall Mount allows you to mount three flat-panel televisions, monitors or other displays on the wall in either portrait or landscape mode. Recommended for video walls, menu boards and other display applications in restaurants, bars, airports, hotels, offices and boardrooms, the low-profile mount fits most flat-panel displays from 10 to 15 inches.

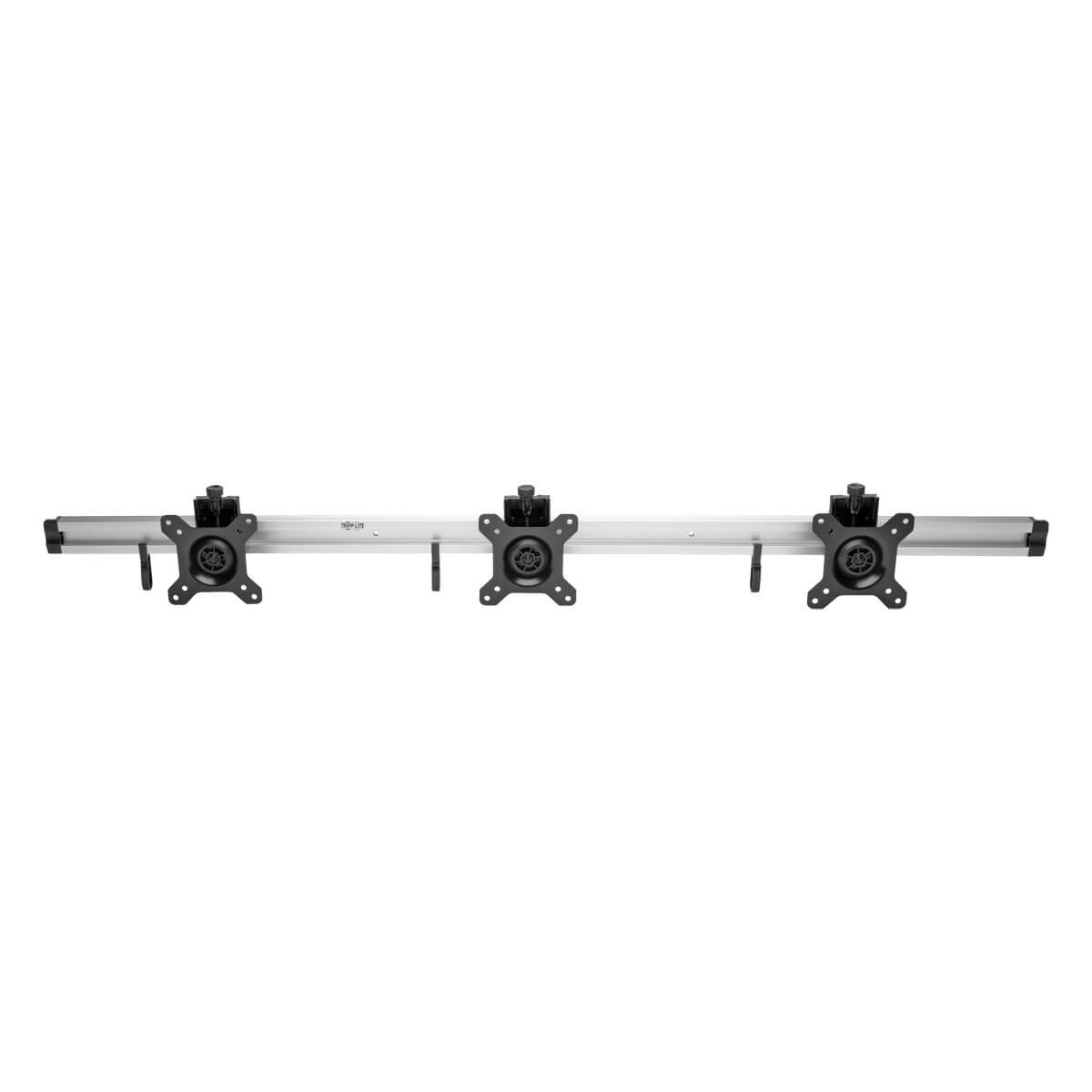

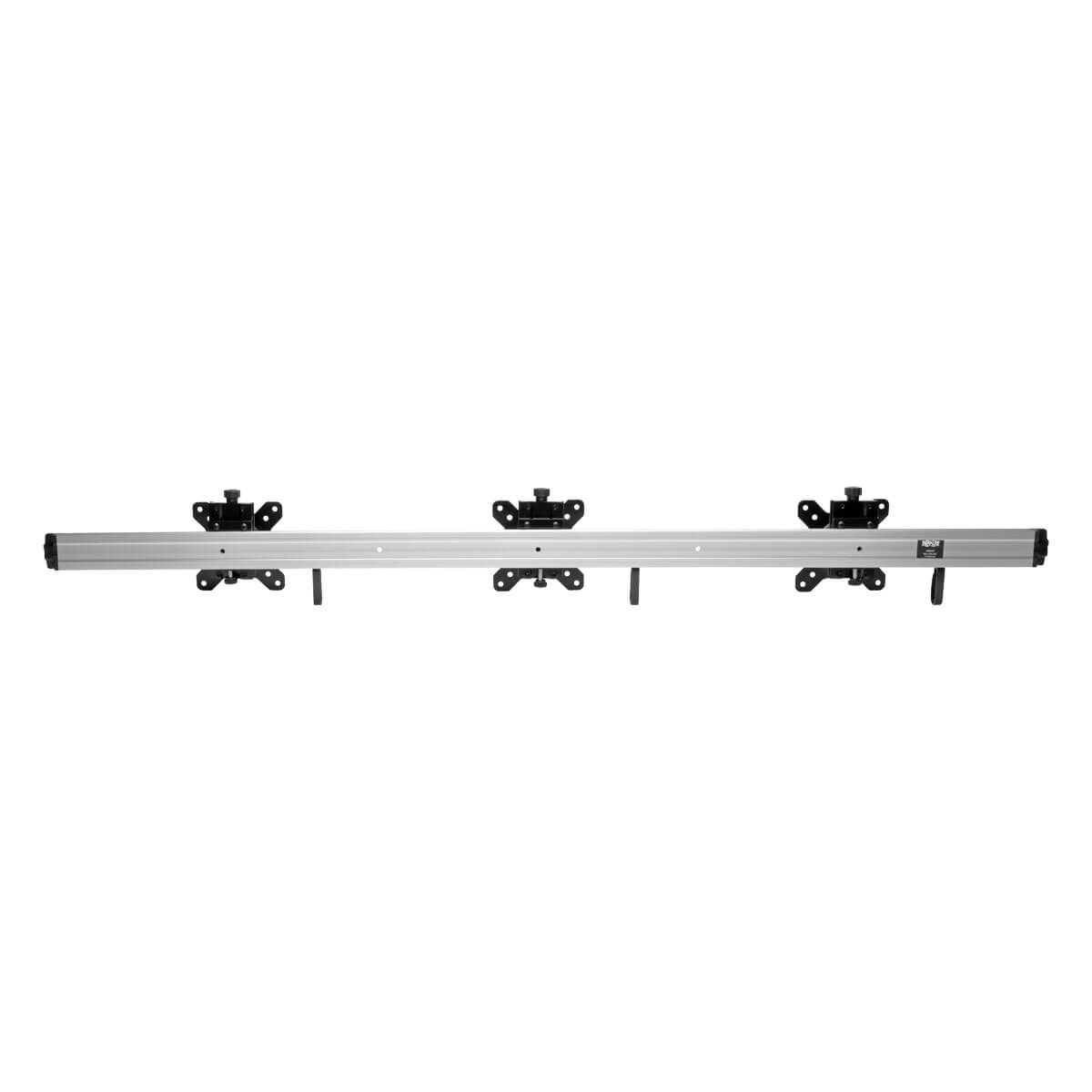

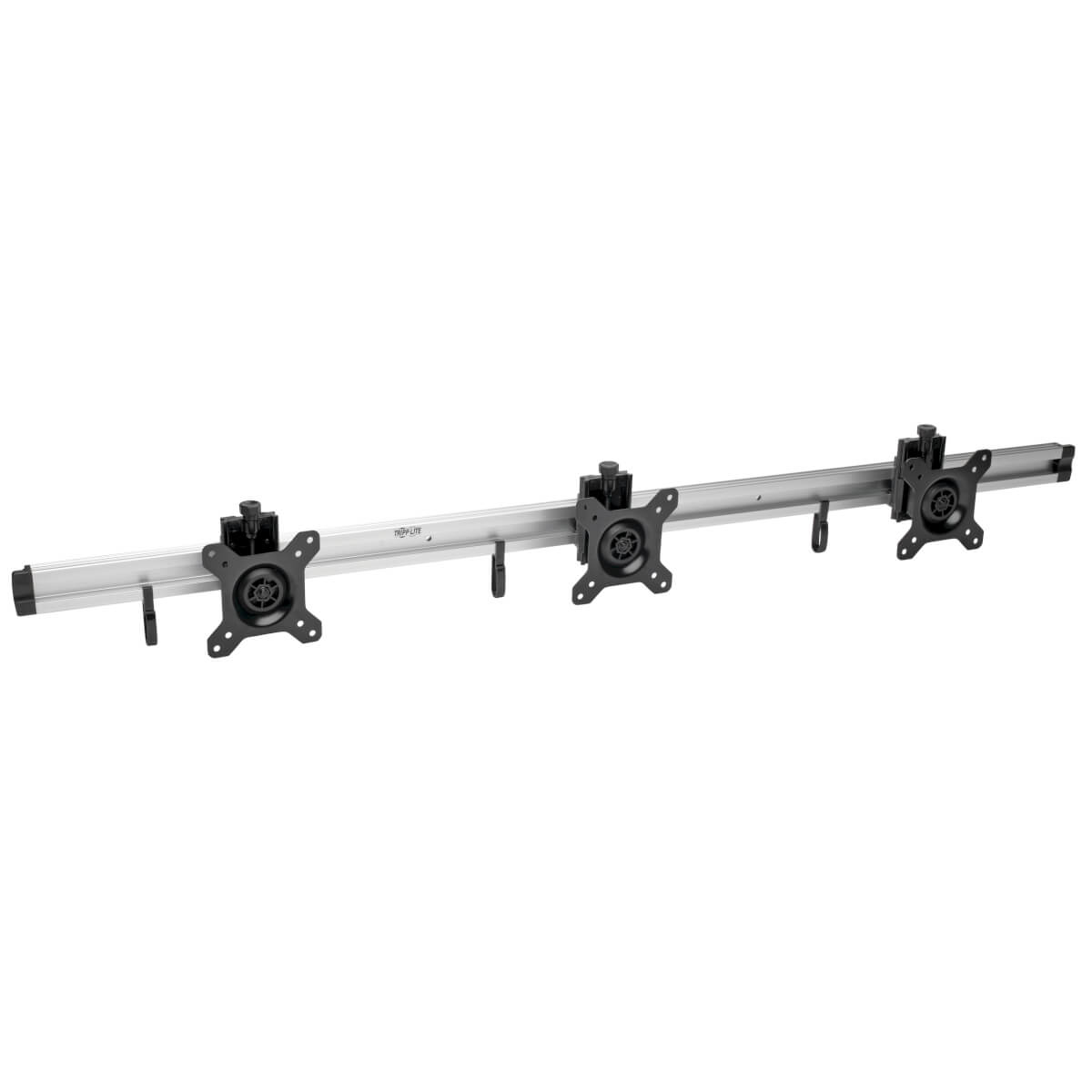

Up to three displays attach to VESA mounts that can slide closer or further apart along the rail for optimal viewing. The rail is concealed behind the displays for a sleek, professional appearance. Included cable guides attach to the rail to keep power cords out of the way.

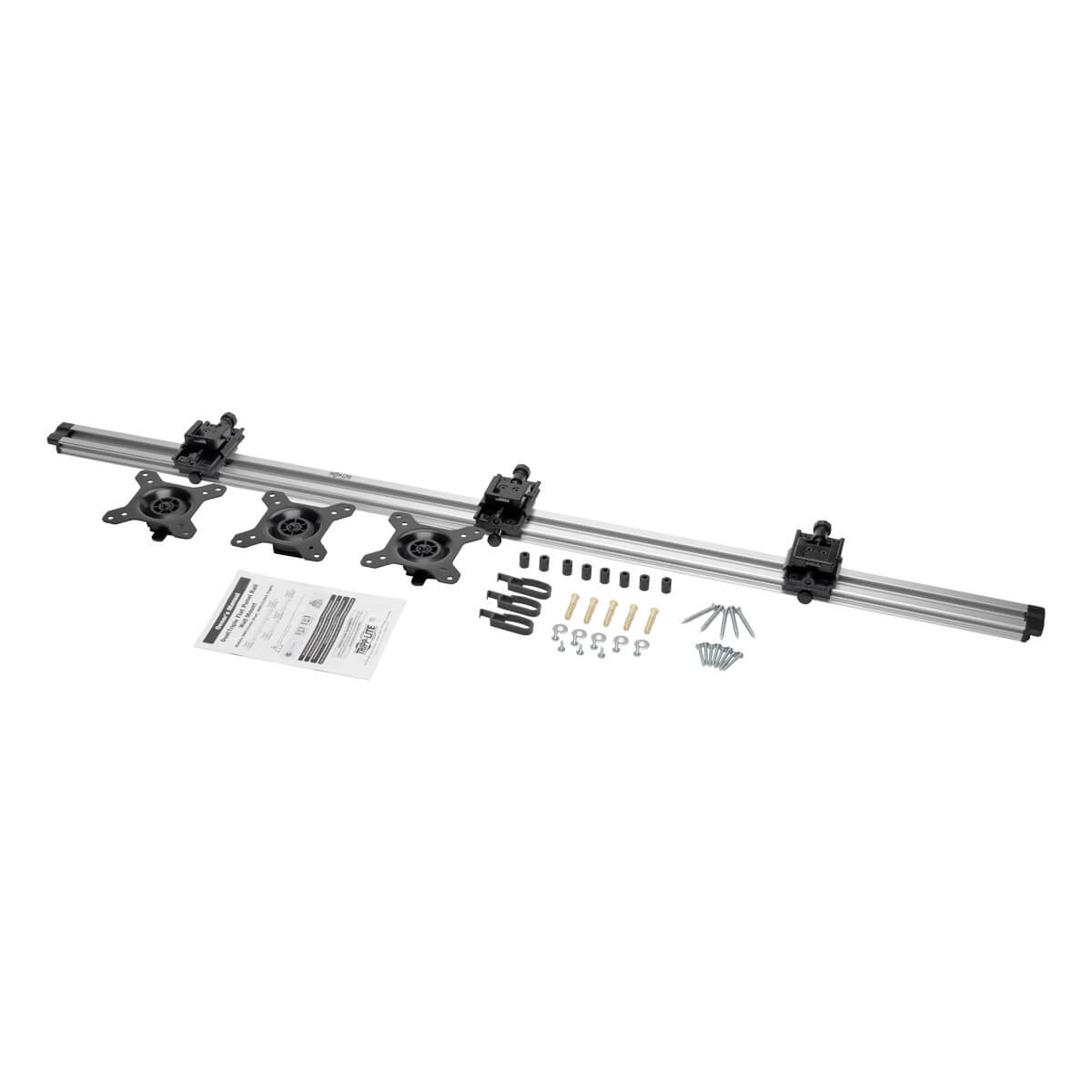

Durable steel construction supports up to 18 lbs (8.2 kgs) per VESA mount. Mounting hardware is included. Conforms to VESA-compliant displays with either of the following mounting hole patterns: 75 x 75 mm and 100 x 100 mm.

Specifications

Mounting
Minimum screen size10"
Maximum weight capacity17.6 lbs (8 kg)
Panel mounting interface75 x 75,100 x 100 mm
Number of displays supported3
Mounting typeWall
Minimum VESA mount2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount3.94 x 3.94" (100 x 100 mm)
Maximum screen size15"
Ergonomics
Swivel angle20°
Tilt angle range-15 - 15°
Angle of rotation360°
Design
Housing materialSteel
Product colourSilver
Weight & dimensions
Width50" (1270 mm)
Depth3.35" (85.1 mm)
Height4.73" (120.1 mm)
Weight6.15 lbs (2.79 kg)
Package width51" (1294.9 mm)
Package depth2.44" (62 mm)
Package height5.04" (128 mm)
Package weight7.76 lbs (3.52 kg)
Packaging data
Package width51" (1294.9 mm)
Package depth2.44" (62 mm)
Package height5.04" (128 mm)
Package weight7.76 lbs (3.52 kg)
Packaging content
Mounting kitYes
ManualYes
Technical details
Angle of rotation360°
Number of displays supported3
Mounting typeWall
Compliance certificatesRoHS
Other features
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332202816
Logistics data
Master (outer) case width8.27" (210.1 mm)
Master (outer) case length51.6" (1309.9 mm)
Master (outer) case height10.6" (270 mm)
Master (outer) case gross weight47.6 lbs (21.6 kg)
Products per master (outer) case6 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332202816
Harmonized System (HS) code8302.50.0000
