Tripp Lite DWT3770X TV mount/stand 70" Black
- Brand: Tripp Lite
- Category:
- SKU: DWT3770X
- EAN: 0037332183613 0373321836130
Tilt Wall Mount for 37" to 70" TVs and Monitors
Offer details
Trade Prices
Description
The VESA-compliant DWT3770X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 37 to 70 inches. A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

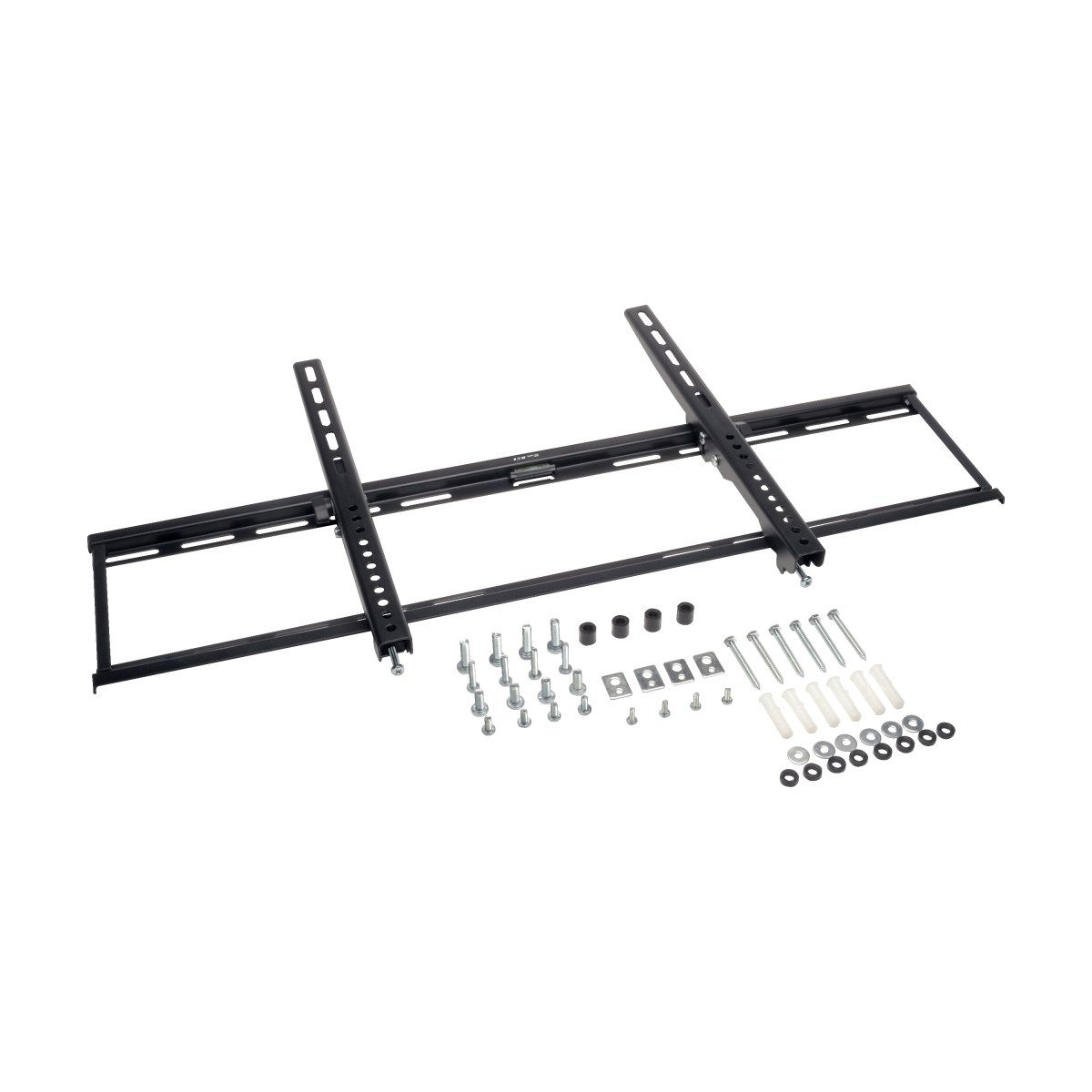

Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 37" |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,400 x 200,400 x 400,600 x 400,800 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 3.94 x 3.94" (100 x 100 mm) |
| Maximum VESA mount | 31.5 x 15.7" (800 x 400 mm) |
| Maximum screen size | 70" |
| Maximum weight capacity | 200.6 lbs (91 kg) |
| Ergonomics | |
| Tilt angle range | -10 - 0° |
| Technical details | |
| Number of displays supported | 1 |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 34" (864.1 mm) |
| Depth | 1.8" (45.7 mm) |
| Height | 17.3" (439.9 mm) |
| Weight | 6.59 lbs (2.99 kg) |
| Packaging data | |
| Package width | 2.6" (66 mm) |
| Package depth | 35" (889 mm) |
| Package height | 8.4" (213.4 mm) |
| Package weight | 7.19 lbs (3.26 kg) |
| Logistics data | |
| Master (outer) case width | 12" (304.8 mm) |
| Master (outer) case length | 35" (889 mm) |
| Master (outer) case height | 9.1" (231.1 mm) |
| Master (outer) case gross weight | 36.8 lbs (16.7 kg) |
| Products per master (outer) case | 5 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332183610 |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
