Tripp Lite DCTM TV mount/stand 37" Black

Tripp Lite DCTM TV mount/stand 37" Black

  • Brand: Tripp Lite
  • Category:
  • SKU: DCTM
  • EAN: 0037332223456 0373321818860 00 ...1818860 0012304208693 0037332181886more

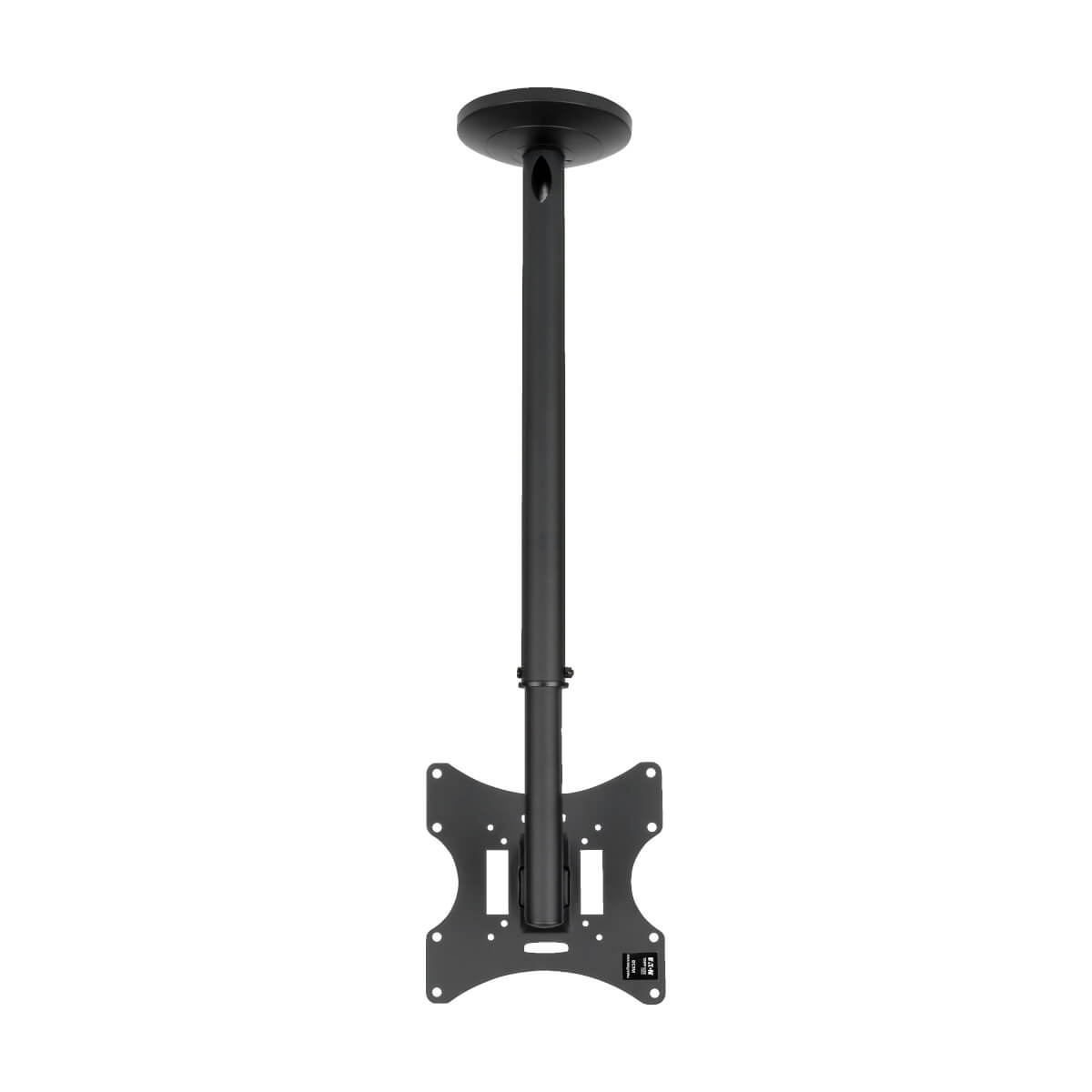

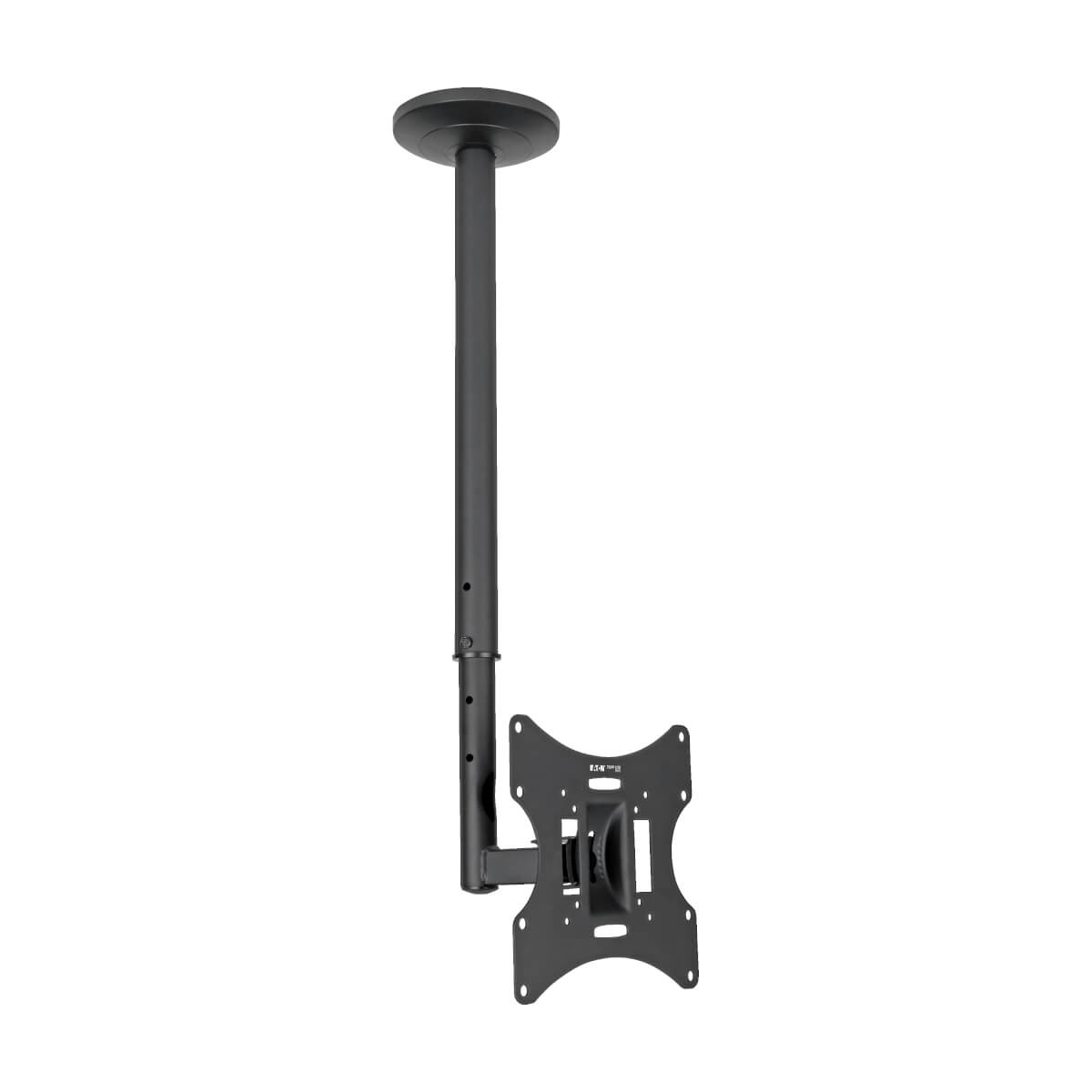

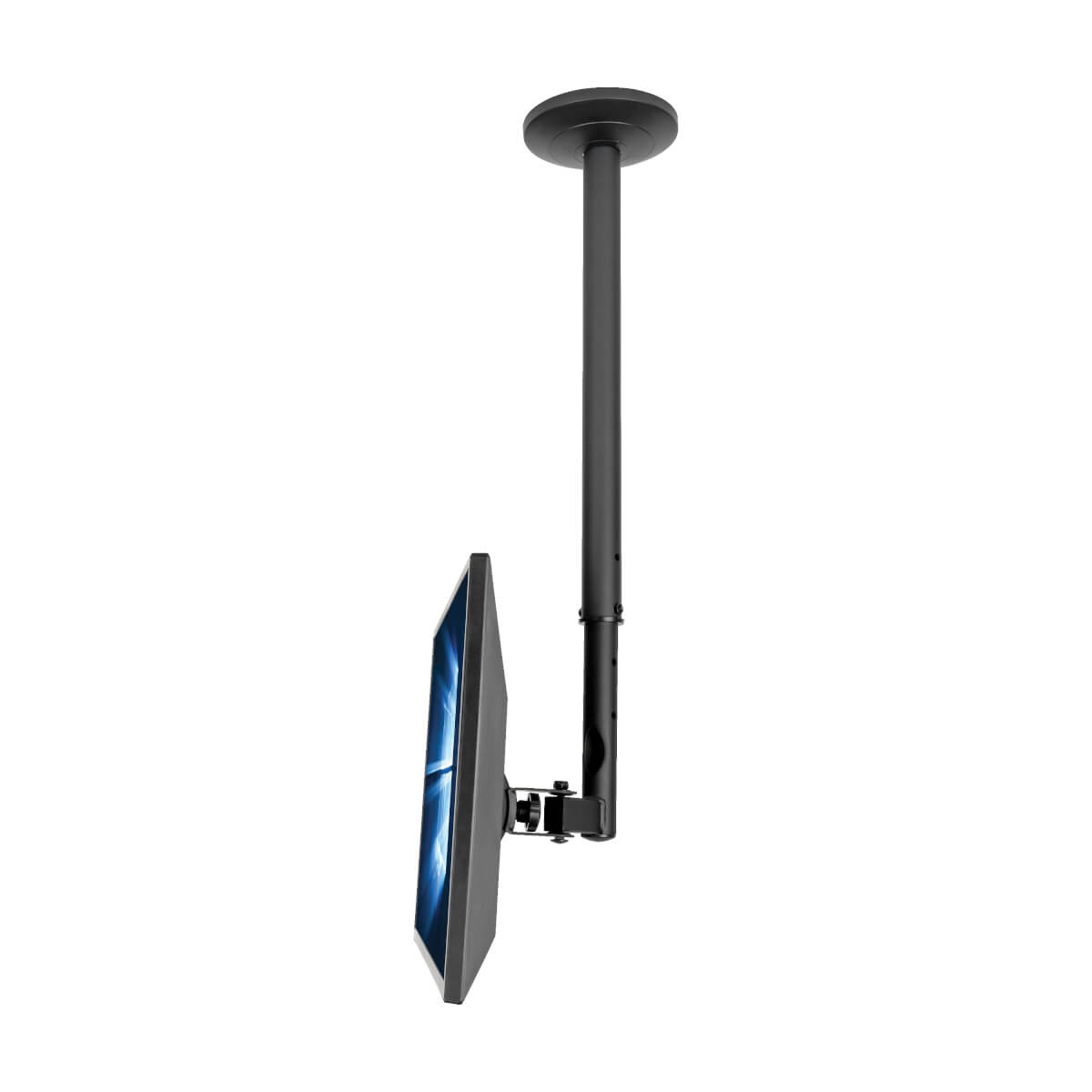

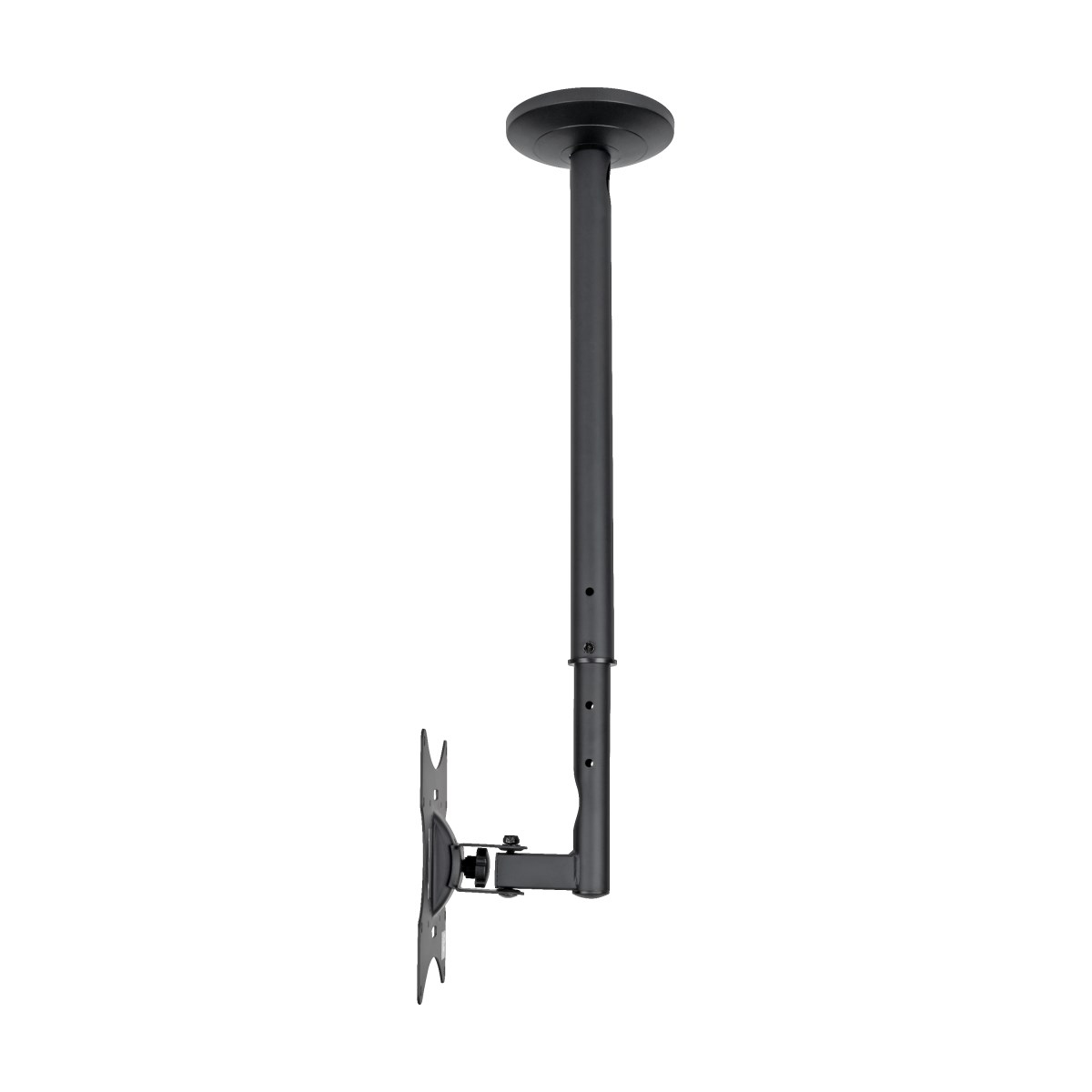

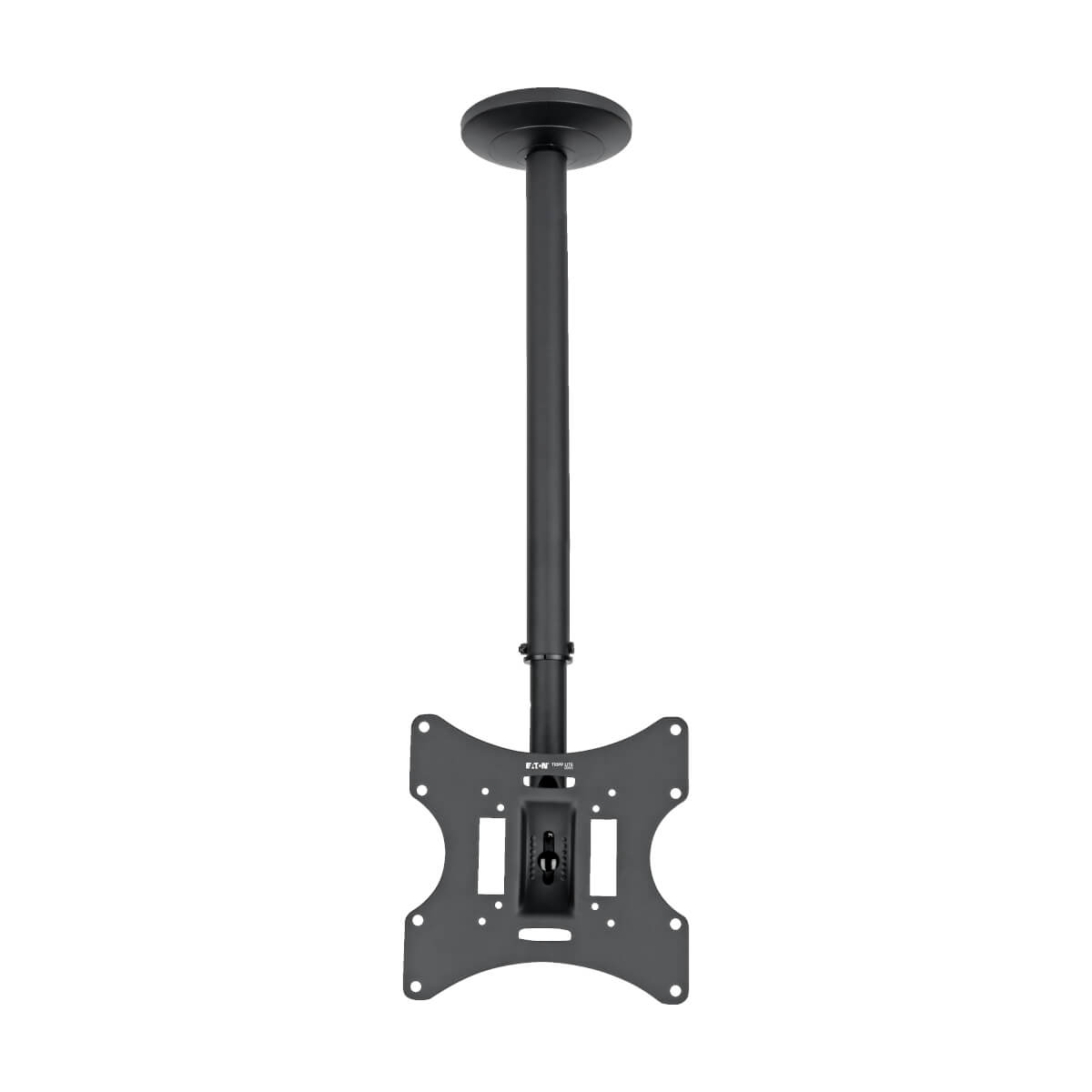

Full Motion Ceiling Mount for 23" to 42" TVs and Monitors.

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

DISPLAY TV LCD CEILING MOUNTARM SWIVEL TILT 13IN-37IN FLATSCREEN DCTM

 781369 Register free see stock
Anixter

DISPLAY TV LCD CEILING MOUNTARM SWIVEL TILT 13IN-37IN FLATSCREEN DCTM

 9884030
BlueStar

, FULL MOTION CEILING MOUNT FOR 23" TO 42" TV AND MONITORS

 DCTM
D&H

TV Ceiling Mnt Arm 13-37"

 DCTM
Ingram Micro

CEILING MONITOR MOUNT 10-37IN

 VW0129
ScanSource

Display TV Ceiling Monitor Mou

 POW-DCTM
TD Synnex

Tripp Lite Series Full Motion Ceiling Mount for 23IN to 42IN TVs and Monitors.

 3919191

Related Products

Description

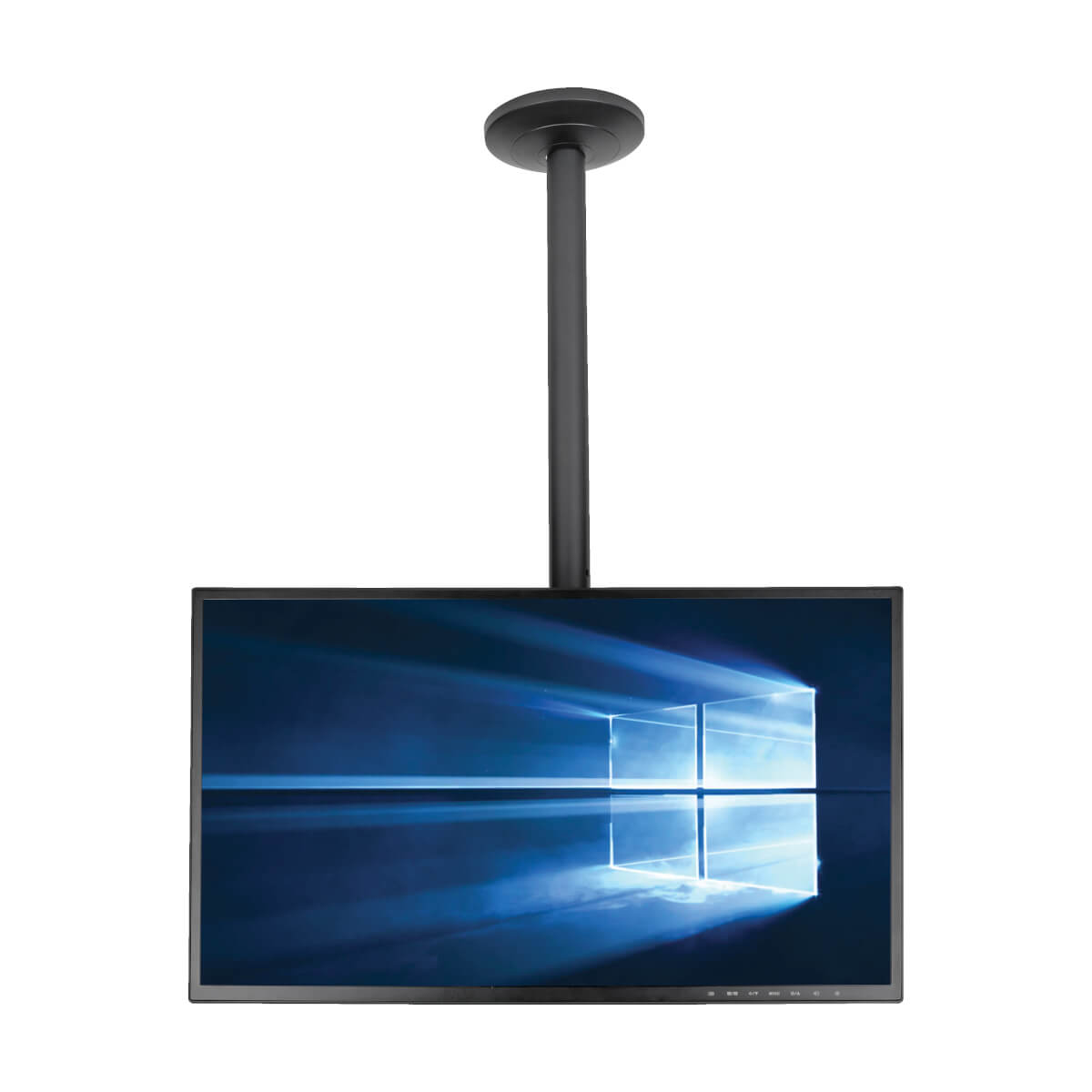

The DCTM Full Motion Ceiling Mount saves valuable wall and floor space by suspending your flat-panel television, monitor or other display from the ceiling. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 23 to 42 inches.

The DCTM adjusts with one easy touch to customize your viewing at any time. A 90° swivel and -20° tilt capability minimizes glare and provides comfortable viewing from multiple angles.

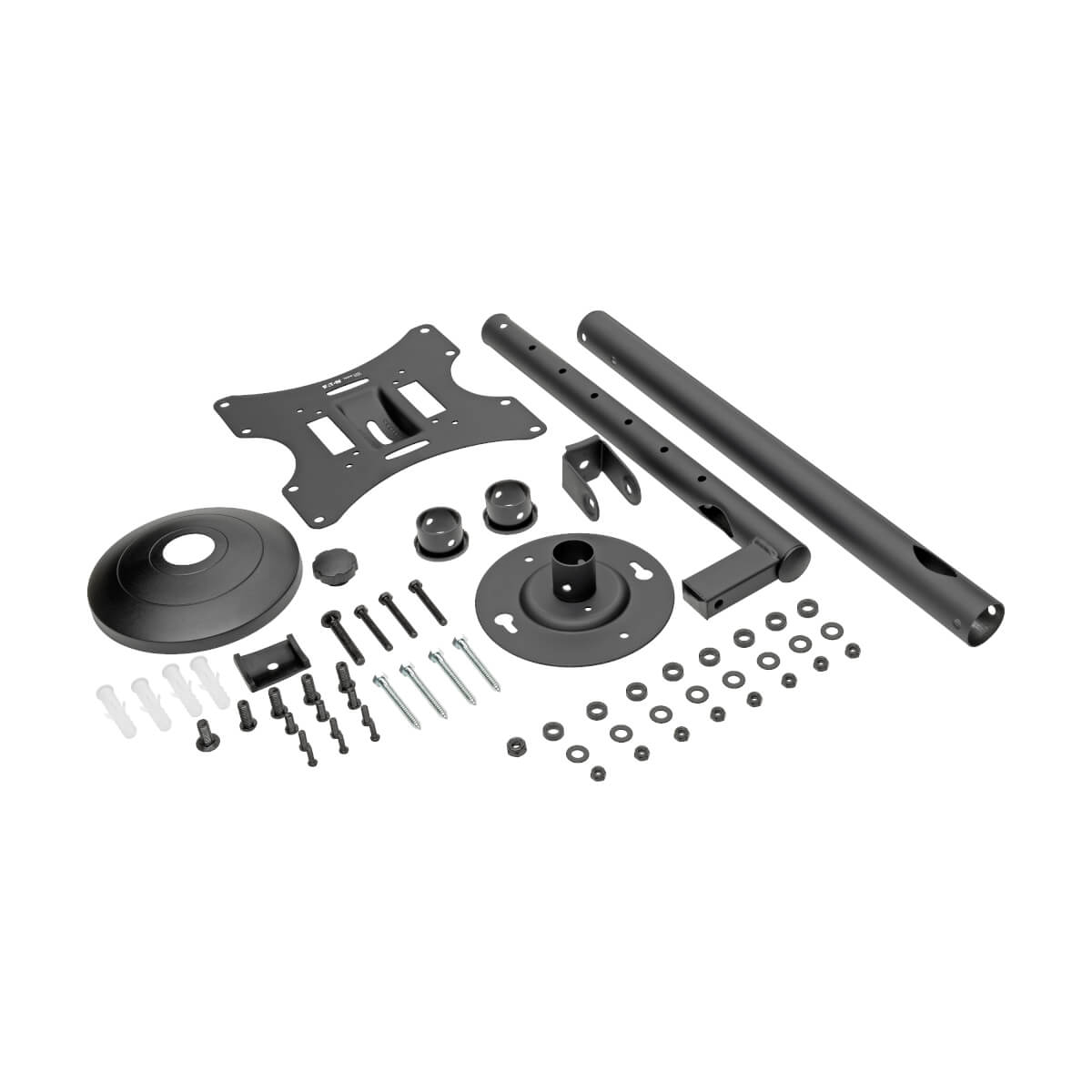

The durable all-metal pole extends from 24 to 34 inches and supports up to 66 lbs (30 kgs). The scratch-resistant powder-coated finish tolerates frequent handling and blends with any décor. Installation hardware is included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 75 x 200 mm, 100 x 75 mm, 100 x 100 mm, 100 x 200 mm, 200 x 75mm, 200 x 100 mm and 200 x 200 mm.

Specifications

Mounting
Mounting typeCeiling
Minimum screen size10"
Panel mounting interface75 x 75,100 x 100,200 x 100,200 x 200
Number of displays supported1
Minimum VESA mount2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount7.87 x 7.87" (200 x 200 mm)
Maximum screen size37"
Maximum weight capacity80 lbs (36.3 kg)
Ergonomics
Height adjustmentYes
Height adjustment range11 - 21" (279.4 - 533.4 mm)
Tilt angle range-30 - 0°
Swivel angle90°
Technical details
Number of displays supported1
Product colourBlack
Mounting typeCeiling
AdjustableYes
Country of originChina
Design
Product colourBlack
Housing materialSteel
Weight & dimensions
Width6.3" (160 mm)
Depth38" (965.2 mm)
Height5.4" (137.2 mm)
Weight4.89 lbs (2.22 kg)
Packaging data
Package width9.8" (248.9 mm)
Package depth20.1" (510.5 mm)
Package height21.1" (535.9 mm)
Package weight5.29 lbs (2.4 kg)
Logistics data
Master (outer) case width12.6" (320 mm)
Master (outer) case length10.6" (269.2 mm)
Master (outer) case height21.5" (546.1 mm)
Master (outer) case gross weight28.2 lbs (12.8 kg)
Products per master (outer) case5 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332223453
Harmonized System (HS) code85299097
Other features
Mounting typeCeiling
AdjustableYes
Country of originChina
