Tripp Lite DWF3270X TV mount/stand 70" Black
- Brand: Tripp Lite
- Category:
- SKU: DWF3270X
- EAN: 0373321835072 0037332183507

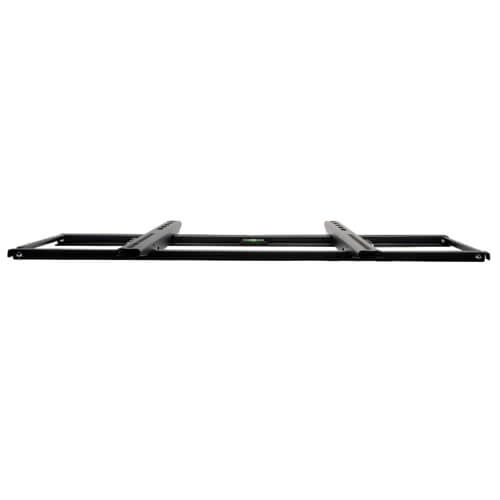

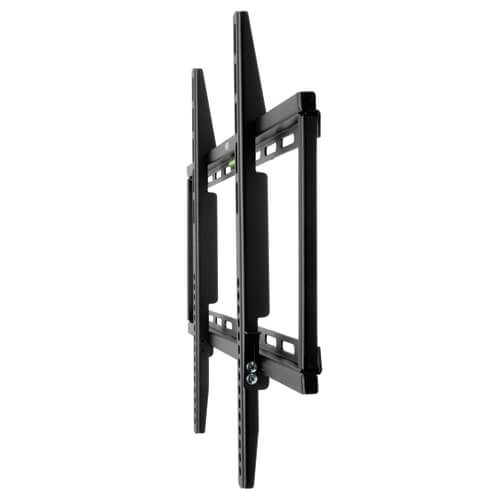

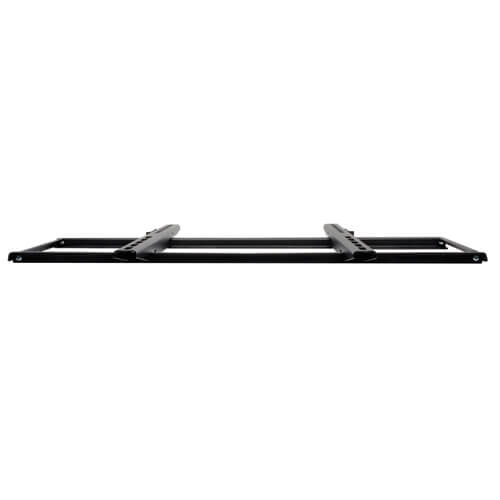

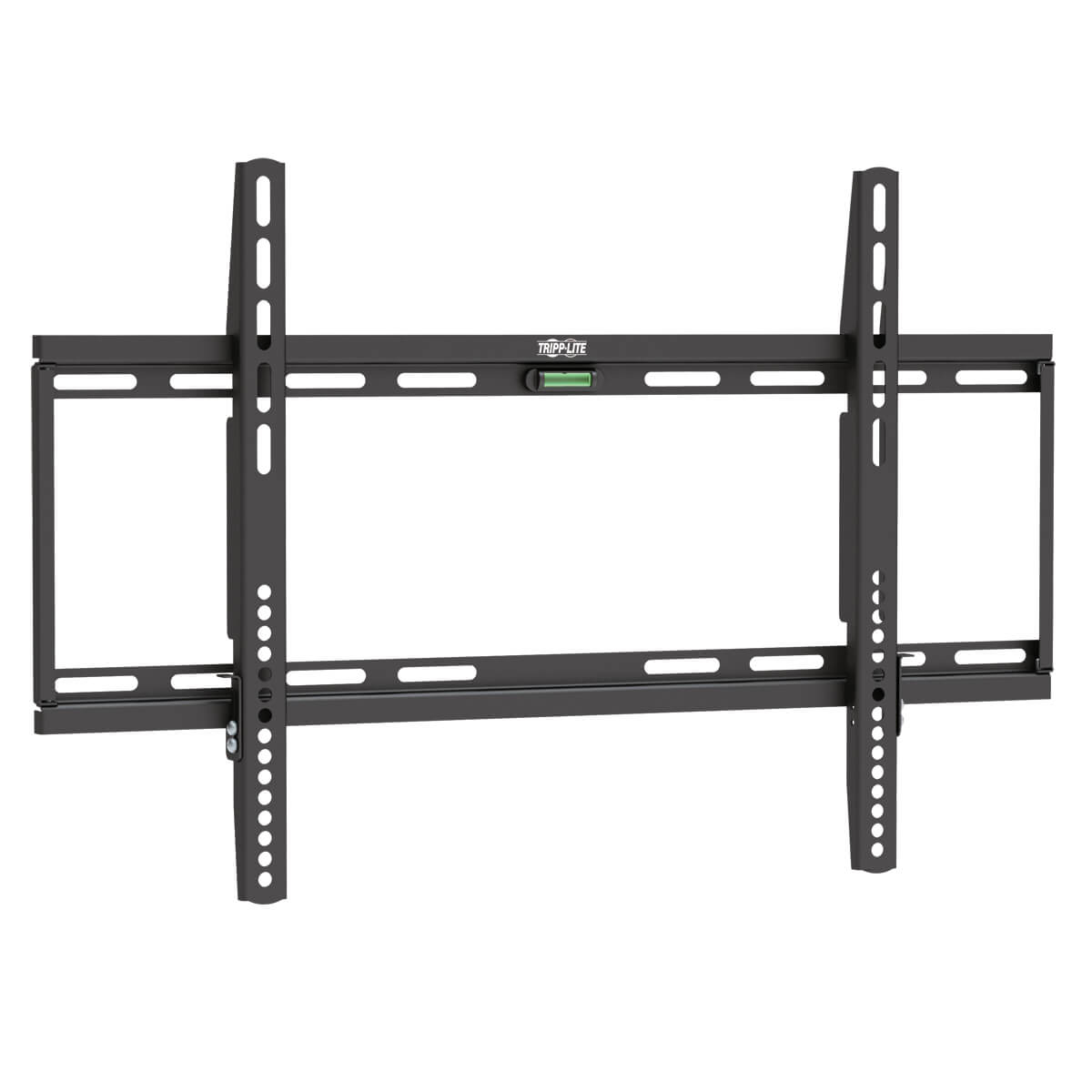

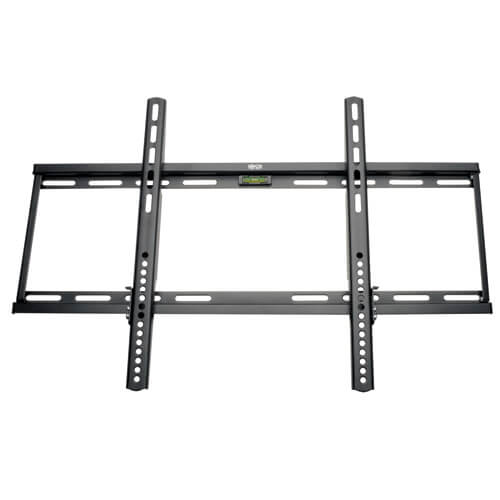

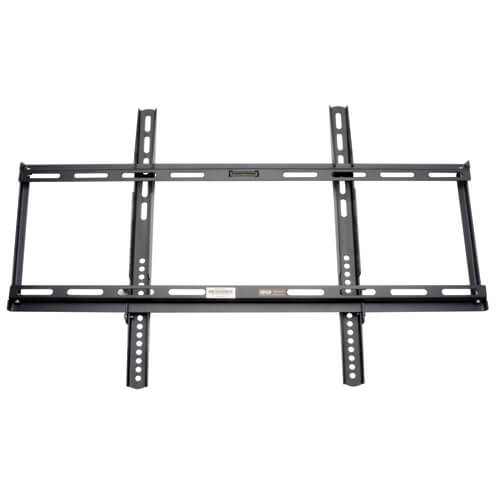

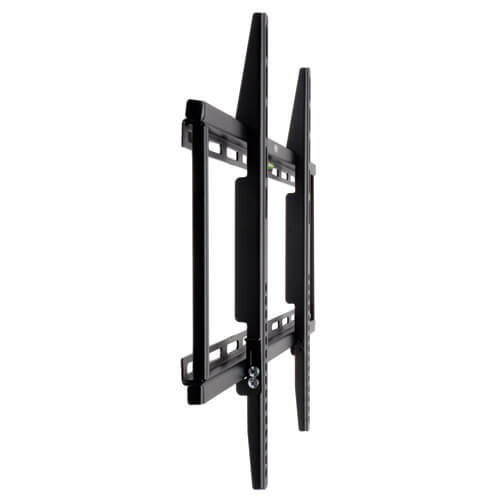

Fixed Wall Mount for 32" to 70" TVs and Monitors
Offer details
Description
The VESA-compliant DWF3270X Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 32 to 70 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 32 to 70 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance

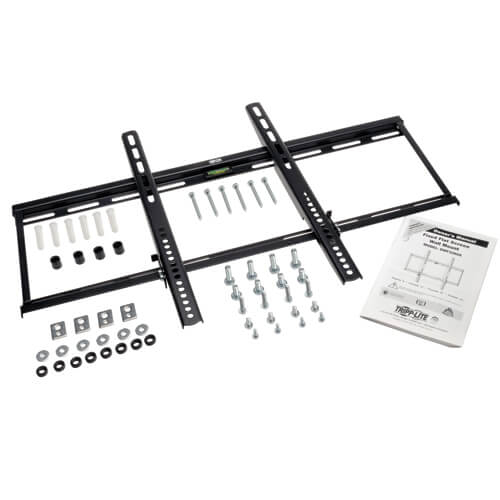

Mounting hardware included
Durable Metal Construction
Supports up to 165 lbs (74.8 kgs)
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish
VESA Compliance
Supports the following VESA mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm
Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 32 to 70 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance
Mounting hardware included
Durable Metal Construction
Supports up to 165 lbs (74.8 kgs)
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish
VESA Compliance
Supports the following VESA mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm and 600 x 400 mm
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 32" |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 7.87 x 7.87" (200 x 200 mm) |
| Maximum VESA mount | 23.6 x 15.7" (600 x 400 mm) |
| Maximum screen size | 70" |
| Maximum weight capacity | 165.3 lbs (75 kg) |
| Technical details | |
| Number of displays supported | 1 |
| Product colour | Black |
| Mounting type | Wall |
| Country of origin | China |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 26.1" (664 mm) |
| Depth | 1.18" (30 mm) |
| Height | 17.1" (435.1 mm) |
| Weight | 4.39 lbs (1.99 kg) |
| Packaging data | |
| Package width | 4.6" (116.8 mm) |
| Package depth | 26.8" (680.7 mm) |
| Package height | 1.9" (48.3 mm) |
| Package weight | 5 lbs (2.27 kg) |
| Logistics data | |
| Master (outer) case width | 10.5" (266.7 mm) |
| Master (outer) case length | 27.4" (696 mm) |
| Master (outer) case height | 8.1" (205.7 mm) |
| Master (outer) case gross weight | 41 lbs (18.6 kg) |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332183504 |
| Harmonized System (HS) code | 8302.50.0000 |
| Other features | |
| Mounting type | Wall |
| Country of origin | China |
