Tripp Lite DWF2655X TV mount/stand 55" Black

Tripp Lite DWF2655X TV mount/stand 55" Black

Fixed Wall Mount for 26" to 55" TVs and Monitors

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

FIXED WALL-MOUNT FOR 26" TO55" FLAT-SCREEN DISPLAYS

 640205 Register free see stock

Related Products

Description

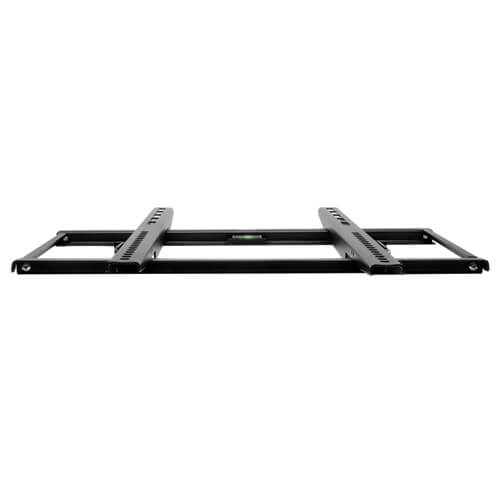

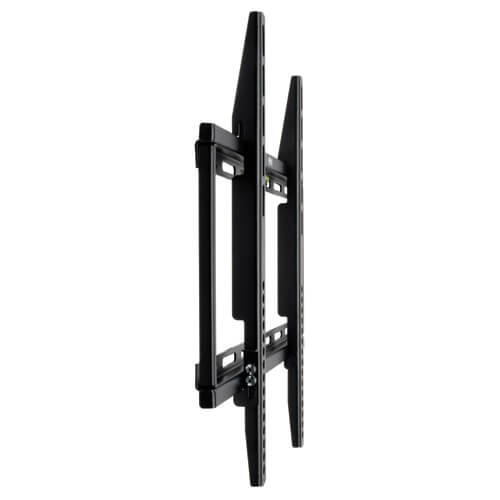

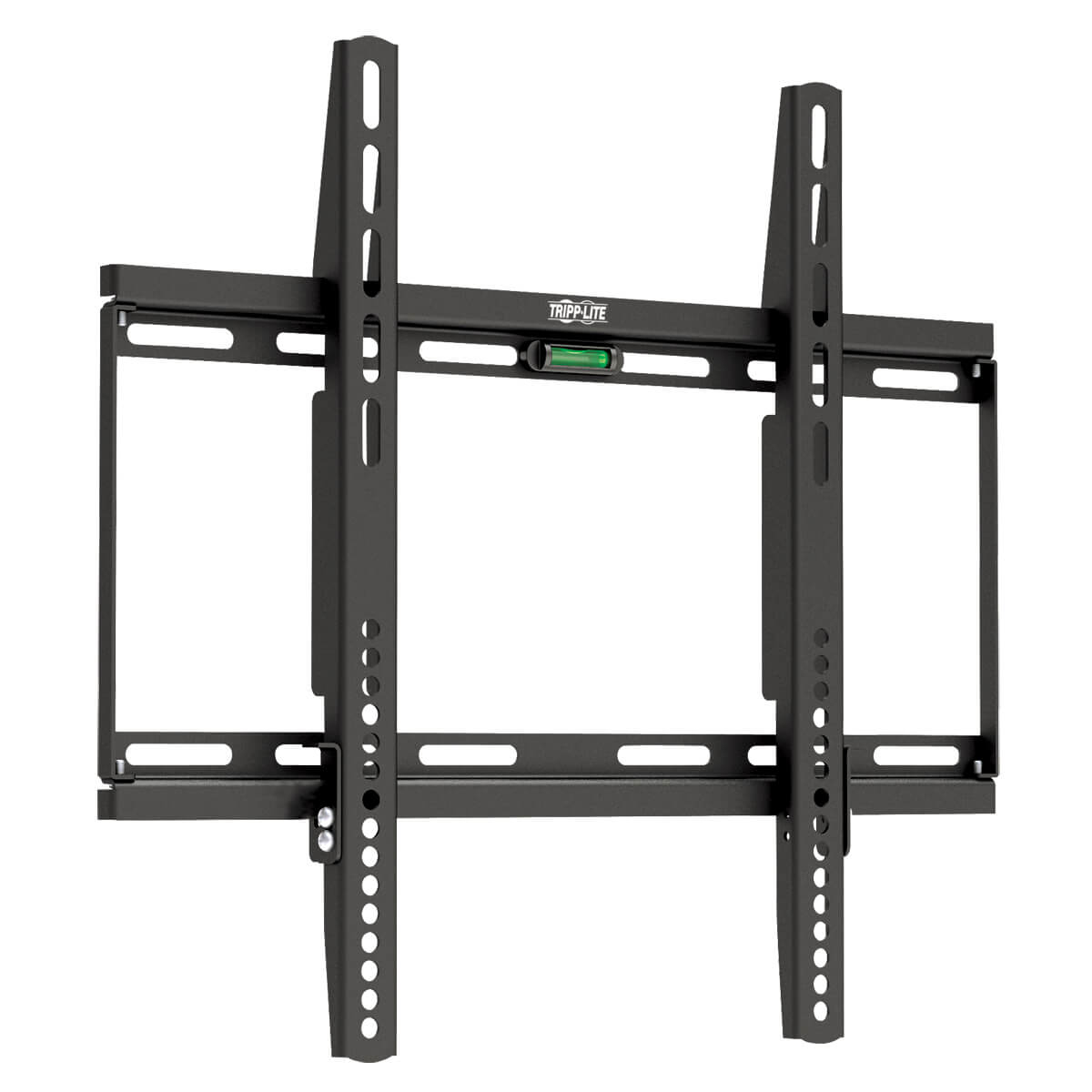

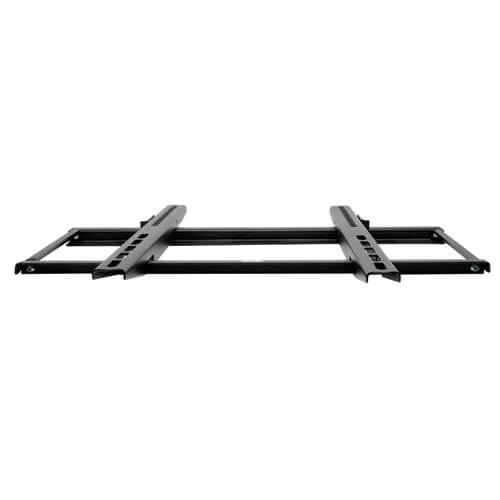

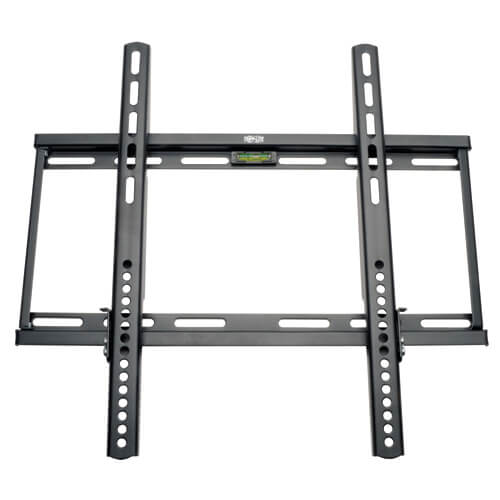

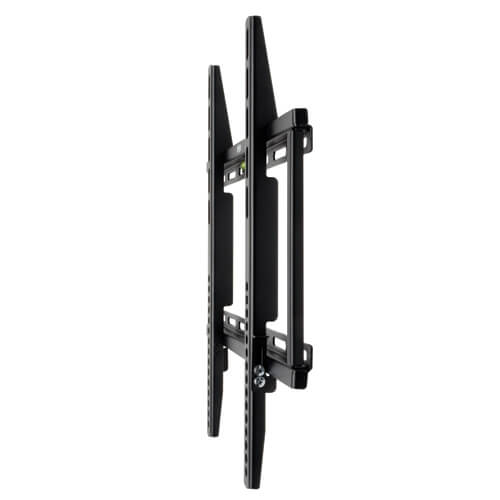

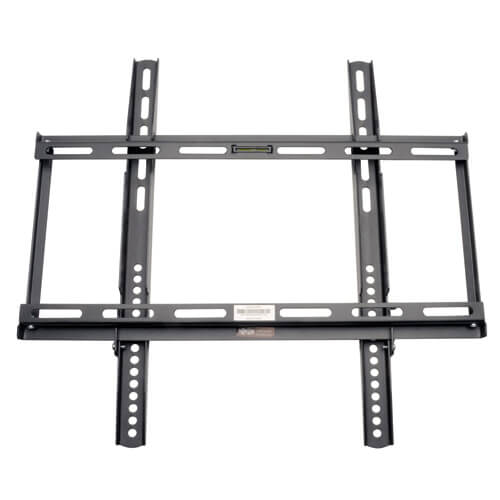

The VESA-compliant DWF2655X Fixed Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 26 to 55 inches. The low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm

Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 26 to 55 in.
Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
Mounts out of sight behind display for sleek, professional appearance

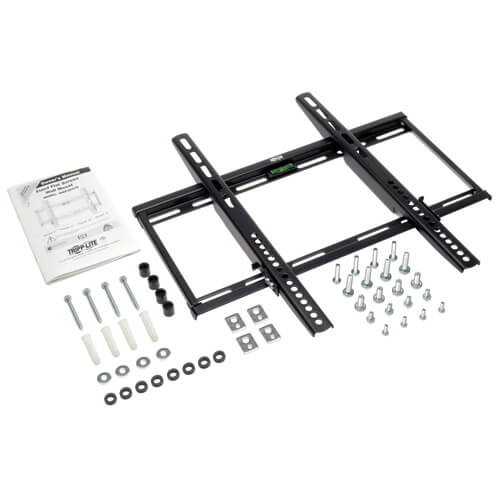

Mounting hardware included

Durable Metal Construction
Supports up to 165 lbs (74.8 kgs)
Open frame allows easy wall access
Adjustable mounting rails compensate for off-center wall studs
Built-in bubble level for accurate display leveling
Scratch-resistant powder-coated finish

VESA Compliance
Supports the following VESA mounting hole patterns: 100 x 100 mm, 100 x 200 mm, 200 x 100 mm, 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm

Specifications

Mounting
Mounting typeWall
Minimum screen size26"
Panel mounting interface100 x 100,200 x 100,200 x 200,400 x 200,400 x 400
Minimum VESA mount3.94 x 3.94" (100 x 100 mm)
Maximum VESA mount15.7 x 15.7" (400 x 400 mm)
Maximum screen size55"
Maximum weight capacity165.3 lbs (75 kg)
Technical details
Product colourBlack
Mounting typeWall
Country of originChina
Compliance certificatesRoHS
Design
Product colourBlack
Weight & dimensions
Width18.3" (463.8 mm)
Depth1.18" (30 mm)
Height17.1" (435.1 mm)
Weight3.99 lbs (1.81 kg)
Packaging data
Package width4.8" (121.9 mm)
Package depth19.3" (490.2 mm)
Package height2" (50.8 mm)
Package weight4.21 lbs (1.91 kg)
Logistics data
Master (outer) case width10.4" (264.2 mm)
Master (outer) case length19.6" (497.8 mm)
Master (outer) case height9.8" (248.9 mm)
Master (outer) case gross weight43 lbs (19.5 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332183498
Harmonized System (HS) code8302.50.0000
Other features
Mounting typeWall
Country of originChina
