Tripp Lite DWM2355S TV mount/stand 55" Black

Tripp Lite DWM2355S TV mount/stand 55" Black

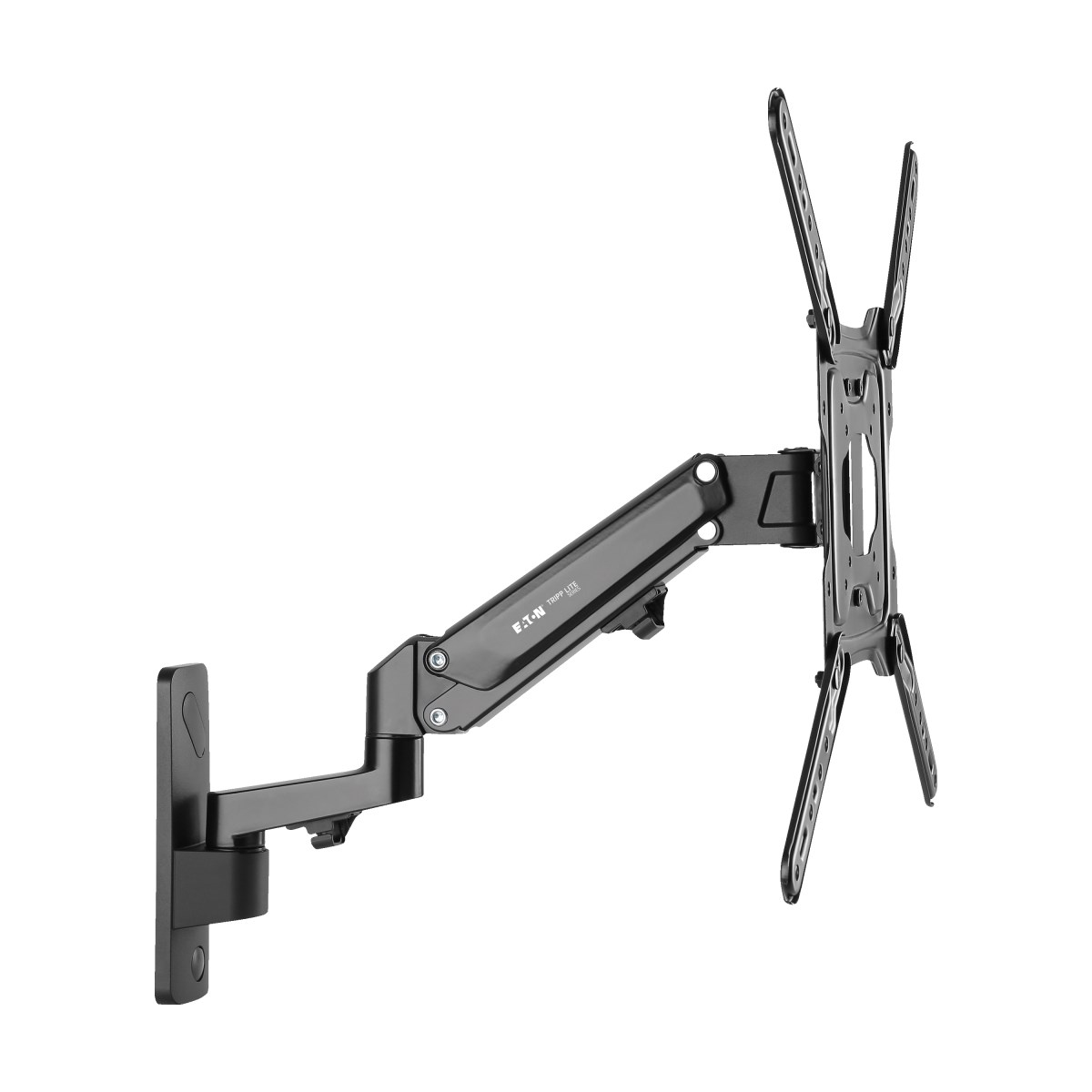

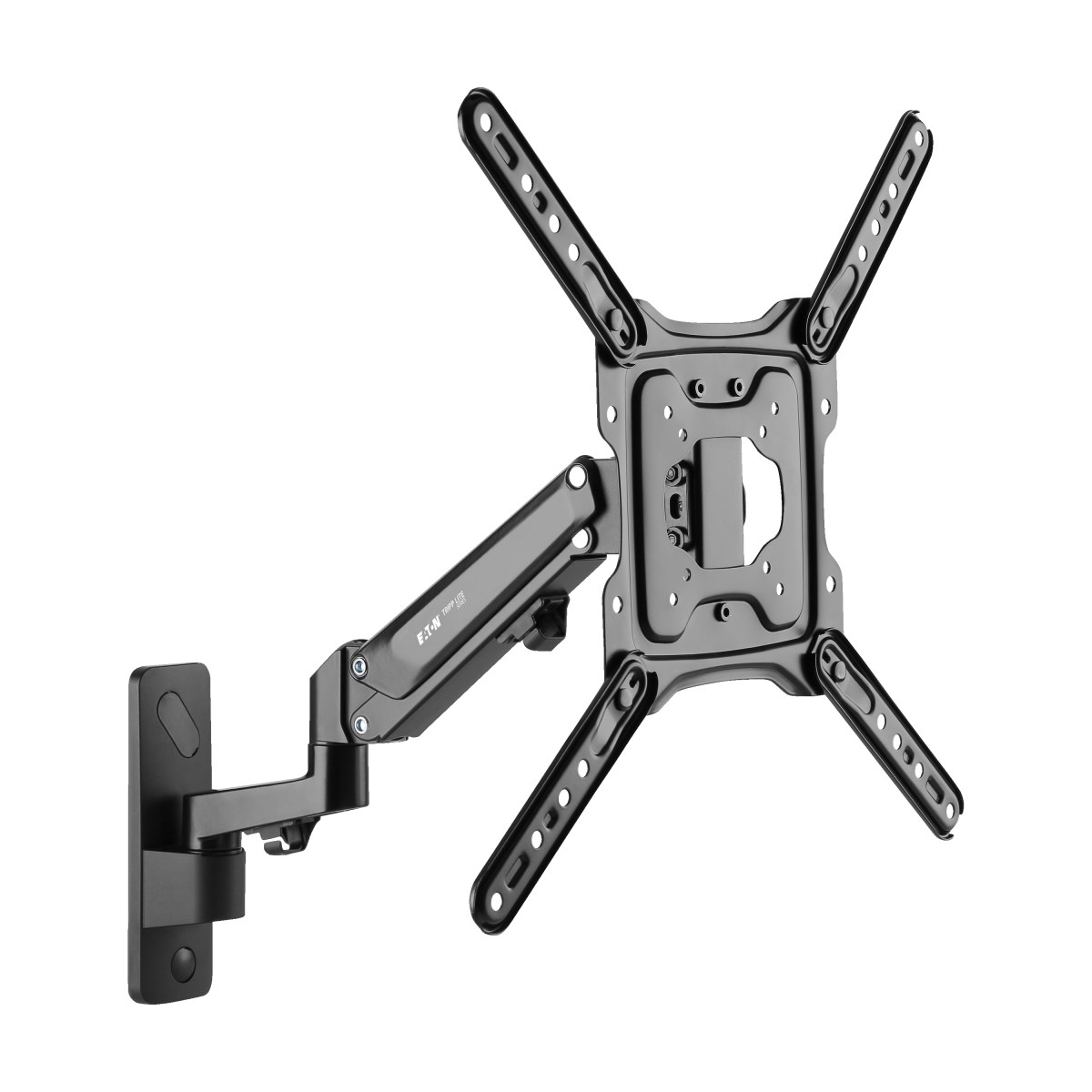

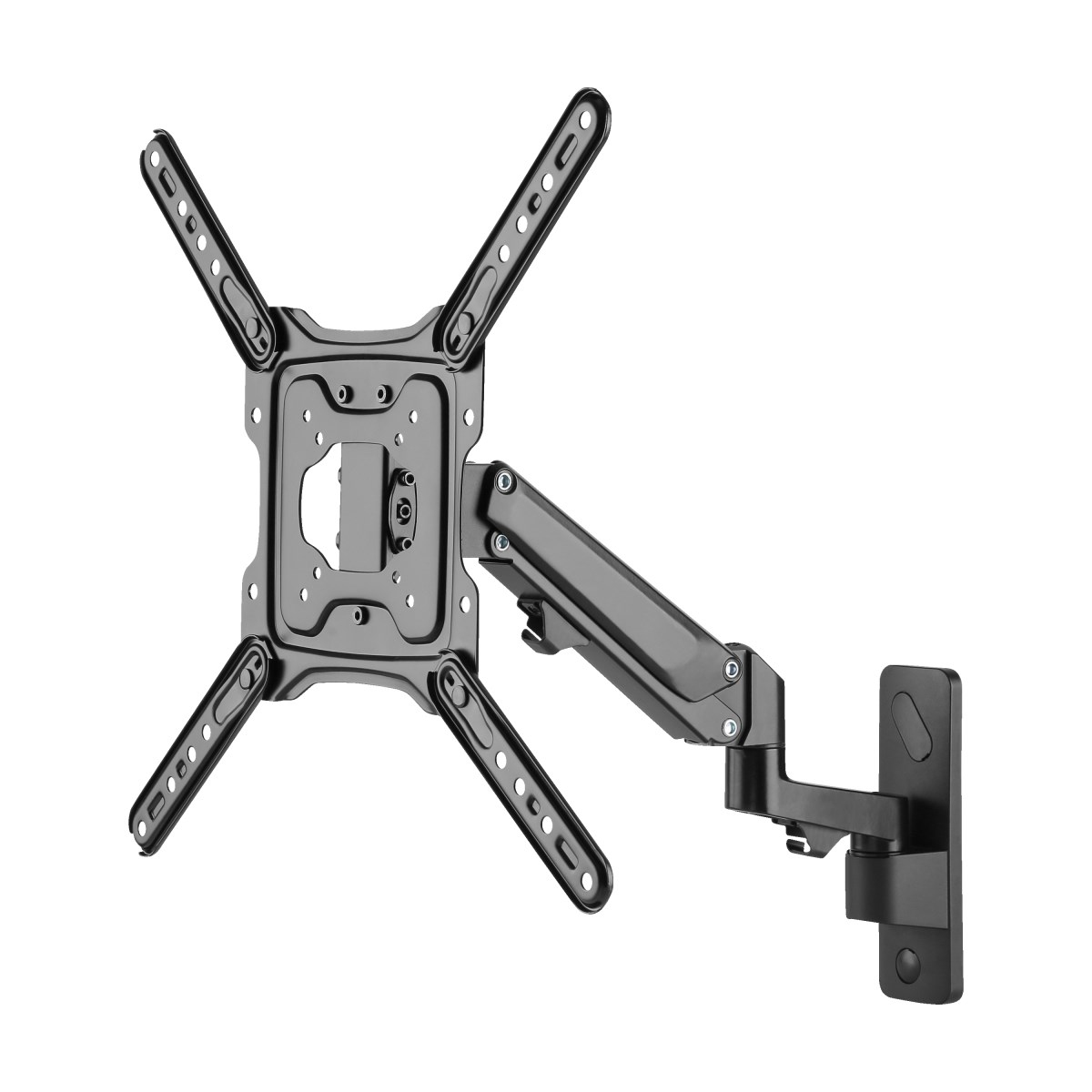

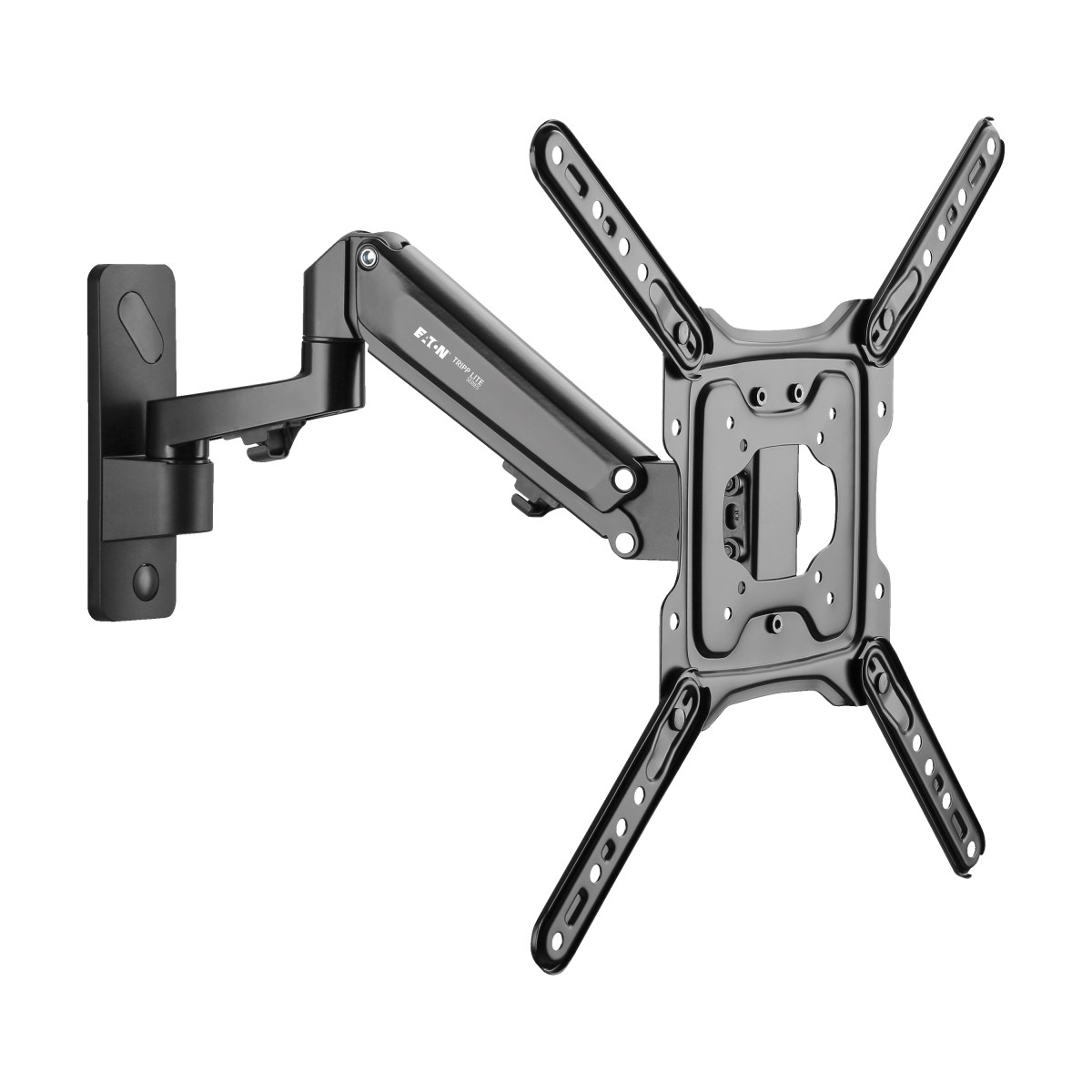

Full-Motion TV Wall Mount with Fully Articulating Arm for 23” to 55” Flat-Screen Displays

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

FULL-MOTION TV WALL MOUNTWITH FULLY ARTICULATING ARMFOR 23" TO 55"

 10172497 Register free see stock
D&H

TV MOUNT FULL MOTION 23 55

 DWM2355S
Ingram Micro

TV MOUNT FULL-MOTION 23-55IN

 8JQ181
ScanSource

TV MOUNT FULL-MOTION 23-55""

 POW-DWM2355S
TD Synnex

Tripp Lite Series Full-Motion TV Wall Mount with Fully Articulating Arm for 23IN to 55IN Flat-Screen Displays

 5961983

Related Products

Description

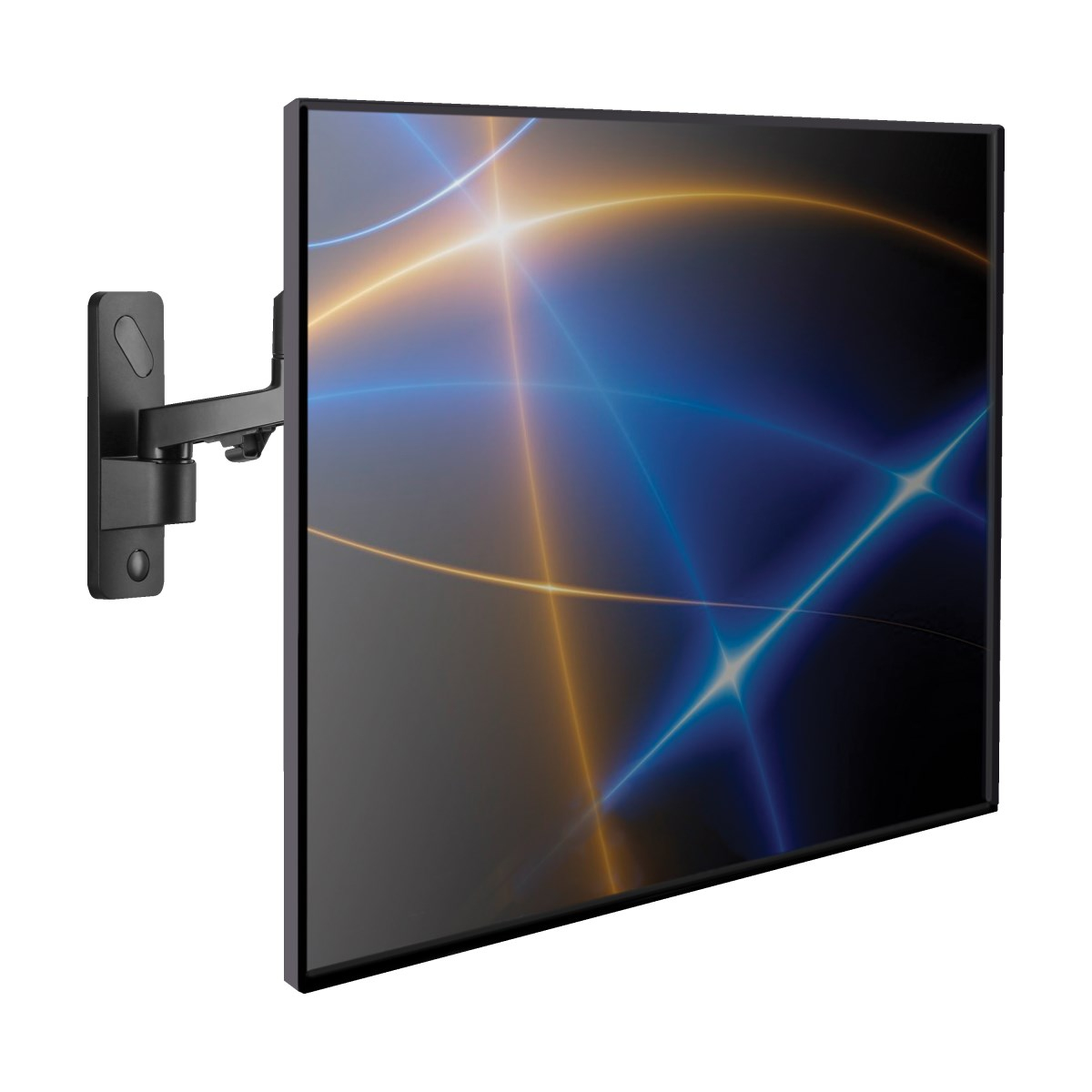

Mounts Your TV or Monitor to the Wall
Fits most flat-panel televisions, monitors and other displays from 23 to 55 in.
Ideal for home theaters, offices, classrooms, boardrooms, hotels, bars and restaurants

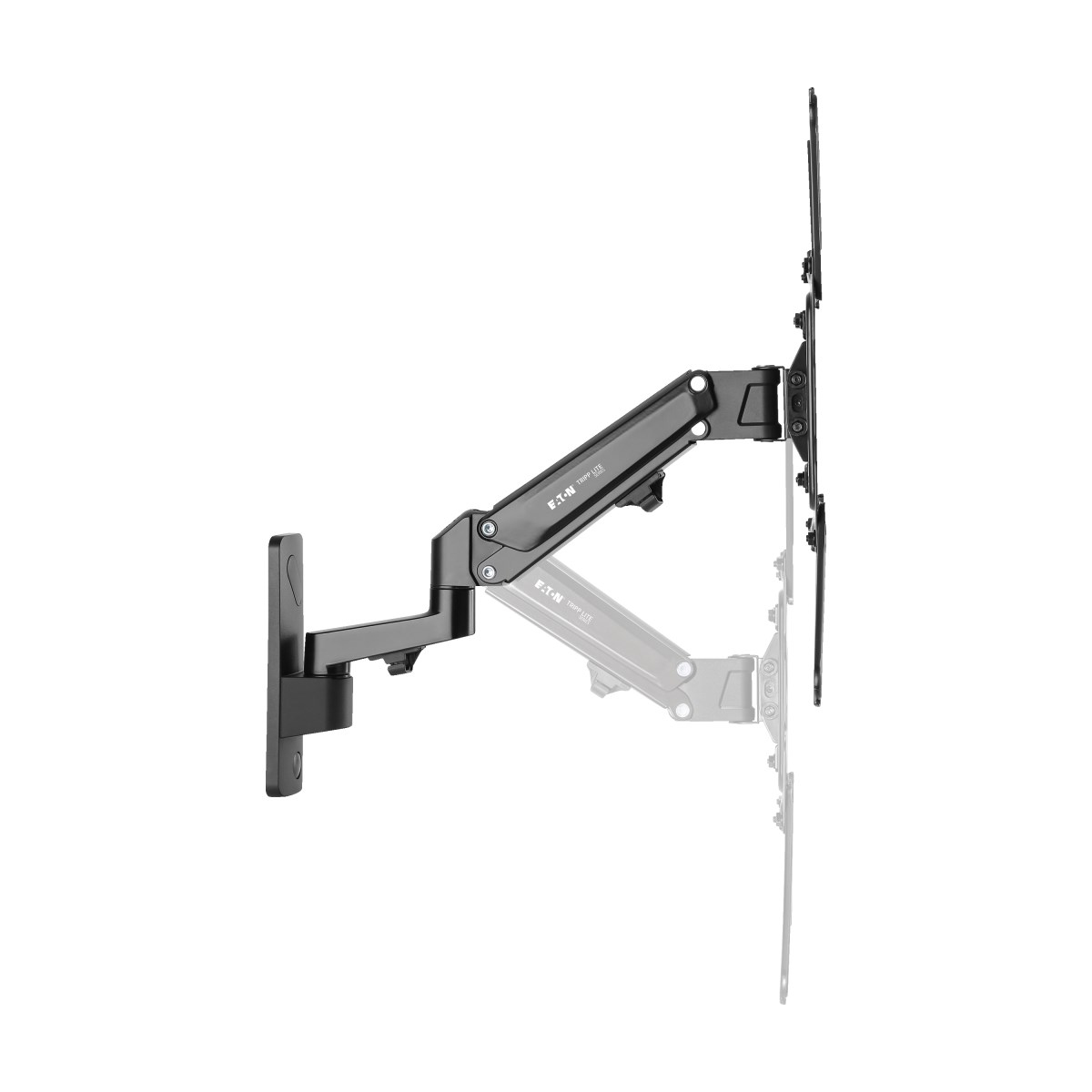

Full-motion articulating arm adjusts independently for angle and height
Mounting hardware included
Mounts on wood or concrete block

Convenient One-Touch Adjustment
180° swivel and -15° to 15° tilt capability provides comfortable viewing from multiple angles

Durable Metal Construction
Supports up to 51 lbs (23.1 kgs)
Soft rubber-feel finish tolerates frequent handling and blends with any décor

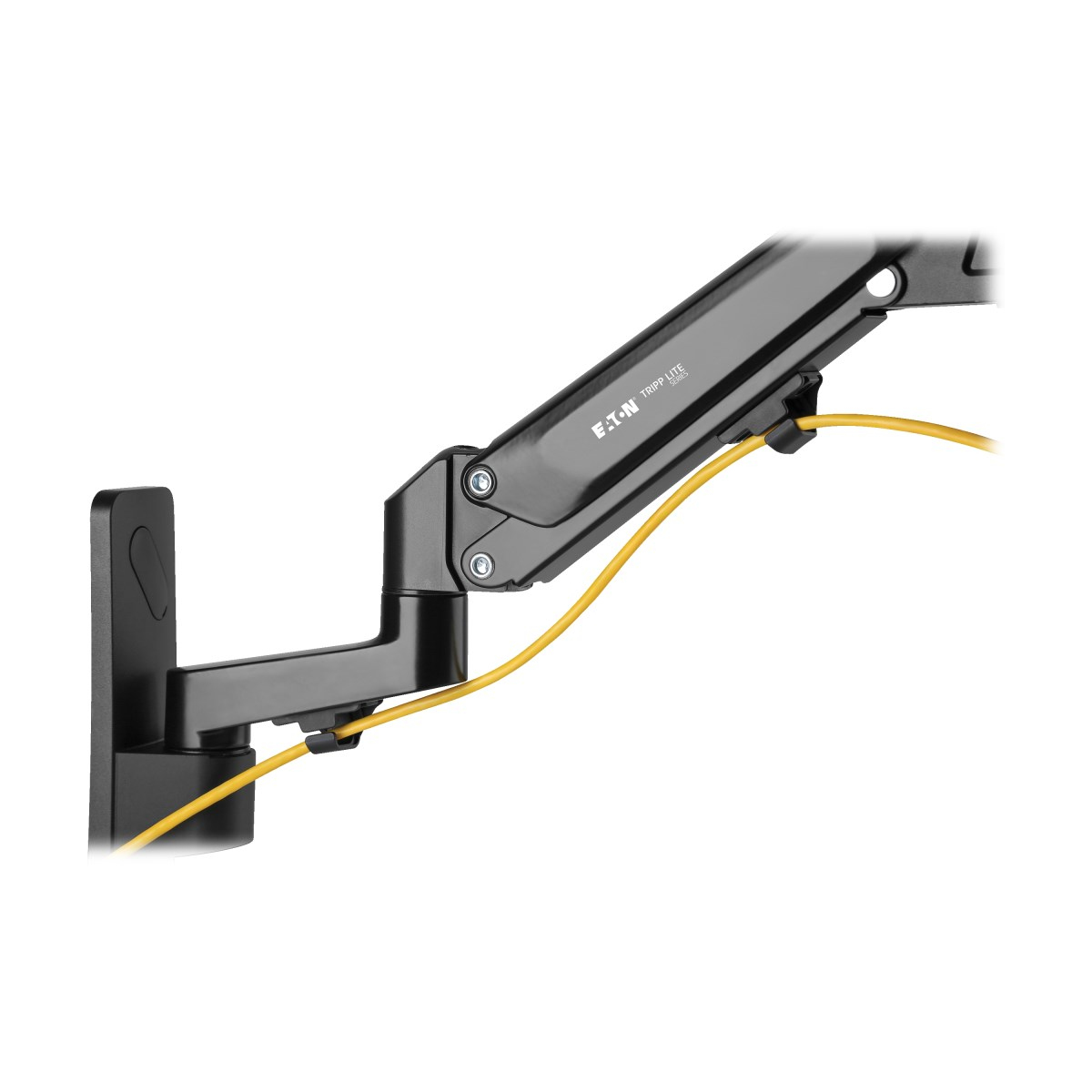

Display cables tuck inside articulating arm to prevent clutter

VESA Compliance
Conforms with VESA-compliant universal mounting hole patterns

Specifications

Mounting
Mounting typeWall
Minimum screen size23"
Panel mounting interface75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300
Number of displays supported1
Minimum VESA mount2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount15.7 x 15.7" (400 x 400 mm)
Maximum screen size55"
Maximum weight capacity50.7 lbs (23 kg)
Suitable for computer monitorYes
Ergonomics
Cable managementYes
Tilt angle range-15 - 15°
Swivel angle180°
Distance to the wall (max)12.7" (32.3 cm)
Tilt adjustmentYes
Technical details
Cable managementYes
Number of displays supported1
Distance to the wall (max)12.7" (32.3 cm)
Product colourBlack
Mounting typeWall
Country of originChina
Compliance certificatesRoHS
Design
Cable managementYes
CertificationREACH, CE
Product colourBlack
Housing materialSteel
Certificates
CertificationREACH, CE
Packaging content
Mounting kitYes
ManualYes
Screw nuts includedYes
Number of wrenches included1
Number of screw nuts4
Number of hex keys included2
Number of bolts4
Mounting plate includedYes
Hex key includedYes
Bolts includedYes
Weight & dimensions
Width18.1" (459.7 mm)
Depth17.9" (454.7 mm)
Height17.1" (434.3 mm)
Weight7.1 lbs (3.22 kg)
Depth (max)24.9" (63.2 cm)
Packaging data
Package width13.7" (348 mm)
Package depth3.3" (83.8 mm)
Package height17.3" (439.4 mm)
Package weight8.91 lbs (4.04 kg)
Mounting kitYes
ManualYes
Logistics data
Master (outer) case width14.6" (370.8 mm)
Master (outer) case length17.9" (454.7 mm)
Master (outer) case height18.1" (459.7 mm)
Master (outer) case gross weight46.5 lbs (21.1 kg)
Products per master (outer) case5 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332258776
Harmonized System (HS) code85299097
Other features
Mounting typeWall
Country of originChina
