Tripp Lite N484-12RJ patch panel

Tripp Lite N484-12RJ patch panel

  • Brand: Tripp Lite
  • Category:
  • SKU: N484-12RJ
  • EAN: 0037332187222
Cat6a Pass-Through Cassette - (x12) RJ45

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter HIGH DENSITY CAT5E/CAT6PASS-THROUGH CASSETTE 12 RJ45N484-12RJ 812479 Register free see stock
ASI Corp AC N484-12RJ Cat6a Pass Through Cassette x12 RJ45 Retail 213377
Ingram Micro HIGH DENSITY CAT5E / CAT6 ZZ0214
TD Synnex CAT6A PASS-THROUGH CASSETTE - (X12) RJ45 4195723

Related Products

Description

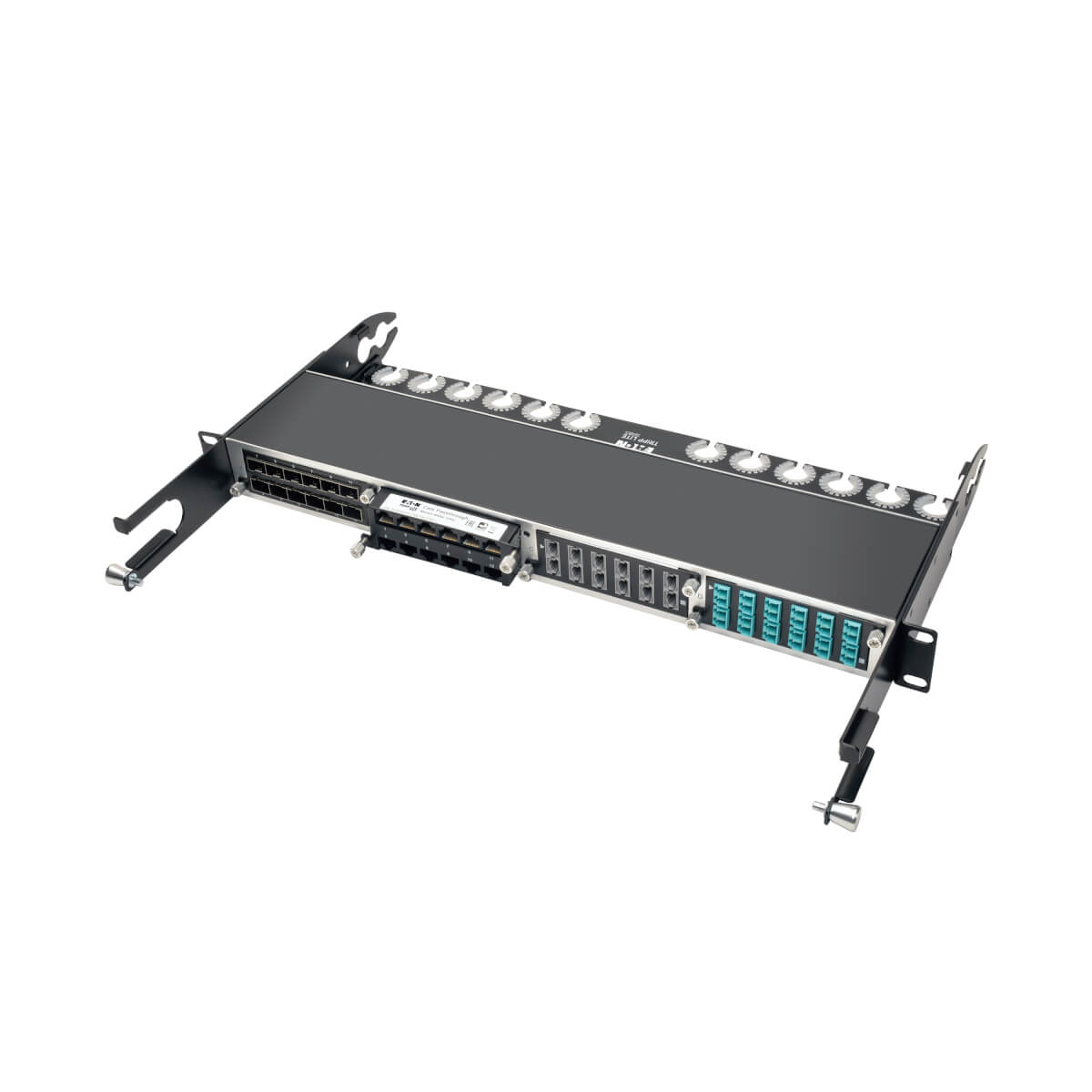

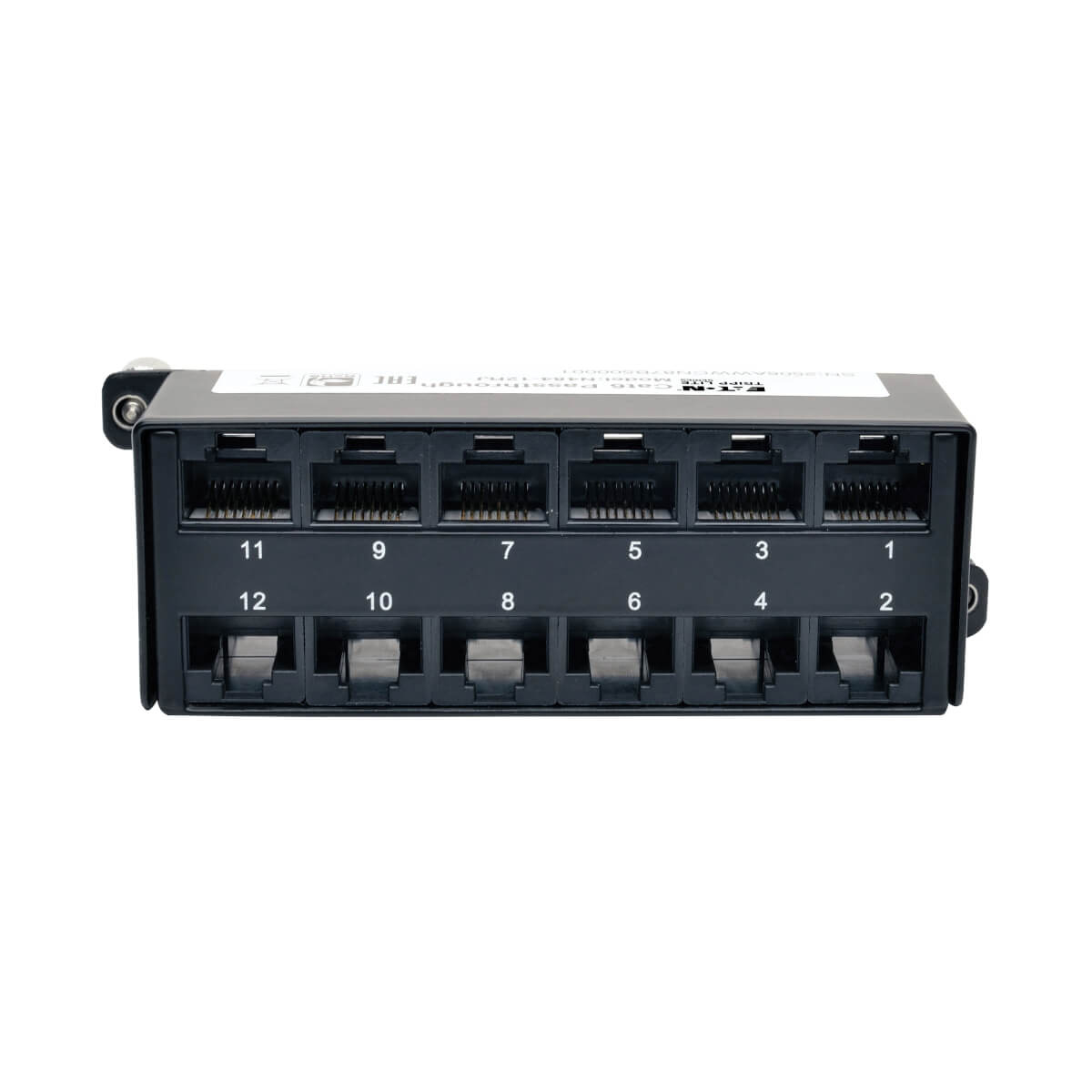

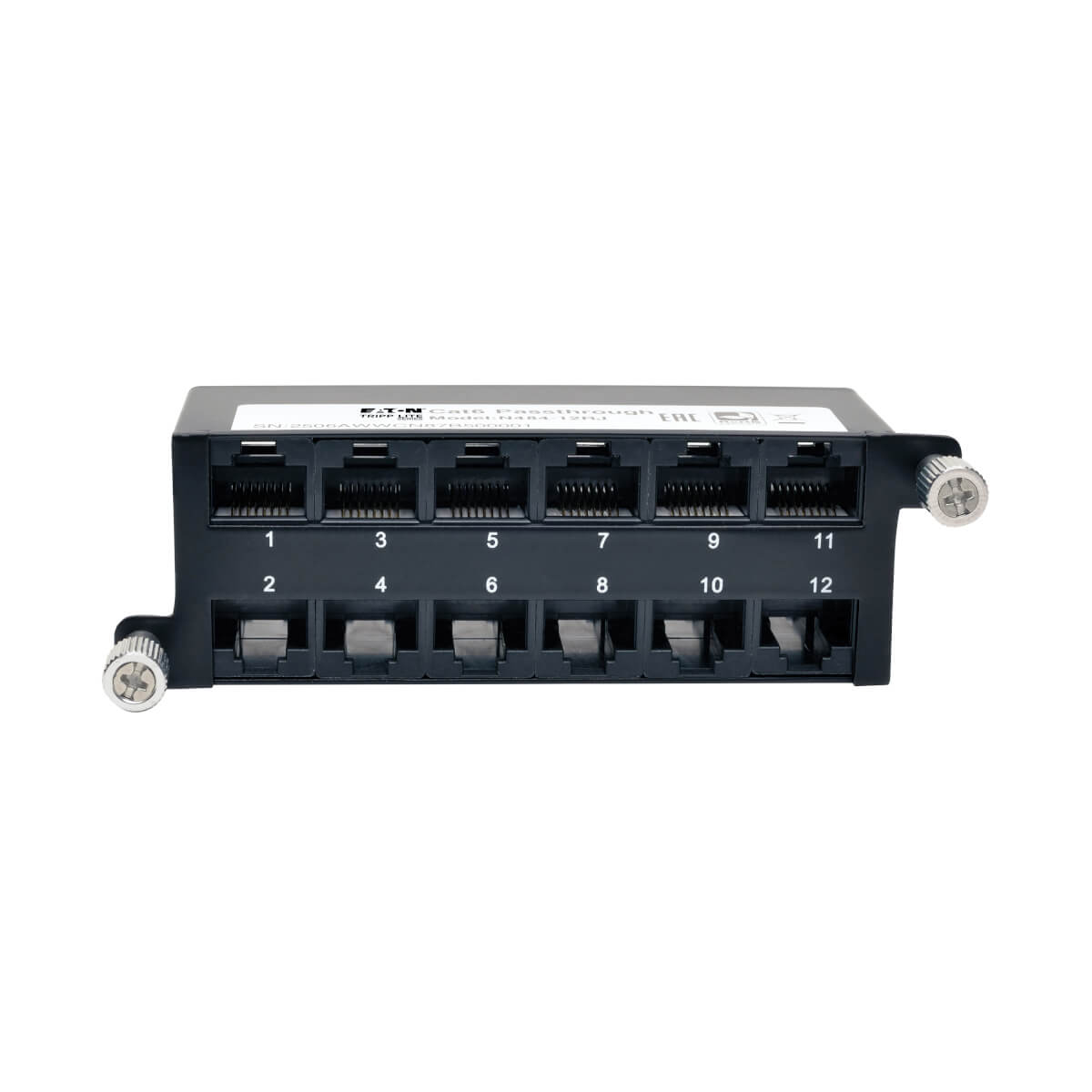

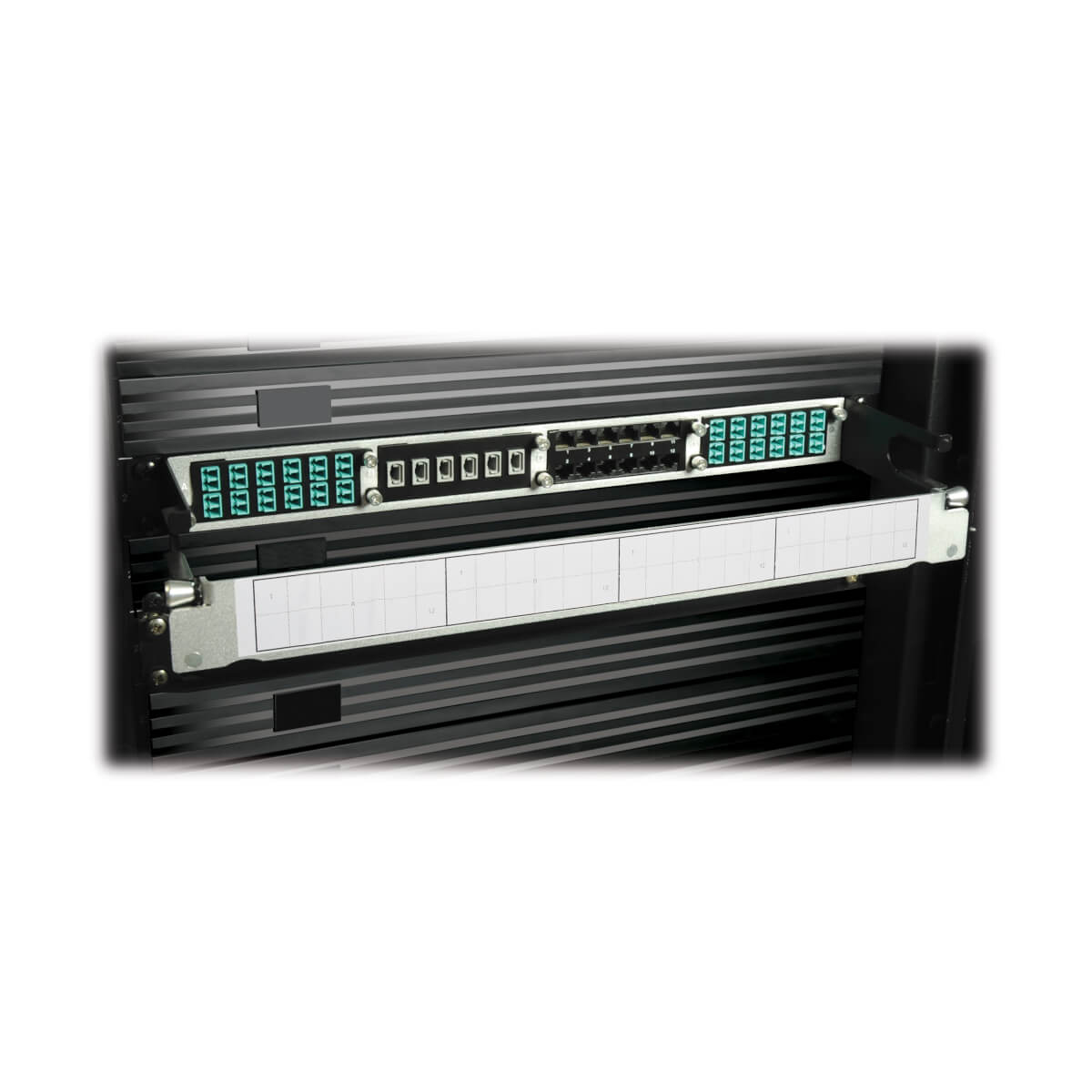

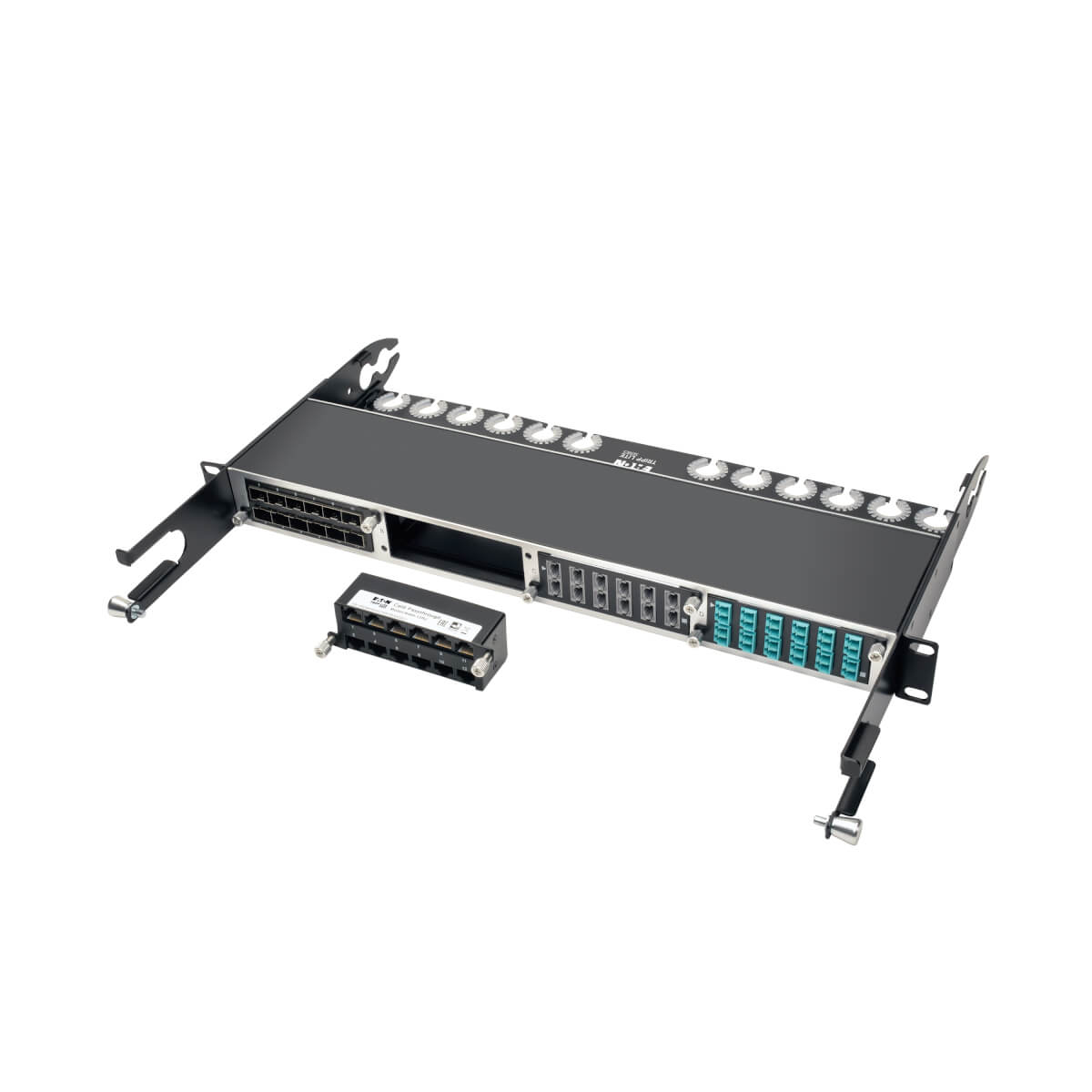

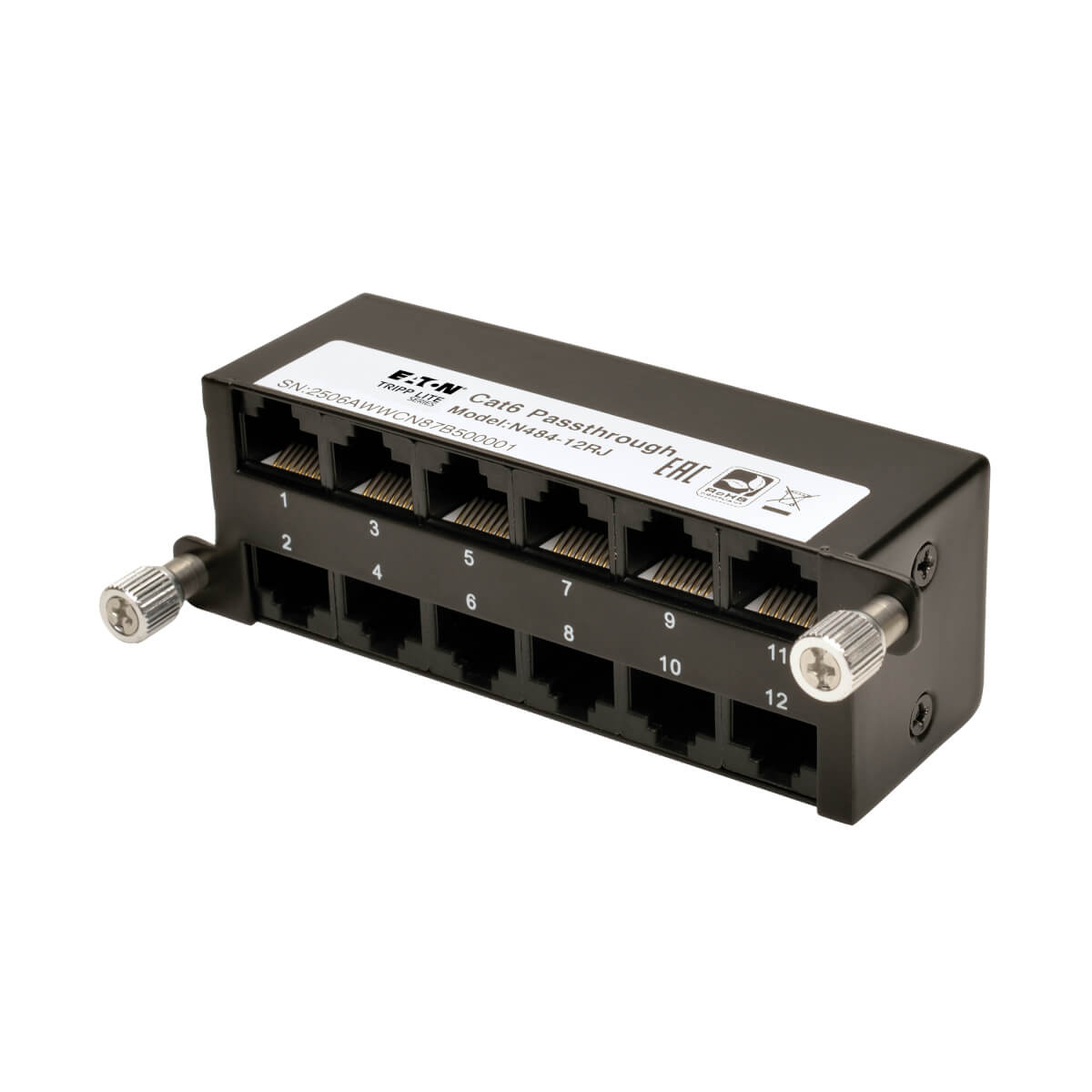

The N484-12RJ is a high-density Cat6a pass-through cassette with (x12) RJ45 connections. Designed specifically for use with N484-00U and N484-01U chassis. Up to four cassettes per N484-01U or one cassette per N484-00U. Each RJ45 connection is rated for 10 Gbps Ethernet data transfer speeds. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing is manufactured with heavy-duty 1.0mm cold-rolled steel.

Specifications

Network
Ethernet interface type10 Gigabit Ethernet
Maximum data transfer rate10000 Mbit/s
Cable types supportedCat6
Ports quantity12
Connector(s)RJ-45
Features
MaterialSteel
Product colourBlack
CertificationREACH
Technical details
Operating temperature (T-T)-20 - 50 °C
Package width7.9" (200.7 mm)
Package height2.36" (59.9 mm)
MaterialSteel
Compliance certificatesRoHS
Design
MaterialSteel
Product colourBlack
CertificationREACH
Operational conditions
Operating temperature (T-T)-20 - 50 °C
Colour
Product colourBlack
Certificates
CertificationREACH
Weight & dimensions
Width5.12" (130 mm)
Weight8.11 oz (230 g)
Height1.2" (30.5 mm)
Depth4.7" (119.4 mm)
Package weight8.11 oz (230 g)
Package width7.9" (200.7 mm)
Package height2.36" (59.9 mm)
Packaging data
Package weight8.11 oz (230 g)
Package depth1.46" (37.1 mm)
Package width7.9" (200.7 mm)
Package height2.36" (59.9 mm)
Logistics data
Products per pallet1 pc(s)
Master (outer) case gross weight5.29 lbs (2.4 kg)
Products per master (outer) case10 pc(s)
Master (outer) case width8.86" (225 mm)
Master (outer) case length4.92" (125 mm)
Master (outer) case height5.31" (134.9 mm)
Master (outer) case GTIN (EAN/UPC)10037332187229
Country of originChina
