Tripp Lite N844-03M-12-P InfiniBand/fibre optic cable 120.1" (3.05 m) MTP Black, Turquoise

Tripp Lite N844-03M-12-P InfiniBand/fibre optic cable 120.1" (3.05 m) MTP Black, Turquoise

MTP/MPO Patch Cable with Push/Pull Tabs, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 3M (10 ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

MTP/MPO PATCH CABLE, 12 FIBER40GBE, 40GBASE-SR4, OM3 PLENUMRATED - AQUA 3M 10FT

 642398 Register free see stock
ASI Corp

Cable N844-03M-12-P 10ft 40Gb MTP MPO Patch 12 Fiber Retail

 176825
Ingram Micro

10FT 12FIBER MMF MTP/MTP MPO

 PK9980
ScanSource

3M MTP / MPO Patch Cable 12 Fi

 POW-N84403M12P
TD Synnex

Tripp Lite Series MTP/MPO Patch Cable with Push/Pull Tabs, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 3M (10 ft.)

 3359445

Related Products

Description

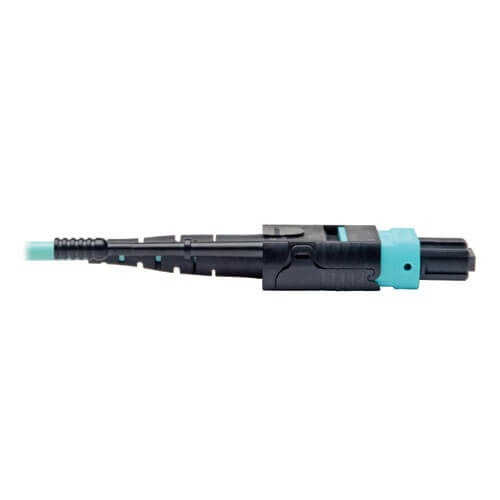

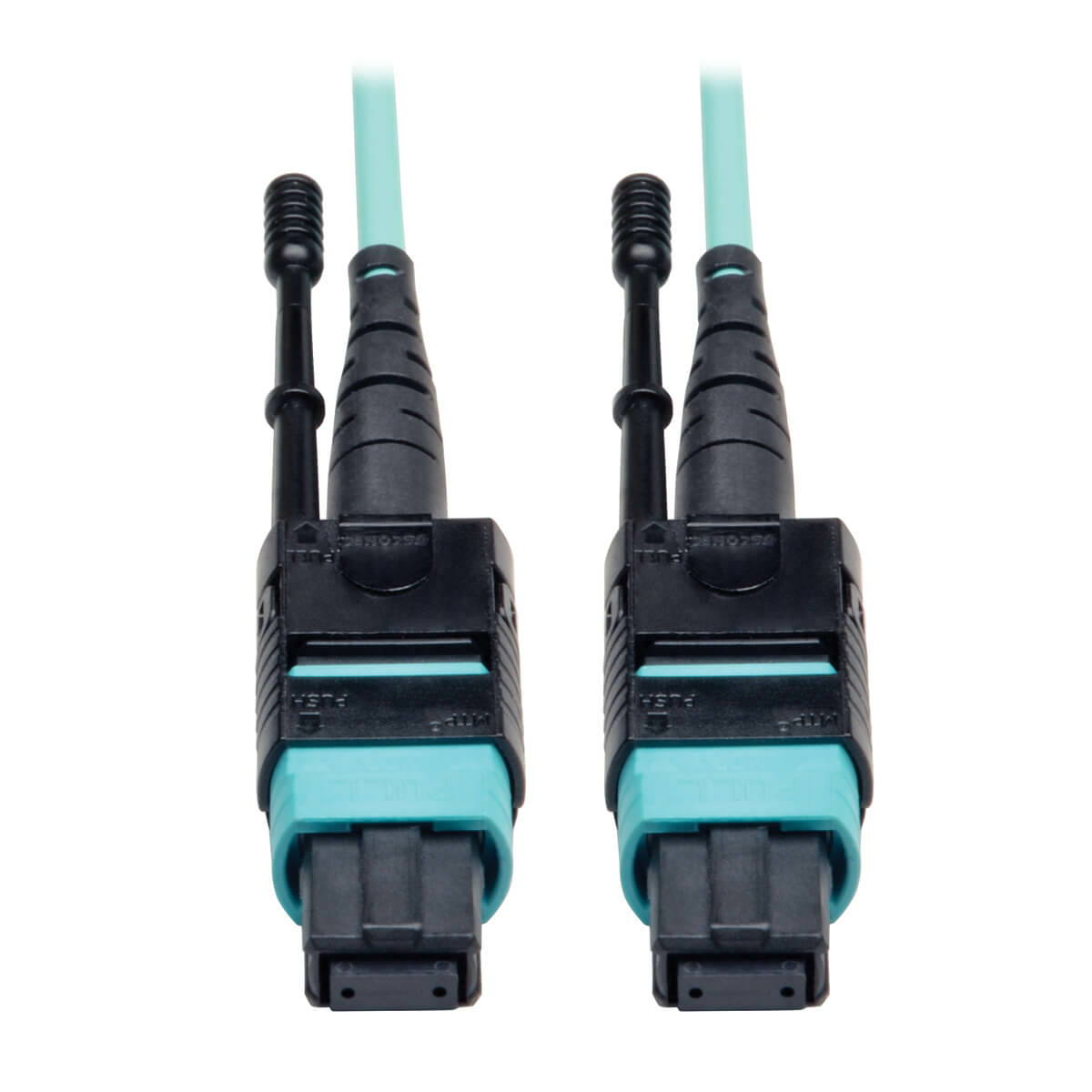

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections

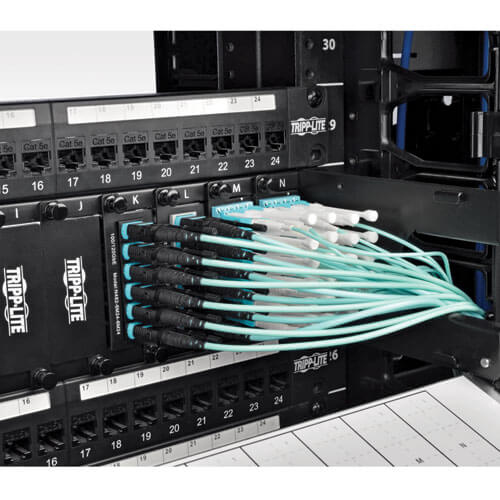

Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
12 times the density of SC style connectors
High Density design cuts down on installation costs
50/125 OM3 Rated Multimode Fiber, 850nm
Plenum rated jacket
Unique cable ID label for Quality Control and Traceability
Each cable 100% tested for low insertion loss and back reflection
Test data supplied with each cable
Custom lengths available

Specifications

Features
Fibre optic typeOM3
Fiber mode structureMulti-mode
Connector 1MTP
Connector 2MTP
Cable length120.1" (3.05 m)
Core diameter50 µm
Cladding diameter125 µm
Data transfer rate40 Gbit/s
Wavelengths supported850 nm
Product colourBlack, Turquoise
Connector 2 genderMale
Connector 1 genderMale
Country of originChina
Harmonized System (HS) code85447000
Certificates
Compliance certificatesRoHS
Packaging data
Package width9" (228.6 mm)
Package depth0.5" (12.7 mm)
Package height7" (177.8 mm)
Package weight1.41 oz (40 g)
Technical details
Fiber mode structureMulti-mode
Connector 1MTP
Connector 2MTP
Cable length120.1" (3.05 m)
Core diameter50 µm
Cladding diameter125 µm
Master (outer) case GTIN (EAN/UPC)10037332173734
Compliance certificatesRoHS
Data transmission
Data transfer rate40 Gbit/s
Weight & dimensions
Cable length120.1" (3.05 m)
Package width9" (228.6 mm)
Package depth0.5" (12.7 mm)
Package height7" (177.8 mm)
Package weight1.41 oz (40 g)
Logistics data
Master (outer) case width5.9" (149.9 mm)
Master (outer) case length4" (101.6 mm)
Master (outer) case height7.3" (185.4 mm)
Master (outer) case gross weight15.5 oz (440 g)
Products per master (outer) case10 pc(s)
Country of originChina
Harmonized System (HS) code85447000
Master (outer) case GTIN (EAN/UPC)10037332173734
