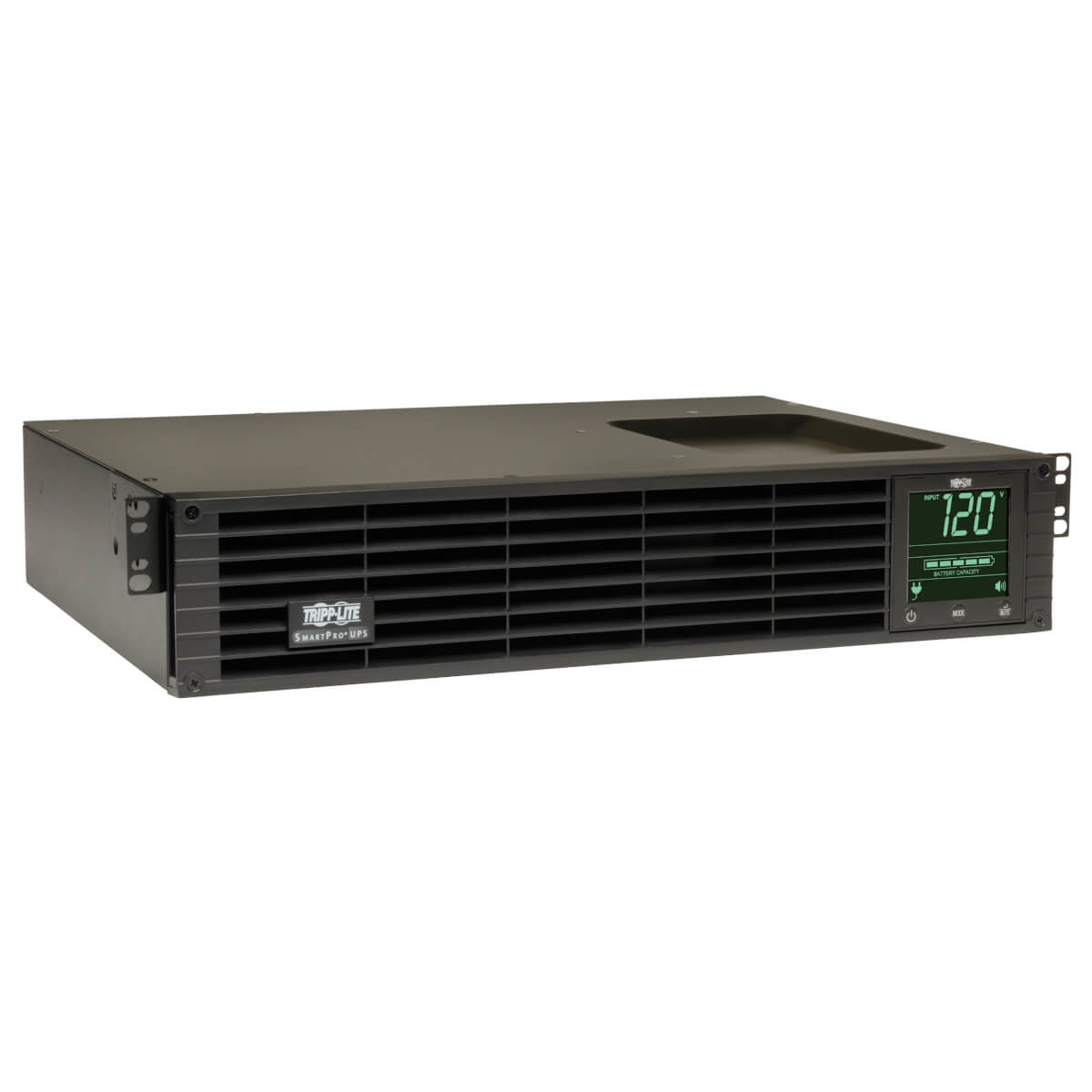

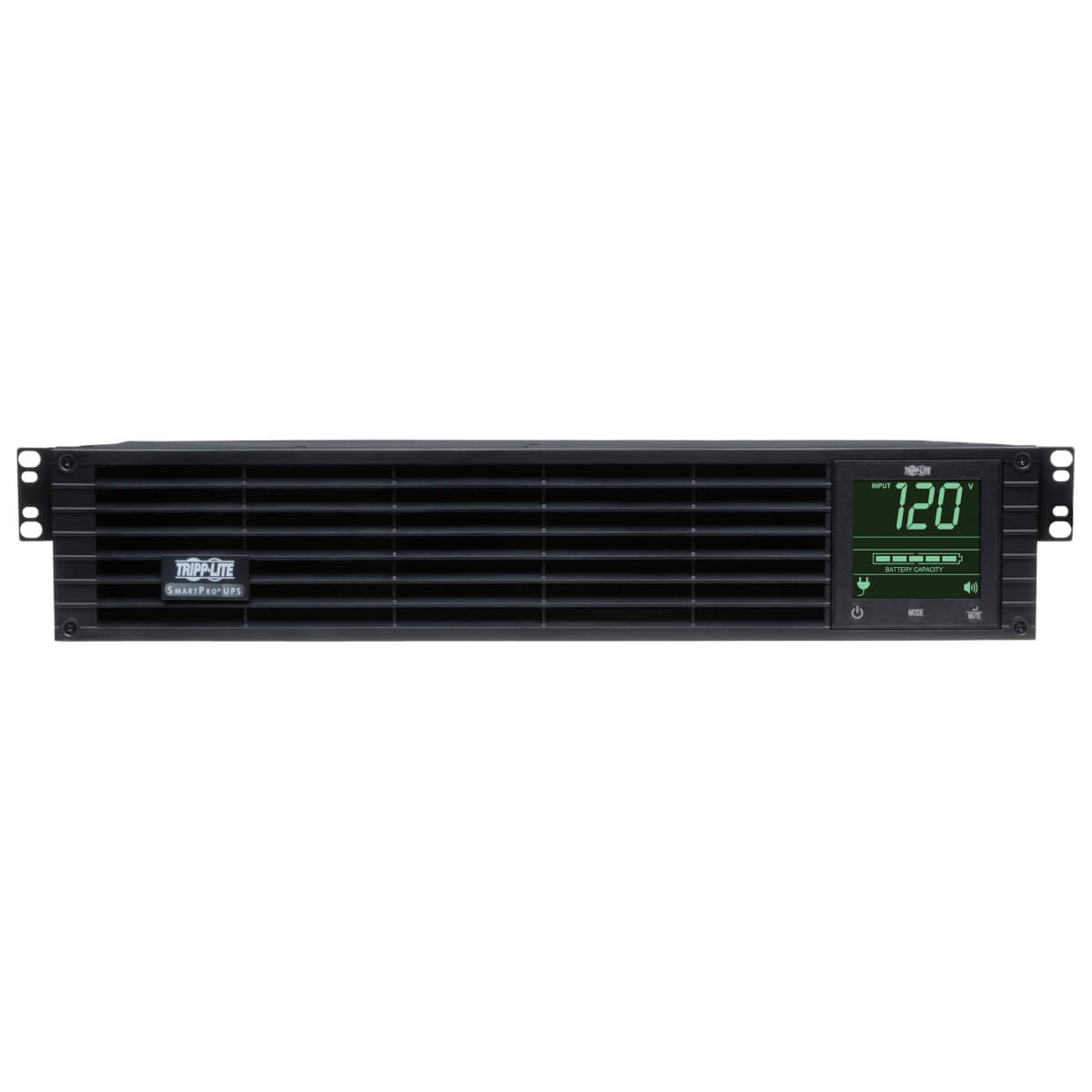

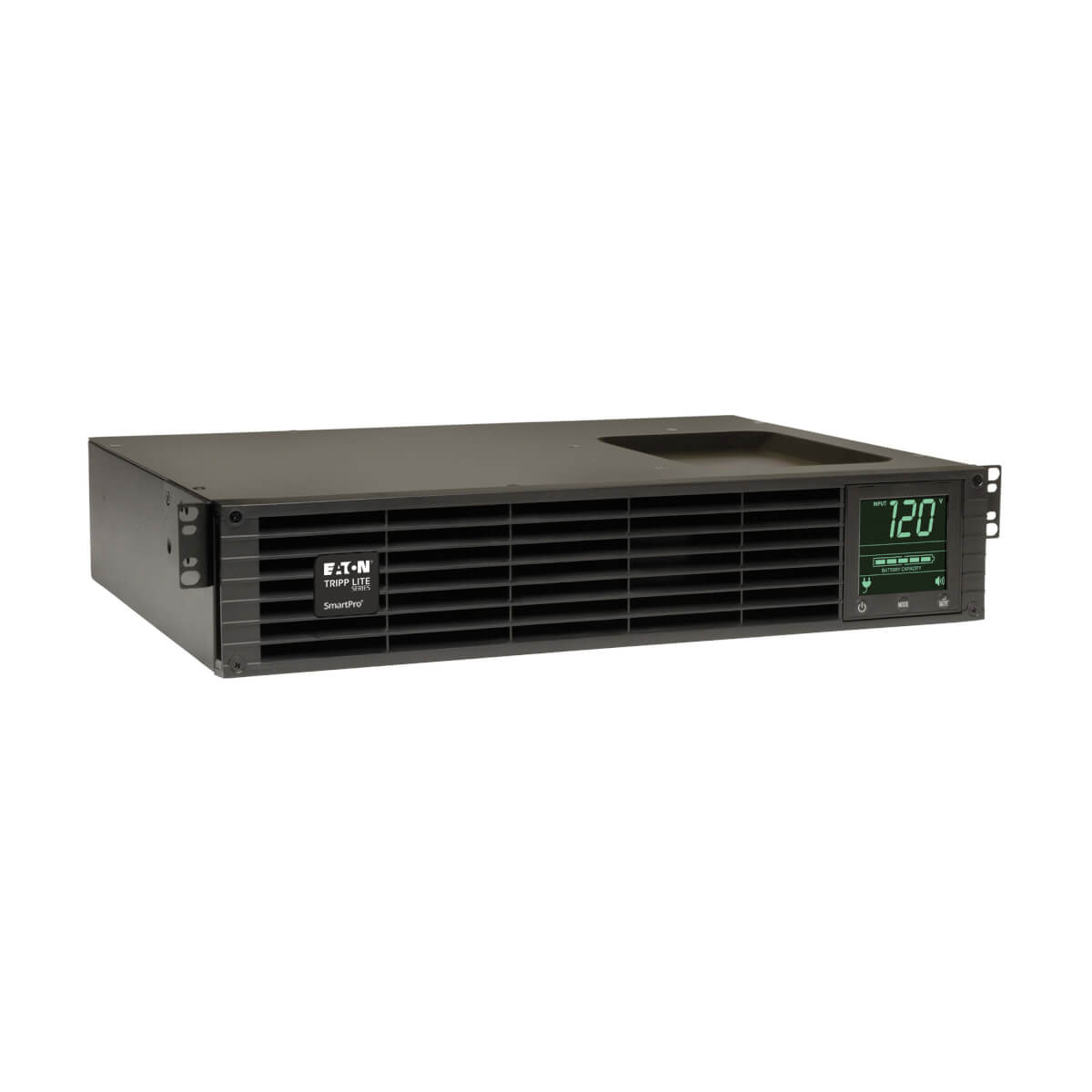

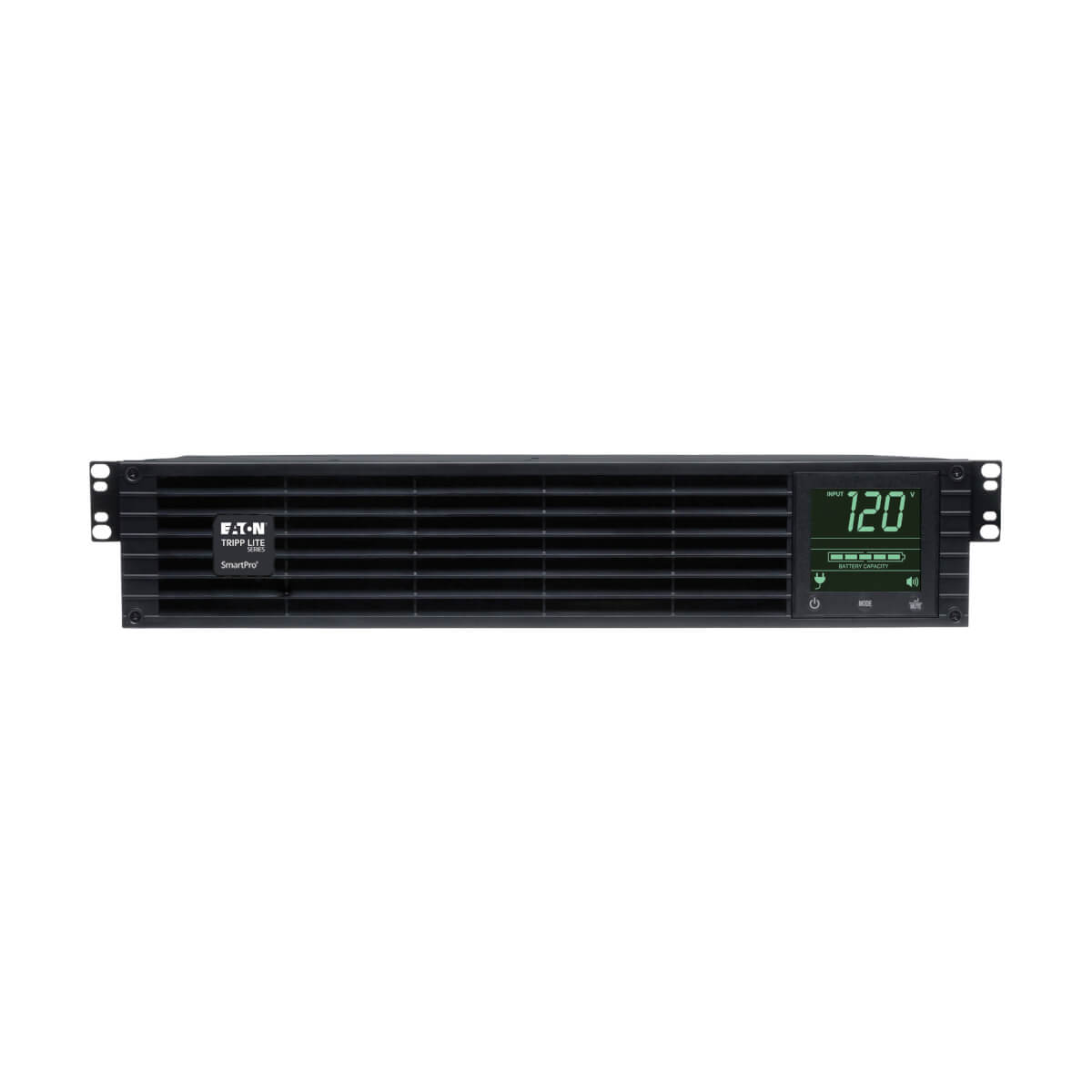

Tripp Lite SM1500RMXL2UTAA uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1000 W 8 AC outlet(s)
- Brand: Tripp Lite
- Category:
- SKU: SM1500RMXL2UTAA
- EAN: 0373321528318 0072858934240 06 ...8934240 0662919005677more
TAA Compliant SmartPro Expandable Rack/Tower UPS System
Offer details
Trade Prices
Description

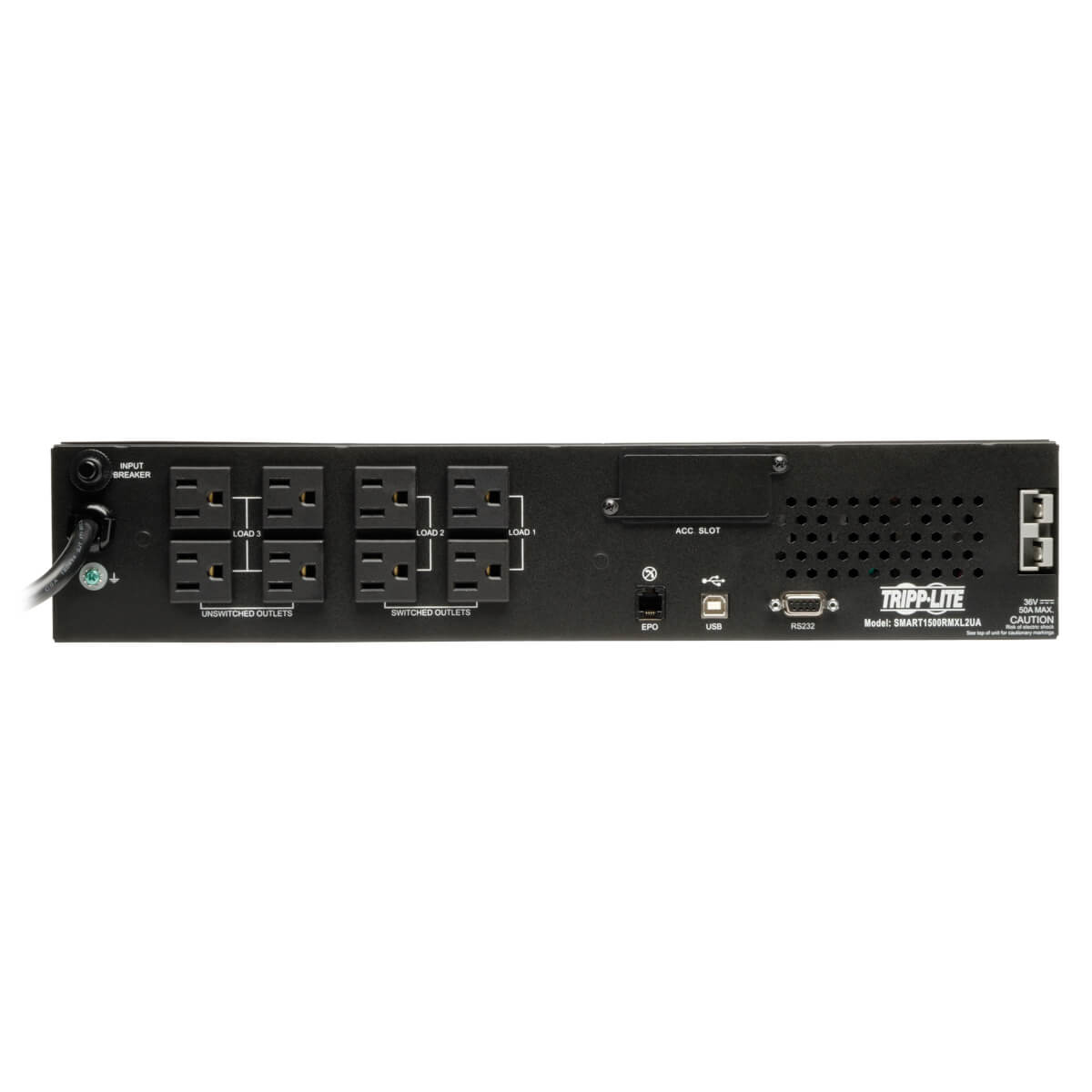

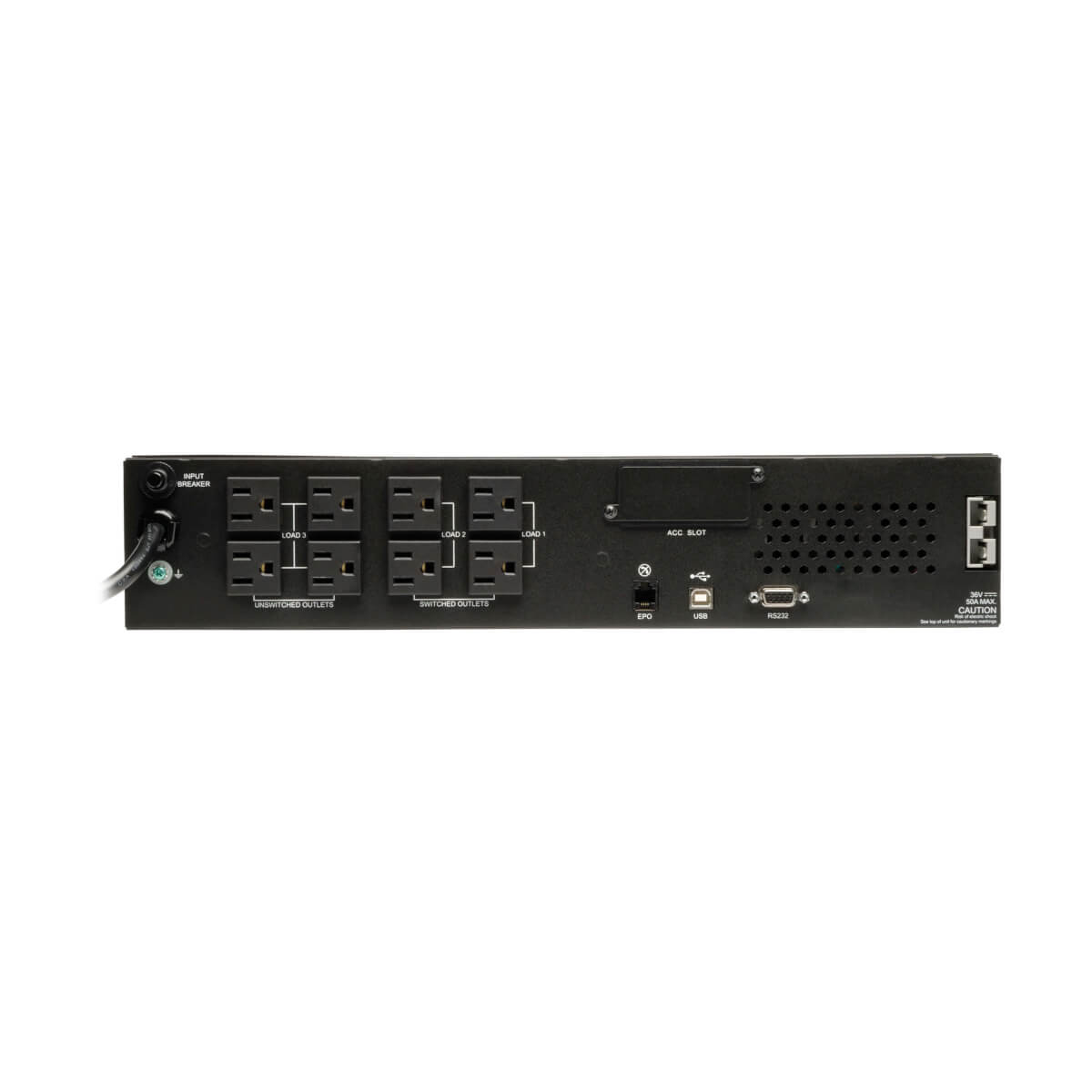

Tripp Lite's SM1500RMXL2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This intelligent, line interactive rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (2U) in a standard rack enclosure. Large internal batteries offer 21 minutes half load runtime and 7.5 minutes at full load. Runtime is expandable with optional BP36V15-2U external battery pack (limit 1) or BP36V42-3U (multi-pack compatible). Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 75 to 147V. 1500VA / 1000 watt power handling capability supports a variety of networking, telecom and other sensitive electronic applications. Includes a total of 8 outlets with 3 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).
Specifications
| Power | |
|---|---|
| Output power | 1000 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 147 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 480 J |
| Maximum current | 15 A |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 1.5 kVA |
| Input frequency | 60 Hz |
| Ports & interfaces | |

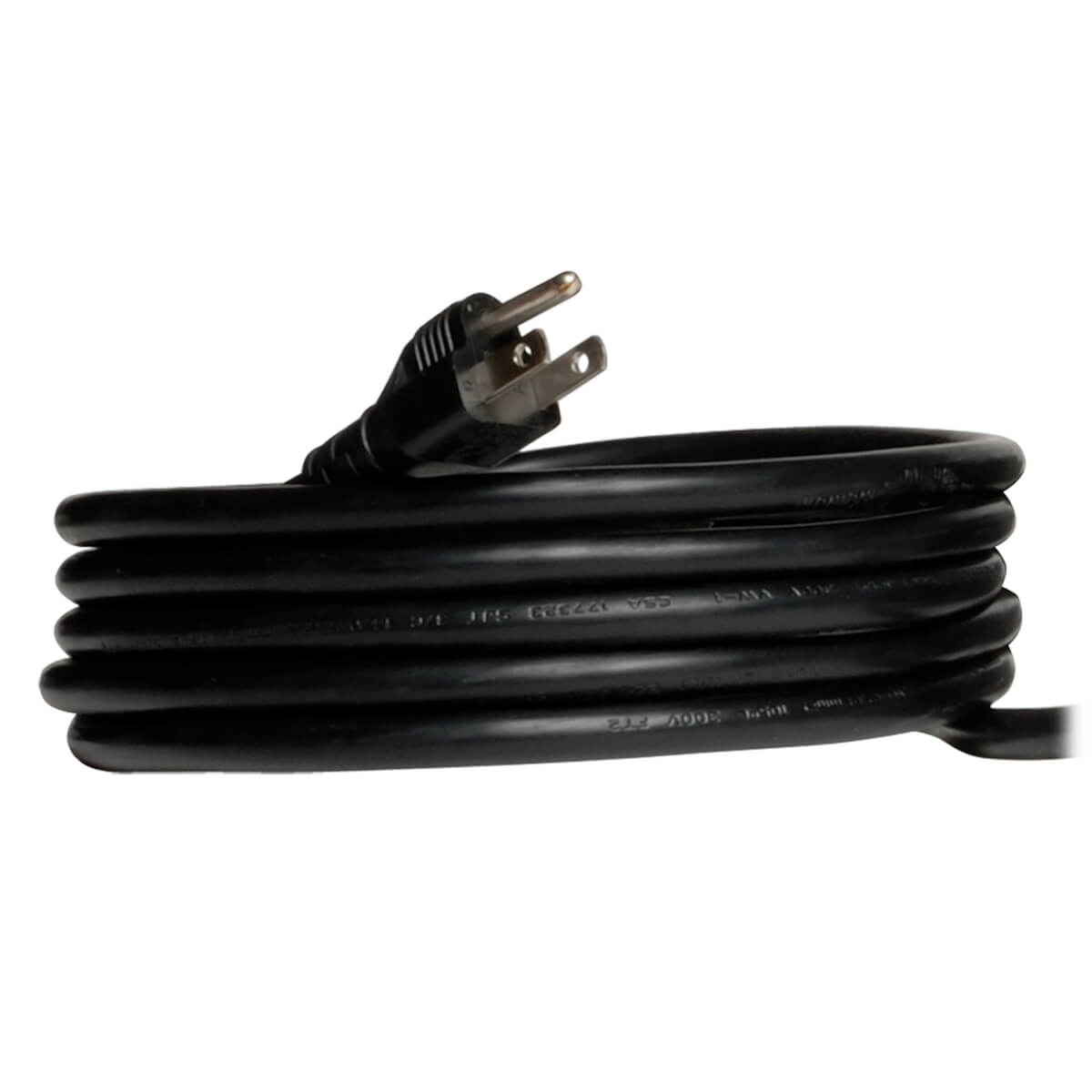

| Cable length | 118.1" (3 m) |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| LED indicators | Yes |
| Power protection features | Over voltage, Under voltage |
| Audible alarm(s) | Yes |
| Features | |
| Country of origin | Taiwan |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output power | 1000 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 147 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 480 J |
| Maximum current | 15 A |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Over voltage, Under voltage |
| Audible alarm(s) | Yes |
| Output power capacity | 1.5 kVA |
| Input frequency | 60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 21 min |
| Typical backup time at full load | 7.5 min |
| Design | |
| Country of origin | Taiwan |
| Rack capacity | 2U |
| Form factor | Rackmount |
| LED indicators | Yes |
| Product colour | Black |
| Certification | UL1778 TAA |
| Cable length | 118.1" (3 m) |
| Housing material | Steel |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | UL1778 TAA |
| Weight & dimensions | |
| Package width | 23" (584.2 mm) |
| Package depth | 19.3" (490.2 mm) |
| Package height | 8.8" (223.5 mm) |
| Weight | 46.5 lbs (21.1 kg) |
| Width | 17.3" (439.4 mm) |
| Package weight | 57.3 lbs (26 kg) |
| Height | 3.45" (87.6 mm) |
| Depth | 13.4" (341.6 mm) |
| Packaging data | |
| Package width | 23" (584.2 mm) |
| Package depth | 19.3" (490.2 mm) |
| Package height | 8.8" (223.5 mm) |
| Package weight | 57.3 lbs (26 kg) |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case width | 23" (584.2 mm) |
| Master (outer) case length | 19.3" (490.2 mm) |
| Master (outer) case height | 8.8" (223.5 mm) |
| Master (outer) case gross weight | 57.3 lbs (26 kg) |
| Other features | |
| Interface | USB; DB9 |
| Nominal output voltage | 120 V |
| Nominal input voltage | 120 V |
