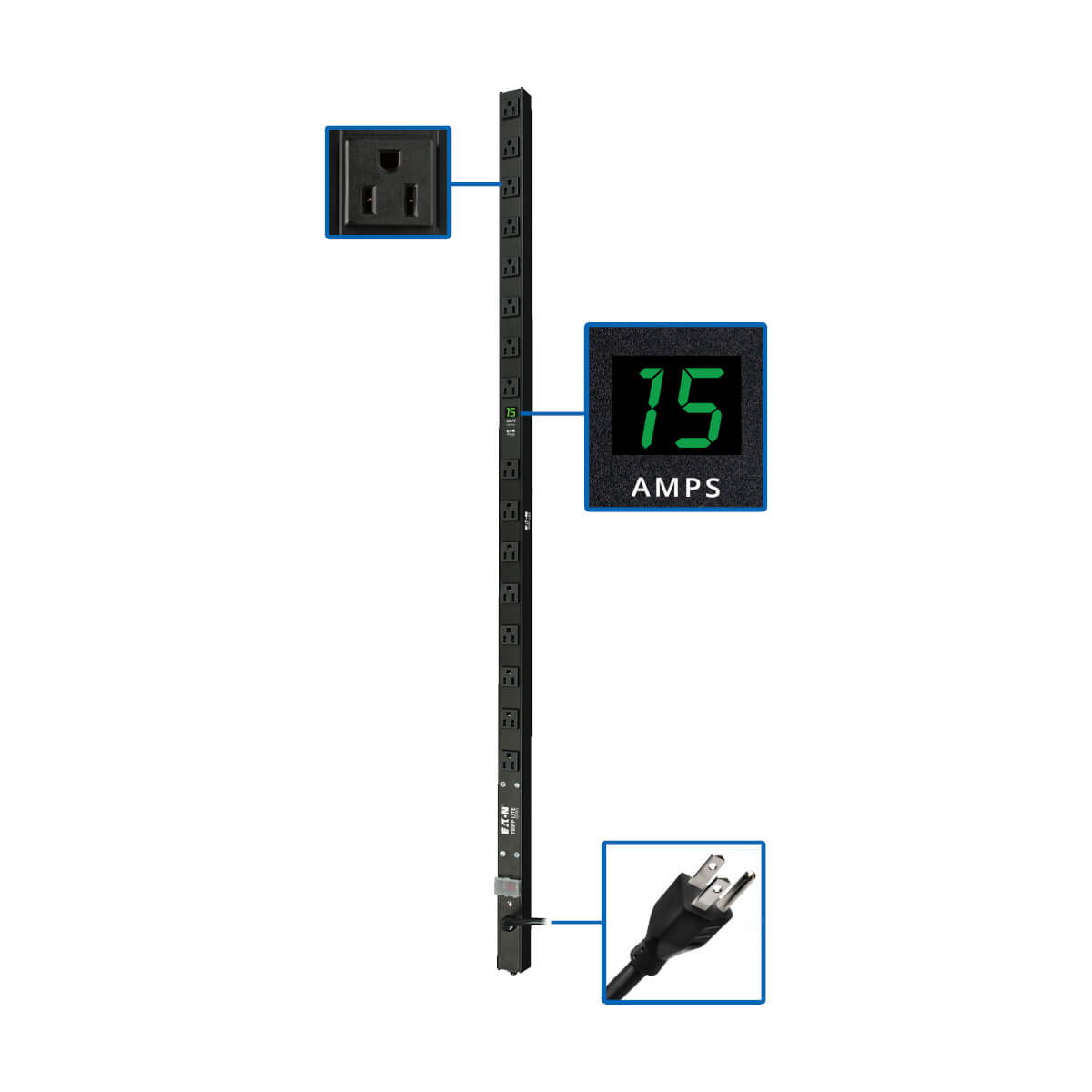

Tripp Lite PDUMV15 power distribution unit (PDU) 16 AC outlet(s) 0U White

Tripp Lite PDUMV15 power distribution unit (PDU) 16 AC outlet(s) 0U White

1.4kW Single-Phase Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15ft Cord, 0U Vertical, 51.5 in.

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

0U VERTICAL PDU15A, 16-OUTLETS, DIGITAL METER

 345204 Register free see stock

Related Products

Description

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 15A single phase 120V Metered Power Distribution Unit / PDU (Agency de-rated to 12A continuous)
- Two-digit lighted meter reports combined total output current in amps

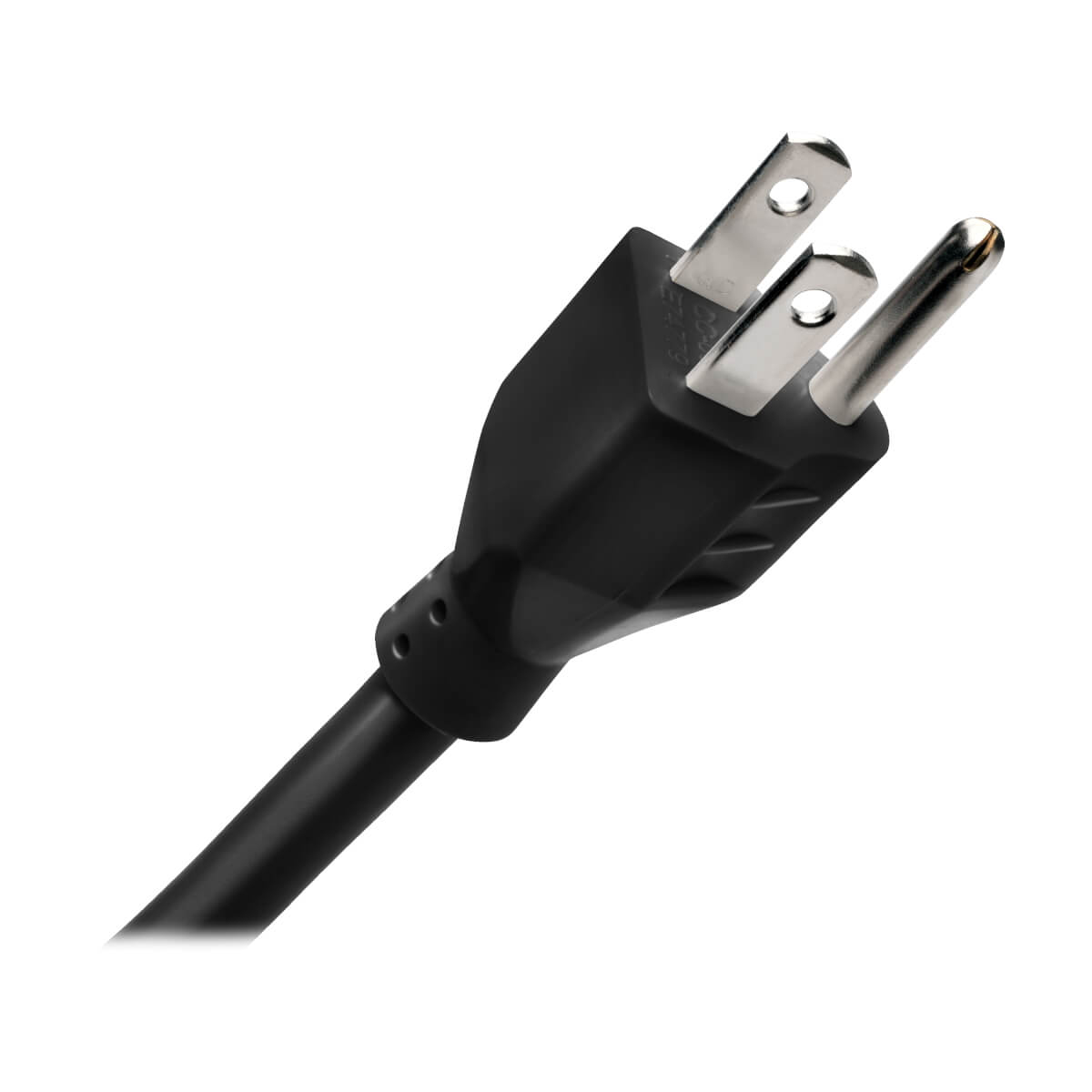

- Attached NEMA 5-15P 15A 120V input plug with 15ft / 4.5m line cord
- 0U 48in / 122cm vertical rackmount format installs using no rack spaces

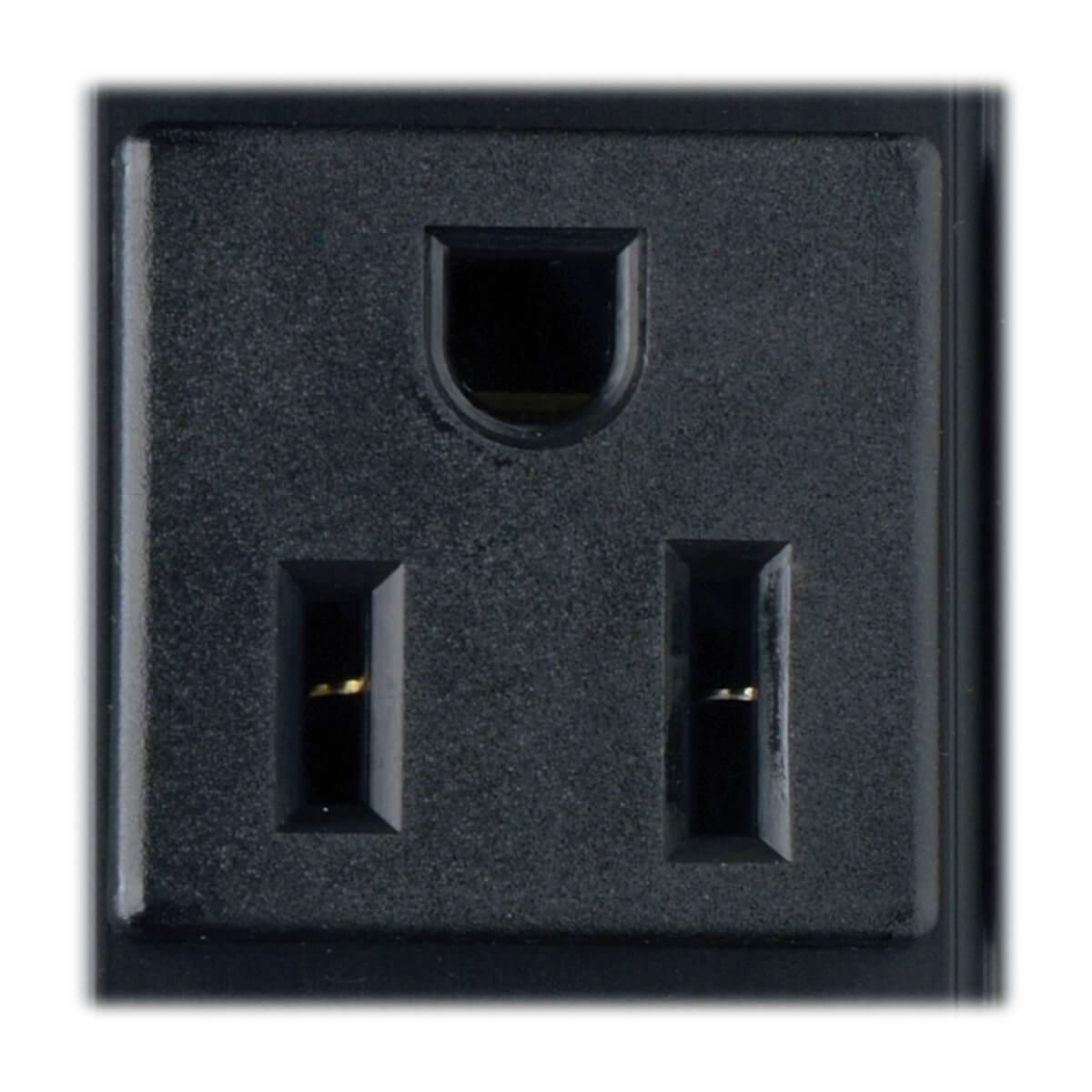

- 16 NEMA 5-15R outlets
- Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
- Toolless installation supported in button-mount compatible equipment racks

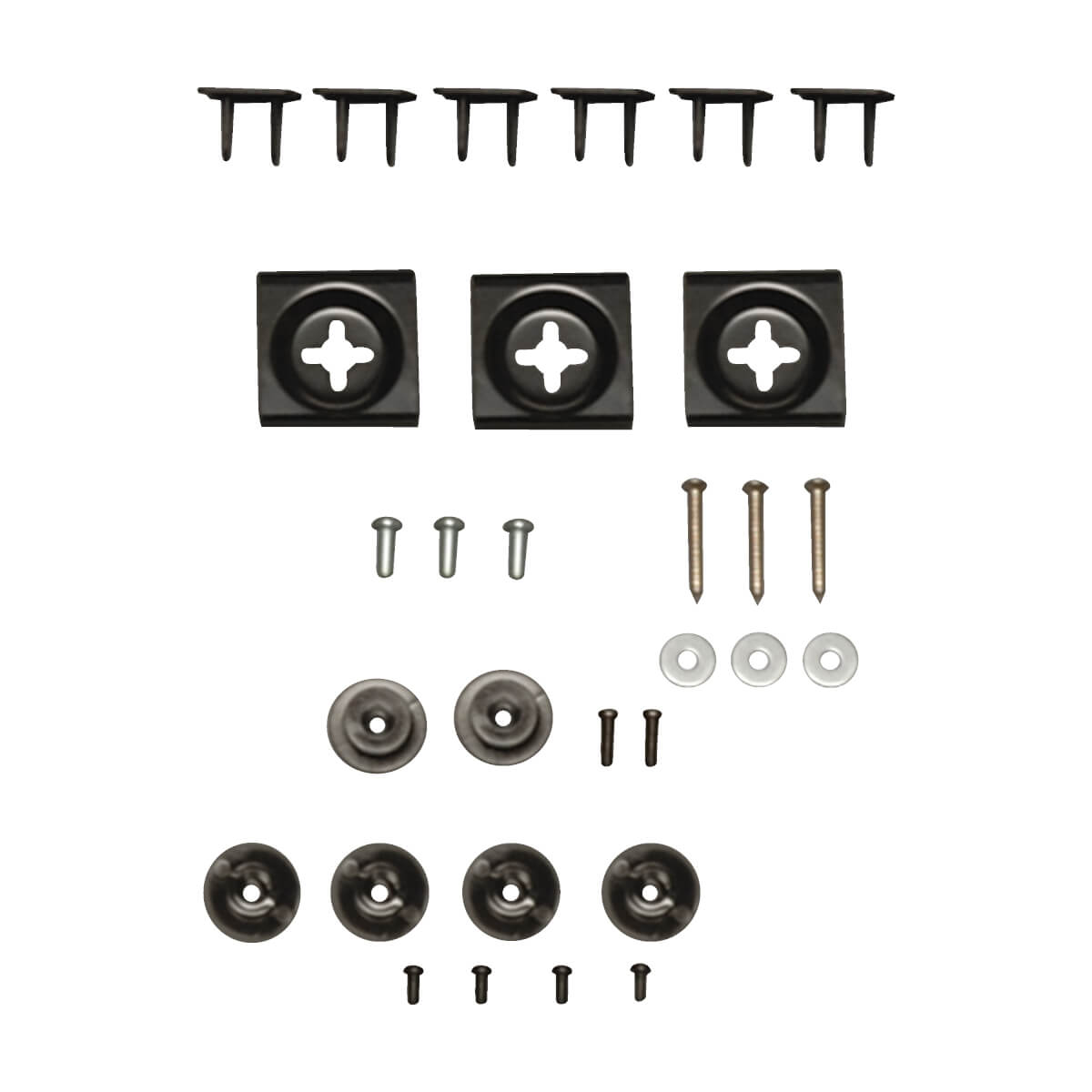

- Bolt-down installation brackets support installation in other racks and additional surfaces

Specifications

Design
PDU typesMetered
MountingVertical
Product colourWhite
CertificationUL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
Rack capacity0U
Housing materialMetal
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5–15P
Features
Cable length181.1" (4.6 m)
CertificationUL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
Ergonomics
Cable length181.1" (4.6 m)
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current15 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada)
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight3.75 lbs (1.7 kg)
Weight (imperial)3.8 lbs
Width48" (1219.2 mm)
Depth1.5" (38.1 mm)
Height3" (76.2 mm)
Package width3.43" (87.1 mm)
Package depth2.4" (61 mm)
Package height51.8" (1315 mm)
Package weight4.43 lbs (2.01 kg)
Packaging data
Package width3.43" (87.1 mm)
Package depth2.4" (61 mm)
Package height51.8" (1315 mm)
Package weight4.43 lbs (2.01 kg)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332132533
Compliance certificatesRoHS
Logistics data
Master (outer) case width7.68" (195.1 mm)
Master (outer) case length52.6" (1335 mm)
Master (outer) case height8.46" (214.9 mm)
Master (outer) case gross weight28.2 lbs (12.8 kg)
Products per master (outer) case6 pc(s)
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332132533
