Tripp Lite SMART700HG uninterruptible power supply (UPS) 0.75 kVA 450 W

Tripp Lite SMART700HG uninterruptible power supply (UPS) 0.75 kVA 450 W

Tripp Lite SMART700HG, 0.75 kVA, 450 W, 480 J, 4 ms, 18 min, 42 min

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

700VA/450W TOWER UPS4 OUTLET42MIN HALFLOAD/18MIN FULL LOADHOSPITAL GRADE

 245314 Register free see stock
BlueStar

EATON, SMARTPRO 120V 700VA 450W UL60601-1 MEDICAL-GRADE LINE-INTERACTIVE UPS, EXTENDED RUN, TOWER, FULL ISOLATION, USB, DB9 SERIAL, SAME PART AS SMART700HG

 SMART 700HG

Related Products

Description

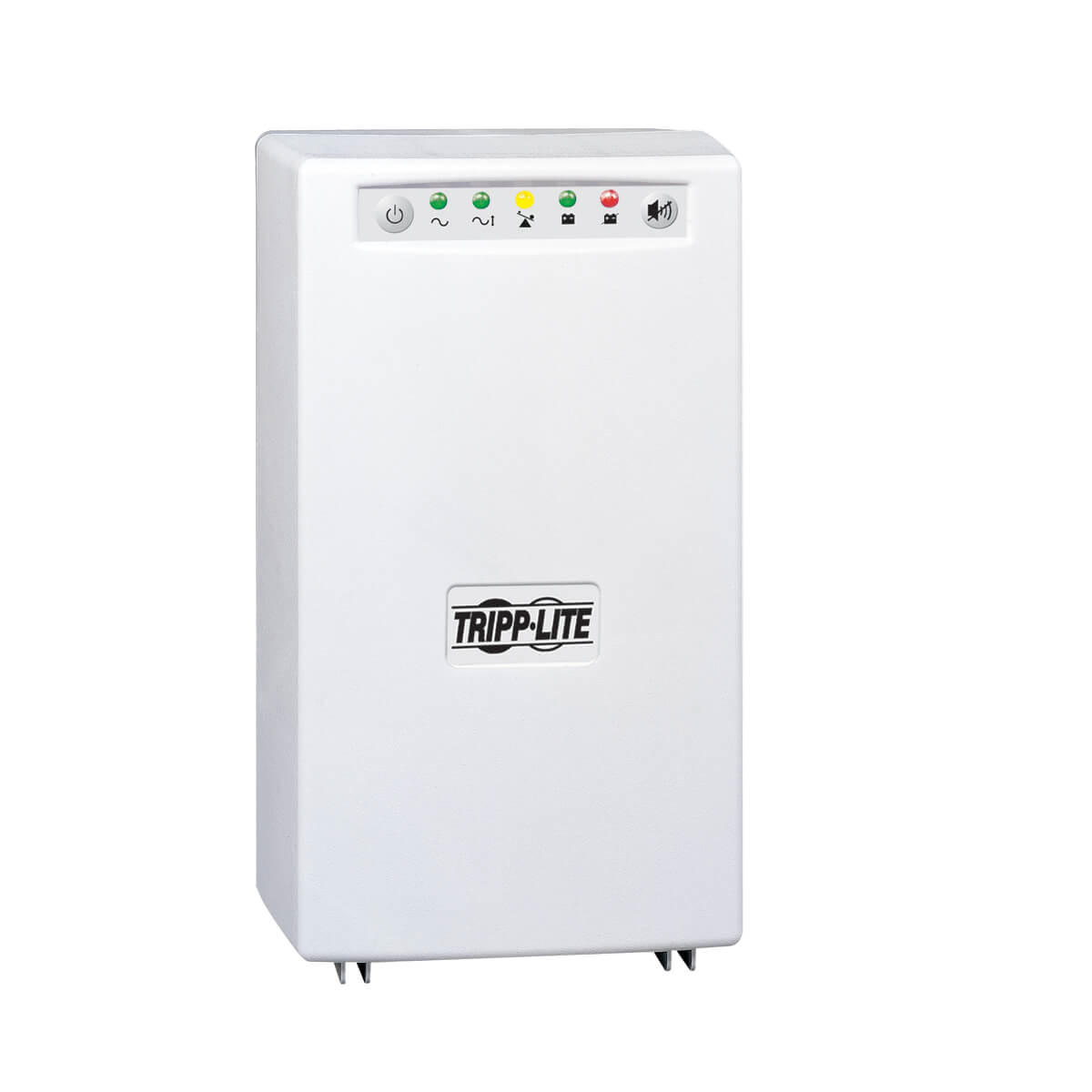

Tripp Lite SMART700HG. Output power capacity: 0.75 kVA, Output power: 450 W, Surge energy rating: 480 J. Typical backup time at full load: 18 min, Typical backup time at half load: 42 min, Battery recharge time: 4 h. Form factor: Tower, Product color: White, Cable length: 70.9" (1.8 m). Certification: CE, GOST, SASO, FCC Part 15 Category A, ROHS. Width: 7.5" (190.5 mm), Depth: 9.5" (241.3 mm), Height: 12.5" (317.5 mm)

Specifications

Power
Output power450 W
Surge energy rating480 J
Output power capacity0.75 kVA
Ports & interfaces
Cable length70.9" (1.8 m)
USB 2.0 ports quantity1
Serial ports quantity1
Performance
Response time4 ms
LED indicatorsYes
Audible alarm(s)Yes
Features
Country of originChina
Response time4 ms
Output power450 W
Surge energy rating480 J
Audible alarm(s)Yes
Output power capacity0.75 kVA
Battery
Battery recharge time4 h
Typical backup time at half load42 min
Typical backup time at full load18 min
Hot-swap batteryYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourWhite
CertificationCE, GOST, SASO, FCC Part 15 Category A, ROHS
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Packaging data
Package dimensions (WxDxH)11.7 x 13.5 x 18.3" (298 x 343 x 464 mm)
Package width11.2" (284.5 mm)
Package depth13" (330.2 mm)
Package height17" (431.8 mm)
Package weight45.4 lbs (20.6 kg)
Certificates
CertificationCE, GOST, SASO, FCC Part 15 Category A, ROHS
Weight & dimensions
Package width11.2" (284.5 mm)
Package depth13" (330.2 mm)
Package height17" (431.8 mm)
Weight44.3 lbs (20.1 kg)
Width7.5" (190.5 mm)
Package weight45.4 lbs (20.6 kg)
Height12.5" (317.5 mm)
Depth9.5" (241.3 mm)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width11.2" (284.5 mm)
Master (outer) case length13" (330.2 mm)
Master (outer) case height17" (431.8 mm)
Master (outer) case gross weight45.4 lbs (20.6 kg)
Other features

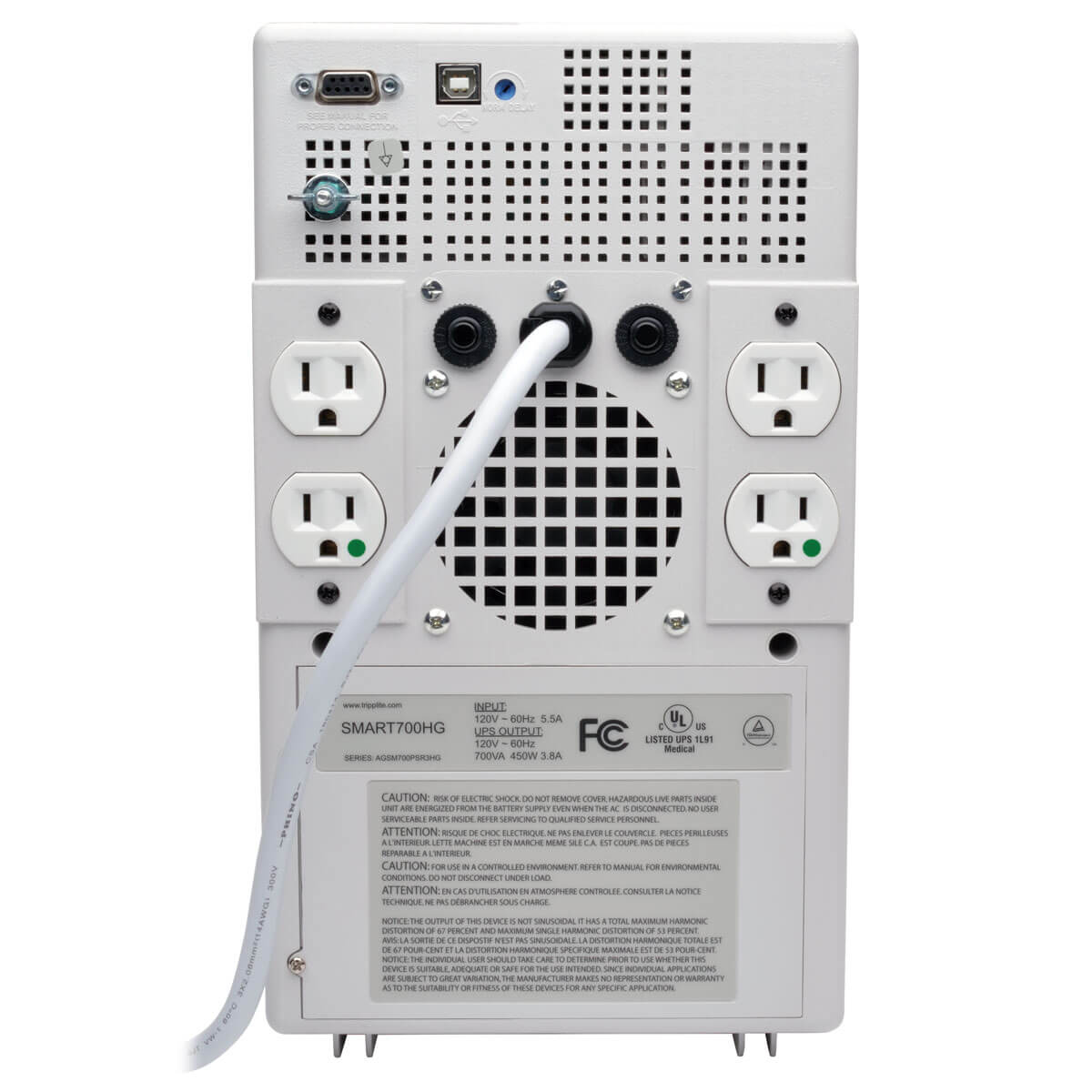

Output connections4 x 5-15R
Input connection type5-15P
Dimensions (WxDxH)7.48 x 9.02 x 12.8" (190 x 229 x 324 mm)
Package dimensions (WxDxH)11.7 x 13.5 x 18.3" (298 x 343 x 464 mm)
Nominal output voltage120 V
Nominal input voltage120 V
