Tripp Lite OMNIVS1500XLTAA uninterruptible power supply (UPS) 1.5 kVA 940 W 8 AC outlet(s)

Tripp Lite OMNIVS1500XLTAA uninterruptible power supply (UPS) 1.5 kVA 940 W 8 AC outlet(s)

TAA Compliant OmniVS UPS System, 1500VA/940W, 4.5-Minute Full Load

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 1500VA 940W UPS BATTERY BACKUP TOWER AVR 120V RJ45 TAA 565287 Register free see stock

Related Products

Description

Tripp Lite's OMNIVS1500XLTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This line interactive UPS system offers voltage regulation, surge suppression and long lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS batteries support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 6 battery supported outlets for computer, monitor and vital system peripherals, plus 2 additional surge suppression only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure (USB cable included). PowerAlert software available via free download from www.tripplite.com. Built-in data line suppression offers protection for equipment with single line TEL/DSL or network Ethernet connection. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and overload. 1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel. Extended runtime available with optional BP24V15RT2U, BP24V28-2U, or BP24V70-3U external battery packs.

Specifications

Power
Output power940 W
Input operation voltage (min)75 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating510 J
Output power capacity1.5 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)

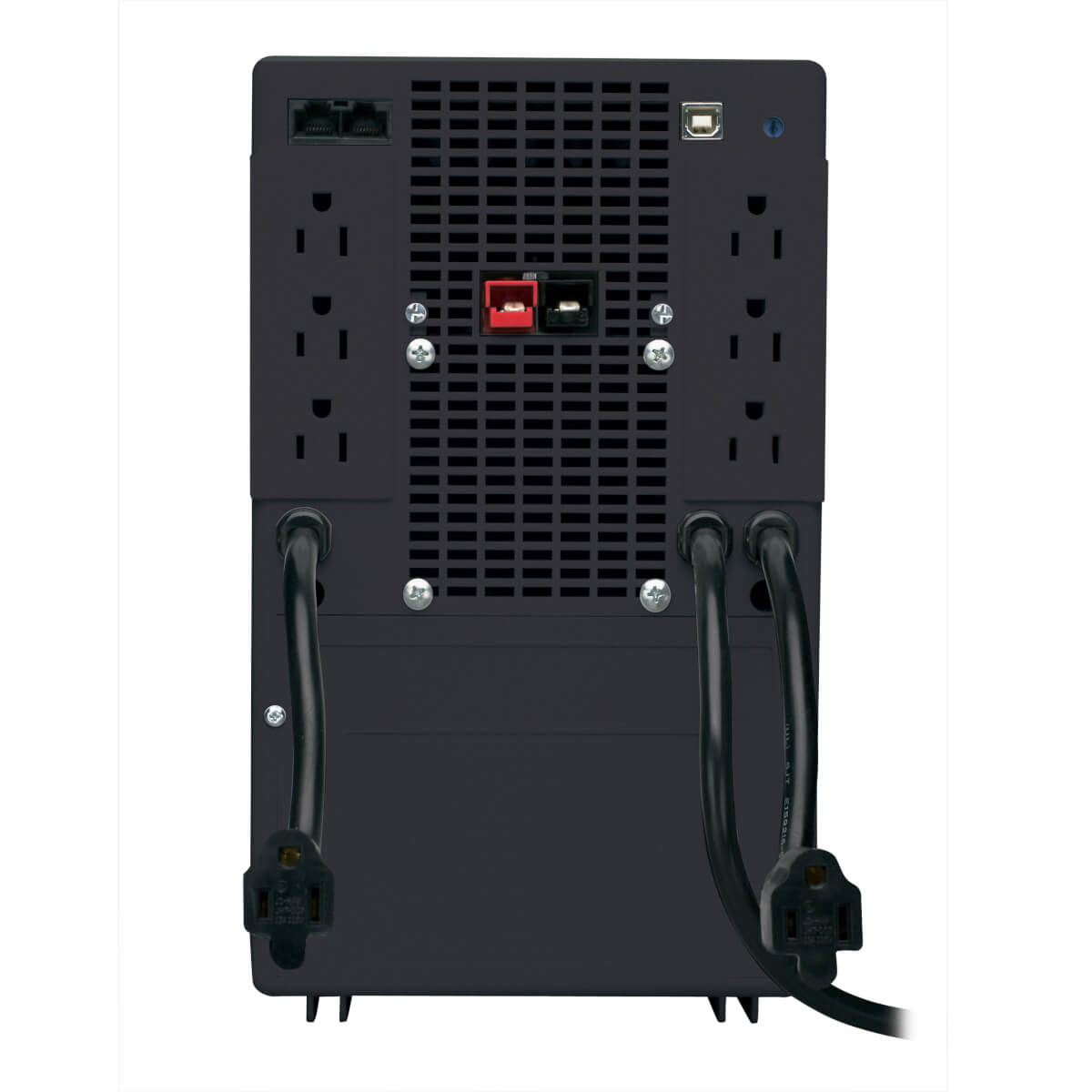

AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Battery
Battery typeRBC51
Typical backup time at half load13 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Performance
LED indicatorsYes
Audible alarm(s)Yes
Features
Country of originTaiwan
Output power940 W
Input operation voltage (min)75 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating510 J
Audible alarm(s)Yes
Output power capacity1.5 kVA
Input frequency50/60 Hz
Design
Country of originTaiwan
Form factorTower
LED indicatorsYes
Product colourBlack
CertificationTAA
Cable length70.9" (1.8 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Package width10.5" (266.7 mm)
Package depth10.6" (269.2 mm)
Package height15.5" (393.7 mm)
Weight28 lbs (12.7 kg)
Width7.25" (184.2 mm)
Package weight31.1 lbs (14.1 kg)
Height11.7" (298.4 mm)
Depth7.5" (190.5 mm)
Packaging data
Package width10.5" (266.7 mm)
Package depth10.6" (269.2 mm)
Package height15.5" (393.7 mm)
Package weight31.1 lbs (14.1 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width10.5" (266.7 mm)
Master (outer) case length10.6" (269.2 mm)
Master (outer) case height15.5" (393.7 mm)
Master (outer) case gross weight31.1 lbs (14.1 kg)
Certificates
CertificationTAA
Other features
InterfaceUSB
Battery typeRBC51
Nominal output voltage120 V
Nominal input voltage120 V
