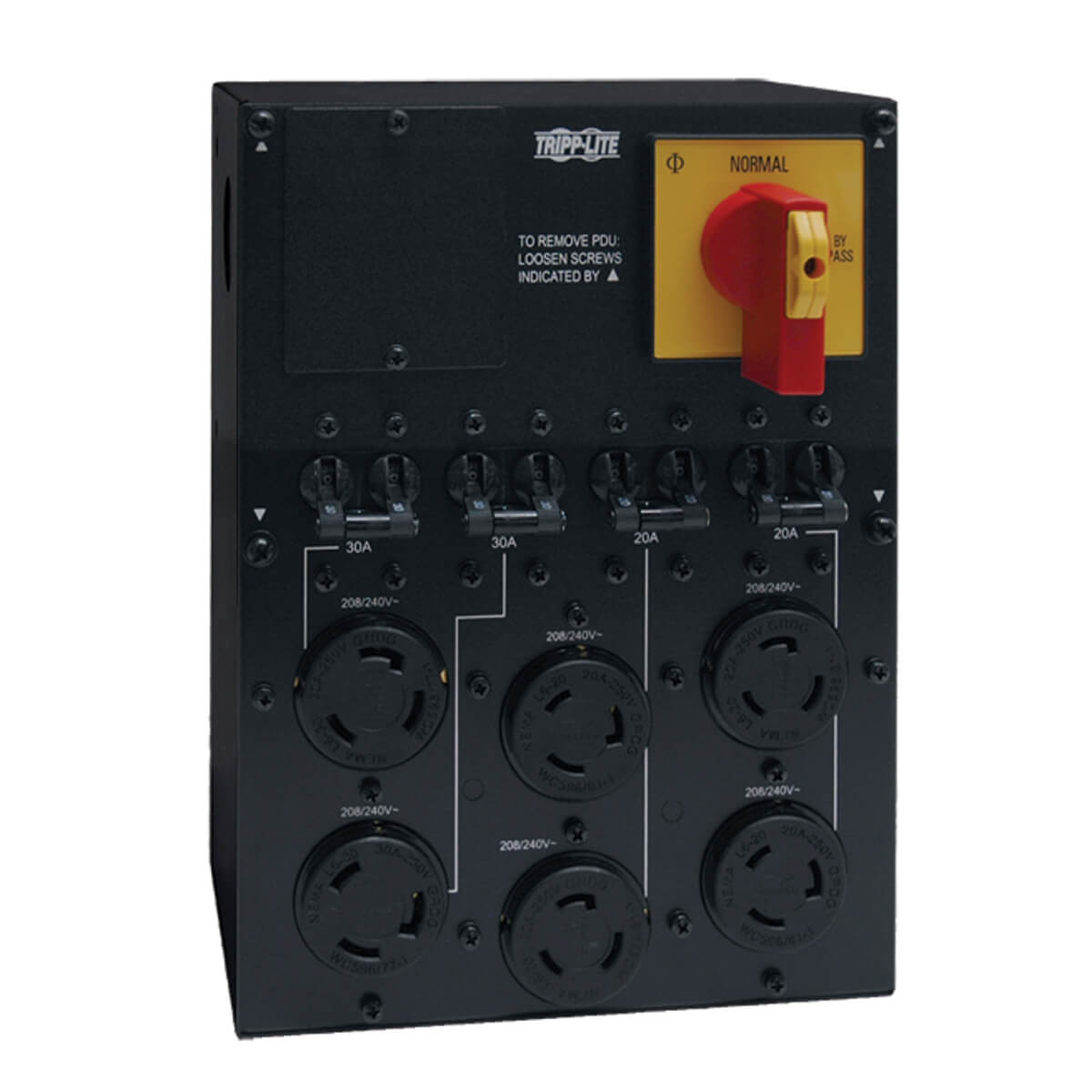

Tripp Lite SUPDMB710 power distribution unit (PDU) 6 AC outlet(s)
- Brand: Tripp Lite
- Category:
- SKU: SUPDMB710
- EAN: 0037332126672
Detachable PDU option for compatible SmartOnline UPS Systems, Hardwired Input/L6-20R and L6-30R
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
, DETACHABLE PDU OPTION FOR COMPATIBLE SMARTONLINE UPS SYSTEMS, HARDWIRED INPUT/L6-20R AND L6-30R | SUPDMB710 |
Related Products
- Power Cables
- Uninterruptible Power Supplies (UPSs)
- Rack Cabinets
- Voltage Regulators
- Power Supply Transformers
- Power Distribution Units (PDUs)
- Isolation Transformers
- Remote Controls
- UPS Accessories
- UPS Batteries
- Voltage Transformers
- Temperature & Humidity Sensors
-
Category: Power Cables -
Category: Power Cables
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Voltage Regulators
-
Category: Power Distribution Units (PDUs) -
Category: Power Distribution Units (PDUs) -
Category: Power Distribution Units (PDUs)
-
Category: Isolation Transformers -
Category: Isolation Transformers
Description
The SUPDMB710 converts the output of SmartOnline SU8000RT3U and SU10000RT3U power modules to North American L6-20R and L6-30R output connections. Manual bypass feature ensures maximum availability of connected equipment while UPS maintenance occurs. Can accept input voltages of 200-240 VAC. Hardwire input / 2 L6-30R and 4 L6-20R output connections.
- Converts compatible SmartOnline high-voltage UPS systems to provide North American 20 and 30A outputs
- For use with input voltages of 200-240 VAC
- Hardwired input / 2 L6-30R and 4 L6-20R output connections
- Manual bypass feature ensures maximum equipment availability
- Converts compatible SmartOnline high-voltage UPS systems to provide North American 20 and 30A outputs
- For use with input voltages of 200-240 VAC
- Hardwired input / 2 L6-30R and 4 L6-20R output connections
- Manual bypass feature ensures maximum equipment availability
Specifications
| Design | |
|---|---|
| PDU types | Basic |
| Certification | UL1778, CSA |
| Housing material | Metal |
| Ports & interfaces | |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA L6-20R, NEMA L6-30R |
| Input connection type | Hardwire |
| Features | |
| Certification | UL1778, CSA |
| Power | |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 208-240 V |
| Maximum current | 30 A |
| AC input frequency | 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 7.52 x 6.5 x 10.2" (191 x 165 x 260 mm) |
| Weight | 8.75 lbs (3.97 kg) |
| Width | 7.5" (190.5 mm) |
| Depth | 6.5" (165.1 mm) |
| Height | 10.3" (260.4 mm) |
| Package width | 9.4" (238.8 mm) |
| Package depth | 9.4" (238.8 mm) |
| Package height | 13.4" (340.4 mm) |
| Package weight | 10.8 lbs (4.9 kg) |
| Packaging data | |
| Package width | 9.4" (238.8 mm) |
| Package depth | 9.4" (238.8 mm) |
| Package height | 13.4" (340.4 mm) |
| Package weight | 10.8 lbs (4.9 kg) |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 9.5" (241.3 mm) |
| Master (outer) case length | 9.4" (238.8 mm) |
| Master (outer) case height | 13.5" (342.9 mm) |
| Master (outer) case gross weight | 10.7 lbs (4.85 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
