Tripp Lite SUPDMB710HW power distribution unit (PDU) Black
- Brand: Tripp Lite
- Category:
- SKU: SUPDMB710HW
- EAN: 0037332136237
SUPDMB710HW - UPS Accessory - Hardwire PDU Module
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
UPS / PDU MANUAL BYPASSSWITCH HOT SWAP 208V / 240V | 565605 |
Related Products
- Power Cables
- Uninterruptible Power Supplies (UPSs)
- Rack Cabinets
- Voltage Regulators
- Power Supply Transformers
- Power Distribution Units (PDUs)
- Isolation Transformers
- Remote Controls
- Voltage Transformers
- Temperature & Humidity Sensors
-
Category: Power Cables -
Category: Power Cables
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Voltage Regulators
-
Category: Power Distribution Units (PDUs) -
Category: Power Distribution Units (PDUs) -
Category: Power Distribution Units (PDUs)
-
Category: Isolation Transformers -
Category: Isolation Transformers
Description

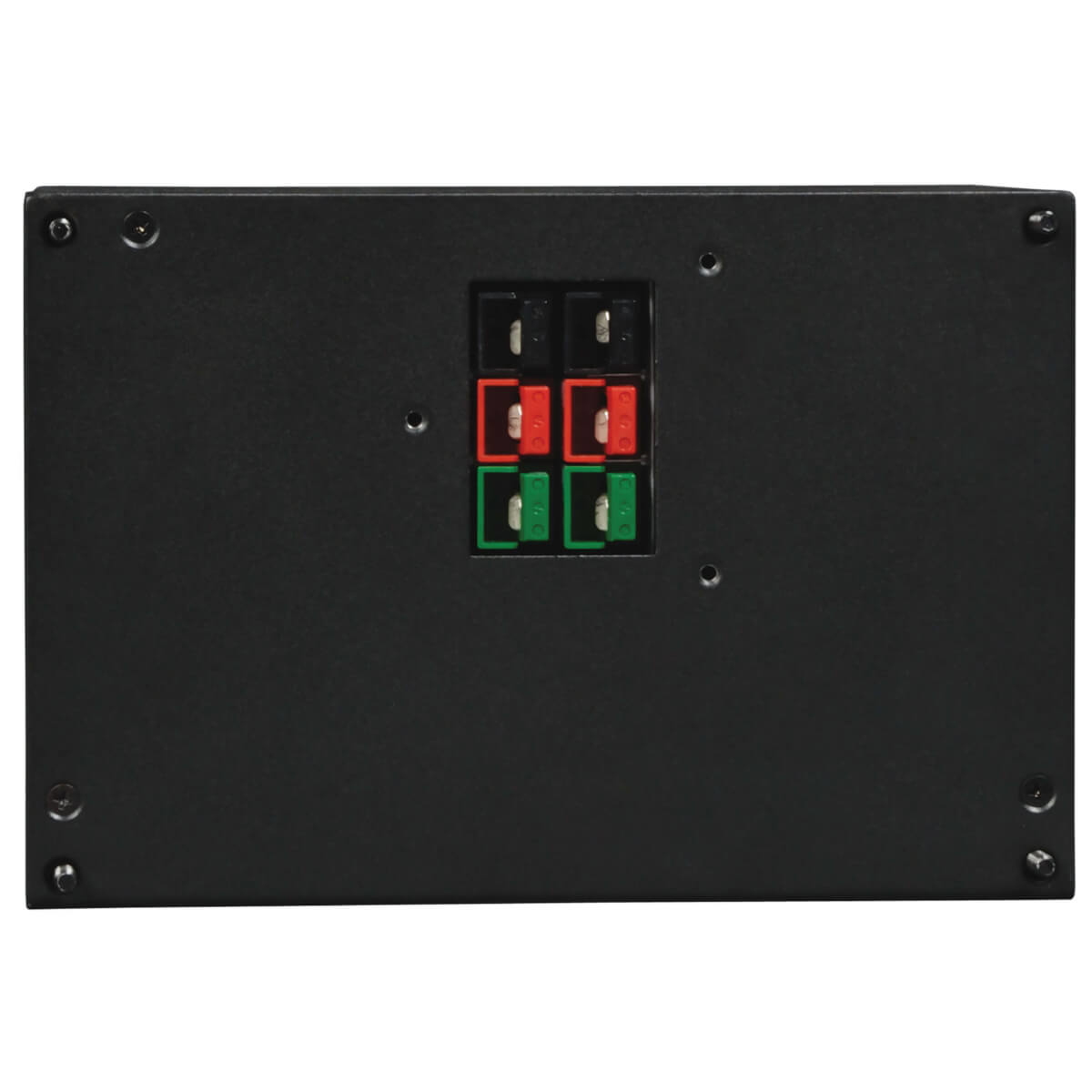

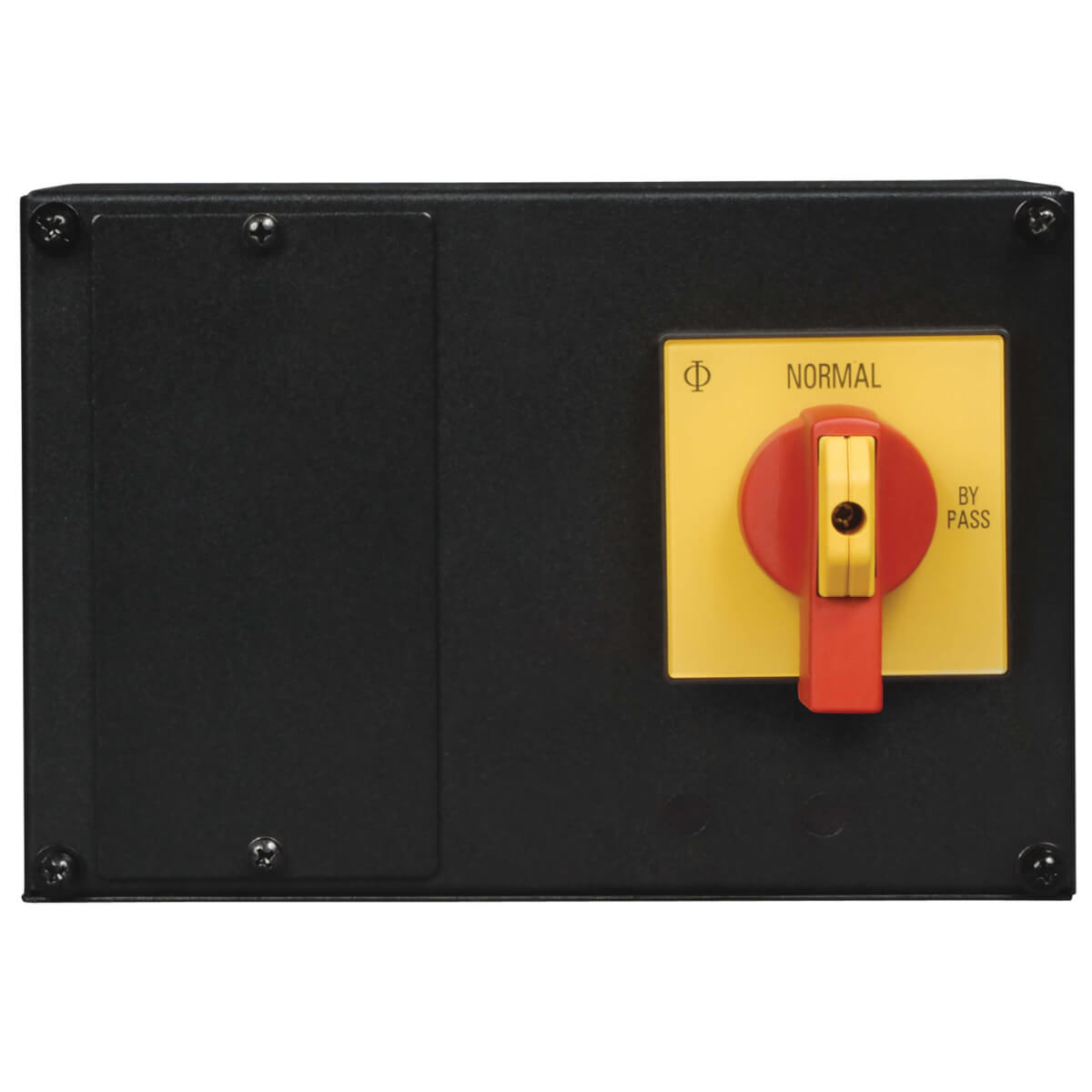

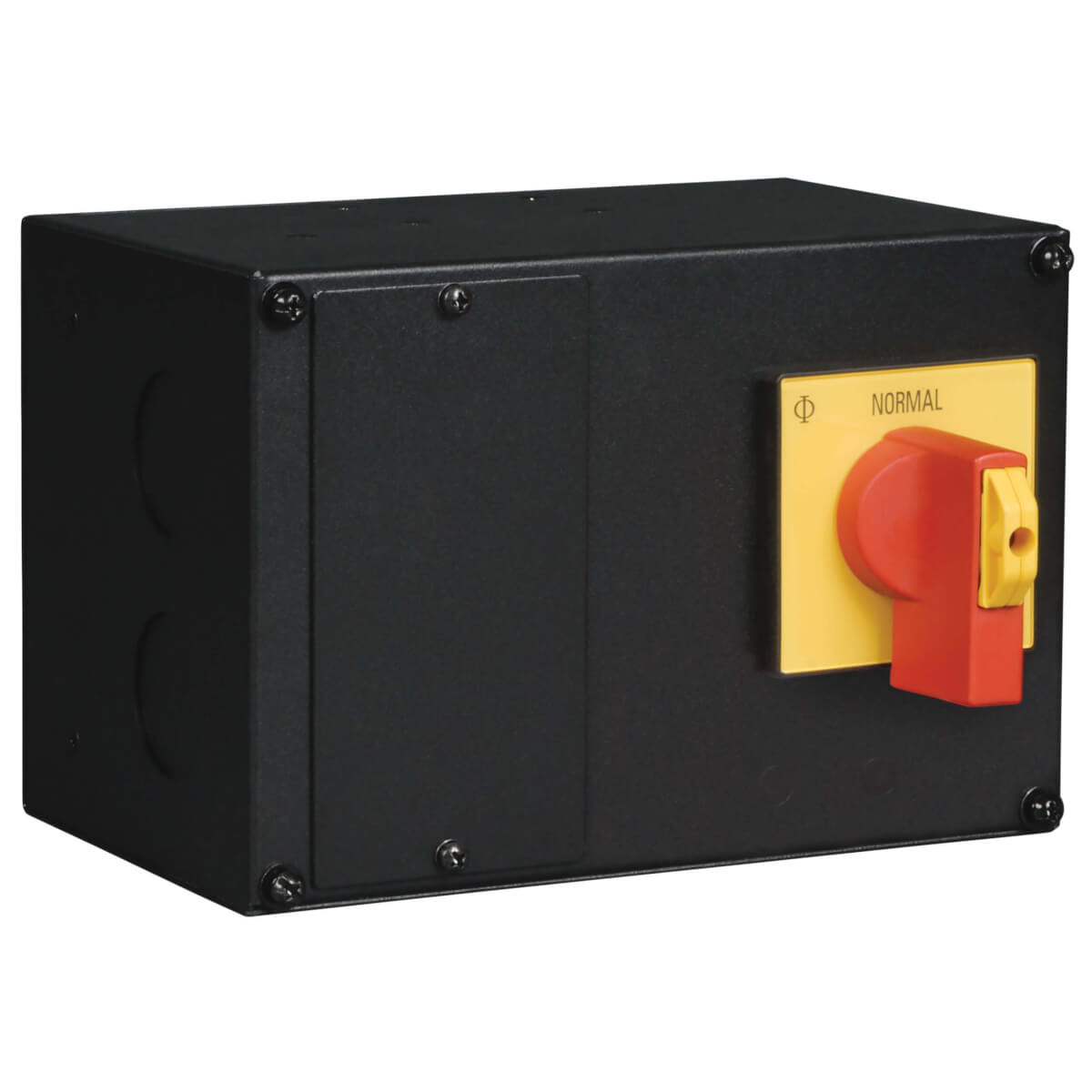

The SUPDMB710HW hardwire input/output PDU module converts compatible SmartOnline Hot-Swappable Modular UPS Systems (models SU10000RT3U and SU8000RT3U) to a totally hardwired solution. Easy quick-connect terminal block allows installation of hardwire distribution module in minutes. Can accept input voltages of 208 or 240 VAC single phase power. Detachable hardwire module with manual bypass switch allows for effortless UPS maintenance without the need to power down connected loads and re-wire input/output connections.
Specifications
| Design | |
|---|---|
| PDU types | Modular |
| Product colour | Black |
| Certification | UL1778, CSA |
| Housing material | Steel |
| Features | |
| Certification | UL1778, CSA |
| Power | |
| Nominal output voltage | 208-240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight | 4.61 lbs (2.09 kg) |
| Width | 7.5" (190.5 mm) |
| Depth | 6.5" (165.1 mm) |
| Height | 5.25" (133.4 mm) |
| Package width | 7.8" (198.1 mm) |
| Package depth | 9.1" (231.1 mm) |
| Package height | 10.6" (269.2 mm) |
| Package weight | 9.81 lbs (4.45 kg) |
| Packaging data | |
| Package width | 7.8" (198.1 mm) |
| Package depth | 9.1" (231.1 mm) |
| Package height | 10.6" (269.2 mm) |
| Package weight | 9.81 lbs (4.45 kg) |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 7.8" (198.1 mm) |
| Master (outer) case length | 9.1" (231.1 mm) |
| Master (outer) case height | 10.6" (269.2 mm) |
| Master (outer) case gross weight | 9.81 lbs (4.45 kg) |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | China |
