Tripp Lite SU6000XFMR2U voltage regulator 13 AC outlet(s) 208-240 V Black
- Brand: Tripp Lite
- Category:
- SKU: SU6000XFMR2U
- EAN: 0037332151612 0086000206819 03 ...0206819 0373321516124more
6kVA / 6kW Stepdown Isolation Transformer - converts 208 or 240V to 120V
Offer details
Trade Prices
Related Products
- Power Cables
- Mounting Kits
- Electrical Boxes
- Rack Accessories
- Uninterruptible Power Supplies (UPSs)
- Rack Cabinets
- Power Supply Transformers
- UPS Accessories
- Warranty & Support Extensions
- Power Distribution Units (PDUs)
- Internal Power Cables
- Isolation Transformers
- UPS Battery Cabinets
- Remote Controls
- Voltage Transformers
- Temperature & Humidity Sensors
Description

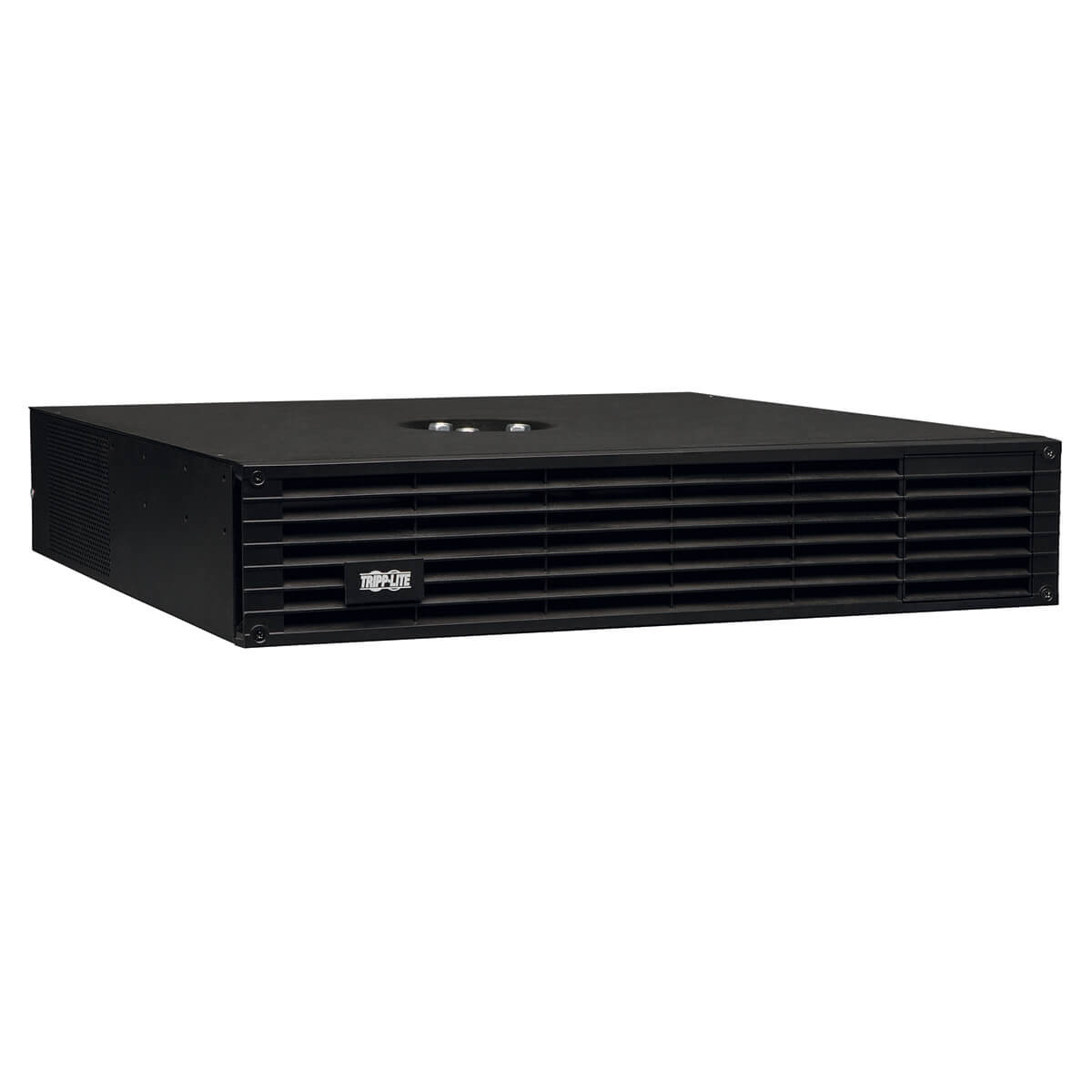

Tripp Lite's SU6000XFMR2U step-down, isolation transformer converts 208 or 240V input from any generator, utility or UPS high voltage source to 120V low voltage output. 208 or 240V 30A input connection supported via hardware or included L6-30P input plug. 8 5-15/20R and 4 5-15R output receptacles accommodate 5-15P and 5-20P equipment plugs. Built-in L6-30R outlet supports one high voltage L6-30P plug. Supports 2U rackmount installation in 4 post racks with included brackets. Supports 2 post rackmount installation with optional 2POSTRMKITWM. Supports upright tower installation with 2-9USTAND.
- Step-down/isolation transformer converts high voltage 208 or 240V input from generator, utility or UPS to low voltage 120V output
- 6kVA / 6,000 watt power handling capacity

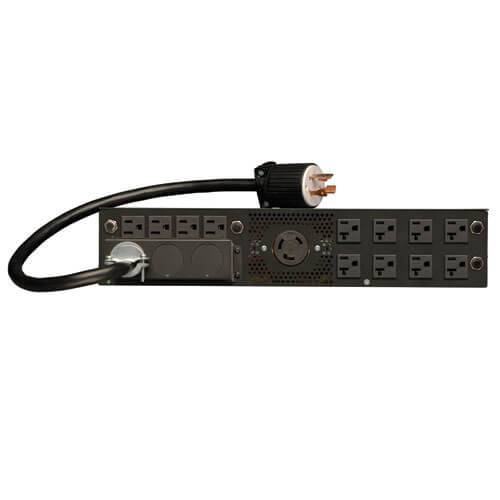

- 12 built-in NEMA 5-15/20R output receptacles accept common 5-15P and 5-20P equipment plugs; built-in L6-30R outlet supports one high voltage L6-30P plug
- Included mounting accessories support 2U installation in 4 post rack enclosures with a max depth requirement of only 27.25 inches
- Optional 2POSTRMKITHD enables 2 post relay-rack installation
- Optional 2-9USTAND accessory enables upright tower installation
- Step-down/isolation transformer converts high voltage 208 or 240V input from generator, utility or UPS to low voltage 120V output
- 6kVA / 6,000 watt power handling capacity
- 12 built-in NEMA 5-15/20R output receptacles accept common 5-15P and 5-20P equipment plugs; built-in L6-30R outlet supports one high voltage L6-30P plug
- Included mounting accessories support 2U installation in 4 post rack enclosures with a max depth requirement of only 27.25 inches
- Optional 2POSTRMKITHD enables 2 post relay-rack installation
- Optional 2-9USTAND accessory enables upright tower installation
Specifications
Inputs | |
---|---|
Nominal input voltage | 208-240 V |
Outputs | |
Output voltage | 120-240 V |
Output power capacity | 6 kVA |
Output power | 6000 W |
Ports & interfaces | |
AC outlets quantity | 13 AC outlet(s) |
AC outlet types | NEMA 5–15P, NEMA 5–15R, NEMA L6-30R |
Technical details | |
Product colour | Black |
Rack mounting | Yes |
Rack capacity | 2U |
Package width | 22" (558.8 mm) |
Package height | 8.8" (223.5 mm) |
Package depth | 27" (685.8 mm) |
Display | |
Built-in display | No |
Weight & dimensions | |
Width | 17.5" (444.5 mm) |
Depth | 21.8" (552.7 mm) |
Height | 3.5" (88.9 mm) |
Weight | 72.5 lbs (32.9 kg) |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Packaging data | |
Package weight | 82.9 lbs (37.6 kg) |
Logistics data | |
Country of origin | China |
Master (outer) case width | 22" (558.8 mm) |
Master (outer) case length | 27" (685.8 mm) |
Master (outer) case height | 8.8" (223.5 mm) |
Master (outer) case gross weight | 82.9 lbs (37.6 kg) |
Products per master (outer) case | 1 pc(s) |
