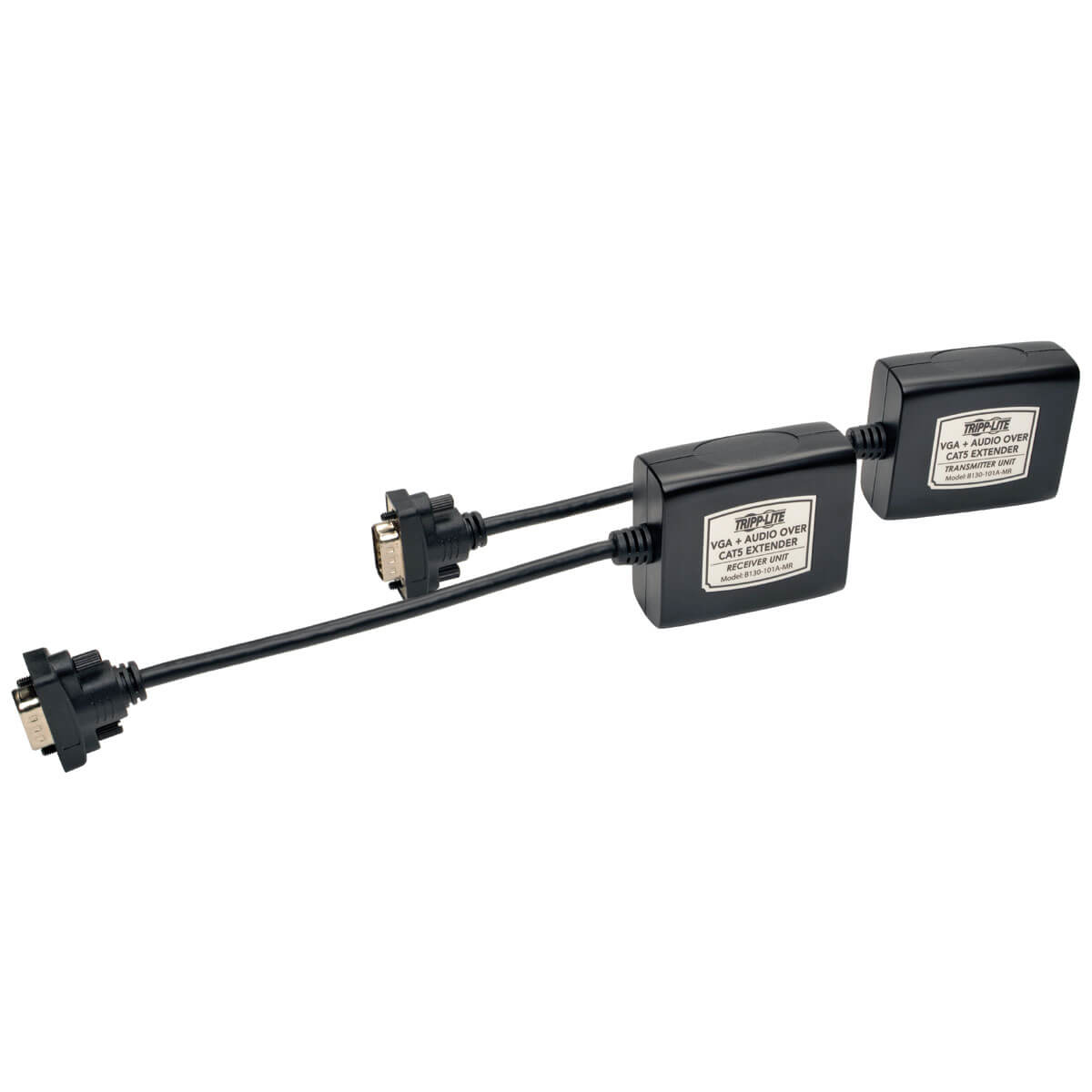

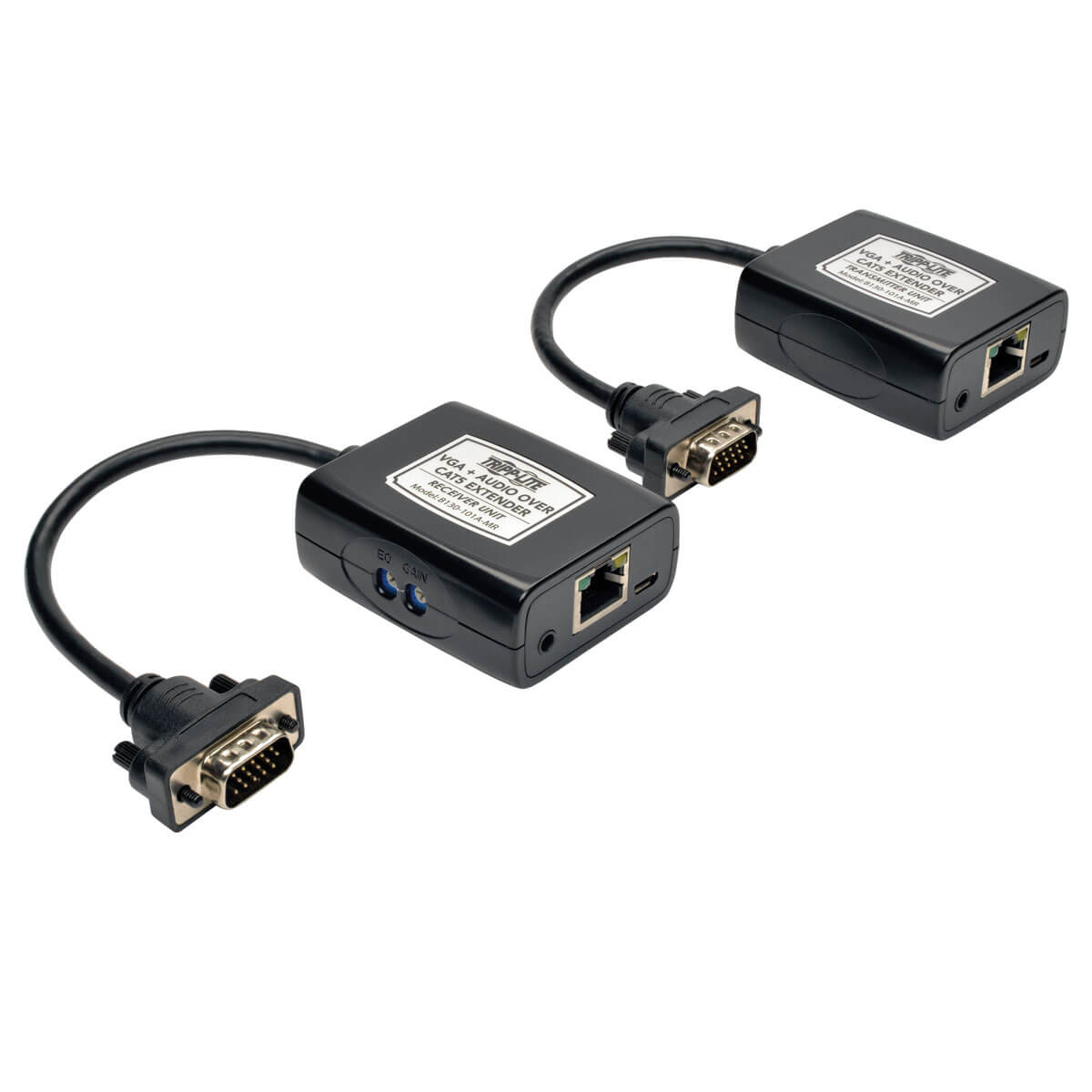

Tripp Lite B130-101A-MR AV extender AV transmitter & receiver Black

Tripp Lite B130-101A-MR AV extender AV transmitter & receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B130-101A-MR
  • EAN: 0037332185525
VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 750 ft. (228.6 m), TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

VGA AUDIO OVER CAT5 EXTENDERTRANSMITTER RECEIVERB130-101A-MR

 812279 Register free see stock

Related Products

Description

Tripp Lite's B130-101A-MR VGA with Audio over Cat5 Extender Kit is a cost effective solution for those who don't need the long range capabilities (up to 1,000-ft. (304.8 m) of Tripp Lite's B130-101A-2. It extends a 1920 x 1080 video and audio signal up to 300-ft. (91.44 m) from the source, or a 1024 x 768 video and audio signal up to 750-ft. (228.6 m). The EDID copy feature stores the monitor's EDID information and sends it to the connected computer, ensuring optimal display compatibility. Power is supplied via the included USB Micro-B cables, with no external power supplies required. Connect the included Micro-B cables between the Transmitter and Receiver, and a USB port on a computer, monitor, or USB wall charger, such as the Tripp Lite U280-W01-QC3. The receiver unit also features equalization and gain controls to adjust the video image. Audio connections are made with standard 3.5mm stereo cables (not included) at both the transmitter and receiver. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Extends a 1920 x 1080 video and audio signal up to 300-ft. (91.44 m), or a 1024 x 768 video and audio signal up to 750-ft. (228.6 m)
24AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite's N202-Series Cat6 cables) is required to achieve maximum distance and resolution
EDID copy feature stores the monitor's EDID information and sends it to the connected computer, ensuring optimal display compatibility
Power is supplied via the included USB Micro-B cables; no external power supplies required
Receiver unit features built-in equalization and gain controls to adjust the video image.
All operating systems supported
Plug and play; no software or drivers required
HDCP and EDID compliant
Ideal for digital signage installations for retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Features
Plug and PlayYes
HDCP & EDID bypassYes
CertificationCE, FCC, REACH
TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance3543.3" (90 m)
Supported video modes480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900
Product colourBlack
Ports & interfaces
3.5 mm (1/8-inch) inYes
USB ports quantity2
USB connector typeMicro-USB B
RJ-45 input ports2

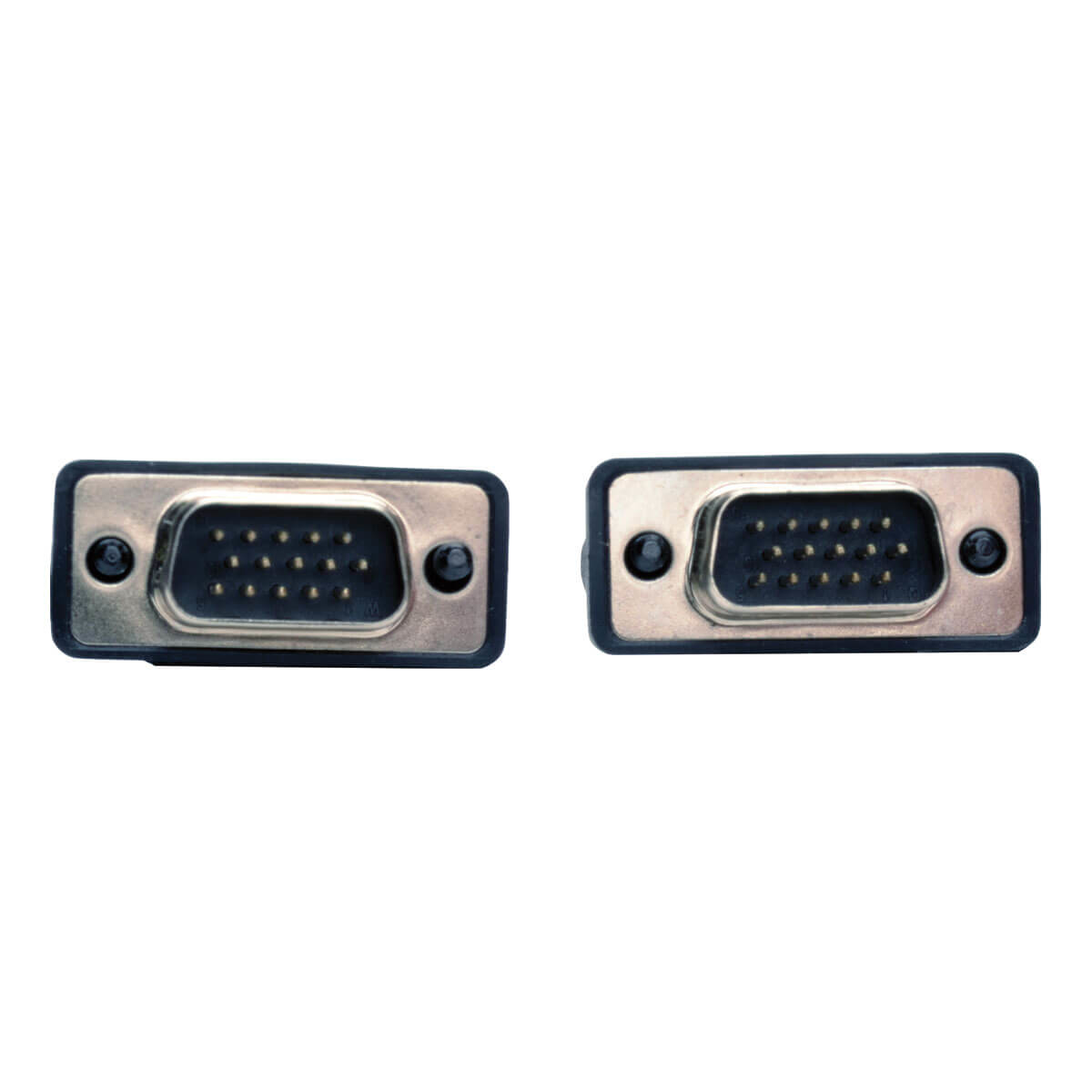

VGA (D-Sub) input ports2
Packaging data
Package depth7.9" (200.7 mm)
Package width5.4" (137.2 mm)
Package height1.8" (45.7 mm)
Package weight9.52 oz (270 g)

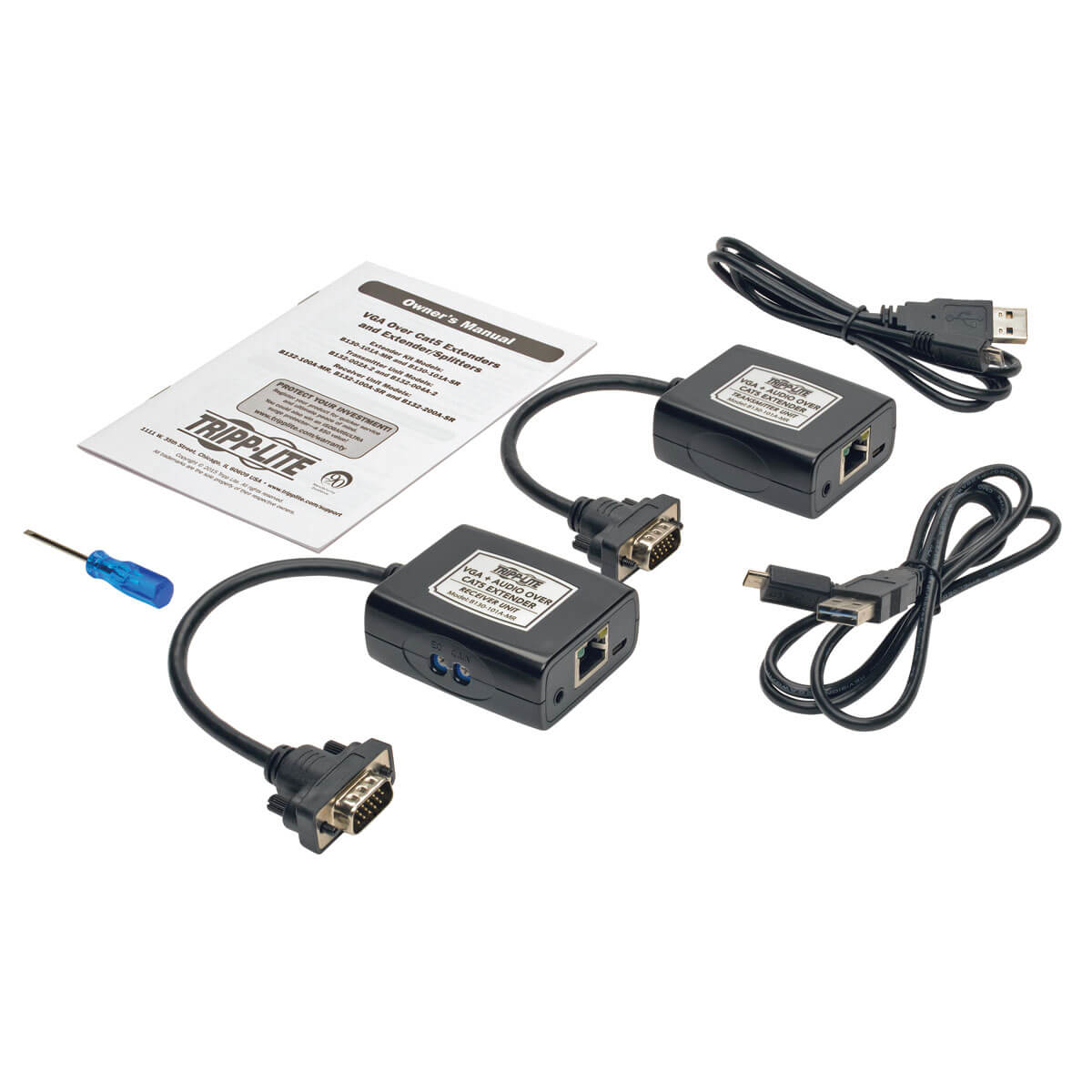

Packaging content
Cables includedUSB
ManualYes
Technical details
Country of originTaiwan
Compliance certificatesRoHS
Logistics data
Master (outer) case width6.2" (157.5 mm)
Master (outer) case length17.6" (447 mm)
Master (outer) case height8.3" (210.8 mm)
Master (outer) case gross weight6.39 lbs (2.9 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332185522
