Tripp Lite B130-111 video splitter VGA

Tripp Lite B130-111 video splitter VGA

  • Brand: Tripp Lite
  • Category:
  • SKU: B130-111
  • EAN: 0037332161604 0373321616046
VGA over Cat5 / Cat6 Extender Kit, Box-Style Transmitter and Repeater, 1920 x 1440 at 60Hz, Up to 305 m (1,000-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter VGA OVER CAT5 EXTENDERREPEATER TRANSMITTER 565137 Register free see stock

Related Products

Description

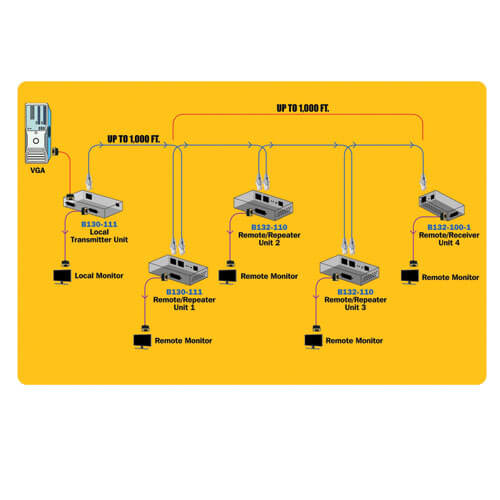

Tripp Lite’s B130-111 extender/repeater kit comes with both local transmitter and remote/repeater units. By connecting additional receiver B132-100-1 or B132-100-WP-1 or repeater B132-110) units, you can locate multiple monitors at different points in a chain of up to 609.6 m (2,000 ft.) With Tripp Lite’s standard transmitters and receivers, a single VGA monitor can be located up to 304.8 m (1,000-ft.) from the source. By inserting a remote/repeater unit in between, the signal can be regenerated and extended to another monitor up to an additional 304.8 m (1,000-ft.) away. A monitor can be connected to both the remote/repeater and the receiver, allowing the signal to be transmitted to both points in the chain. Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays located at different points in the installation. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K.Equalization and Gain controls are built into the remote/repeater unit for the adjustment of the video image. Mounting hardware is included for both the local and remote units, allowing them to be wall mounted, rackmounted, or pole mounted.

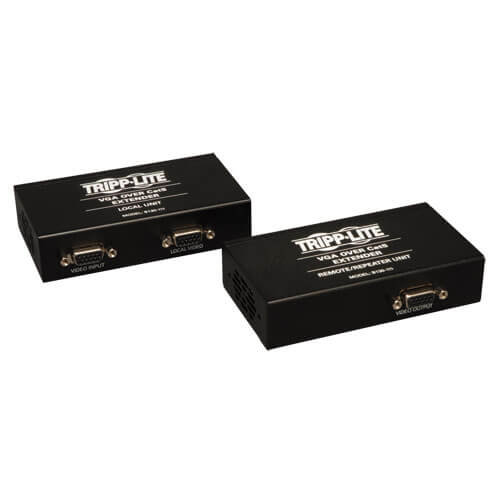

- Kit comes with both local transmitter and remote/repeater units
- Locate multiple monitors at different points in a chain of up to 609.6 m (2,000 ft.) by connecting additional receiver (B132-100-1 or B132-100-WP-1) or repeater B132-110) units
- Up to 4 remote units (3 repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

- Kit comes with both local transmitter and remote/repeater units.
- Locate multiple monitors at different points in a chain of up to 609.6 m (2,000 ft.) by connecting additional receiver (B132-100-1 or B132-100-WP-1) or repeater (B132-110) units
- Up to 4 remote units (3 repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152.4 m (500-ft.) and 304.8 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K
- Extend a 1920 x 1440 (60Hz) signal up to 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to 304.8 m (1,000-ft.), between the local transmitter and the first remote/repeater in the installation.
- Extend a 1920 x 1440 (60Hz) signal up to an additional 152.4 m (500-ft.), or a 1024 x 768 (60Hz) signal up to an additional 304.8 m (1,000-ft.), from the first remote/repeater unit to the last display in the installation.

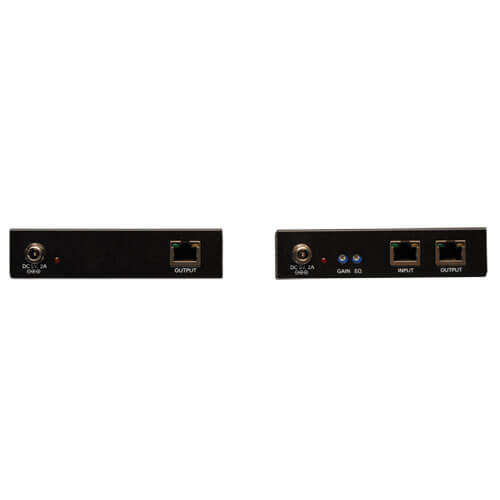

- Features built-in Equalization and Gain controls for video image adjustment.

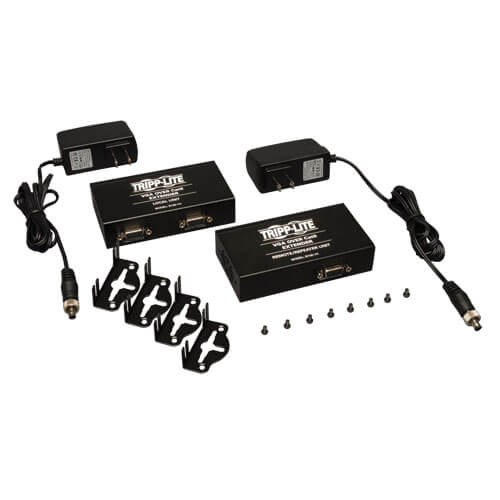

- Includes mounting hardware that allows wall mounting, rackmounting or pole mounting.
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections

Specifications

Ports & interfaces
Video ports quantity1
Video port typeVGA
Ethernet LANYes
Features
Maximum resolution1024 x 768 pixels
Power LEDYes
Product colourBlack
CertificationTAA
Country of originTaiwan
Network
Ethernet LANYes
Packaging data
Package weight30.3 oz (860 g)
Package depth8.4" (213.4 mm)
Package width6.3" (160 mm)
Package height2" (50.8 mm)
Packaging content
ManualYes
Video
Maximum resolution1024 x 768 pixels
Colour
Product colourBlack
Certificates
CertificationTAA
Indication
Power LEDYes
Technical details
Package width6.3" (160 mm)
Package height2" (50.8 mm)
Weight & dimensions
Package weight30.3 oz (860 g)
Package depth8.4" (213.4 mm)
Package width6.3" (160 mm)
Package height2" (50.8 mm)
Logistics data
Master (outer) case width13.5" (342.9 mm)
Master (outer) case length22.7" (576.6 mm)
Master (outer) case height9.5" (241.3 mm)
Master (outer) case gross weight21.6 lbs (9.8 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332161601
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
