Tripp Lite B136-101-WP-1 AV extender AV transmitter & receiver White

Tripp Lite B136-101-WP-1 AV extender AV transmitter & receiver White

  • Brand: Tripp Lite
  • Category:
  • SKU: B136-101-WP-1
  • EAN: 0037332155535 0037332162878 03 ...2162878 0373321628780more
Component Video with Stereo Audio over Cat5/Cat6 Extender Kit, Wallplate Transmitter and Receiver, Up to 700 ft. (213 m)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter CAT5 EXTENDER WALLPLATE KITCOMPONENT VIDEO STEREO AUDIO 565154 Register free see stock

Related Products

Description

Tripp Lite's B136-101-WP-1 Cat5 Extender Wallplate Kit with Component Video + Stereo Audio comes with both local and remote wallplates, allowing you to place a TV, Projector, etc up to 300-ft. (91.44 m) away from the source. A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 300-ft. (91.44 m) when using 24Awg, Solid Wire UTP cable (Tripp Lite N022-01K-GY or N222-01K-GY); or up to 400-ft. (121.92 m) when using Zero-Skew UTP cable (Tripp Lite P524-01K). A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 500-ft. (152.4 m) when using 24Awg, Solid Wire UTP cable (Tripp Lite N022-01K-GY or N222-01K-GY); or up to 700-ft. (213.36 m) when using Zero-Skew UTP cable (Tripp Lite P524-01K). Simple RJ45 Jack connection on the back of the wallplates. No external power required.

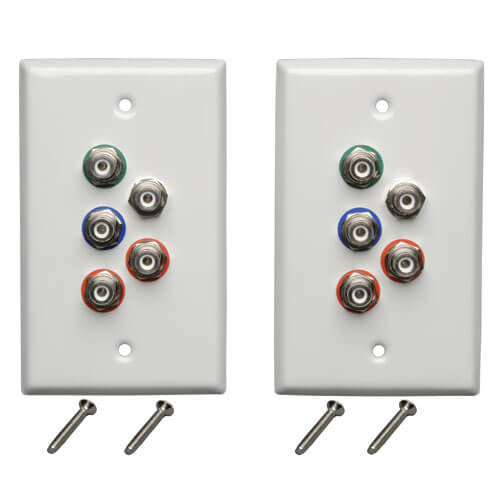

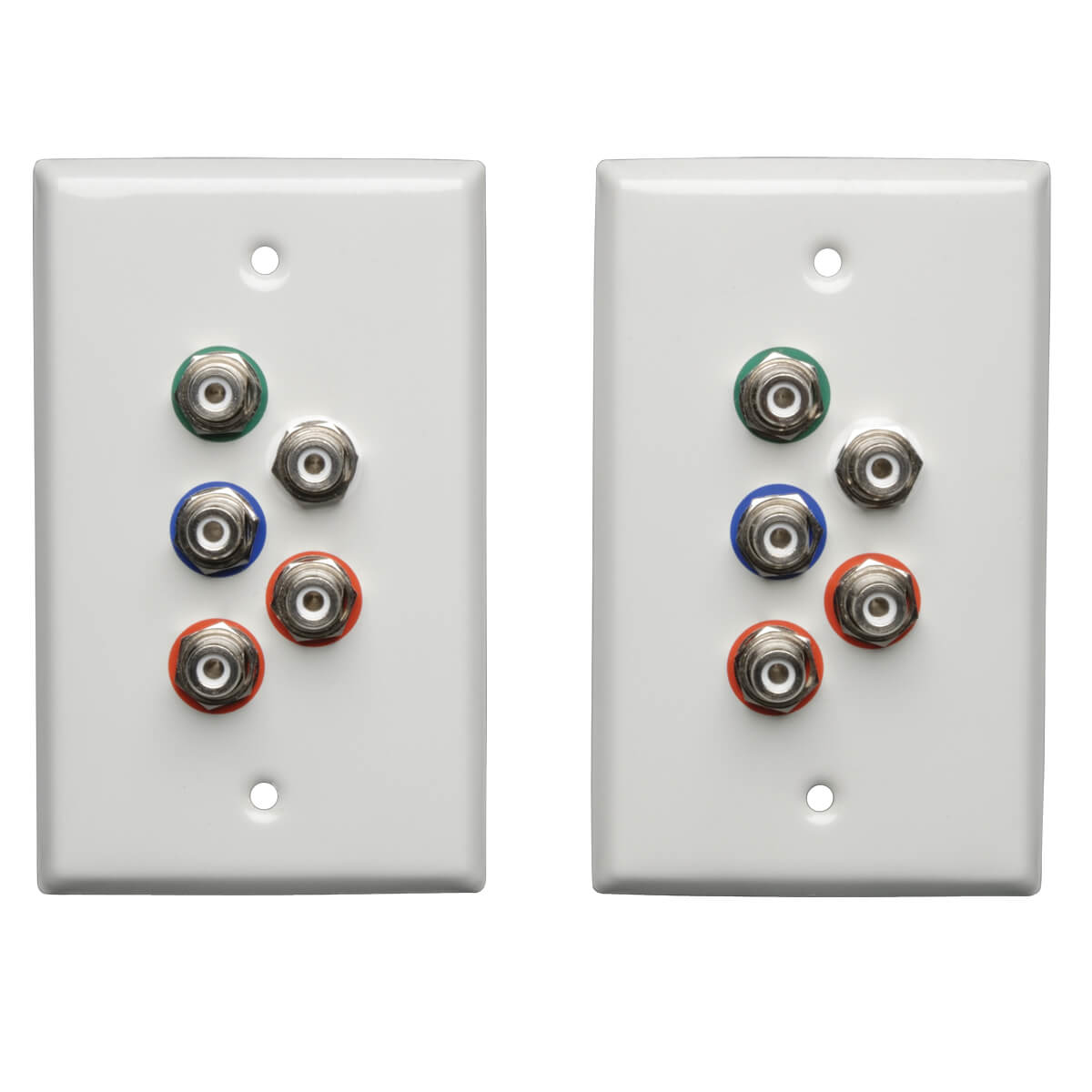

Comes with both local and remote wallplates

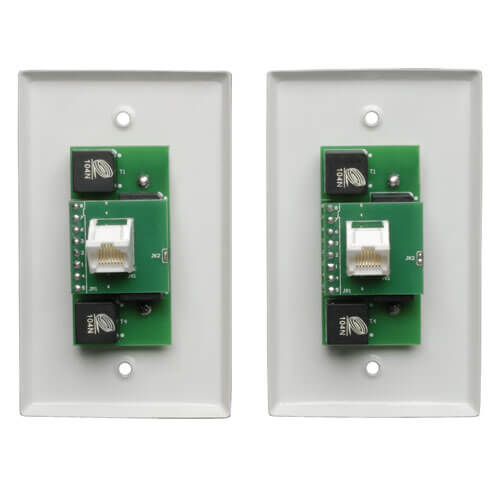

Easy RJ45 rear connection jacks on both wallplates
A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 300-ft. (91.44 m) when using 24Awg, Solid Wire UTP cable (Tripp Lite N022-01K-GY or N222-01K-GY); or, up to 400-ft. (121.92 m) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
No external power required

Specifications

Features
TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5
Maximum transfer distance4800" (121.9 m)
Supported video modes1080p
Supported graphics resolutions1920 x 1080 (HD 1080)
Product colourWhite
Power
External power adapterNo
Packaging data
Package depth5.5" (139.7 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Package weight11.3 oz (320 g)
Packaging content
ManualYes
Technical details
Country of originChina
Logistics data
Master (outer) case width16.2" (411.5 mm)
Master (outer) case length11.5" (292.1 mm)
Master (outer) case height9.1" (231.1 mm)
Master (outer) case gross weight15.2 lbs (6.89 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332162882
