Tripp Lite B132-100A-MR AV extender AV receiver Black

Tripp Lite B132-100A-MR AV extender AV receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B132-100A-MR
  • EAN: 0037332185556
VGA with Audio over Cat5/Cat6 Extender, Receiver, USB-Powered, 1920x1080 60 Hz, Up to 750 ft. (228 m), TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

VGA & AUDIO OVER CAT5 EXTENDERRECEIVER EDID USB 750FT RANGEB132-100A-MR

 812283 Register free see stock

Related Products

Description

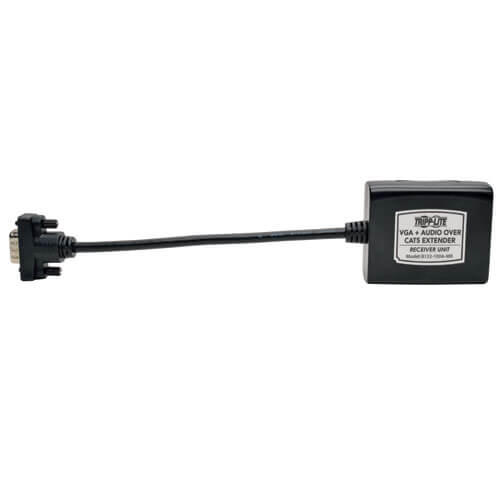

Tripp Lite's B132-100A-MR VGA with Audio over Cat5 Extender Receiver Unit is designed to work with Tripp Lite's B132-002A-2 and B132-004A-2 VGA with Audio over Cat5 Extender / Splitter Transmitter Units. Unlike the B132-100A Receiver Unit, which supports distances up to 1,000-ft, the B132-100A-MR is a cost effective solution for distances up to 750-ft. (228.6 m) It extends a 1920 x 1080 video and audio signal up to 300-ft. (91.44 m) from the source, or a 1024 x 768 video and audio signal up to 750-ft. (228.6 m). Power is supplied via the included USB Micro-B cable, with no external power supply required. Connect the included Micro-B cables between the Receiver and a USB port on a computer, monitor, or USB wall charger, such as the Tripp Lite U280-W01-QC3. It also features equalization and gain controls to adjust the video image. Audio connections are made with standard 3.5mm stereo cables (not included). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Works with a B132-002A-2 or B132-004A-2 local unit to extend a VGA video and audio signal up to 750-ft. (228.6 m) from the source

Extends a 1920 x 1080 video and audio signal up to 300-ft. (91.44 m), or a 1024 x 768 video and audio signal up to 750-ft. (228.6 m)
24AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite's N202-Series Cat6 cables) is required to achieve maximum distance and resolution
Power is supplied via the included USB Micro-B cable; no external power supply required

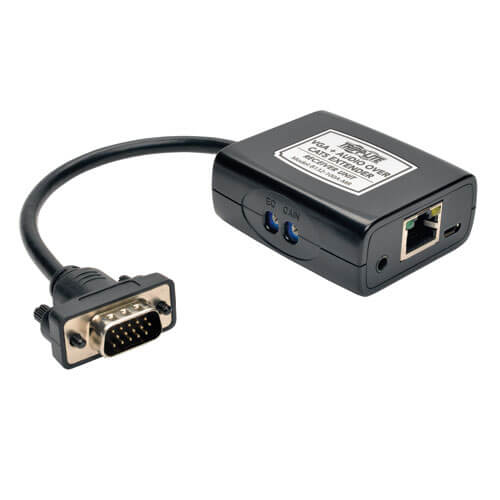

Features built-in equalization and gain controls to adjust the video image.
All operating systems supported
Plug and play; no software or drivers required
HDCP and EDID compliant
Ideal for digital signage installations for retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Features
Plug and PlayYes
HDCP & EDID bypassYes
TypeAV receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5, Cat5e, Cat6
Maximum transfer distance8976.4" (228 m)
Supported video modes480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900, 1600 x 1200 (UXGA)
Product colourBlack
Ports & interfaces

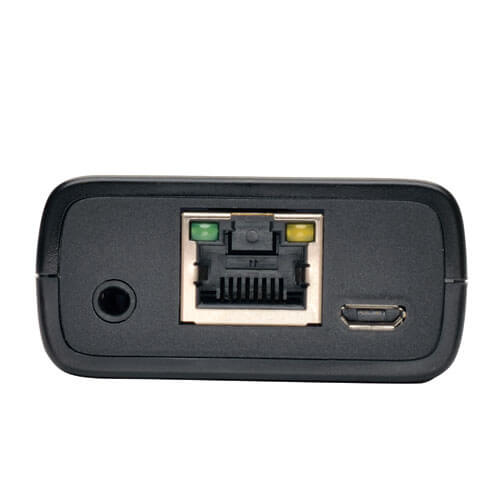

3.5 mm (1/8-inch) inYes
USB ports quantity1
USB connector typeMicro-USB B
RJ-45 input ports1

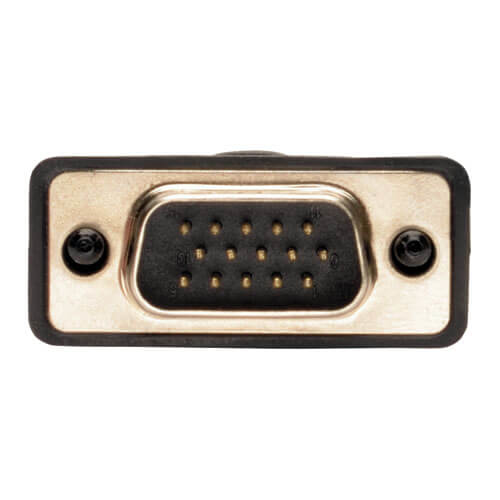

VGA (D-Sub) input ports1
Weight & dimensions
Weight7.05 oz (200 g)
Dimensions (WxDxH)2.5 x 3.6 x 1" (63.5 x 91.4 x 25.4 mm)
Packaging data
Package depth6.1" (154.9 mm)
Package width4.6" (116.8 mm)
Package height1.6" (40.6 mm)
Package weight4.94 oz (140 g)

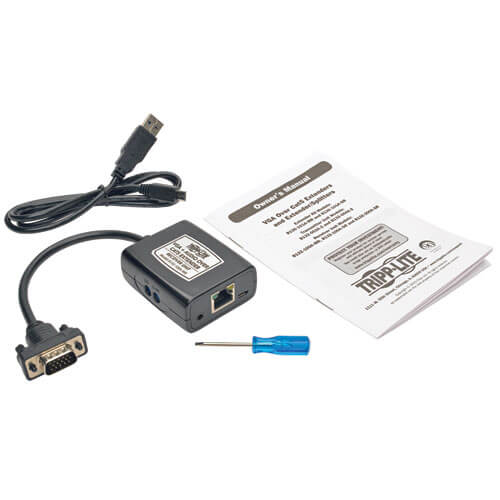

Packaging content
Cables includedMicro-USB
ManualYes
Technical details
Country of originTaiwan
Compliance certificatesRoHS
Logistics data
Master (outer) case width6.5" (165.1 mm)
Master (outer) case length13.5" (342.9 mm)
Master (outer) case height5.4" (137.2 mm)
Master (outer) case gross weight3.7 lbs (1.68 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332185553
