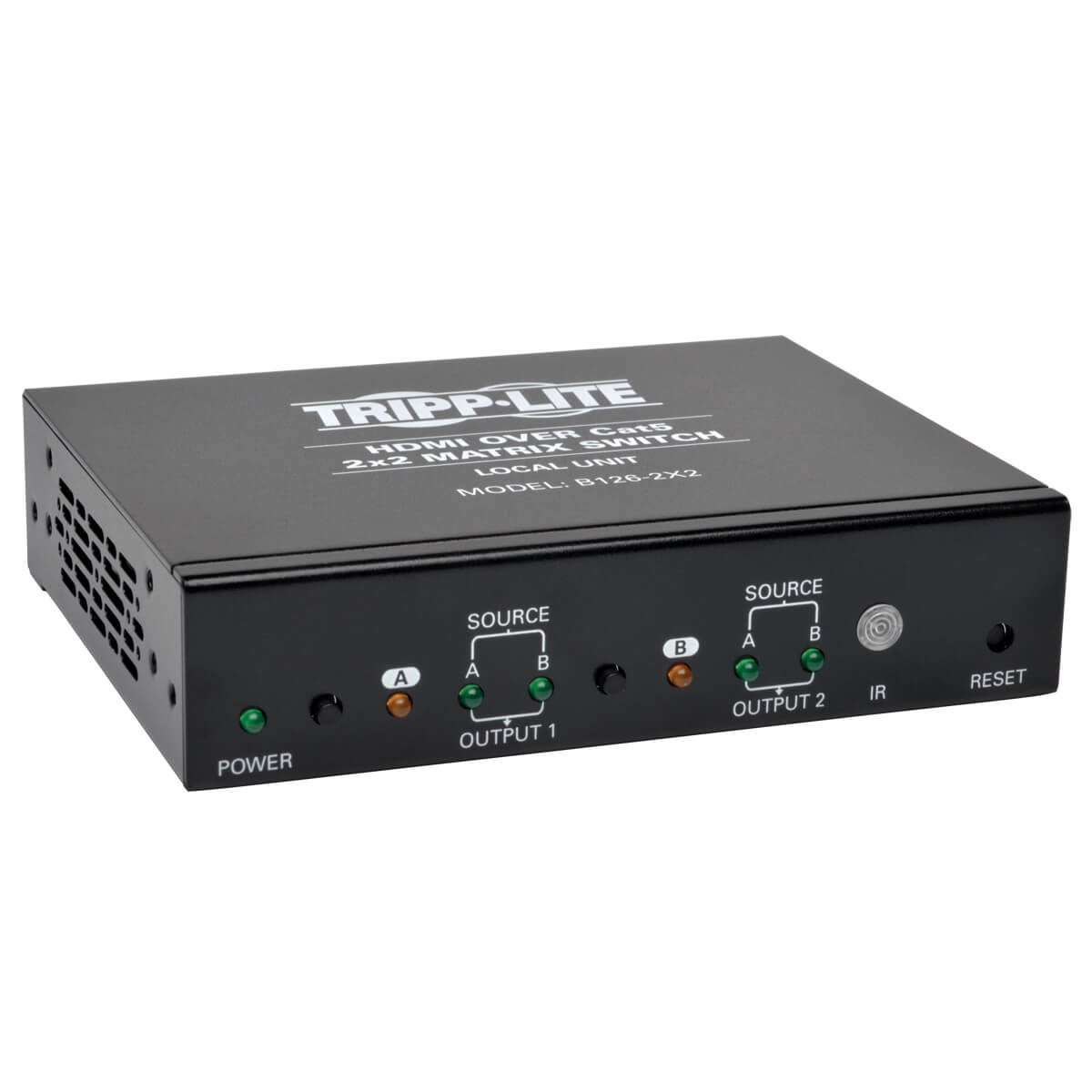

Tripp Lite B126-2X2 AV extender

Tripp Lite B126-2X2 AV extender

  • Brand: Tripp Lite
  • Category:
  • SKU: B126-2X2
  • EAN: 0037332180209 0041114820924 06 ...4820924 0617407431841 0373321802098more
2 x 2 HDMI over Cat5 / Cat6 Matrix Splitter Switch, Box-Style Transmitter, Video and Audio, 1080p @ 60 Hz, Up to 53.34 m (175-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

HDMI OVER CAT5 CAT6 2X2MATRIX EXTENDER SWITCH HDMI

 565128 Register free see stock

Related Products

Description

The B126-2X2 2-port HDMI over Cat5/Cat6 Matrix Splitter Switch works with Tripp Lite remote receivers to share one or more HDMI sources between multiple projectors, monitors or televisions. It’s ideal for digital signs, trade shows, presentations, retail and other applications where the video sources are located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the sources and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). Any video source can be routed to any monitor, or you can send the same source to multiple monitors. Switch between inputs via pushbuttons, RS-232 serial or the included remote control. When used with Tripp Lite’s B126-1A0 or B126-1A0-WP-1 active remote receivers, the switch can extend a 1080i (60 Hz) signal up to 53.34 m (175-ft.) or a 1080p signal (60 Hz) up to 38.1 m (125-ft.). With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 22.86 m (75-ft.) and a 1080p (60 Hz) signal up to 15.24 m (50-ft.) Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to crystal-clear video, the B126-2X2 delivers full, rich stereo. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

- Routes any source to any display or same source to multiple displays
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Switches inputs via button, remote control or RS-232 serial
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install

- Extends a 1080i (60 Hz) signal up to 53.34 m (175-ft.) and a 1080p (60 Hz) signal up to 38.1 m (125 ft.) with each optional B126-110 remote repeater
- Extends a 1080i (60 Hz) signal up to 53.34 m (175-ft.) and a 1080p (60 Hz) signal up to 38.1 m (125 ft.) with B126-1A0 or B126-1A0-WP-1 active remote receiver
- Extends a 1080i (60 Hz) signal up to 22.86 m (75-ft.) and a 1080p (60 Hz) signal up to 15.24 m (50 ft.) with B126-1P0 or B126-1P0-WP-1 passive remote receiver
- Add up to 3 remote repeaters on each channel for maximum signal range
- Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Supports the Latest Video and Audio Resolutions
- Works with all operating systems and HDMI video sources
- Supports HD resolutions up to 1080p (60 Hz)
- Supports stereo audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Route any video display to any monitor, or route the same display to multiple monitors
- Plug-and-play engineering—no software or drivers to download and install
- Connects quickly to sources with HDMI cable, such as Tripp Lite’s P568-Series
- LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source

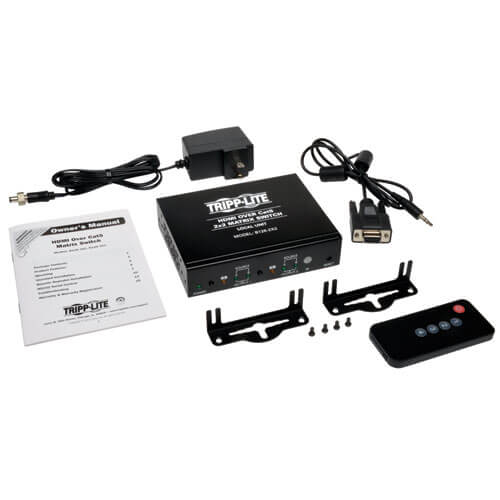

- Included mounting hardware lets you install the units on a wall, rack or pole
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections

Specifications

Features
Cable types supportedCat5, Cat6
Maximum transfer distance2100" (53.3 m)
Supported video modes1080i
Ports & interfaces
Ethernet LANYes
RJ-45 input ports2
HDMI in2
DC-in jackYes
Weight & dimensions
Width5" (127 mm)
Height1.2" (30.5 mm)
Depth3.9" (99.1 mm)
Weight12.7 oz (360 g)
Packaging data
Package depth10.2" (259.1 mm)
Package width6.2" (157.5 mm)
Package height2" (50.8 mm)
Package weight30.3 oz (860 g)
Technical details
Country of originTaiwan
Quantity1
Logistics data
Master (outer) case width13.5" (342.9 mm)
Master (outer) case length22.5" (571.5 mm)
Master (outer) case height12" (304.8 mm)
Master (outer) case gross weight35.3 lbs (16 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332180206
