Tripp Lite B136-004 video splitter Composite
- Brand: Tripp Lite
- Category:
- SKU: B136-004
- EAN: 0151903027226 0373321555598 00 ...1555598 0037332155559more
- Sell Price:
- Contract No:
- Account price:
4-Port Component Video + Stereo Audio over Cat5 / Cat6 Extender Splitter, Box-Style Transmitter, Up to 213.36 m (700-ft.)
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
4-PORT COMPONENT VIDEO STEREOAUDIO OVER CAT5 EXTENDER | 565150 | Register free see stock |
Related Products
- Video Splitters
- TV Mounts & Stands
- Socket-Outlets
- AV Extenders
- Signal Cables
- Networking Cables
- HDMI Cables
- Mounting Kits
- Remote Control Extenders
- KVM Extenders
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Video Splitters
-
Category: Socket-Outlets
-
Category: Socket-Outlets
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: AV Extenders
-
Category: Networking Cables
-
Category: Networking Cables
-
Category: Networking Cables
-
Category: Networking Cables
-
Category: Networking Cables
-
Category: HDMI Cables
-
Category: HDMI Cables
-
Category: HDMI Cables
-
Category: HDMI Cables
Description

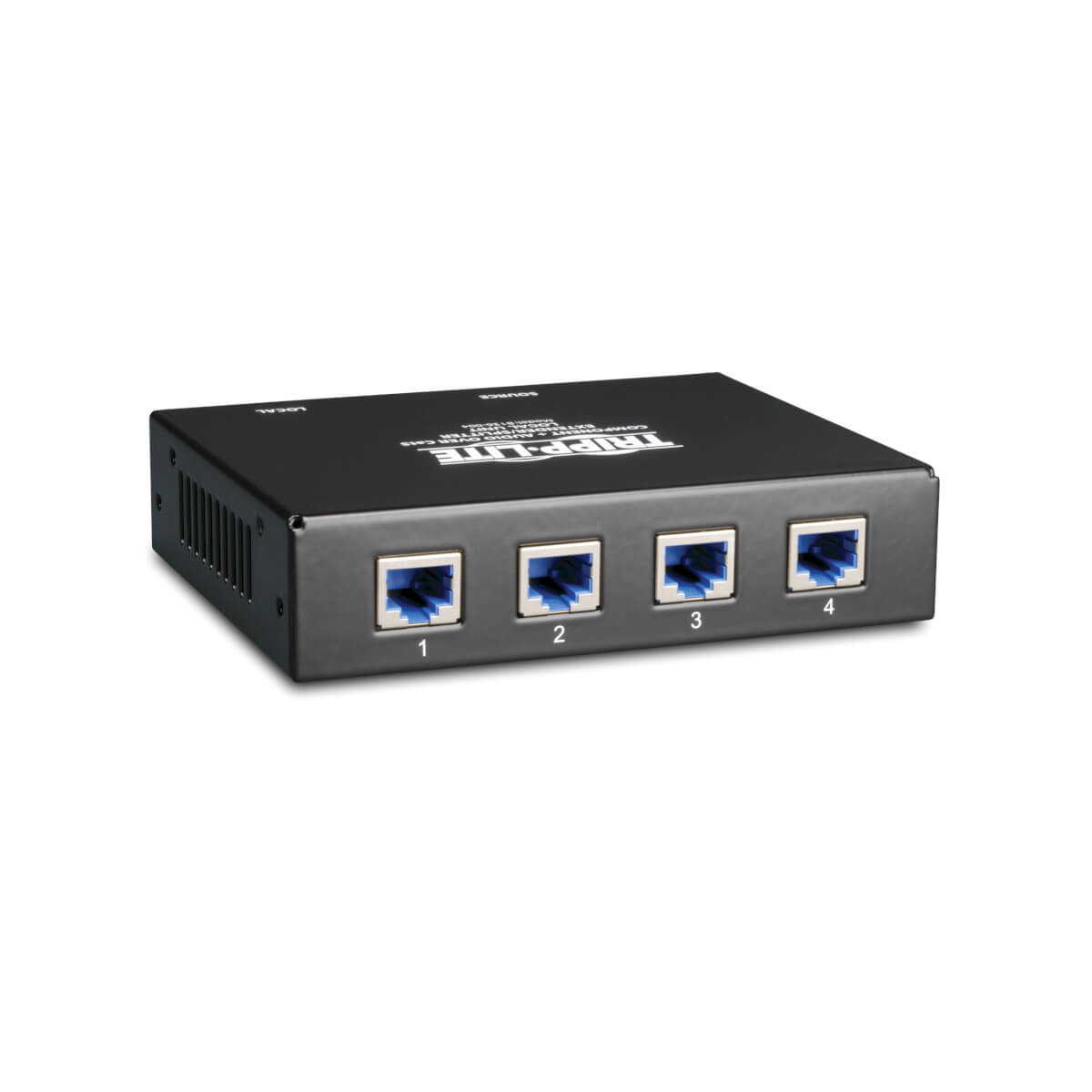

Tripp Lite's B136-004 takes a single Component Video and Stereo Audio signal and splits it to five (1 local, 4 remote). When used in conjunction with a B136-100 remote unit, you can transmit a Component Video ( YPbPr ) and Stereo Audio signal from any DVD player, PS3, or Cable/Satellite device to up to four displays over a single CAT5, CAT5E, or CAT6 cable. A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K). A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 152.4 m (500-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 213.36 m (700-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K). The number of displays can be increased to up to 13 (1 local, 12 remote) by daisychaining 3 B136-004 units together.
- Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)
- Extends a 1080i (60Hz) Component Video and Stereo Audio signal up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- Connect up to 13 displays (1 local, 12 remote) by daisychaining 3 B136-004 units together
- Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)

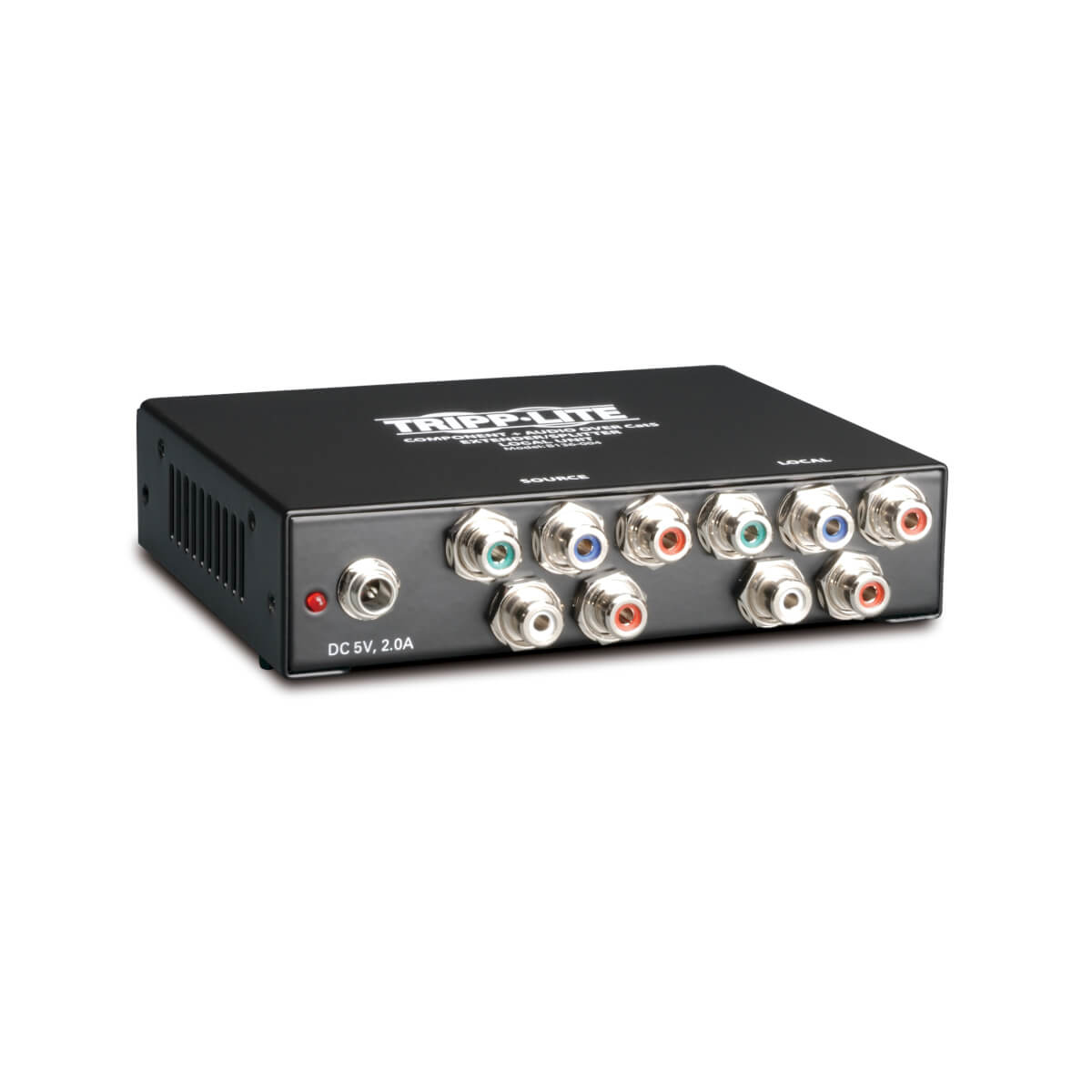

- Features an extra set of Component Video and Stereo Audio connectors for an optional local display
- Works in conjunction with a B136-100 remote unit
- A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 152.4 m (500-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 213.36 m (700-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- Connect up to 13 displays (1 local, 12 remote) by cascading 3 B136-004 units together

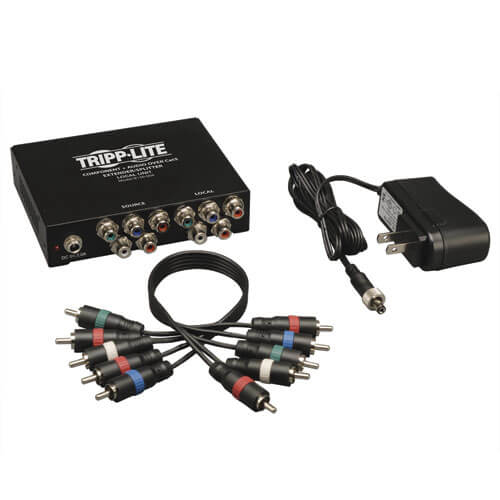

- Includes a 0.31 m (1-ft.) Component Video + Stereo Audio daisychain cable
- Up to 3 B136-004 units can be mounted in 1U of rack space when using a B132-004-RB Extender/Splitter 19 in. rackmount bracket
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
- Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)
- Extends a 1080i (60Hz) Component Video and Stereo Audio signal up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- Connect up to 13 displays (1 local, 12 remote) by daisychaining 3 B136-004 units together
- Splits a single Component Video and Stereo Audio signal into five (1 local, 4 remote)
- Features an extra set of Component Video and Stereo Audio connectors for an optional local display
- Works in conjunction with a B136-100 remote unit
- A 1080i (60Hz) Component Video and Stereo Audio signal can be extended up to 91.44 m (300-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 121.9 m (400-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- A 480p (60Hz) Component Video and Stereo Audio signal can be extended up to 152.4 m (500-ft.) when using 24Awg, Solid Wire UTP cable (Tripp Lite N202-Series); or, up to 213.36 m (700-ft.) when using Zero-Skew UTP cable (Tripp Lite P524-01K)
- Connect up to 13 displays (1 local, 12 remote) by cascading 3 B136-004 units together
- Includes a 0.31 m (1-ft.) Component Video + Stereo Audio daisychain cable
- Up to 3 B136-004 units can be mounted in 1U of rack space when using a B132-004-RB Extender/Splitter 19 in. rackmount bracket
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections
Specifications
Ports & interfaces | |
---|---|
Video ports quantity | 10 |
Video port type | Composite |
Ethernet LAN (RJ-45) ports | 4 |
Cable types supported | Cat5, Cat5e, Cat6 |
Ethernet LAN | Yes |
Cable length | 59.1" (1.5 m) |
Features | |
Maximum refresh rate | 60 Hz |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA) |
Maximum resolution | 1920 x 1080 pixels |
Full HD | Yes |
Supported video modes | 480i, 480p, 720p, 1080i |
Power LED | Yes |
Product colour | Black |
Certification | TAA, RoHS |
Cable length | 59.1" (1.5 m) |
Country of origin | Taiwan |
Network | |
Cable types supported | Cat5, Cat5e, Cat6 |
Ethernet LAN | Yes |
Power | |
Input current | 0.5 A |
Output current | 2 A |
Output voltage | 5 V |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100-240 V |
Weight & dimensions | |
Weight | 17.6 oz (500 g) |
Dimensions (WxDxH) | 5 x 4 x 1.1" (127 x 101.6 x 27.9 mm) |
Width | 5" (127 mm) |
Depth | 4" (101.6 mm) |
Height | 1.1" (27.9 mm) |
Package weight | 30.3 oz (860 g) |
Package depth | 0.5" (12.7 mm) |
Package width | 8.4" (213.4 mm) |
Package height | 2.2" (55.9 mm) |
Packaging data | |
Package weight | 30.3 oz (860 g) |
Package depth | 0.5" (12.7 mm) |
Package width | 8.4" (213.4 mm) |
Package height | 2.2" (55.9 mm) |
Packaging content | |
Manual | Yes |
Cables included | AC |
Video | |
Maximum refresh rate | 60 Hz |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA) |
Maximum resolution | 1920 x 1080 pixels |
Full HD | Yes |
Supported video modes | 480i, 480p, 720p, 1080i |
Colour | |
Product colour | Black |
Certificates | |
Certification | TAA, RoHS |
Indication | |
Power LED | Yes |
Technical details | |
Package width | 8.4" (213.4 mm) |
Package height | 2.2" (55.9 mm) |
Logistics data | |
Master (outer) case width | 23.2" (589.3 mm) |
Master (outer) case length | 1" (25.4 mm) |
Master (outer) case height | 9.5" (241.3 mm) |
Master (outer) case gross weight | 33.5 lbs (15.2 kg) |
Products per master (outer) case | 20 pc(s) |
Master (outer) case GTIN (EAN/UPC) | 10037332155556 |
Harmonized System (HS) code | 8525.50.3035 |
Country of origin | Taiwan |
