2-Port Mini DisplayPort to HDMI Multi-Monitor Splitter, MST Hub, 4K UHD, DP1.2, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2-PORT MINI DISPLAYPORT1.2 TO HDMI MULTI-STREAMTRANSPORT 4KX2K 812293 Register free see stock

Related Products

Description

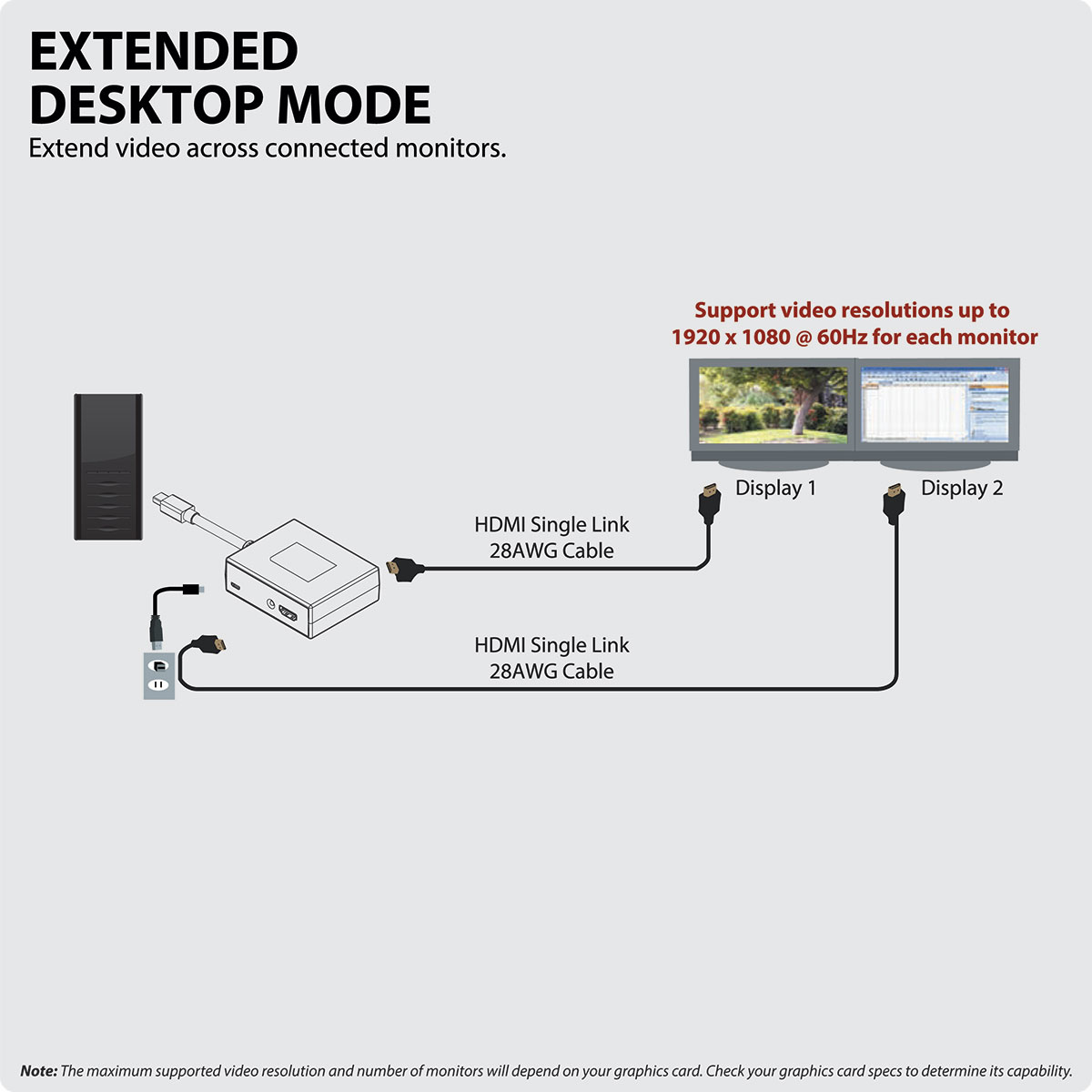

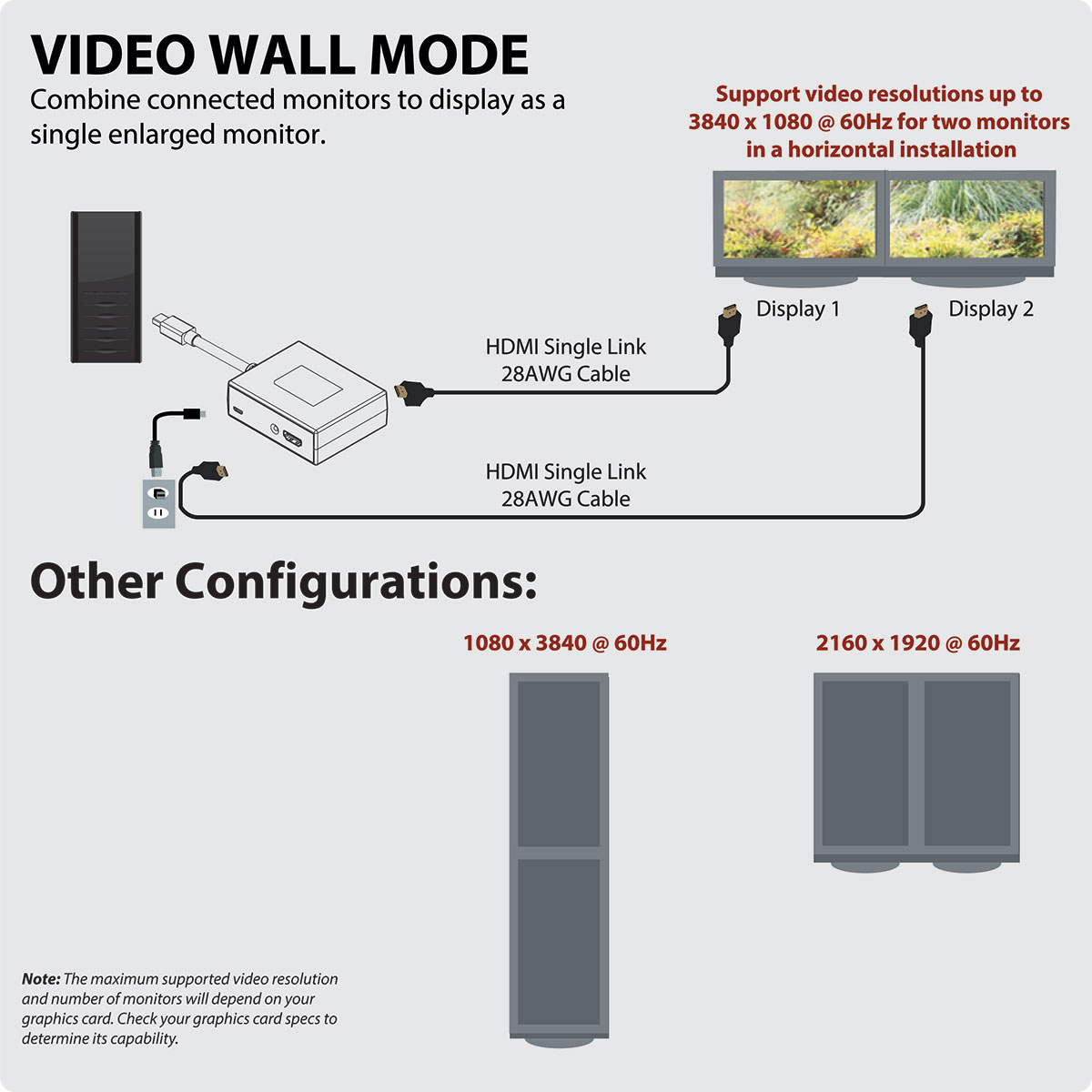

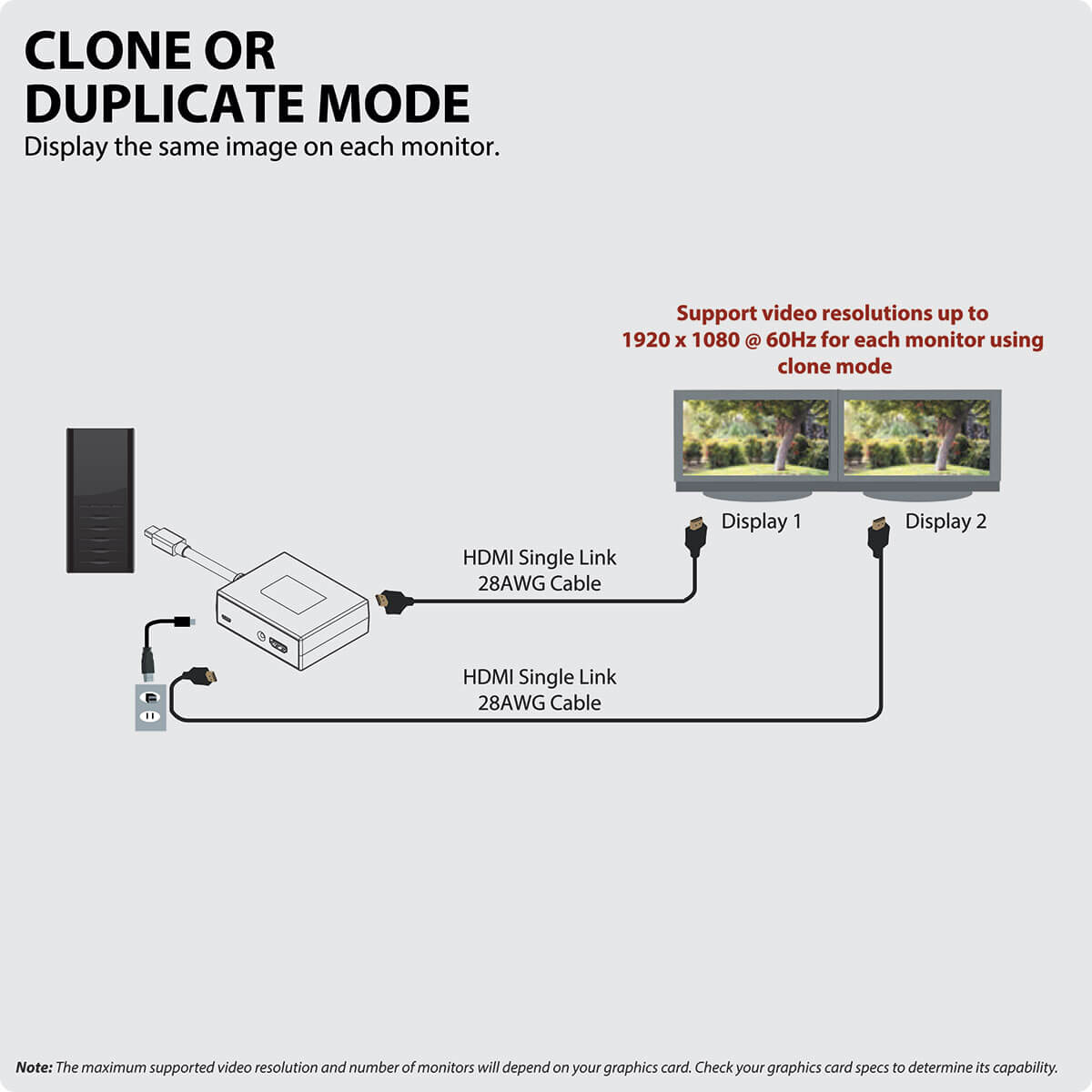

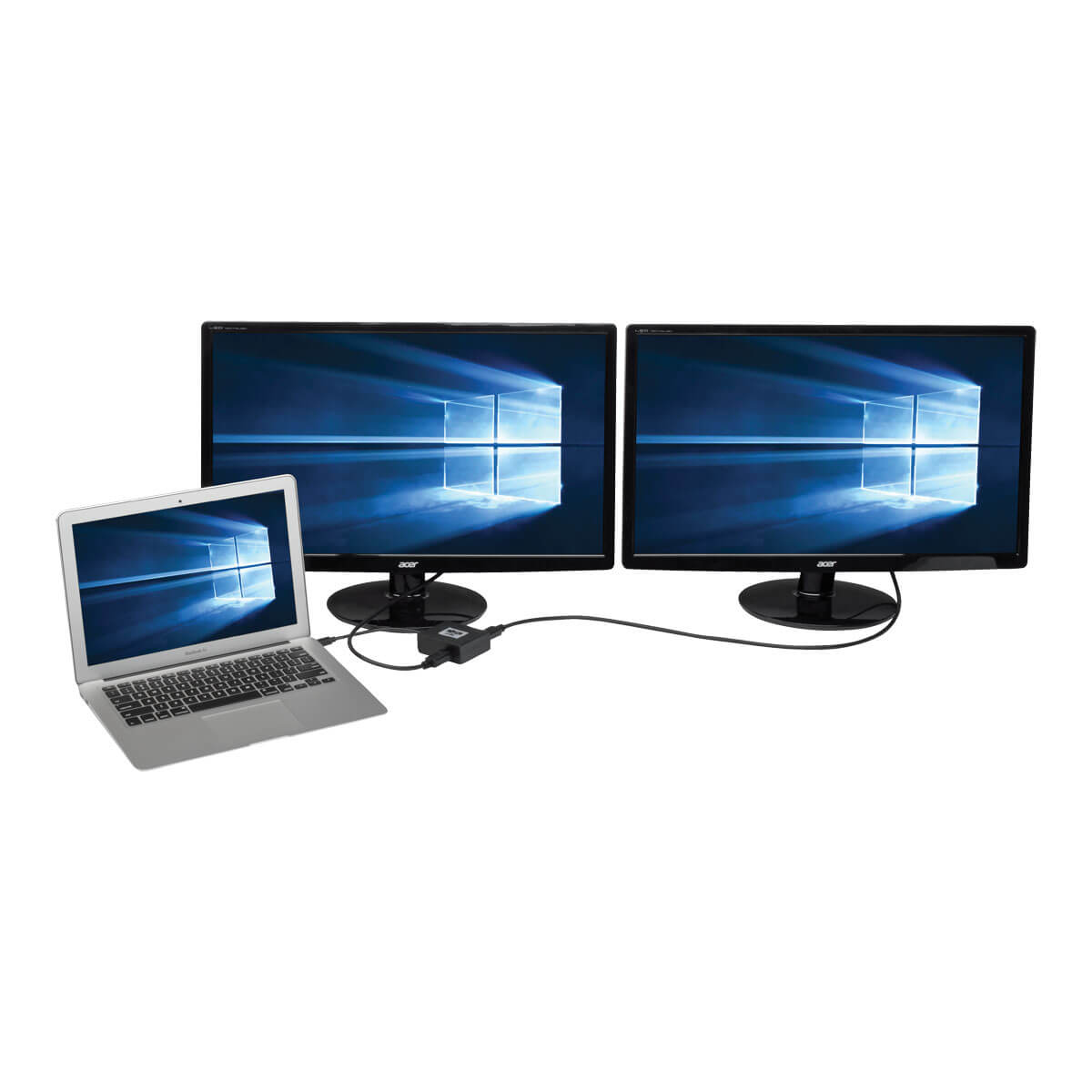

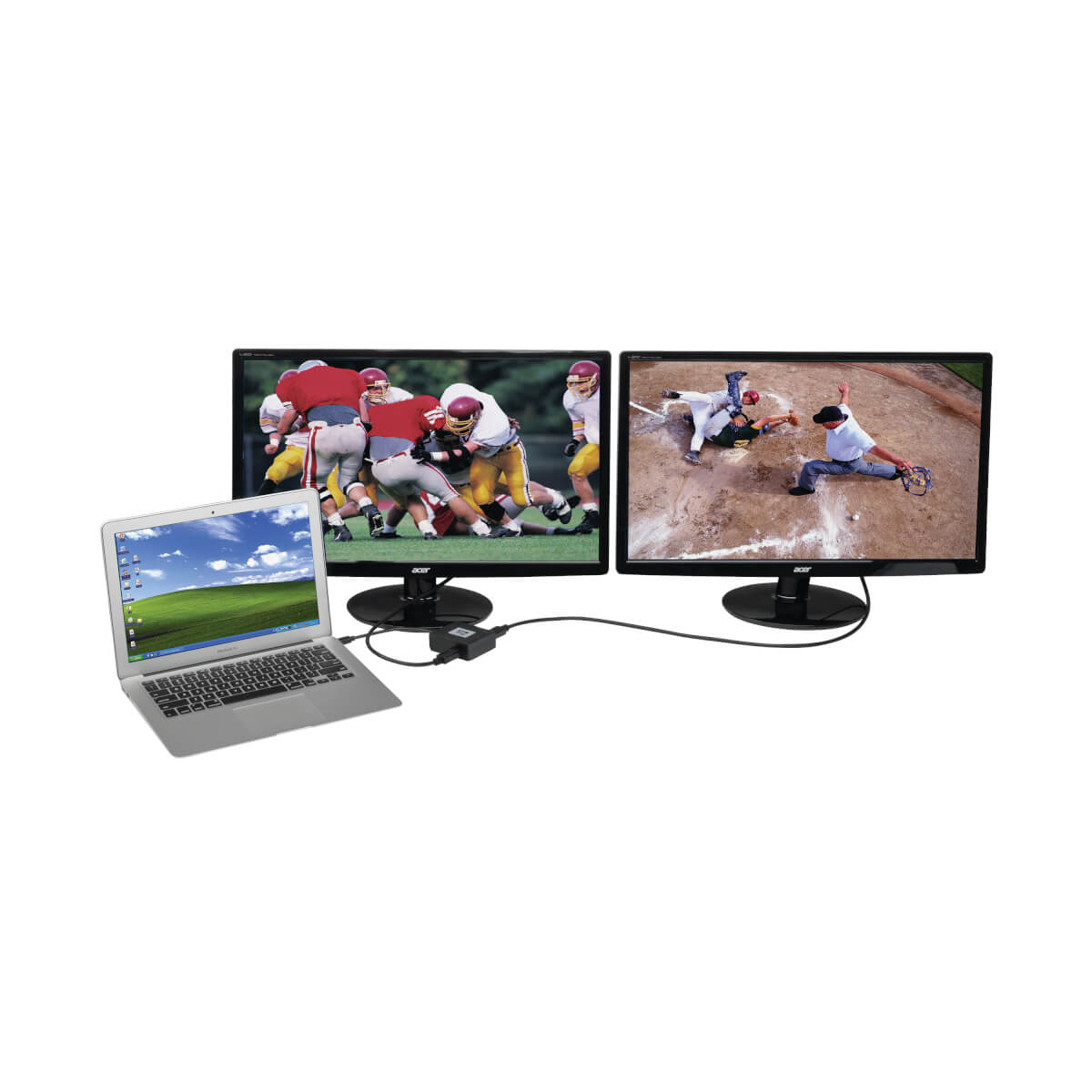

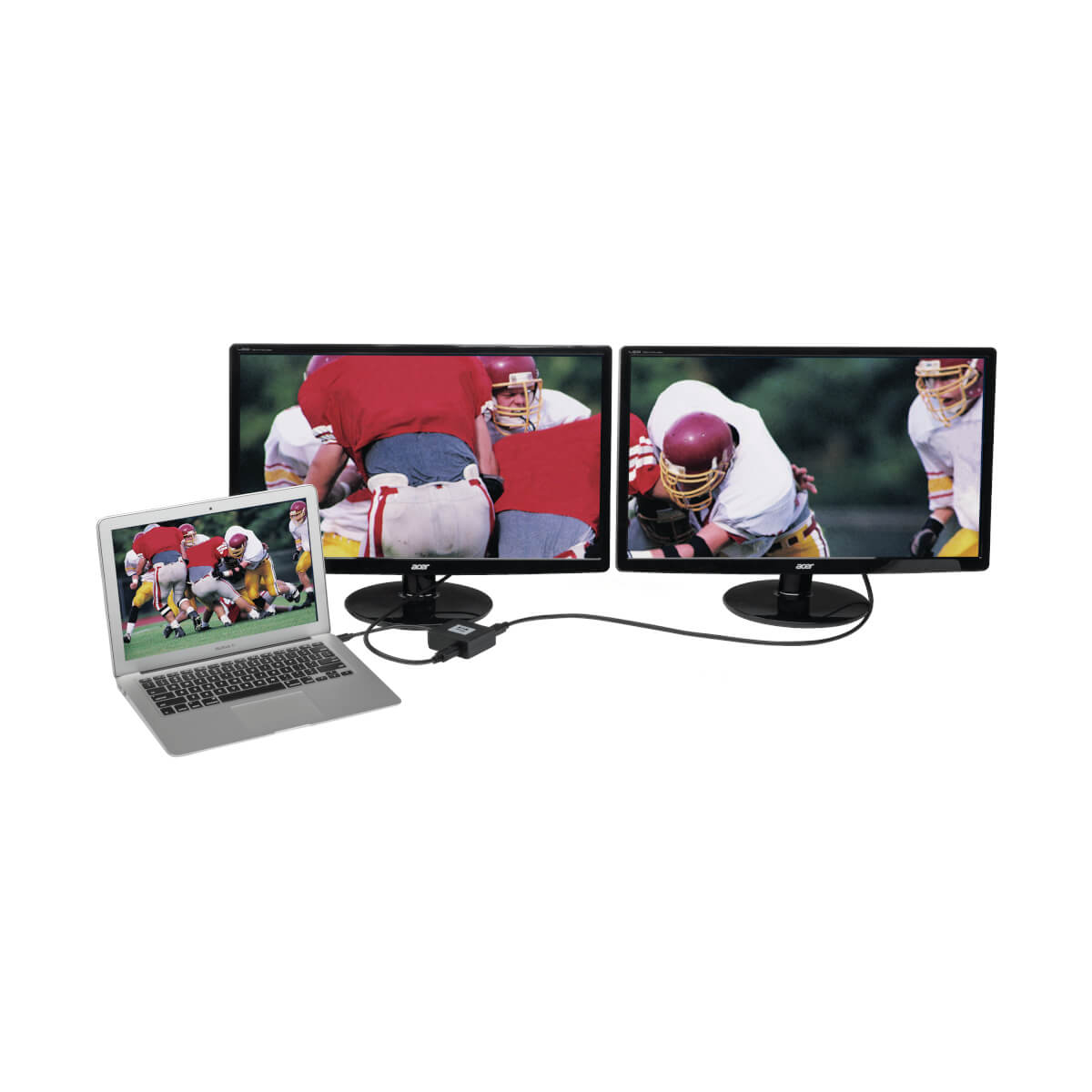

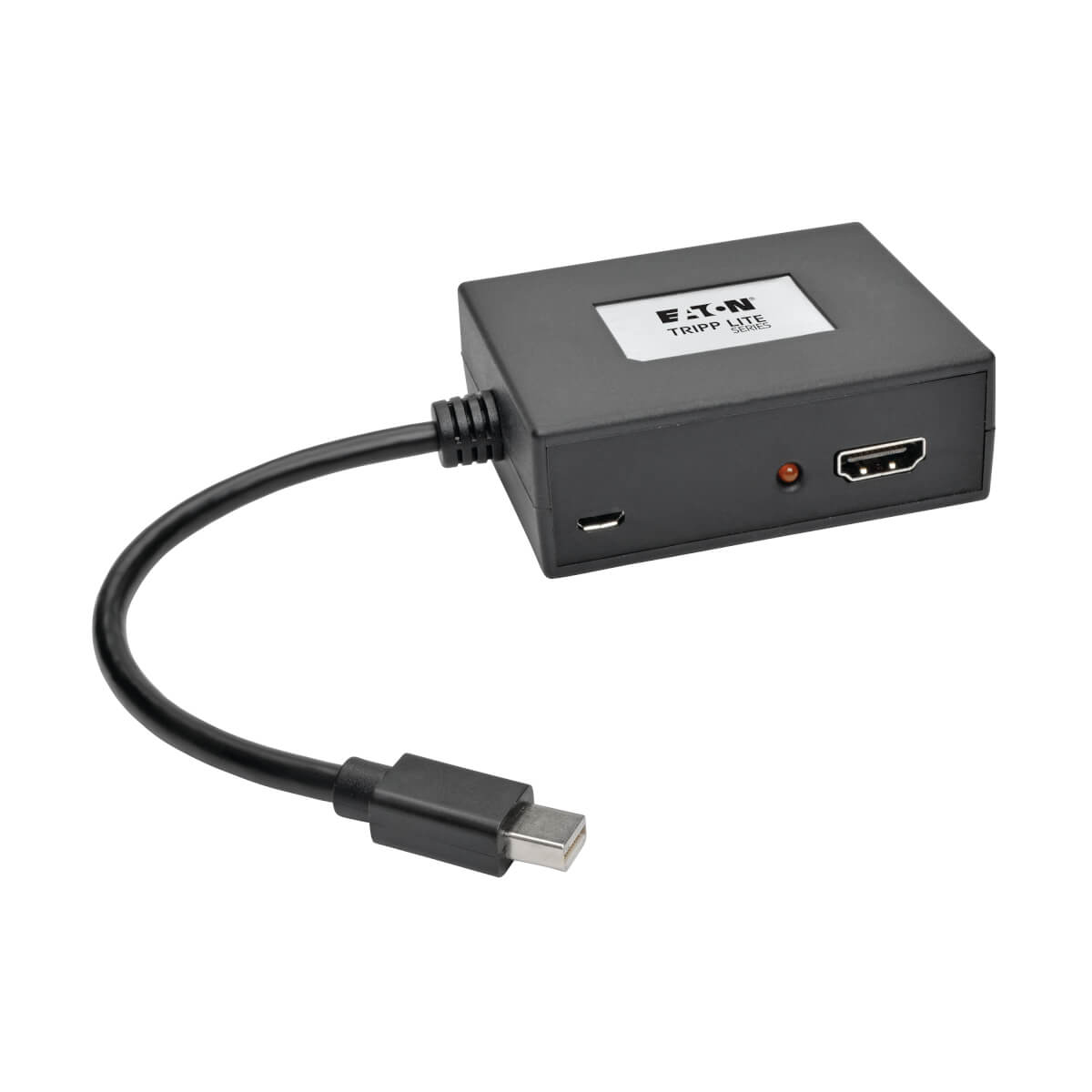

The B155-002-HD-V2 2-Port Mini DisplayPort 1.2 to HDMI MST Hub connects two HDMI televisions, projectors or monitors to the MDP output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both into one large monitor in video wall mode.

The B155-002-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160). This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

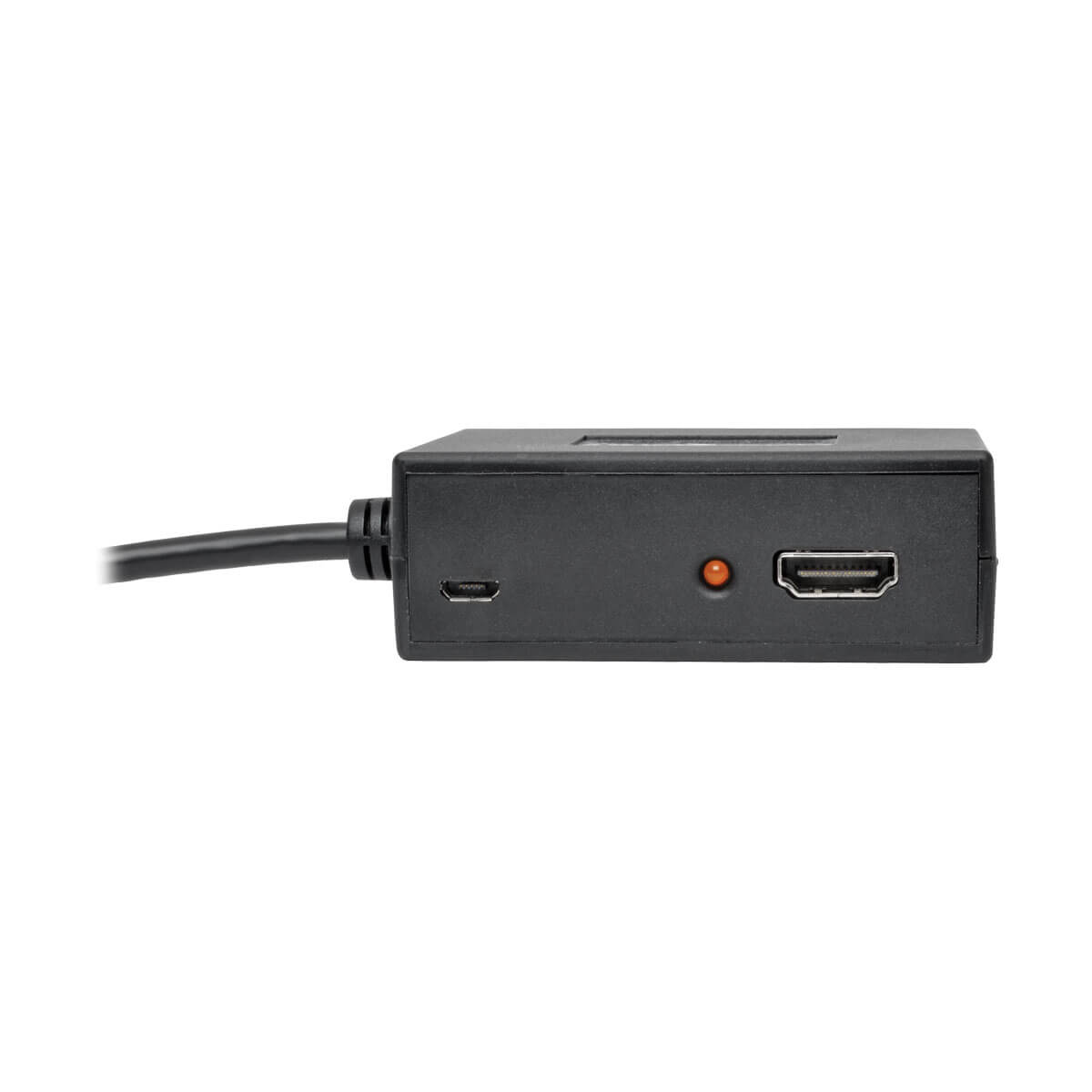

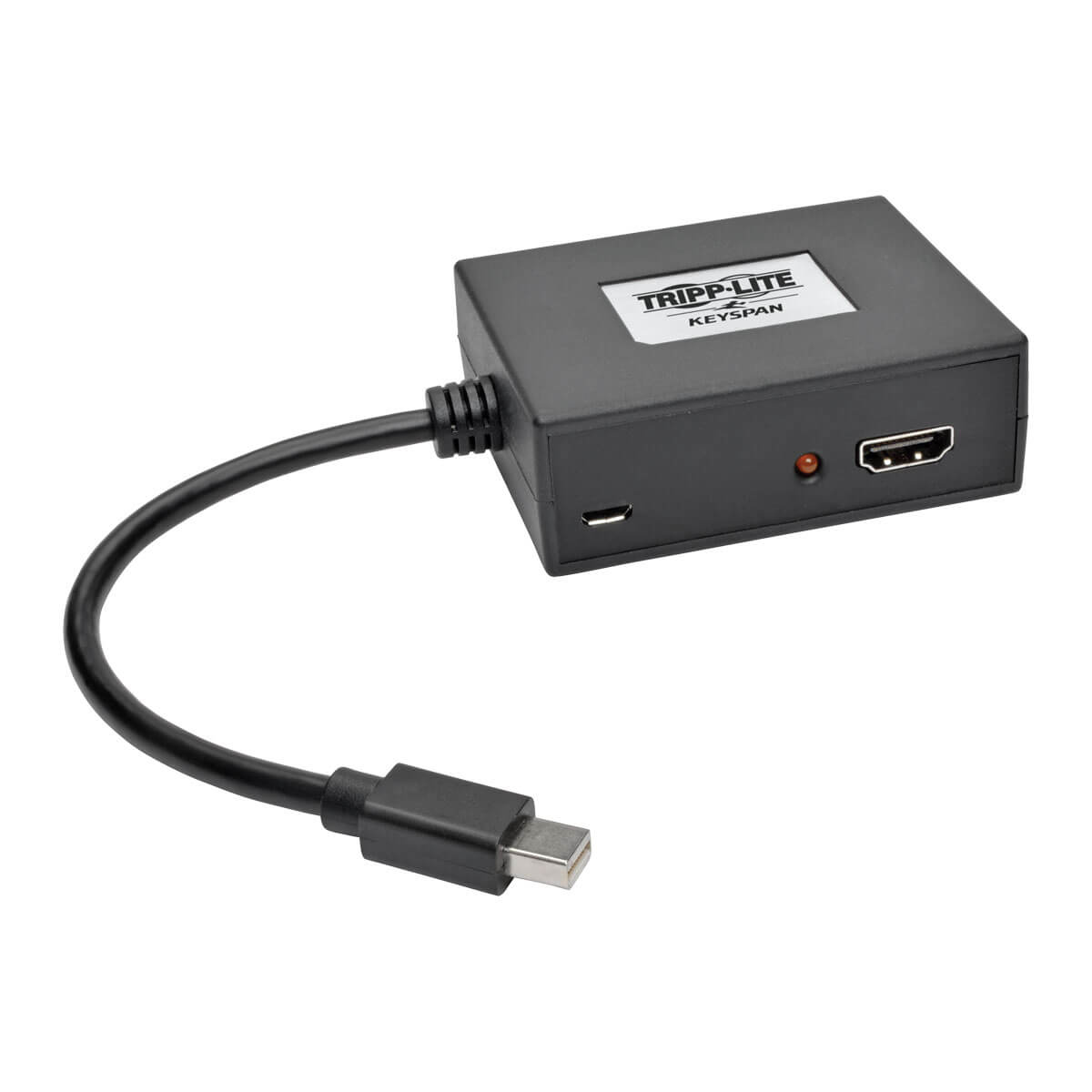

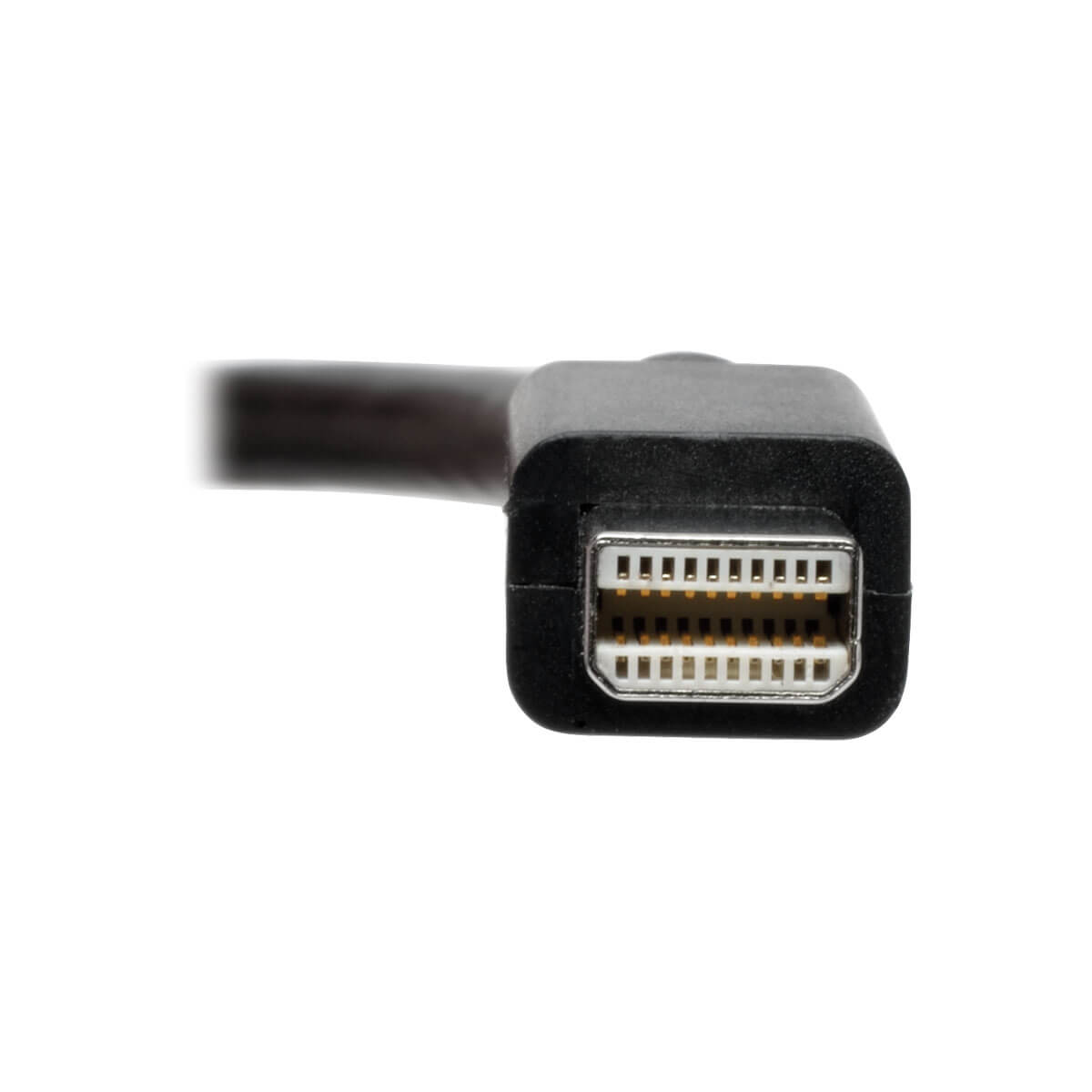

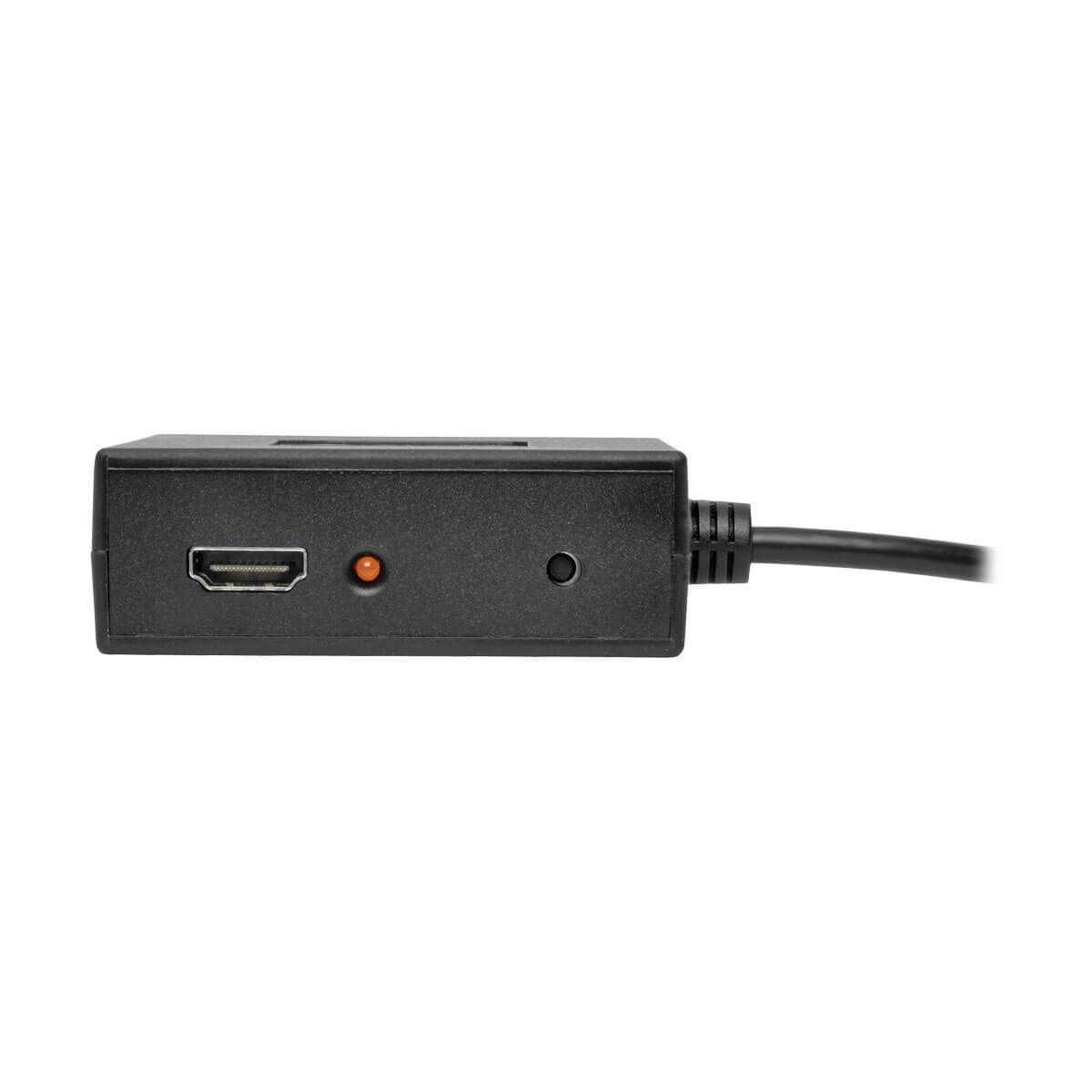

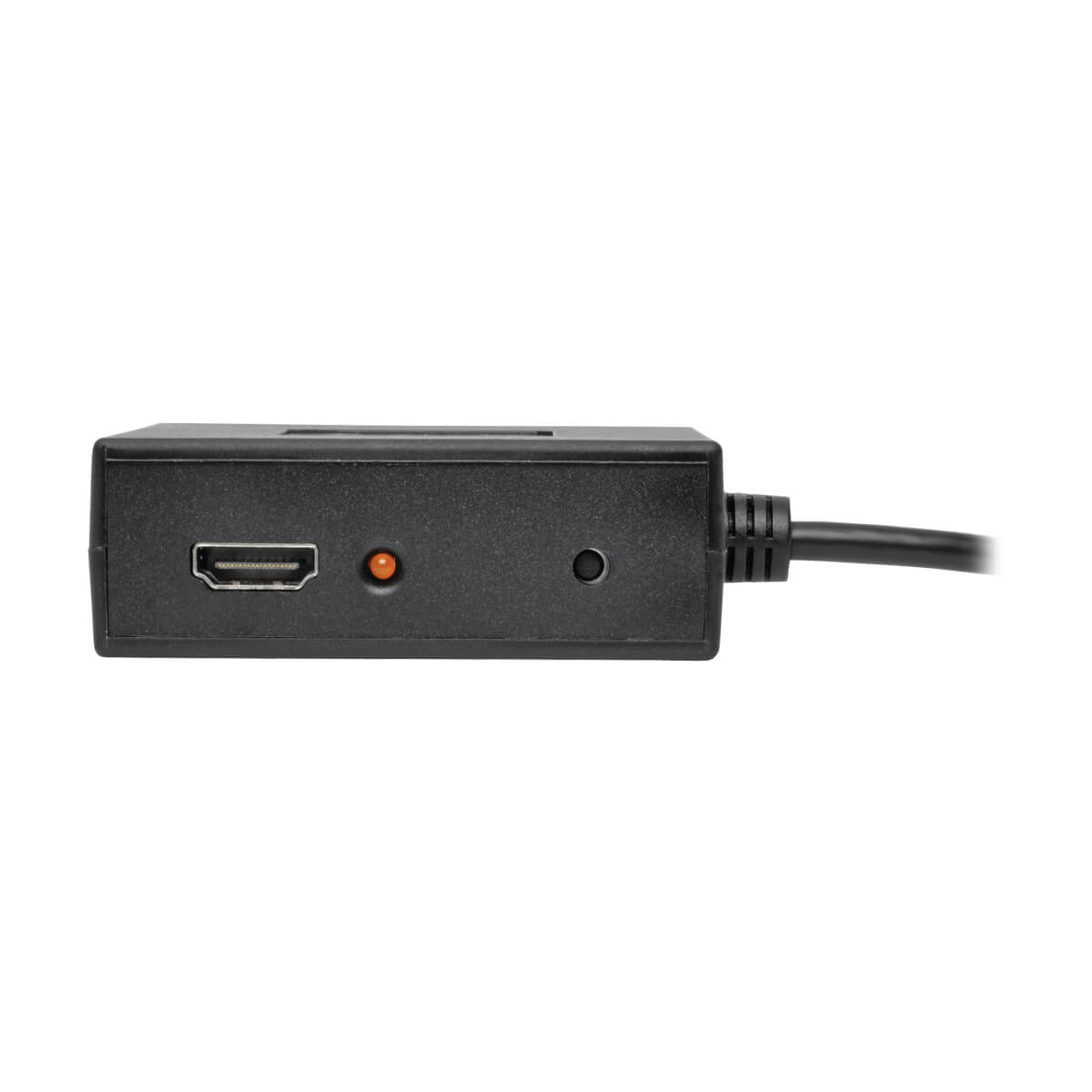

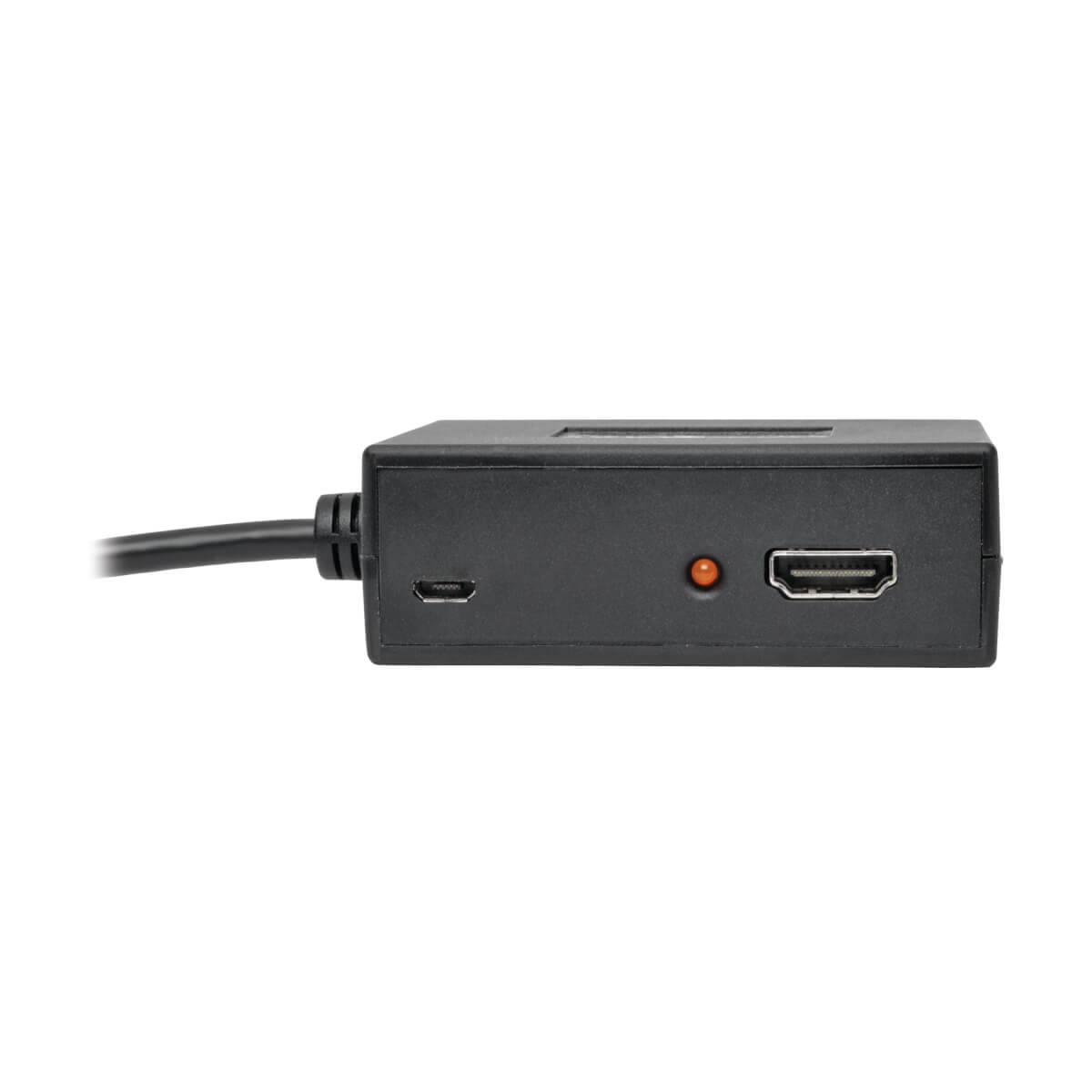

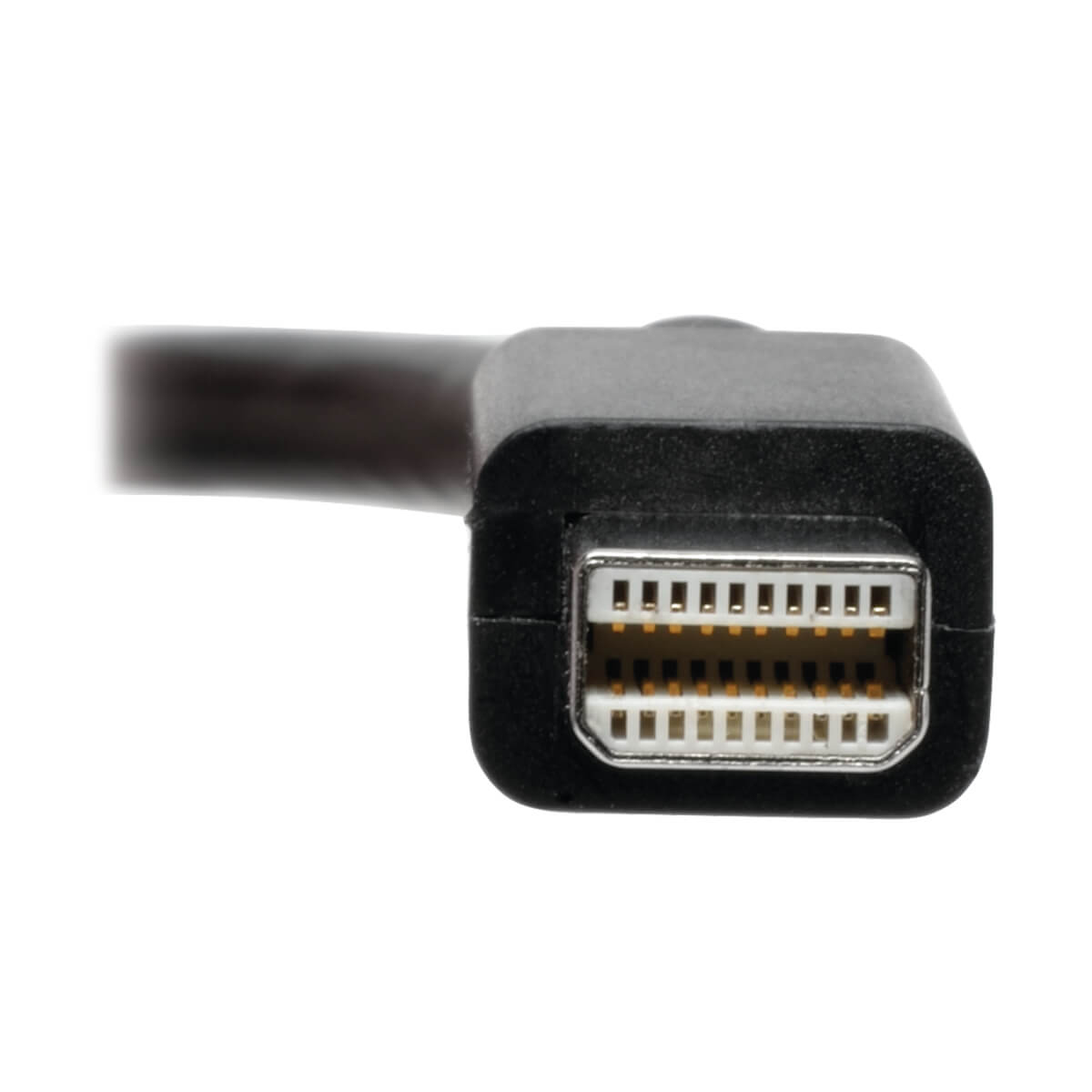

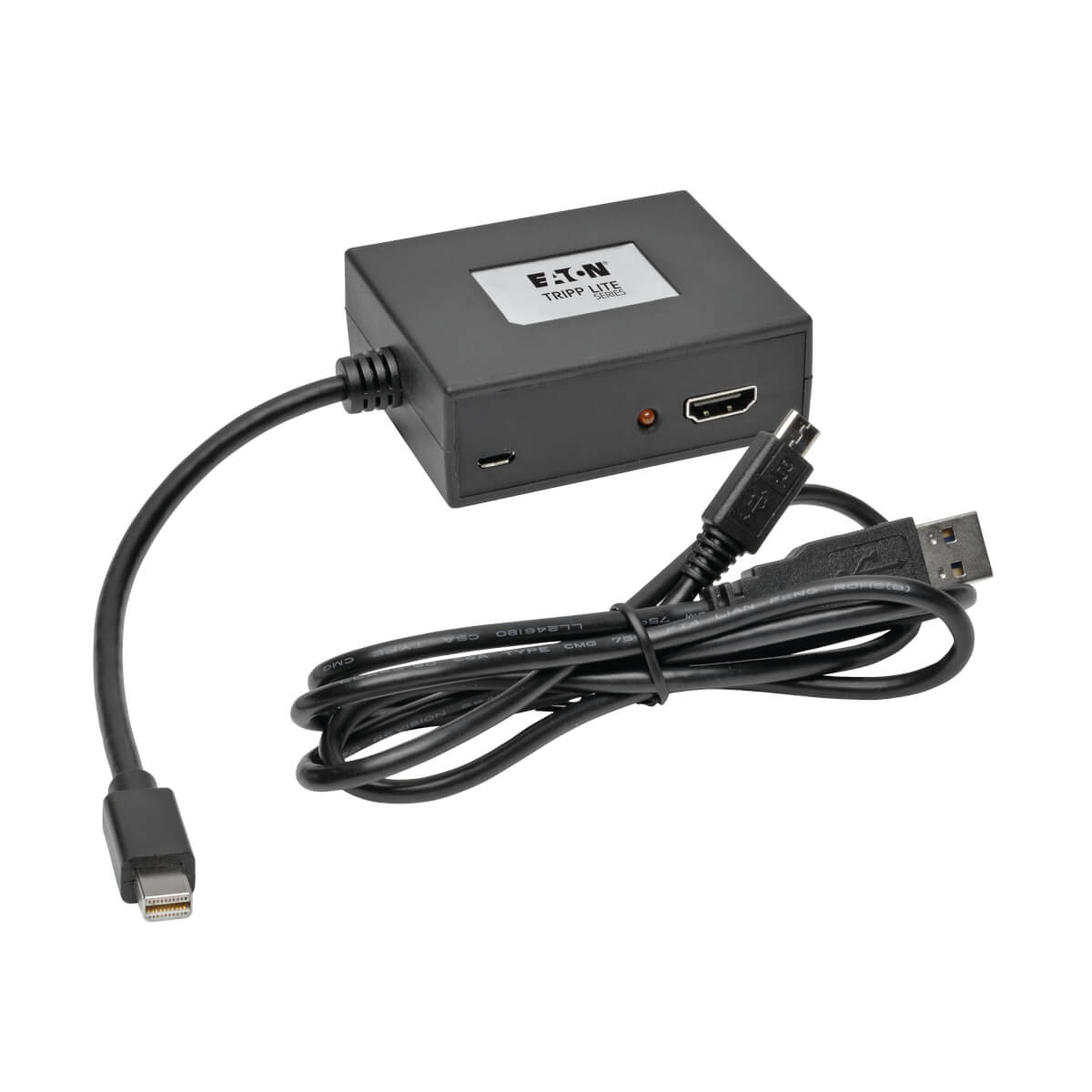

The B155-002-HD-V2 works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. The included three-foot USB Micro-B cable delivers necessary power from the connected computer. A built-in six-inch cable connects directly to an MDP source. LEDs indicate when the monitors are receiving a signal. The B155-002-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Specifications

Ports & interfaces
Video ports quantity2
Video port typeMini DisplayPort
Video out2x HDMI
Connector(s)MINI DISPLAYPORT (MALE), USB A (MALE), (2) HDMI (FEMALE)
Cable length5.91" (0.15 m)
Features
Dolby technologiesDTS-HD, Dolby TrueHD
Colour depth48 bit
Maximum resolution3840 x 2160 pixels
Full HDYes
HD-ReadyYes
HDCPYes
Plug and PlayYes
Easy to installYes
Product colourBlack
CertificationCE, FCC, RoHS, REACH
Cable length5.91" (0.15 m)
Country of originTaiwan
Weight & dimensions
Weight3.17 oz (90 g)
Dimensions (WxDxH)3 x 1 x 2.42" (76.2 x 25.4 x 61.5 mm)
Package weight6.35 oz (180 g)
Package depth5.59" (142 mm)
Package width1.73" (43.9 mm)
Package height7.87" (199.9 mm)
Packaging data
Package weight6.35 oz (180 g)
Package depth5.59" (142 mm)
Package width1.73" (43.9 mm)
Package height7.87" (199.9 mm)

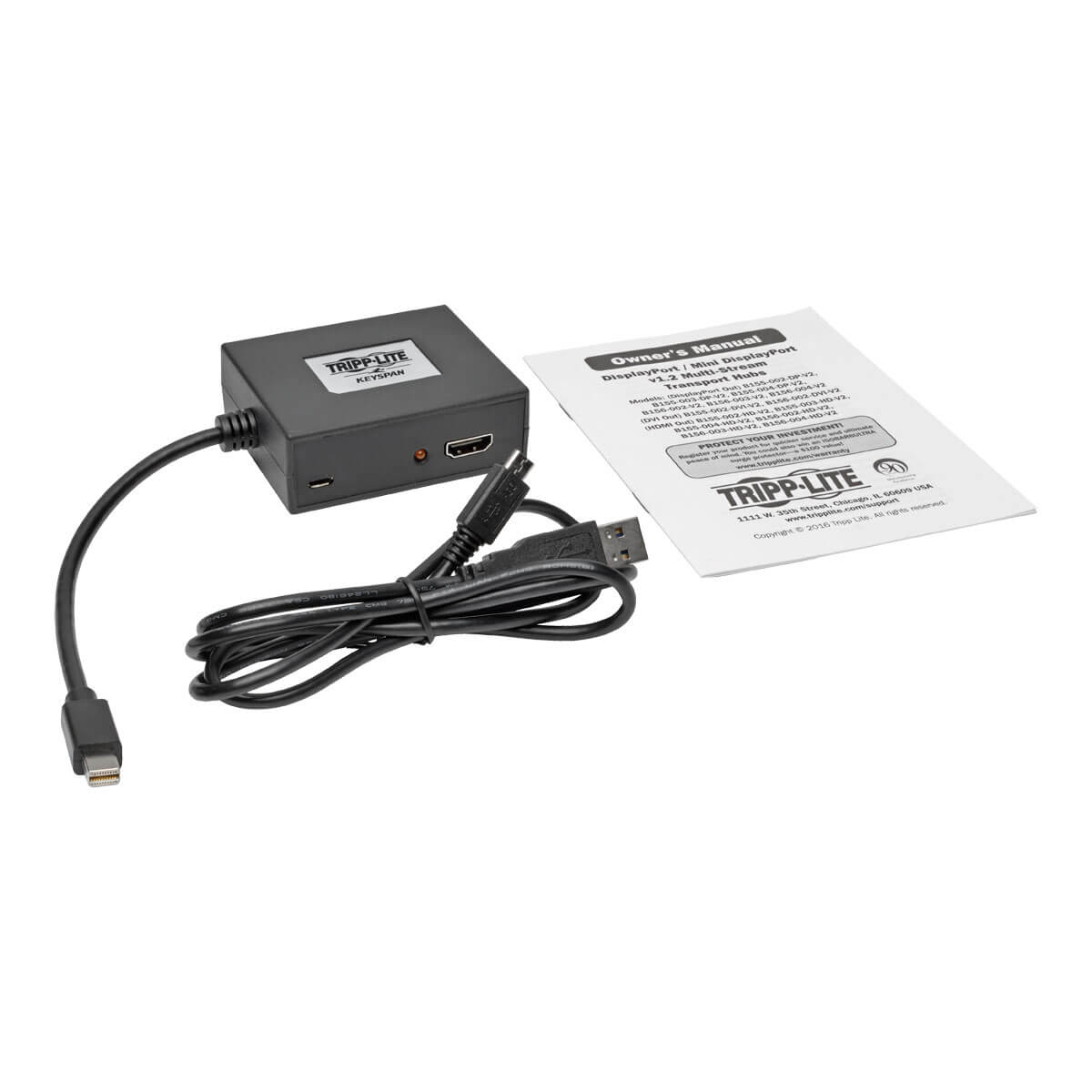

Packaging content
ManualYes
Cables includedMicro-USB
Video
Colour depth48 bit
Maximum resolution3840 x 2160 pixels
Full HDYes
HD-ReadyYes
HDCPYes
Colour
Product colourBlack
Certificates
CertificationCE, FCC, RoHS, REACH
Technical details
Dolby technologiesDTS-HD, Dolby TrueHD
Supported audio channels7.1
Package width1.73" (43.9 mm)
Package height7.87" (199.9 mm)
Video out2x HDMI
Plug and PlayYes
Easy to installYes
Logistics data
Master (outer) case width6.02" (152.9 mm)
Master (outer) case length8.39" (213.1 mm)
Master (outer) case height17.9" (455.9 mm)
Master (outer) case gross weight4.52 lbs (2.05 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332193442
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
