Tripp Lite B156-002-DVI-V2 video cable adapter DisplayPort 2 x DVI Black

Tripp Lite B156-002-DVI-V2 video cable adapter DisplayPort 2 x DVI Black

2-Port DisplayPort to DVI Multi-Monitor Splitter, MST Hub, DP1.2, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

2-PORT DISPLAYPORT TODVI MULTI STREAM TRANSPORTHUB MST 1080P

 814873 Register free see stock

Related Products

Description

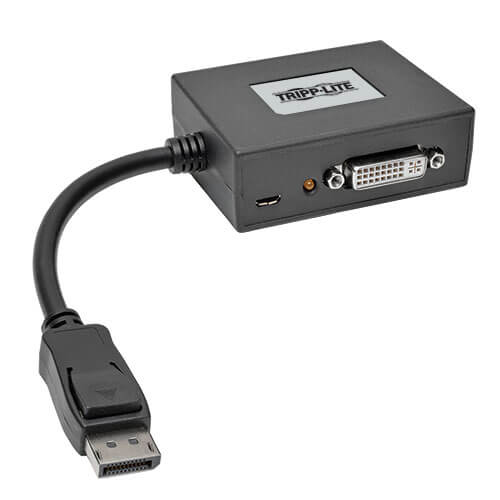

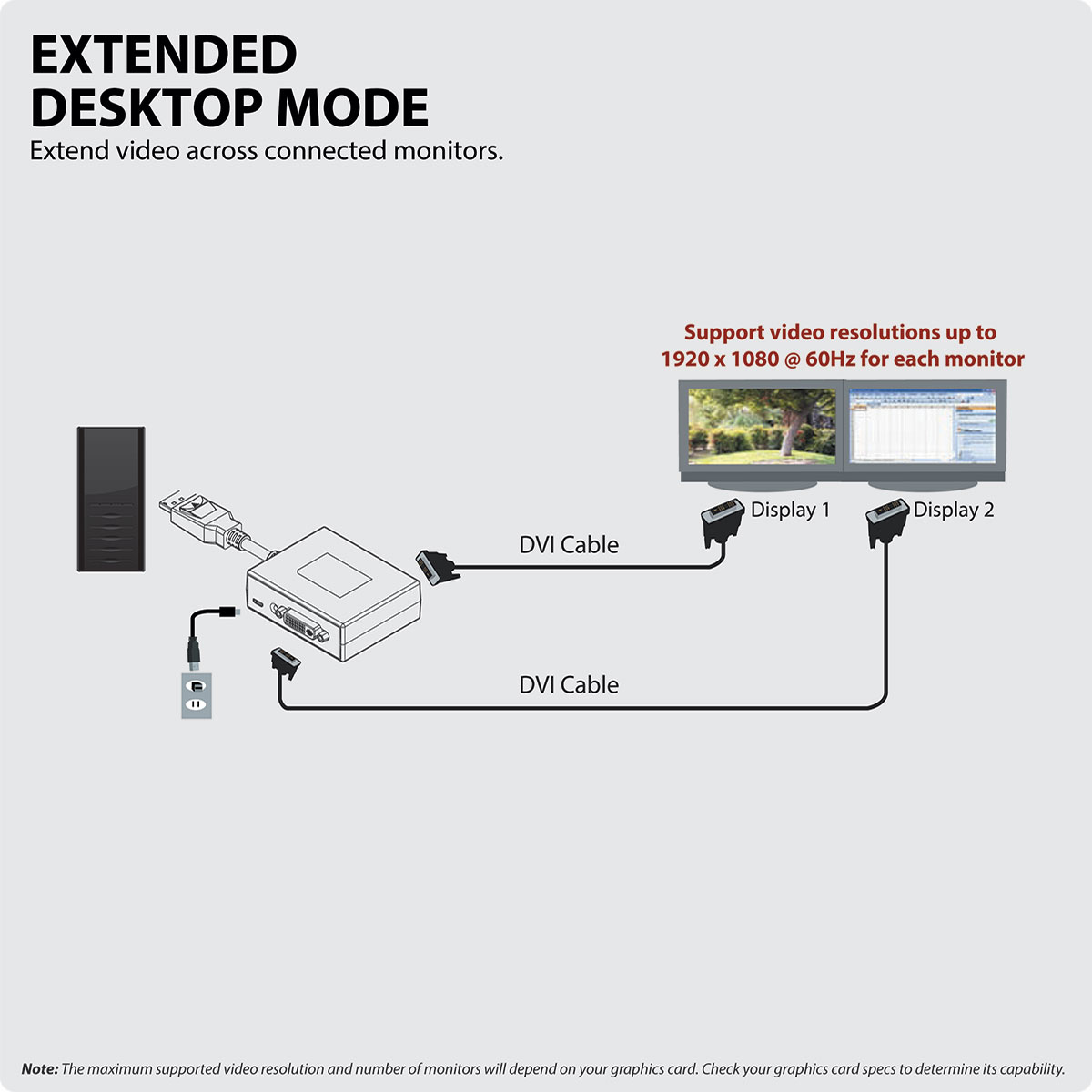

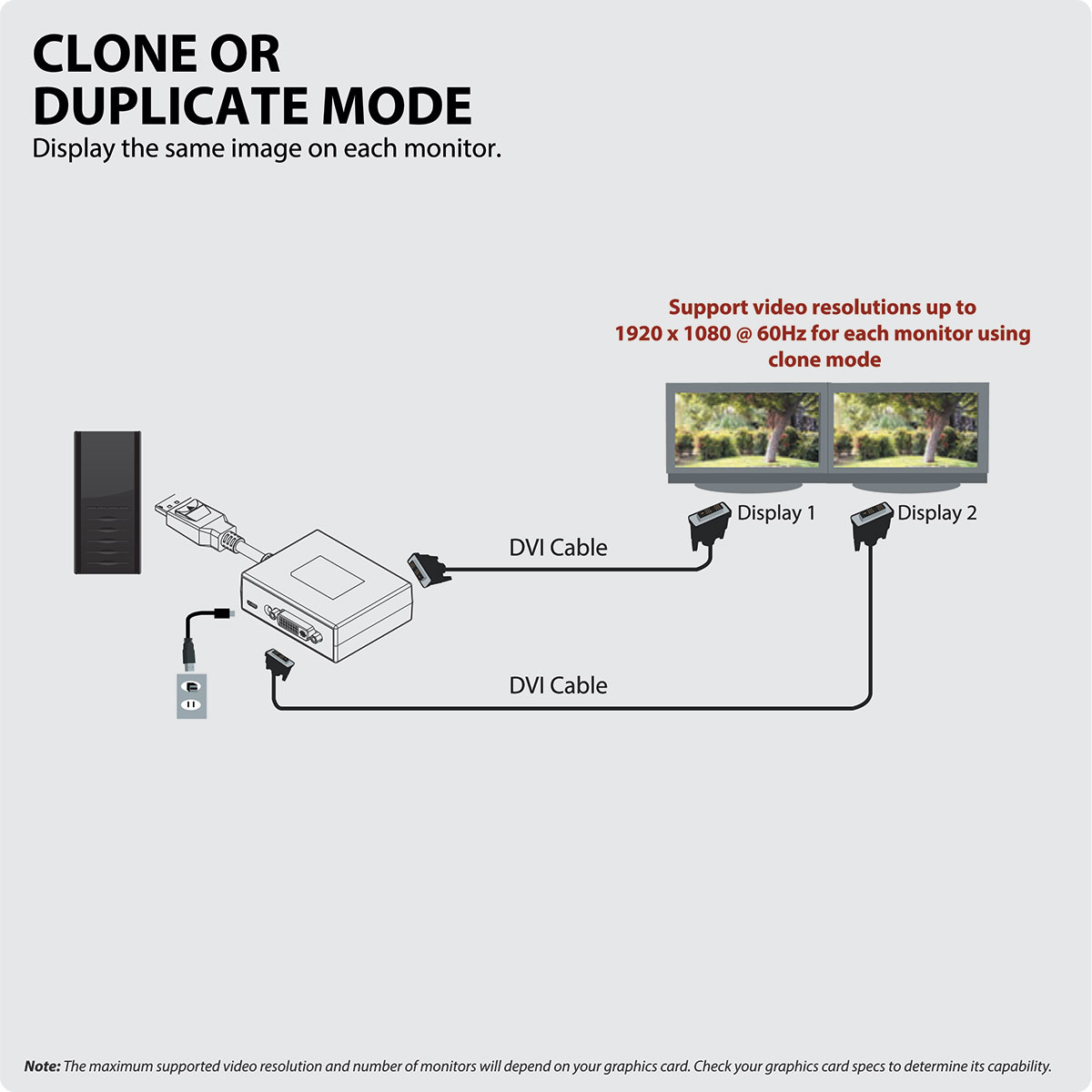

The B156-002-DVI-V2 2-Port DisplayPort 1.2 to DVI MST Hub connects two DVI monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on both monitors, extend the desktop across them, or combine both as one large monitor in video wall mode.

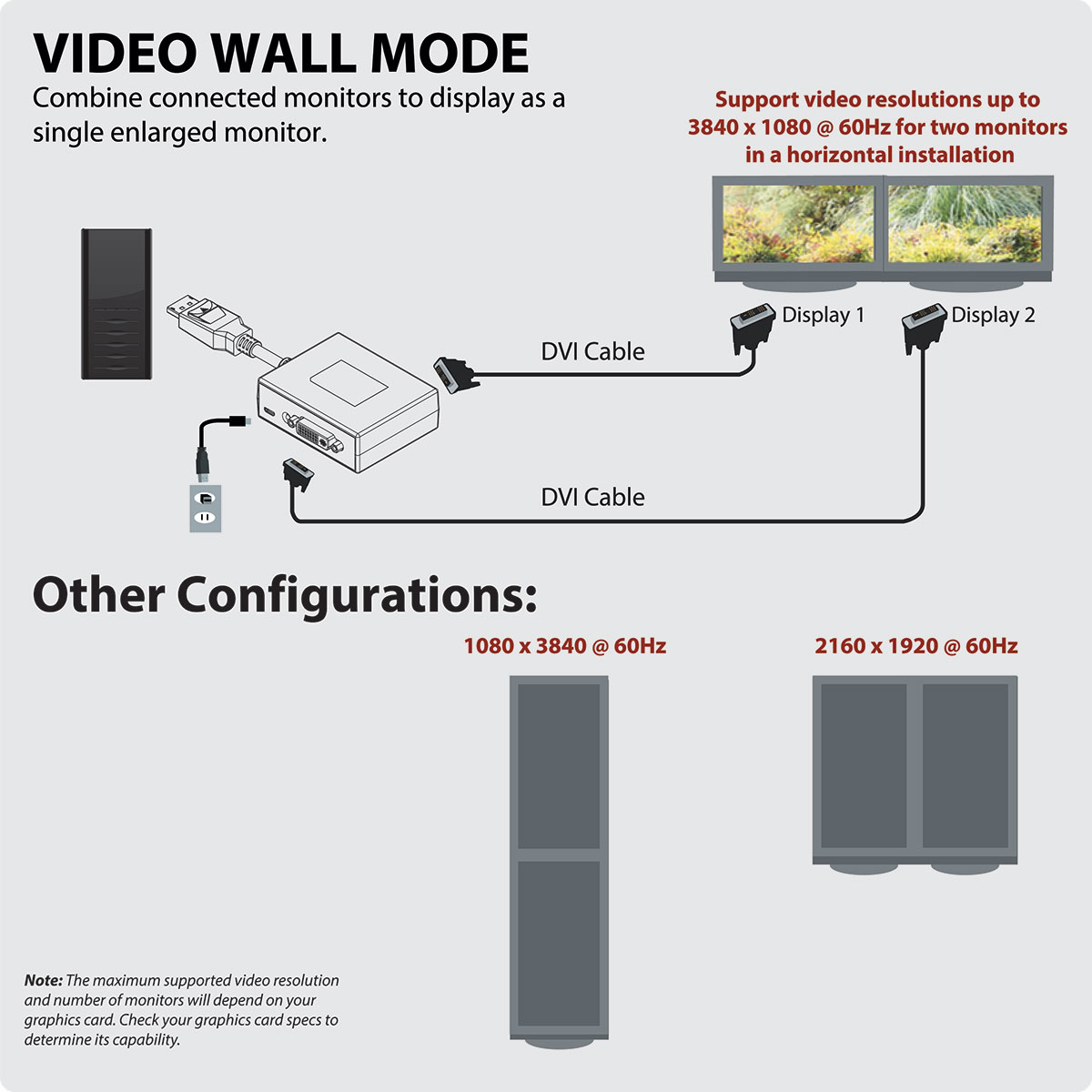

The B156-002-DVI-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1080p @ 60 Hz (1920 x 1080). Expanded video resolutions are supported when displaying in video wall mode, such as 3840 x 1080 in a horizontal 1 x 2 monitor configuration or 1920 x 2160 in a vertical 2 x 1 monitor configuration. The B156-002-DVI-V2 also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio.

This MST hub works with all operating systems. Plug-and-play convenience means no software, drivers or external power supply is needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-002-DVI-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Specifications

Features
Country of originTaiwan
Product colourBlack
Connector 1DisplayPort
Connector 22 x DVI
Connector 1 genderMale
Connector 2 genderFemale
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes1080p
Technical details
Country of originTaiwan
Weight & dimensions
Package width5.4" (137.2 mm)
Package depth7.8" (198.1 mm)
Package height1.8" (45.7 mm)
Package weight7.41 oz (210 g)
Packaging data
Package width5.4" (137.2 mm)
Package depth7.8" (198.1 mm)
Package height1.8" (45.7 mm)
Package weight7.41 oz (210 g)
Logistics data
Master (outer) case width6.1" (154.9 mm)
Master (outer) case length18" (457.2 mm)
Master (outer) case height8.4" (213.4 mm)
Master (outer) case gross weight5.09 lbs (2.31 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332193374
