Tripp Lite B155-002-VGA video splitter Mini DisplayPort 2x VGA

Tripp Lite B155-002-VGA video splitter Mini DisplayPort 2x VGA

2-Port Mini DisplayPort to VGA Hub, DP1.2, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2-PORT MINI DISPLAYPORT TOVGA SPLITTER 1920X1080 60HZB155-002-VGA 812294 Register free see stock
Ingram Micro MINI DISPLAYPORT VGA SPLITTER 2W5368
TD Synnex 2-PORT MINI DISPLAYPORT TO VGA SPLITTER 1080P 1920X1080 60HZ TAA 4384264

Related Products

Description

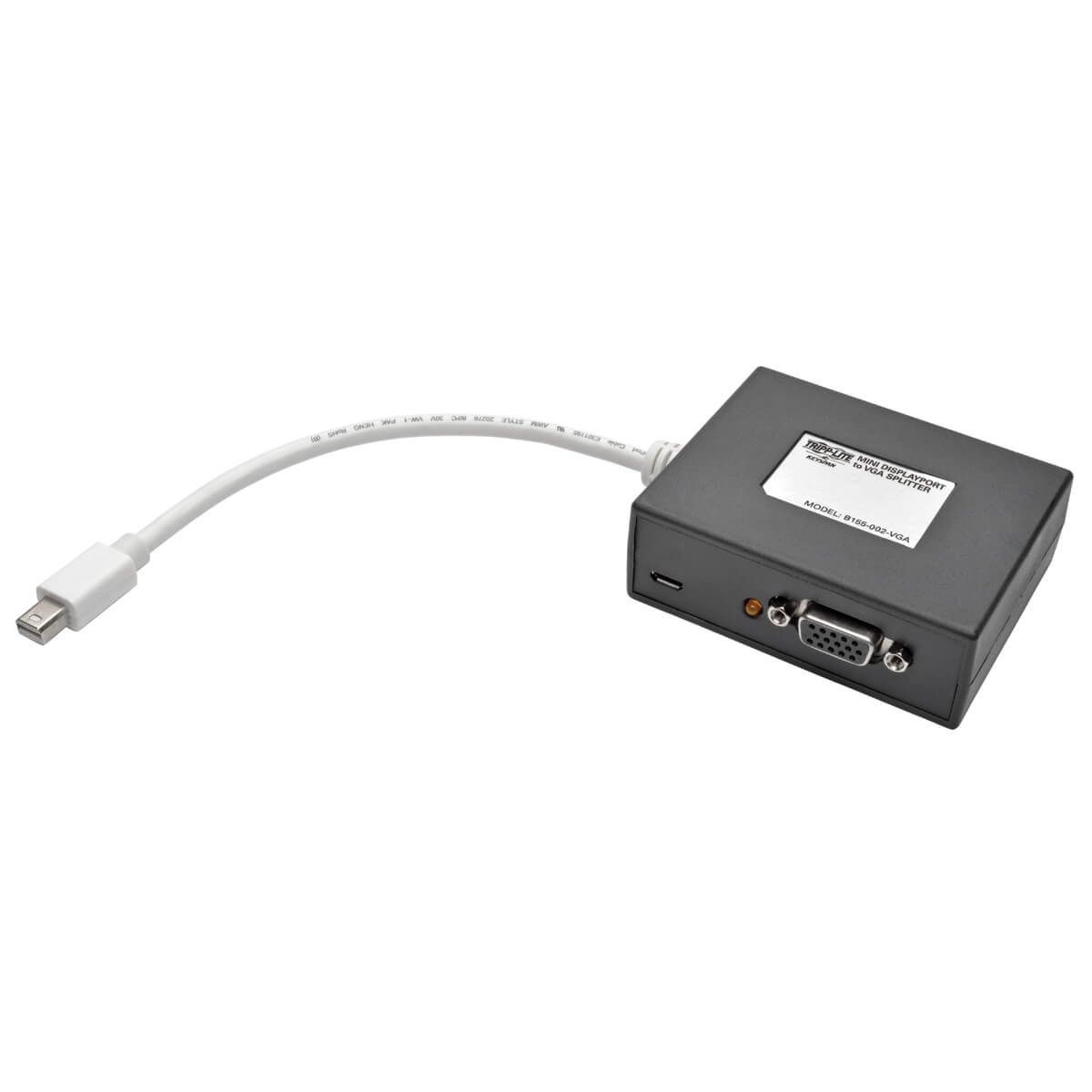

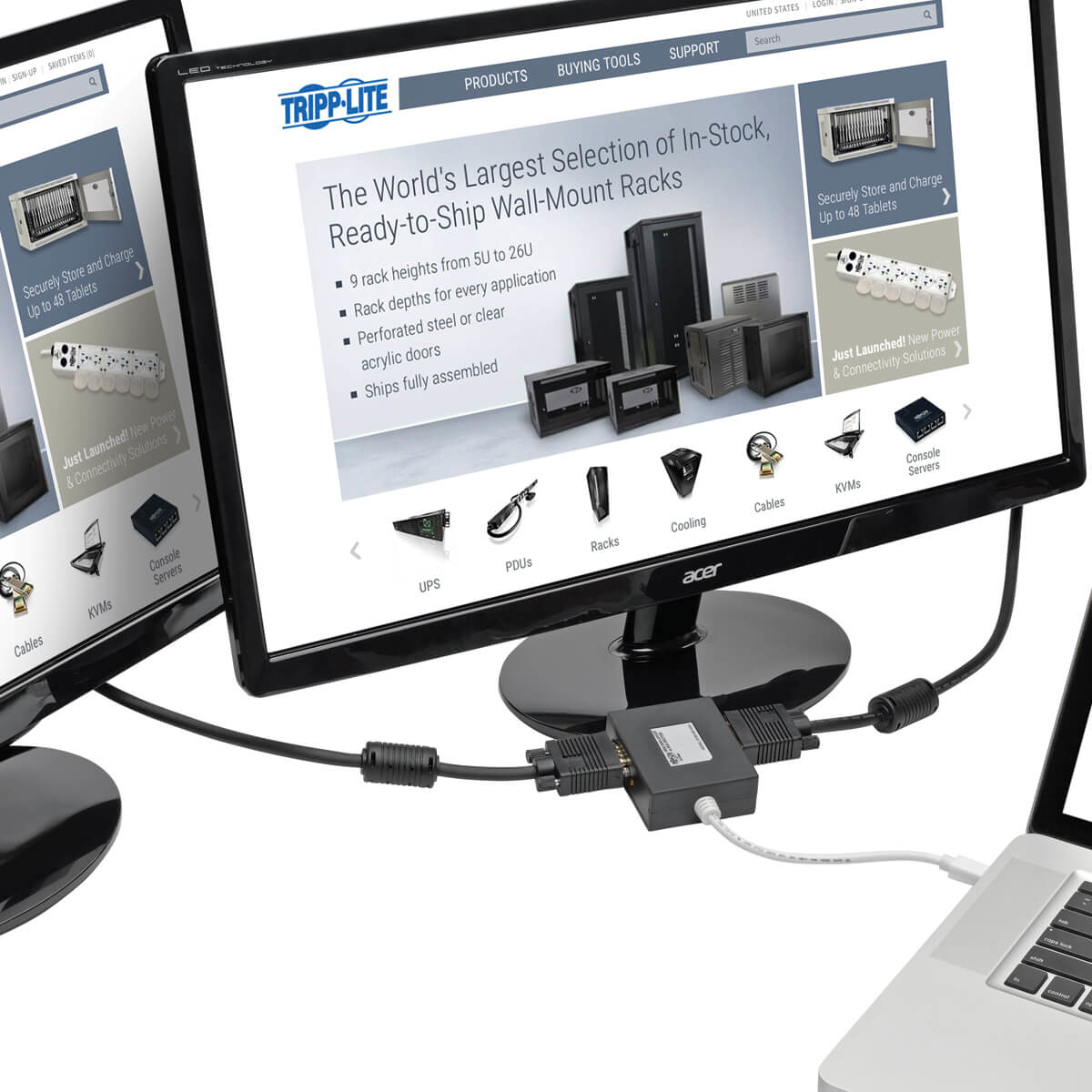

The B155-002-VGA 2-Port Mini DisplayPort to VGA Splitter converts and splits a Mini DisplayPort video signal for display on two VGA-enabled monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, retail settings, trade shows and classrooms, this compact splitter features a built-in Mini DisplayPort cable that connects to the source. It lets you use your existing VGA displays instead of buying new Mini DisplayPort monitors or docking stations.

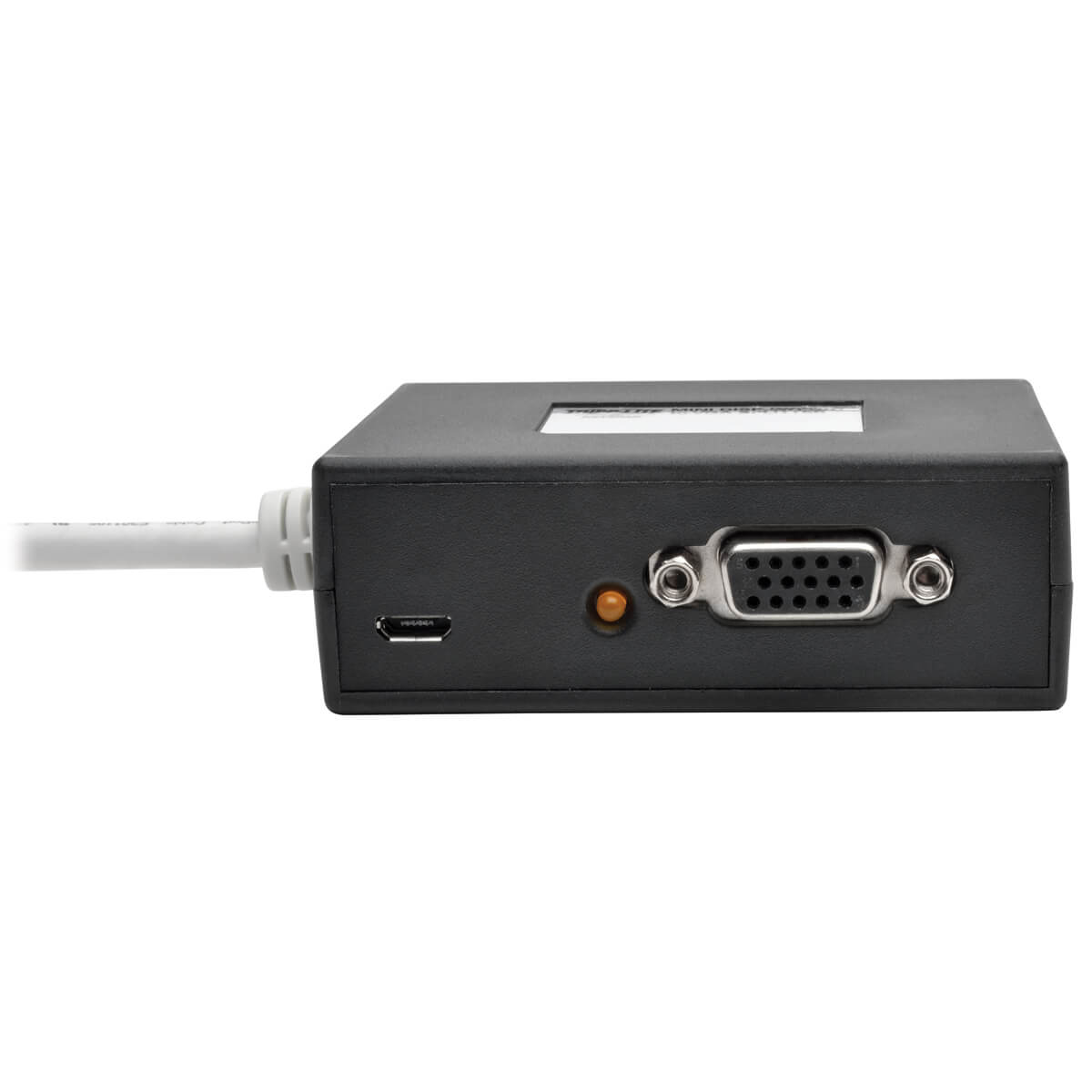

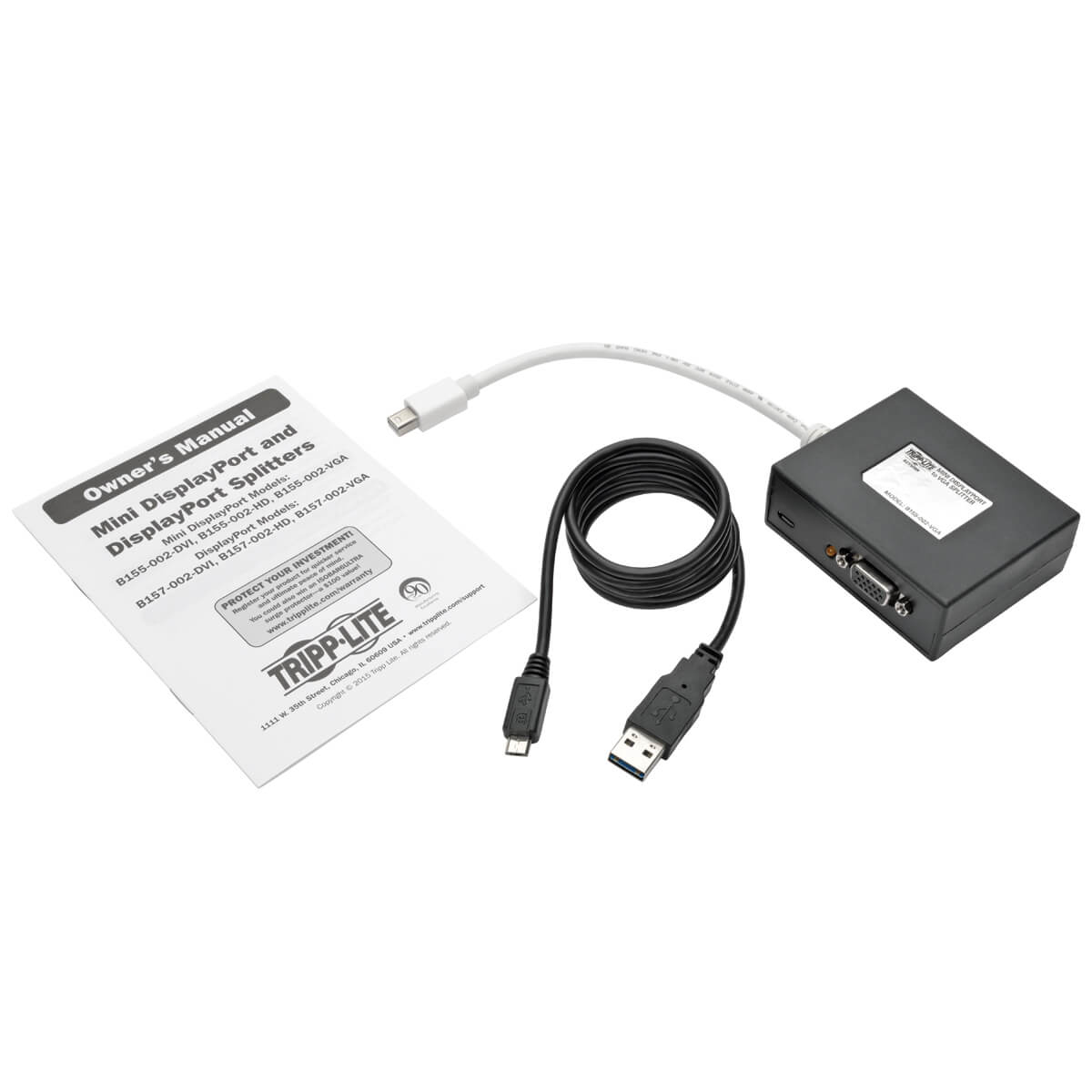

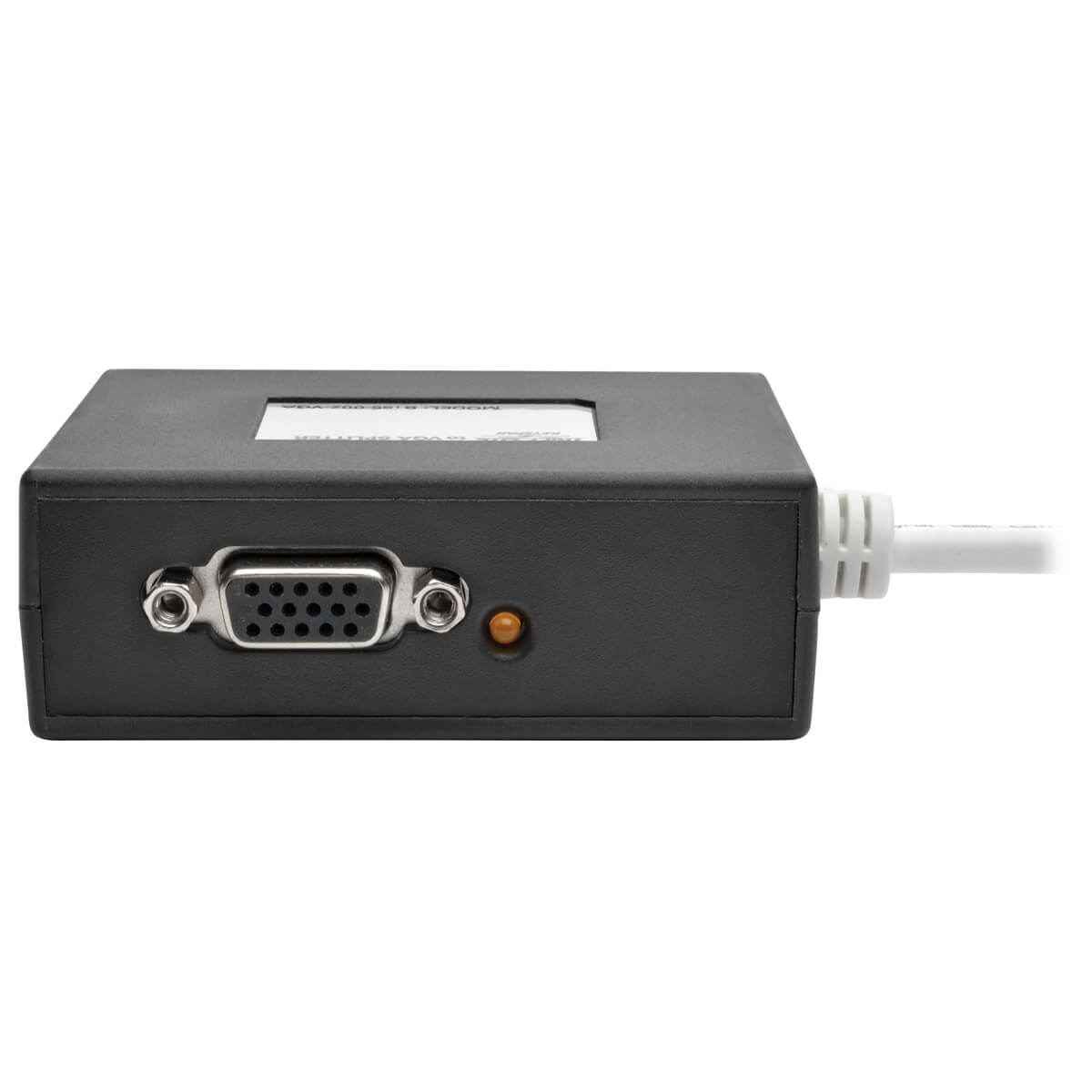

The B155-002-VGA supports video resolutions up to 1080p @ 60 Hz (1920 x 1080), as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.

Specifications

Ports & interfaces
Video ports quantity2
Video port typeMini DisplayPort
Video out2x VGA
Connector(s)Mini DisplayPort
Features
LED indicatorsStatus
Maximum refresh rate60 Hz
Windows operating systems supportedYes
Mac operating systems supportedYes
Supported graphics resolutions1920 x 1080 (HD 1080)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Supported video modes1080p
Plug and PlayYes
Product colourBlack, White
CertificationTAA, RoHS
Country of originTaiwan
Packaging data
Package weight9.52 oz (270 g)
Package depth5.6" (142.2 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Packaging content
ManualYes
Cables includedMicro-USB
Video
Maximum refresh rate60 Hz
Supported graphics resolutions1920 x 1080 (HD 1080)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Supported video modes1080p
Colour
Product colourBlack, White
Certificates
CertificationTAA, RoHS
Indication
LED indicatorsStatus
Technical details
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Video out2x VGA
Plug and PlayYes
System requirements
Windows operating systems supportedYes
Mac operating systems supportedYes
Weight & dimensions
Package weight9.52 oz (270 g)
Package depth5.6" (142.2 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Logistics data
Master (outer) case width18" (457.2 mm)
Master (outer) case length8.4" (213.4 mm)
Master (outer) case height6" (152.4 mm)
Master (outer) case gross weight6 lbs (2.72 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332191486
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
